JS203K 5212 Bench-top Photo Picture Frame Joint machine ,underpinner for PS MDF

Wood frame Seamless pneumatic nail angle machine

Notice : when the parcel arrived to your customs  ,please pay the

            tax and pick up the parcel  ,we are not responsible for

            any customs duty or import tax


              if your place is remote ,then need to pay 35usd .

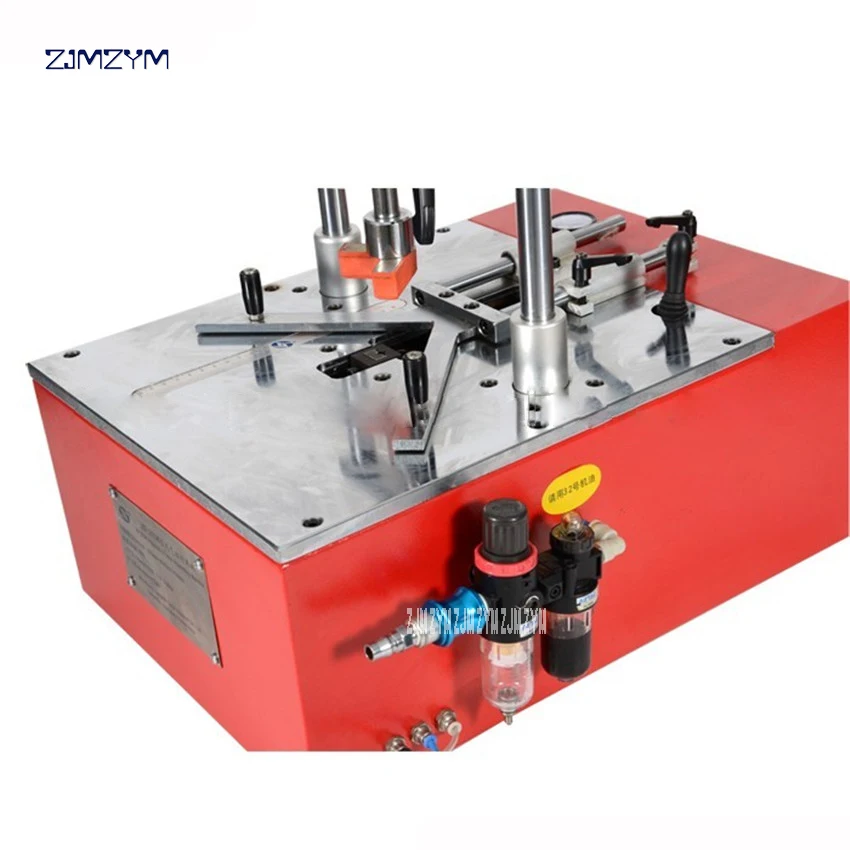

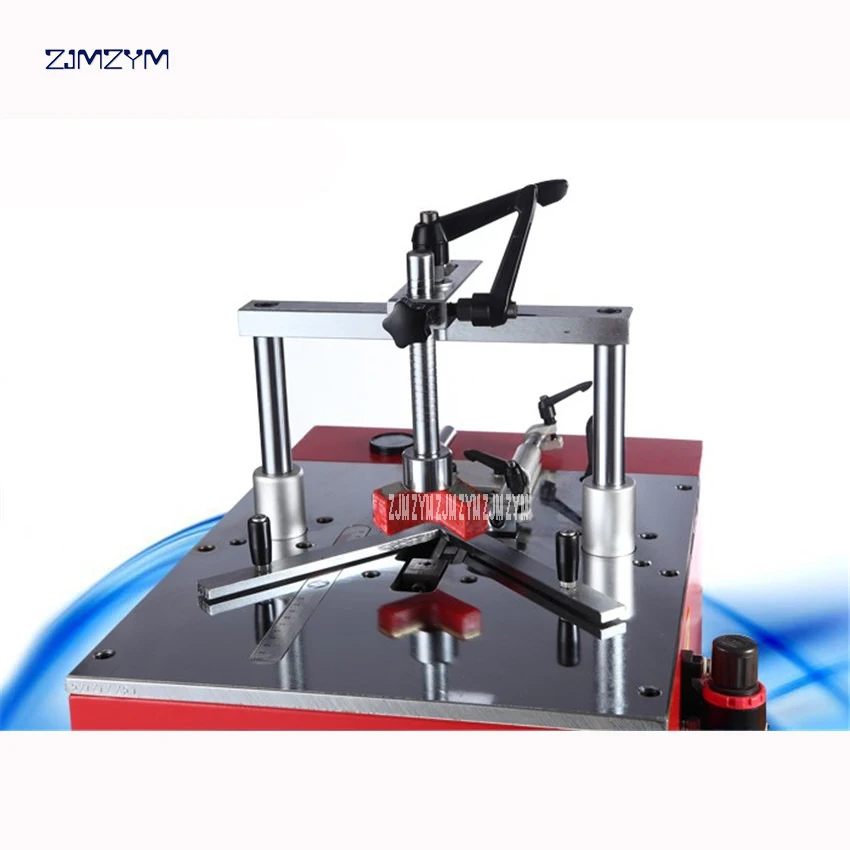

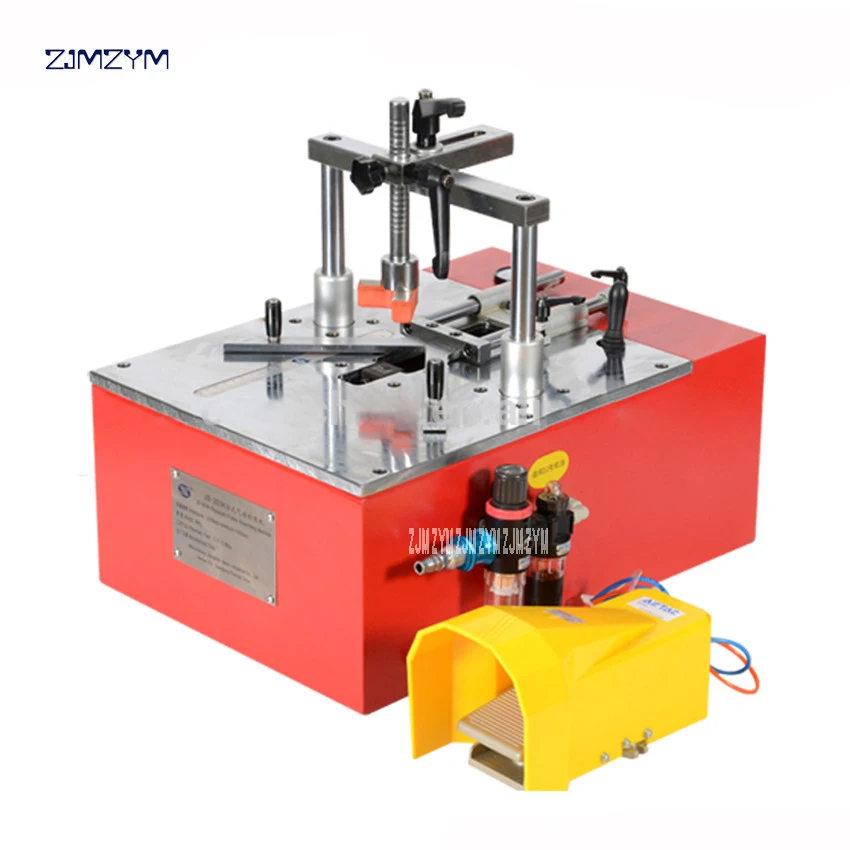

Picture showing :

Specification:

Name:Seamless pneumatic nail angle machine
Model: JS203K 5212
Working pressure: 0.6-0.8MPa
Maximum nail width: 110 mm
Nail thickness: 115 mm
Available V nail size: 7/10/12/15 mm
Packing size: 53*43*46cm
Weight: 35KG

The JS-5212 is a bench-top, frame joining machine and the most popular model of custom frame shops. It is compact, well constructed,and built for many years of trouble free operation. The design of the JS-5212 allows the operator to set the front and back measuring stops for V-Nail insertion. The frame is then moved across the nail head and V-Nails are driven or stacked anywhere along the frame joint. The V-Nail insertion is actuated through the use of a pneumatic pedal.
