HIKVISION 8MP NVR DS-7732NI-K4/16P International Version For 32 Ch Cameras 16 PoE Ports Hik-Connect Wholesale | Безопасность и

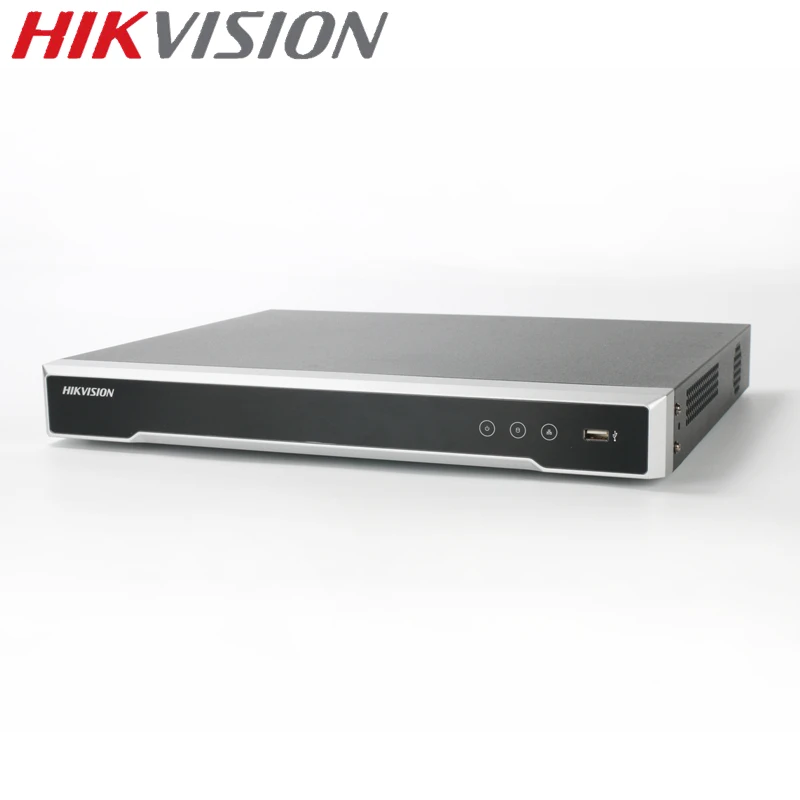

DS-7732NI-K4/16P

32-ch 1.5U 16 PoE 4K NVR Up to 32 channel IP cameras can be connected Supports decoding H.265+/H.265/H.264+/H.264 video formats Up to 4K high-definition live view, storage and playback Up to 8-ch @ 1080p decoding capacity Up to 256 Mbps high incoming bandwidth ensures IP cameras can be connected 1 HDMI and 1 VGA interfaces: both interfaces support independent video output.4 HDDs for continuous video recording Compatible with third-party network cameras Plug & Play with 16 Power-over-Ethernet (PoE) interfaces Supports various specific function cameras, including thermal camera /fisheye/people counting/heatmap/ANPR (automatic number plate recognition) Channel-zero function ensures smooth remote live view and playback in low bandwidth environments Video And Audio IP Video Input32-ch Incoming/Outgoing Bandwidth256 Mbps 160 Mbps HDMI Output4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1kΩ) Decoding Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF Decoding FormatH.265/ H.265+/H.264/H.264+/MPEG4 Synchronous Playback16-ch Capability2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps) Network Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface POE Interface Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power≤ 200 W Supported StandardIEEE 802.3 af/at Hard Disk SATA4 SATA interfaces CapacityUp to 6 TB capacity for each HDD External Interface Serial Port1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional) USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 Alarm In/Out16/4 General Power≤ 300 W Power Supply100 to 240 VAC Consumption (Without HDD)≤ 20 W (without enabling PoE) Working Temperature-10 °C to 55 °C (14 °F to 131 °F) Working Humidity10 to 90 % Dimensions (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8") Weight (Without Hard Disk)≤ 5 kg (11. lb)



​
