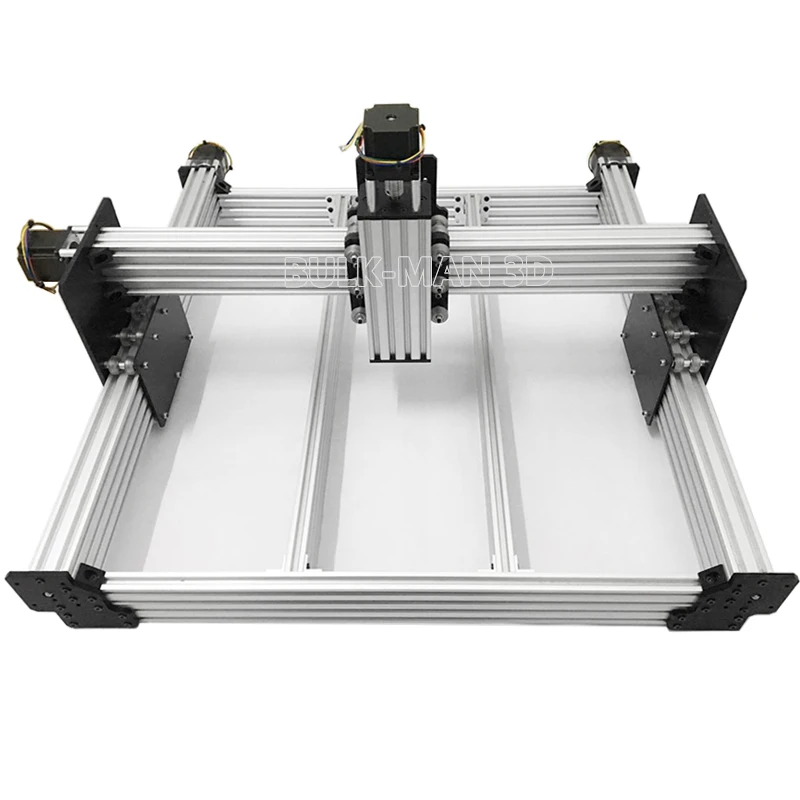

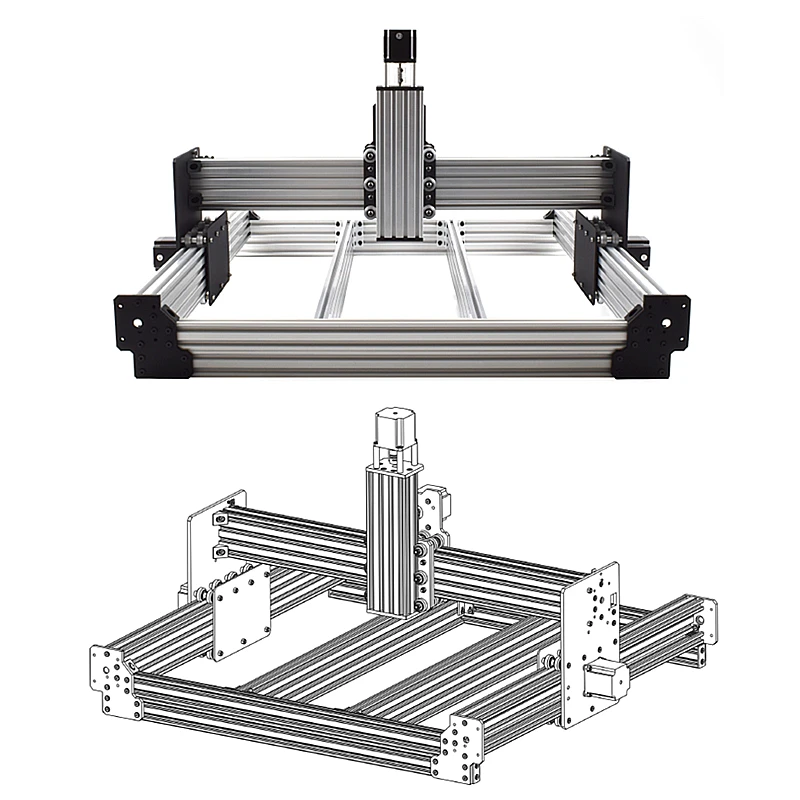

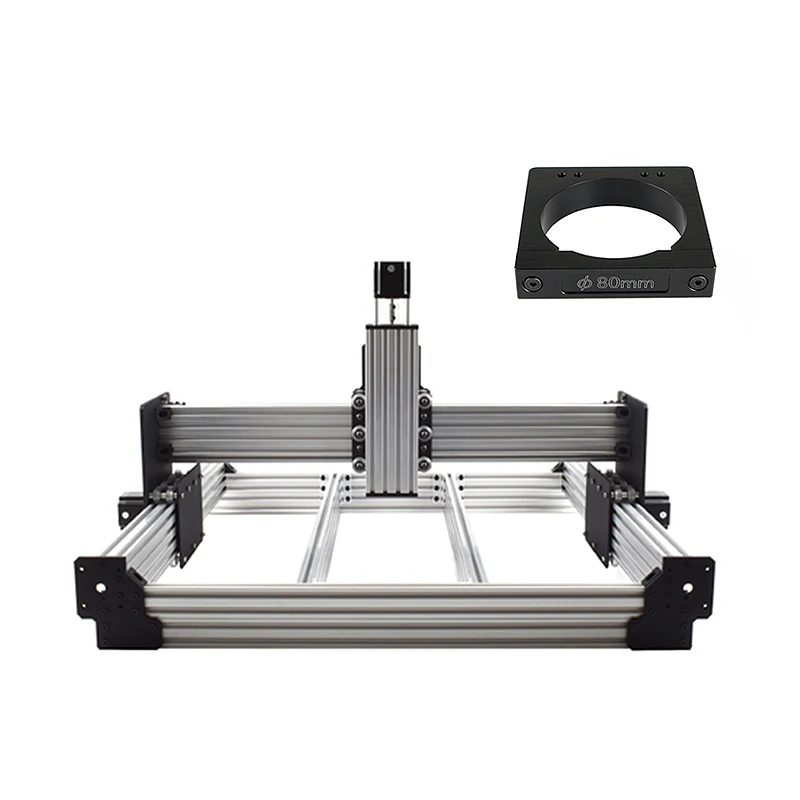

Disassembled pack DIY CNC Router frame Engraver Laser Engraving Machine 1000x1000 1500x1500mm




Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



Note: Disassembled delivery, need assemble by customer.

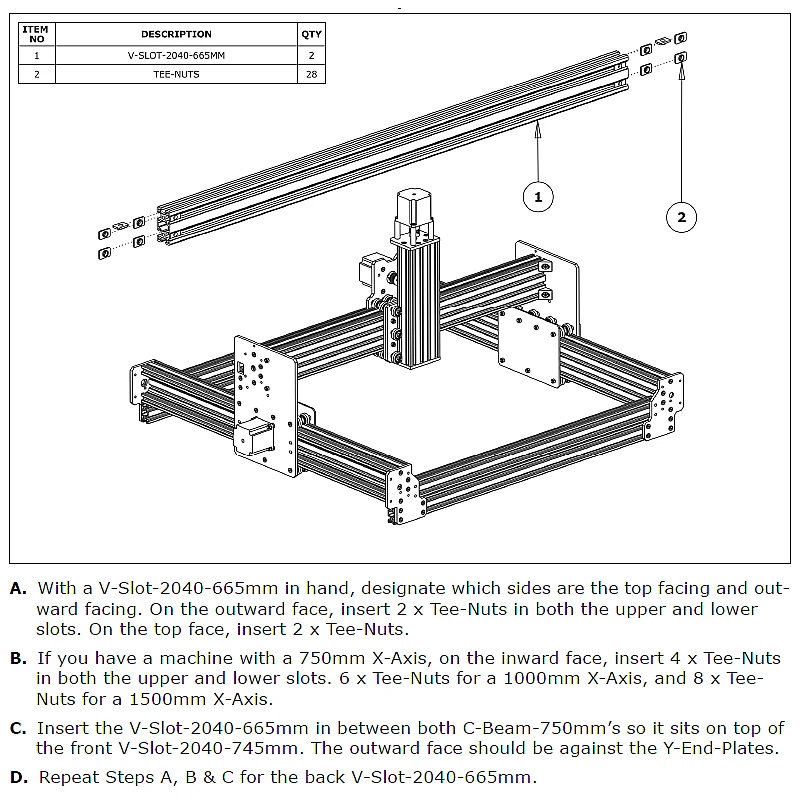

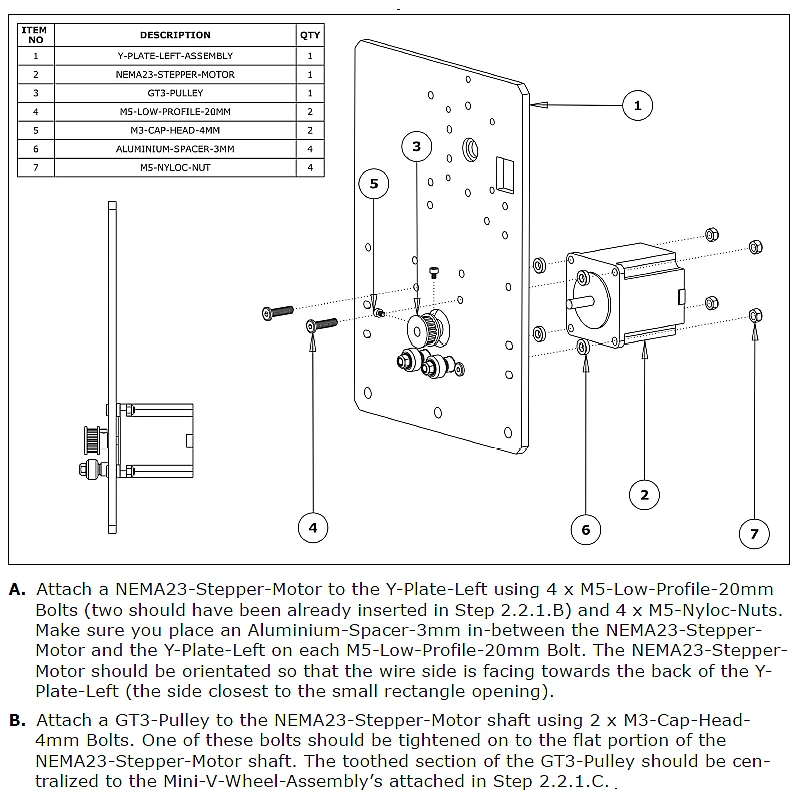

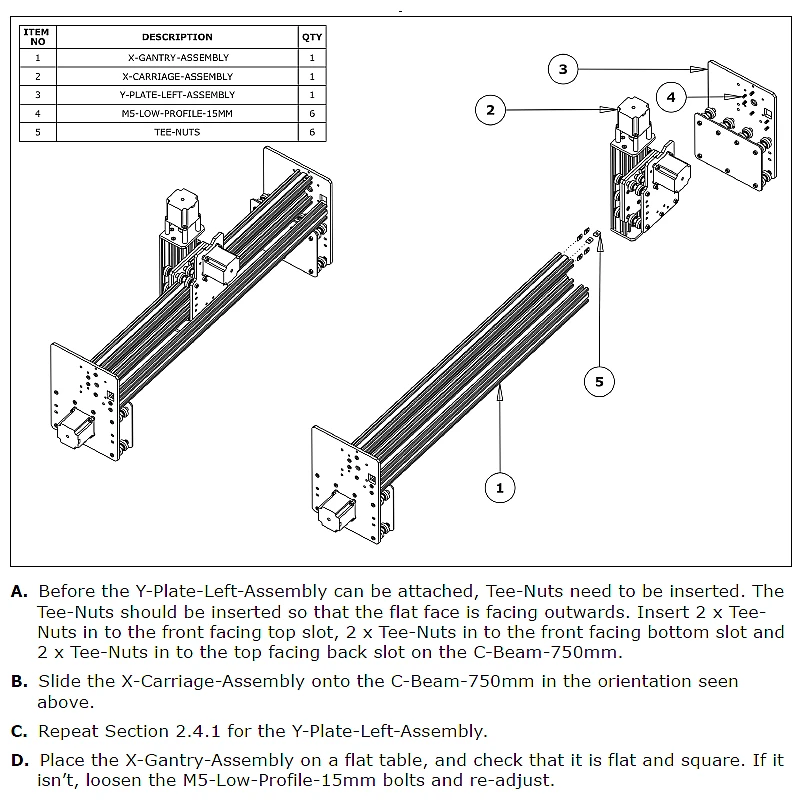

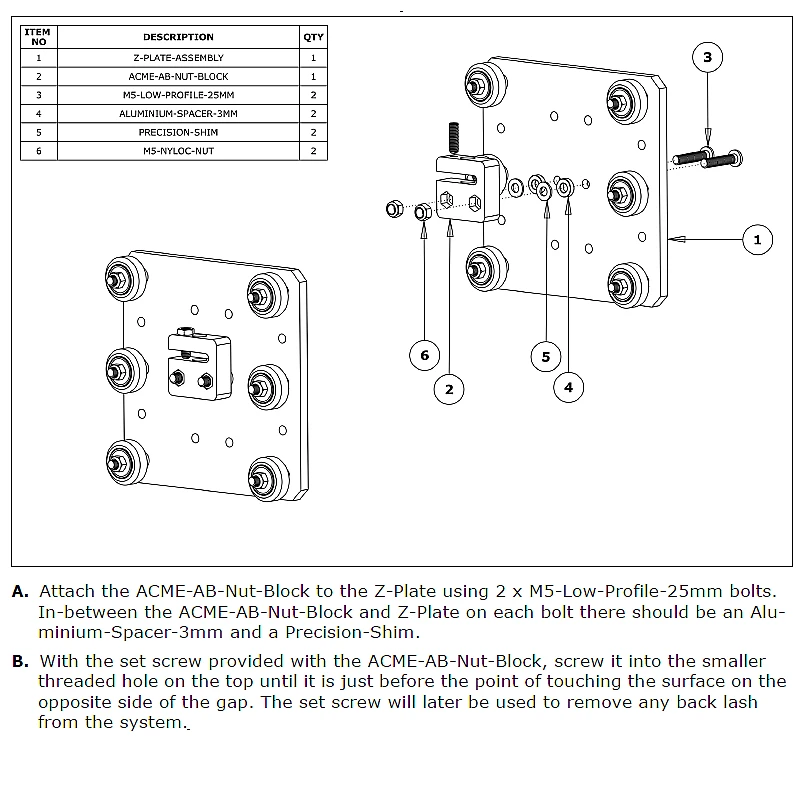

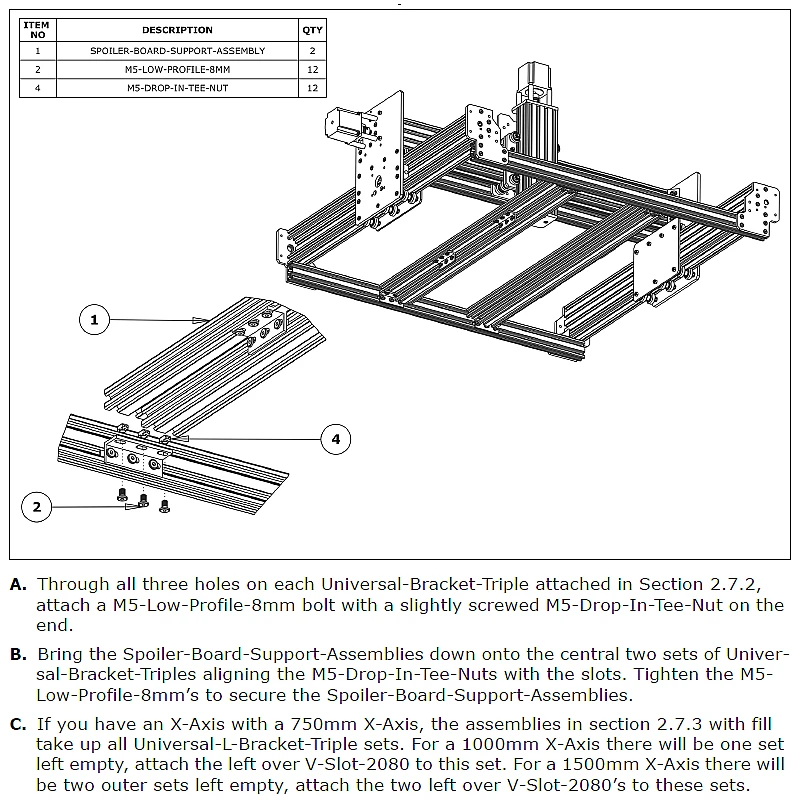

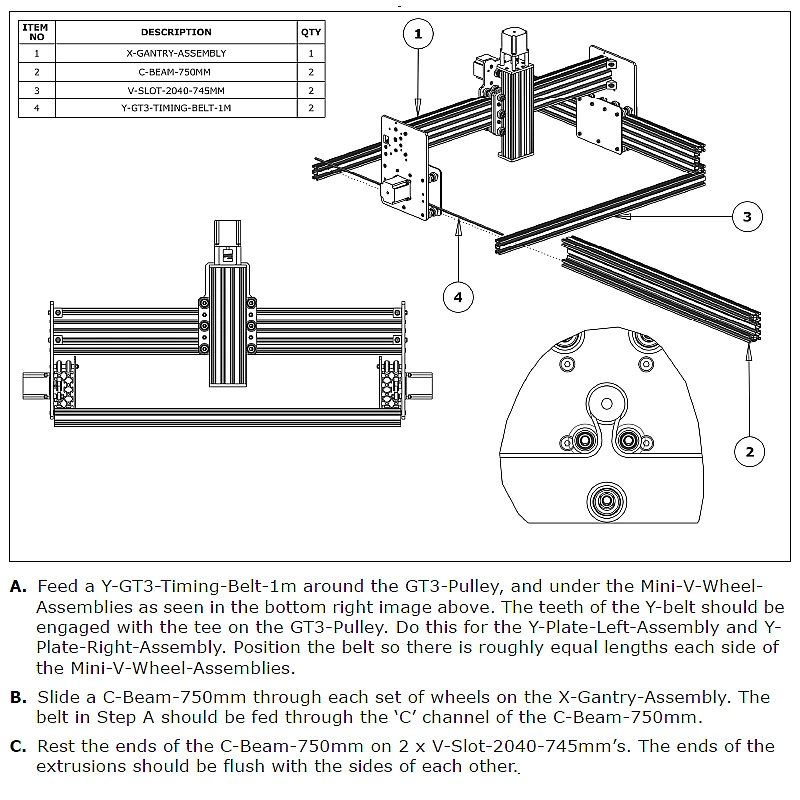

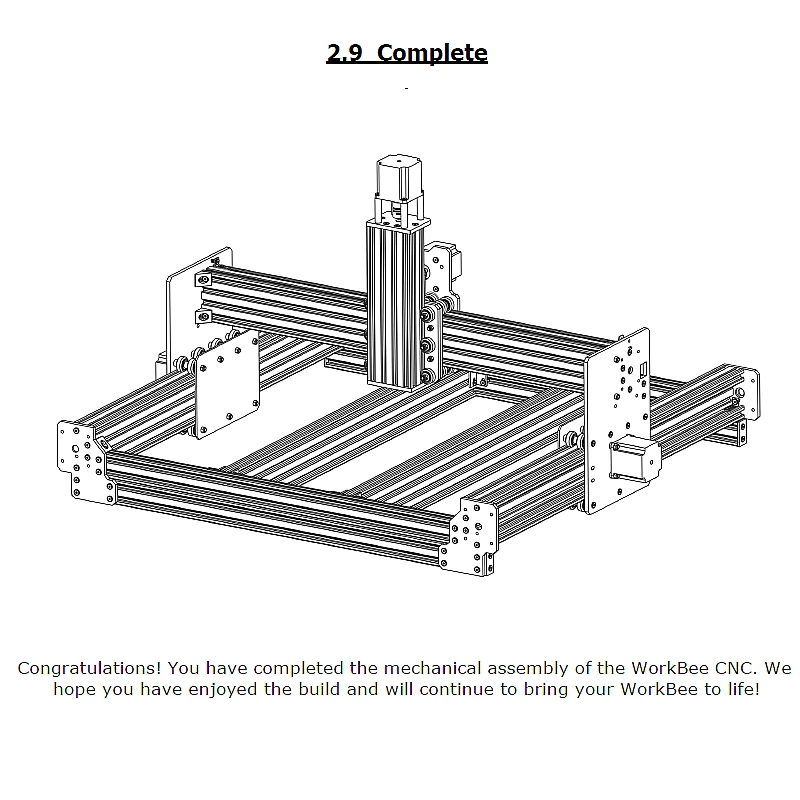

Assembly Manual in Enlish as below:

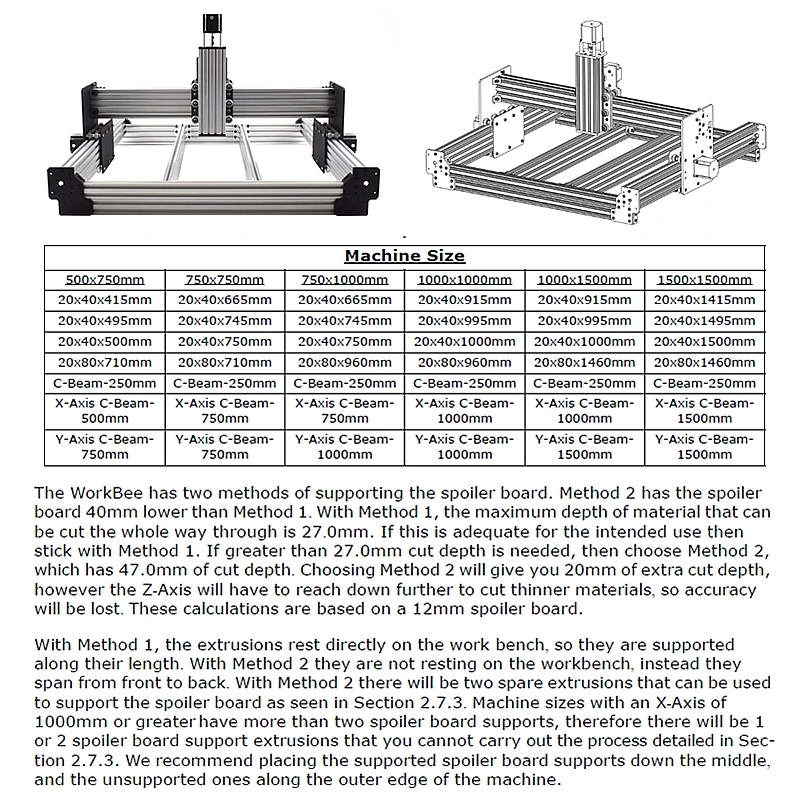

Model and Technical Parameters

MODEL

CNC Router Frame

Attribute

Screw Driven

Belt Driven

Frame Size (mm)

500x750

750x750

750x1000

1000x1000

1000x1500

1500x1500

Engraving area (mm)

300x520

550x520

550x770

800x770

800x1270

1300x1270

Weigh (KG)

22

24

26

28

35

42

Z Height

54mm Or 94mm Travel, 27mm Or 47mm Workable depth, with a 12mm spoilerboard. The spoilerboard supports have two height configurations, these are the maximums for each configuration.

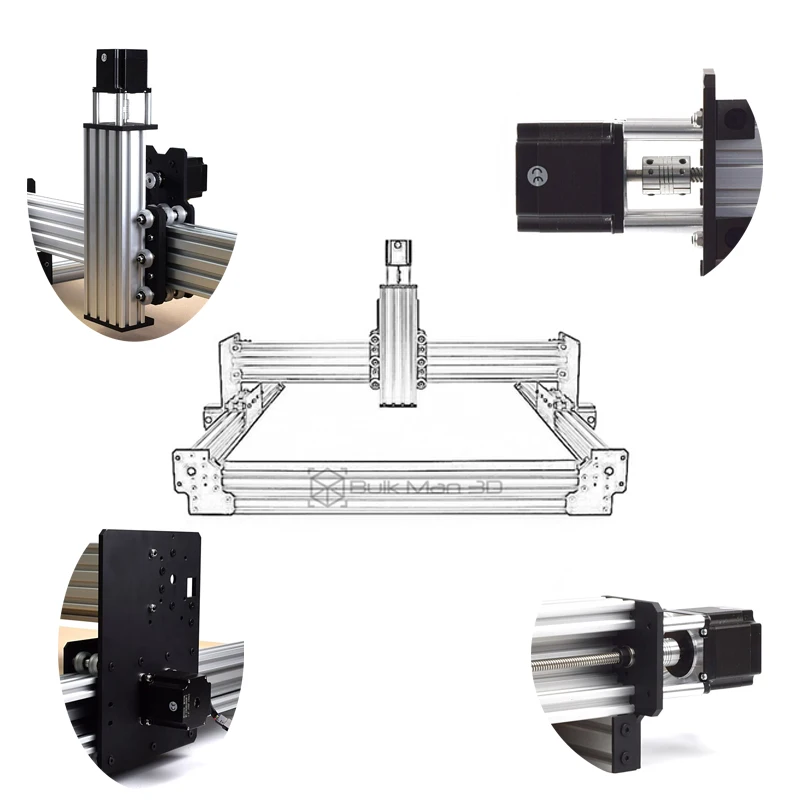

Motion

Drive System - ACME Lead Screws Or GT3 Timing Belts

Linear Guides - Polycarbonate wheels on anodised C-Beam V-Slot Extrusion.

Motors - NEMA23 175oz Stepper Motors (X, Y & Z)

Accuracy - 0.05 - 0.10mm (Screw Driven) Or 0.10 - 0.20mm (Belt Driven)

Note - Maximum recommended speed for Lead Screws 1000mm or greater is 400RPM.

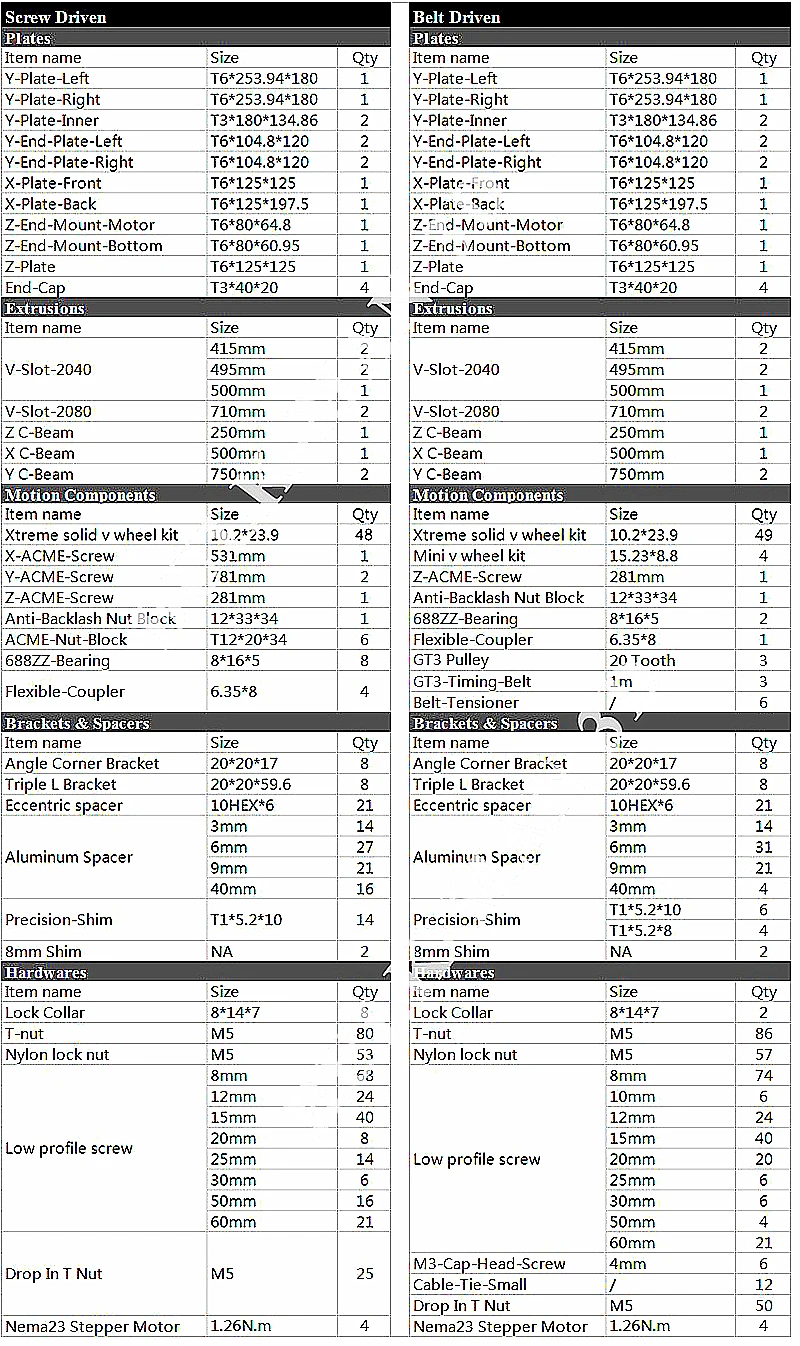

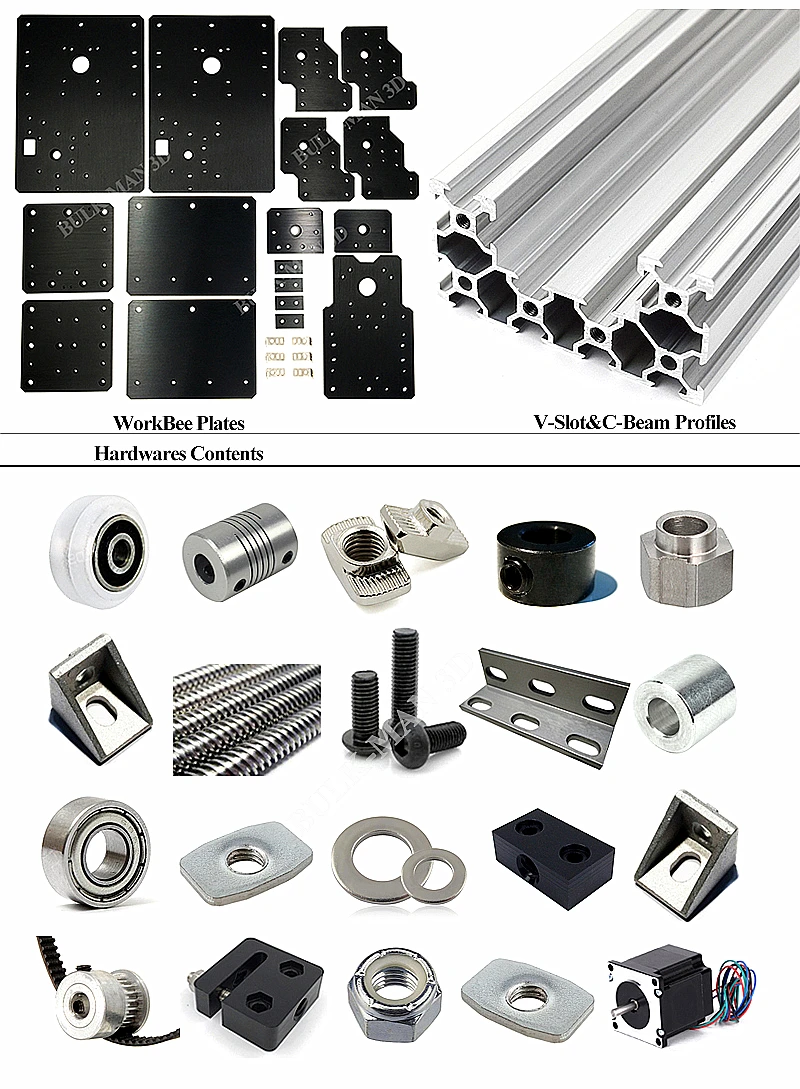

Packing list:

1 x CNC Router frame

4 x Nema23 Stepper Motors

1 x PDF Assembly Manual is available by email

Note :

Disassembled delivery, need assemble by customer.
