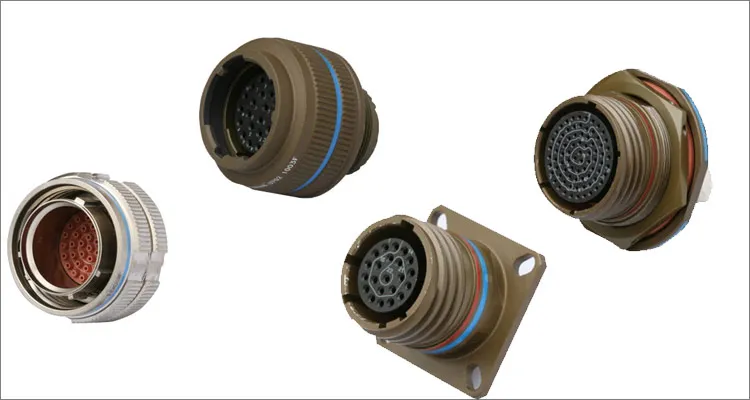

High contact density connectors 8LT Series MIL-DTL-38999 I Aerospace military circular electrical connector | Инструменты

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-4{font-size:16px}#detail_decorate_root .magic-5{font-size:14px}#detail_decorate_root .magic-6{width:750px;border-collapse:collapse}#detail_decorate_root .magic-7{min-height:18px;padding:5px 10px;width:692px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{display:none}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:473px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:200px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:18px;padding:5px 10px;width:472px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:18px;padding:5px 10px;width:693px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:201px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-15{margin-bottom:0}#detail_decorate_root .magic-16{position:relative;width:100%}#detail_decorate_root .magic-17{vertical-align:top}#detail_decorate_root .magic-18{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-19{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-20{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-21{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:214px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:214px}#detail_decorate_root .magic-24{min-height:18px;padding:5px 10px;width:132px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:18px;padding:5px 10px;width:187px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:18px;padding:5px 10px;width:139px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;margin-right:0;margin-bottom:0;width:undefinedpx;min-height:0}#detail_decorate_root .magic-28{width:180px;height:144px;max-width:100%;max-height:100%}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:507px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:507px} Products Description Description • High contact density
• Bayonet coupling
• Weight and Space Saving
• Quick Mating - 3 point bayonet lock system
• Mismating, error proof positioning - keyway polarization (5 positions)

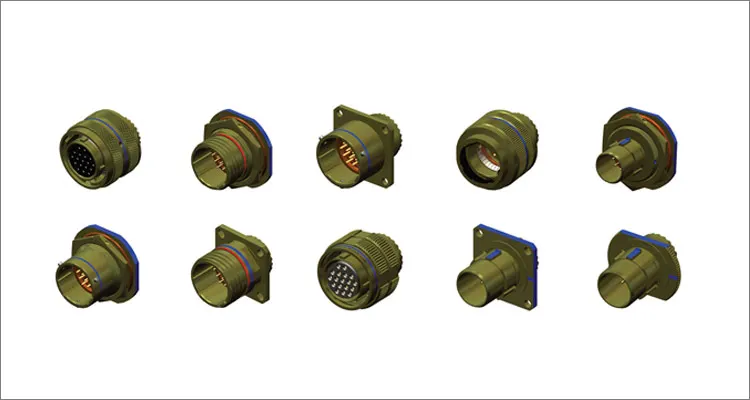

• High choice of Insert arrangements (customization possible, please consult us)
• Range extension available or on demand (Rack Panel, Potted, Hermetics, Low Profle, Filters, etc..),
• Versatility thanks to our inserts as for the series III (except for 8LT type 2) with full range of crimp contacts
interchangeable
• Gold plated crimp or spill contacts are rear removable and retained in the insulator by a metal clip.
• RoHS version available (cadmium free) Technical parameter Material   Shell material aluminum alloy Plating olive green cadmium (B)
. nickel (F)
. green zinc cobalt (Z)
. black zinc nickel (L) Insulator thermoplastic or metallic version
available for specifcation 284 & 384 Grommet or seal liquid silicone rubber or
fluorocarbone elastomer for specifcation 022 Contact copper alloy Plating contact gold over nickel Endurance 500 mating / unmating
operations Chock 300 g during 3 ms and as per
MIL S 901 grade A Vibration Sine 10 to 2000 Hz - 30 g
. Random 100 à 300 Hz - 5 g²/Hz Electrical   Insulation resistance ≥ 5 000 MW (at 500
Vcc) Contact resistance resistance of wire included in measurement
. size 22D: 14.6 mΩ . size 12: 3.5 mΩ
. size 20: 7.3 mΩ . size 8: 3 mΩ
. size 16: 3.8 mΩ . size 4: 2 mΩ Contact rating . size 22D: 5 A . size 12: 23 A
. size 20: 7.5 A . size 8: 45 A
. size 16: 13 A . size 4: 80 A Shell continuity . olive green plating: 2.5 mΩ
. nickel plating: 1 mΩ
. green zinc cobalt: 2.5 mΩ
. black zinc nickel: 2.5 mΩ Details Images Packaging & Delivery Packing details: 1, Our standard packing: 1/2/3/4/5pcs connectors put into a transparent polybag, every big polybag with a label. then put into a carton.
2, Packing as buyer's option. Delivery details: 1, the lead time for samples is 1~10 days, 10~15 days for the production.
2, for the shipping, the goods can be shipping by client's international express account like DHL,TNT,UPS,Fedex, or shipping by our forwarder. Our services 1.100% high quality, all failed parts get free warranty within 30 days after received.

2.Accept 10 years warranty upon customer requirement.

3.Repairs parts are available within 10years; we will inform the EOL products to you from time to time

4.Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.

5.Unique designed package for you can be provided upon customer requirement.

6.Special feature and service can be provided upon requirement.

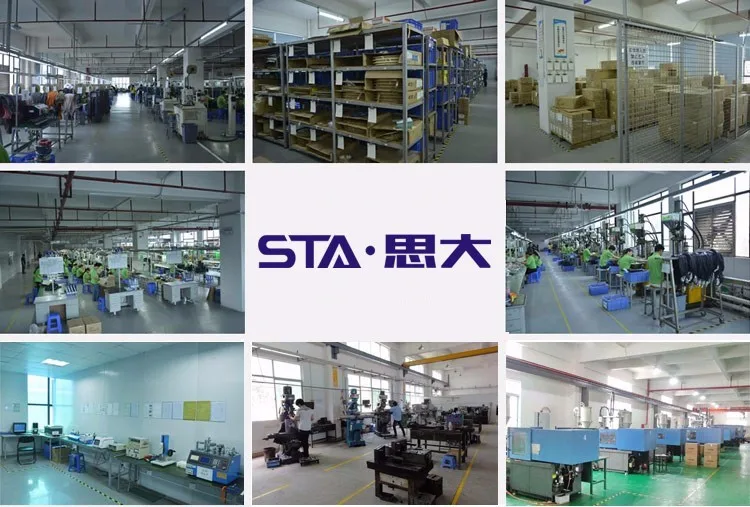

  Contact E-mail Number/Wechat/What's app Skype Elsa sales(at)szstar.cn 86 13423902002 Elsa.dong1 Company Profile About STA: STA is the branch of CAZN group, Shenzhen STA is a sales company that was founded in 2007. Shenzhen STA is operating the brand of "CAZN,EAE.link, STARF,STA", as well as sales as a agents for different famous brand at domestic and overseas. the products related to the connectors, LED, integrated circuits and other fields of electronic components products,Shenzhen STA is a more well-know prefessional electronic components providers.
