DR86 Ультразвуковой толщиномер / Толщиномер стальной пластины / Чугун / Высокая температура / DR87 Пересекающее покрытие.

Description

Color Classification:
A: Common type with 10mm diameter probe
B: High temperature type
C: Cast iron type
D:DR87 through the coating
E: Common type with 6mm diameter probe

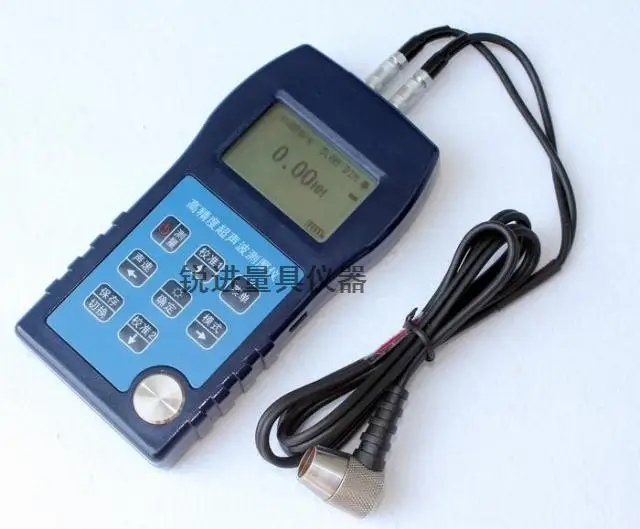

Dr86 Ultrasonic Thickness Gauge (Common Type)

Measurement Range: 0.65~400mm (Depending on the Probe): 1 Standard Probe (5MHz, 100mm)
Display Accuracy: 0.01, 0.1mm
Error: ± 0.5% + 0.03mm
Material Sound Velocity: 508~18699 M/s
Scanning Speed: 2 Times/Second ~ 20 Times/Second
Frequency Bandwidth: 1~10MHz
Lower Limit of Pipe Surface Measurement: (Depending on Probe Configuration)
Φ15mm X 1.0mm Thickness(Optional Probe: 7.5MHz, Φ10mm)
Φ10mm X 1.2mm Thickness(Optional Probe: 7.5MHz, 6mm)

Power Supply: Double-Section AA (No. 5) Battery

Working Time: 280 Hours (Automatic Mode)
100 Hours (Backlight on)
Display Mode: 128 × 64 Dot Matrix LCD Screen
Overall Dimensions: 136(L)× 72(W)× 20(H)mm
Weight: 176G (Including Battery)
Working Temperature:-10℃ ~ 50℃







Dr86 Ultrasonic Thickness Gauge (High Temperature Type) Measurement Range: 4~80mm
Display Accuracy: 0.01, 0.1mm
Error: ± 0.5% + 0.03mm
Material Sound Velocity: 508~18699 M/s
Scanning Speed: 2 Times/Second ~ 20 Times/Second
Frequency Bandwidth: 1~10MHz
Lower Limit of Pipe Measurement: (Depending on Probe)
15mm × 1.0mm(7.5MHz, 6mm Probe)
Power Supply: Double-Section AA (No. 5) Battery
Working Time: 280 Hours (Automatic Mode)
100 Hours (Backlight on)
Display Mode: 128 × 64 Dot Matrix LCD Screen
Overall Dimensions: 136(L)× 72(W)× 20(H)mm
Weight: 176G (Including Battery)
Working Temperature:-10~300 ℃
Error: ± 0.5% + 0.03mm   Dr86 Ultrasonic Thickness Gauge (Cast Iron Type)   Measuring Range: 3~50mm (Gray Cast Iron)
Display Accuracy: 0.01, 0.1mm
Error: ± 0.5% + 0.03mm
Material Sound Velocity: 508~18699 M/s
Scanning Speed: 2 Times/Second ~ 20 Times/Second
Frequency Bandwidth: 1~10MHz
Lower Limit of Pipe Measurement: (Depending on Probe)
15mm × 1.0mm(7.5MHz, 6mm Probe)
10mm × 1.2mm(7.5MHz, 6mm Probe)
Power Supply: Double-Section AA (No. 5) Battery
Working Time: 280 Hours (Automatic Mode)
100 Hours (Backlight on)
Display Mode: 128 × 64 Dot Matrix LCD Screen
Overall Dimensions: 136(L)× 72(W)× 20(H)mm
Weight: 176G (Including Battery)
Working Temperature:-10℃ ~ 50℃     Dr87 Ultrasonic Thickness Gauge (Cross Coating Type) Dr87 Ultrasonic Thickness Gauge Technical Indicators:
Measurement Range in Normal Mode: 0.65~400mm (Steel) The Measuring Range Measured by Crossing Mode Is 3-20mm
Thin Coating Mode Crossing Range: Less than 1mm
Thick Coating Mode Crossing Range: Greater than 1mm
Display Accuracy: 0.01, 0.1mm
Material Sound Velocity: 508~18699 M/s
Scanning Speed: 2 Times/Second ~ 20 Times/Second
Frequency Bandwidth: 1~10MHz
Lower Limit of Pipe Measurement: (Depending on Probe)
20mm × 3.0mm(5MHz, 10mm Probe)
Power Supply: Double-Section AA (No. 5) Battery
Working Time: 280 Hours (Automatic Mode)
100 Hours (Backlight on)
Display Mode: 128 × 64 Dot Matrix LCD Screen
Overall Dimensions: 136(L)× 72(W)× 20(H)mm
Weight: 176G (Including Battery)
Working Temperature:-10℃ ~ 50℃       Annex Sound Velocity of Various Materials   Material The Speed of Sound In/us m/s Aluminum Aluminum 0.250 6340-6400 Steel Steel, common 0.233 5920 Stainless Steel Steel, stainless 0.226 5740 Brass Brass 0.173 4399 Copper Copper 0.186 4720 Iron Iron 0.233 5930 Cast Iron Cast Iron 0.173-0.229 4400 －5820 Lead Lead 0.094 2400 Nylon Nylon 0.105 2680 Silver Silver 0.142 3607 Gold Gold 0.128 3251 Zinc Zinc 0.164 4170 Titanium Titanium 0.236 5990 Tin Tin 0.117 2960 Acrylic Resin   0.109 2760 Epoxy Resin Epoxy resin 0.100 2540 Ice Ice 0.157 3988 Nickel Nickel 0.222 5639 Resin Glass Plexiglass 0.106 2692 Polystyrene Polystyrene 0.092 2337 Ceramic Porcelain 0.230 5842 Poly (Vinyl Chloride) PVC 0.094 2388 Quartz Quartz glass 0.222 5639 Vulcanized Rubber Rubber, vulcanized 0.091 2311 Polytetrafluoroethylene Teflon 0.056 1422 Water Water 0.058 1473               FAQ:
