CHTAR F21-2S-TXZB mud pump special 500m long distance industrial wireless remote Control controller push button electric hoist |

CHTAR F21-2S-TXZB mud pump special 500m long distance industrial wireless remote Control controller push button electric hoist |

Features of this industrial remote control:

(1) High sensitivity, good accuracy, long effective distance and long signal duration.

(2) Transmitter and receiver perform one-to-one encoding processing to make it stronger against interference.

(3) The exterior material of the remote control is made of glass fiber reinforced nylon, which has strong acid and alkali corrosion resistance, high and low temperature resistance, and waterproof and dustproof capabilities.

(4) Multiple buttons, up to 21 direction function buttons.

(5) Powerful voltage self-test function. When the voltage of the transmitter is less than 2.2V, the red light of the transmitter will flash slowly, and the transmitter cannot work when the voltage is less than 1.8V.

(6) Up/down can be set as normal, skip, and whether to inhibit each other.

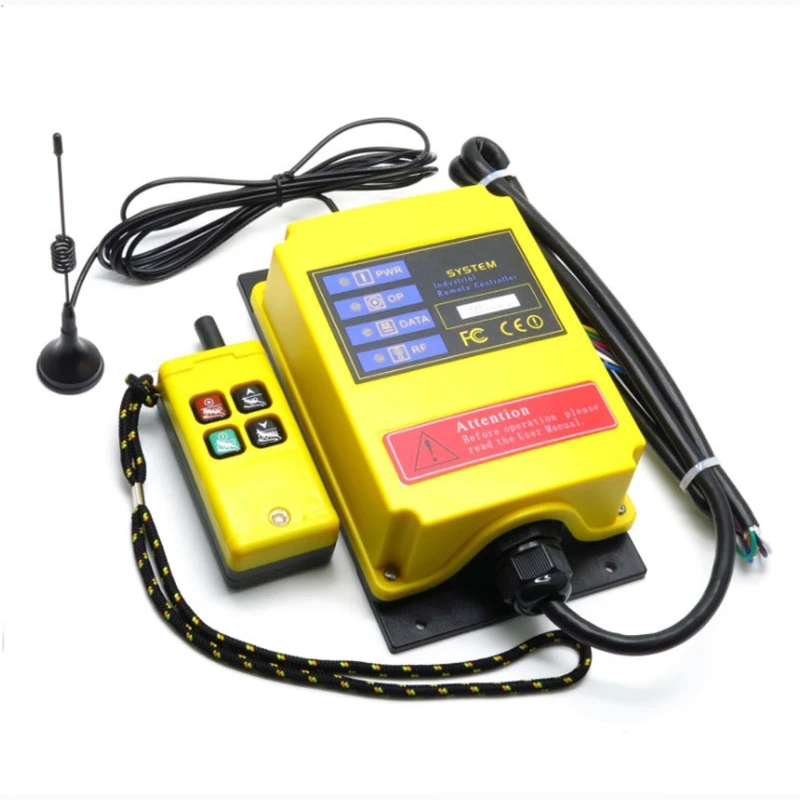

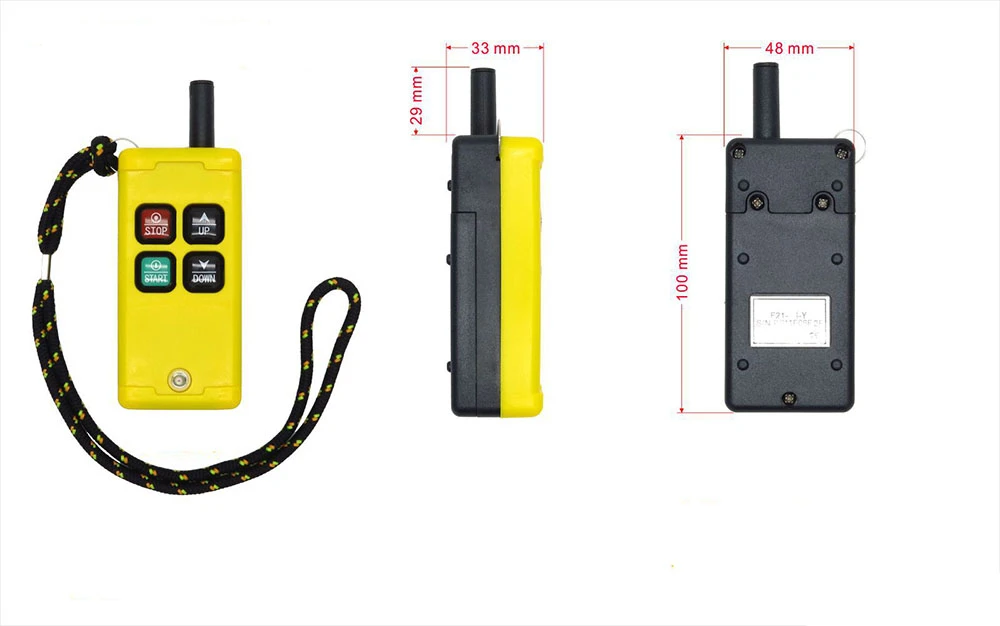

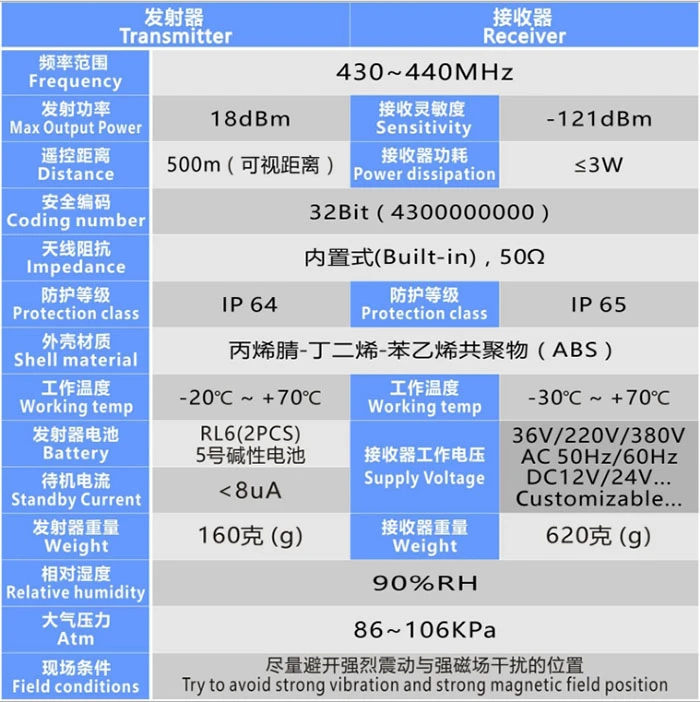

Transmitter (handheld)

   ☆Model: F21-2S-TXZB

   ☆Outer shell: reinforced nylon

   ☆ Weight: about 350 grams

   ☆Protection level: IP64

   ☆Frequency range: UHF 430~440MHz

   ☆Transmitting power: ≤10dBm

   ☆Battery: 2 alkaline AA batteries (AA)

   ☆Security code: 32 bits (4.3 billion unique identification codes)

   ☆Environmental temperature: -35ºC ~ +80°C (not considering battery temperature resistance)

   ☆Control distance: 500 meters without interference

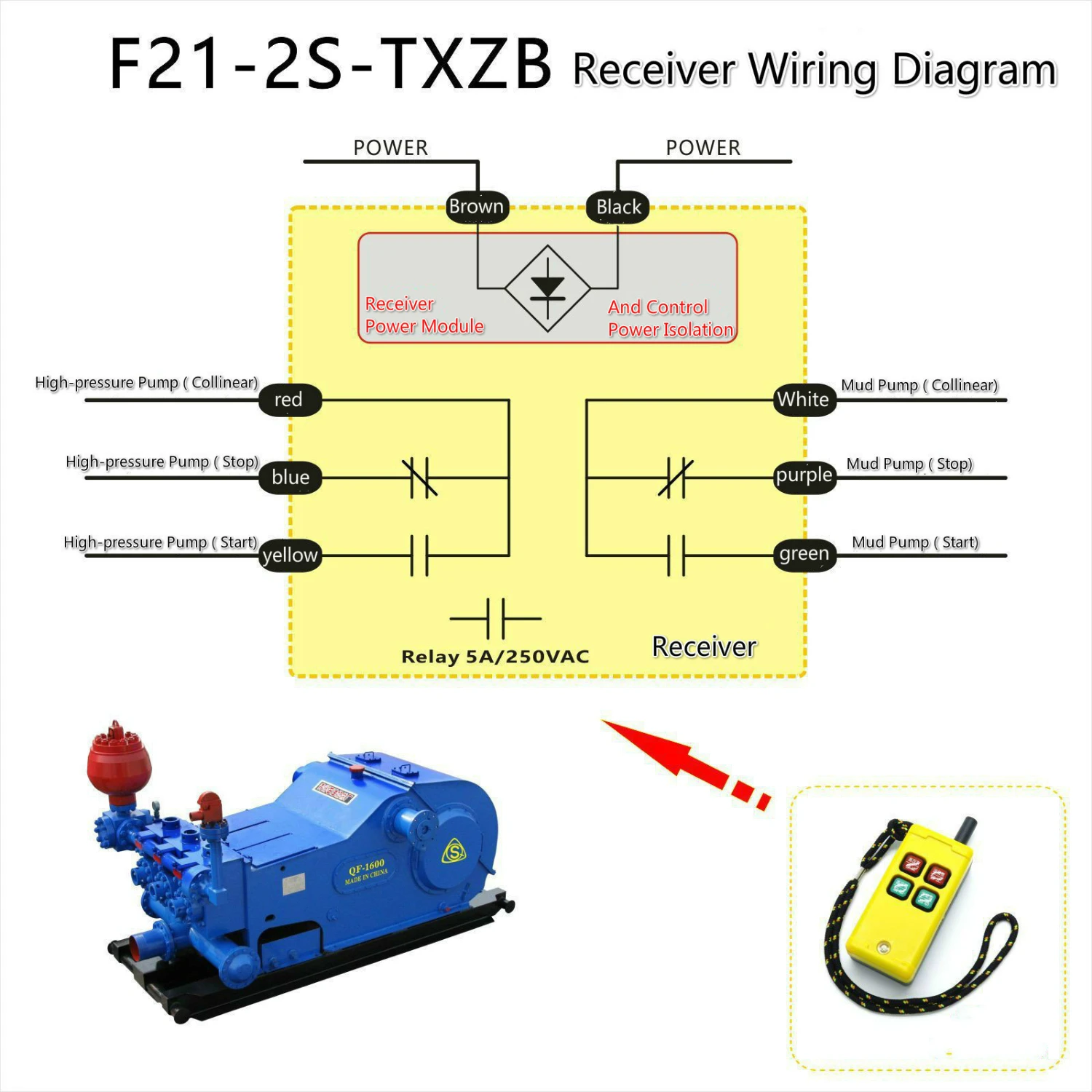

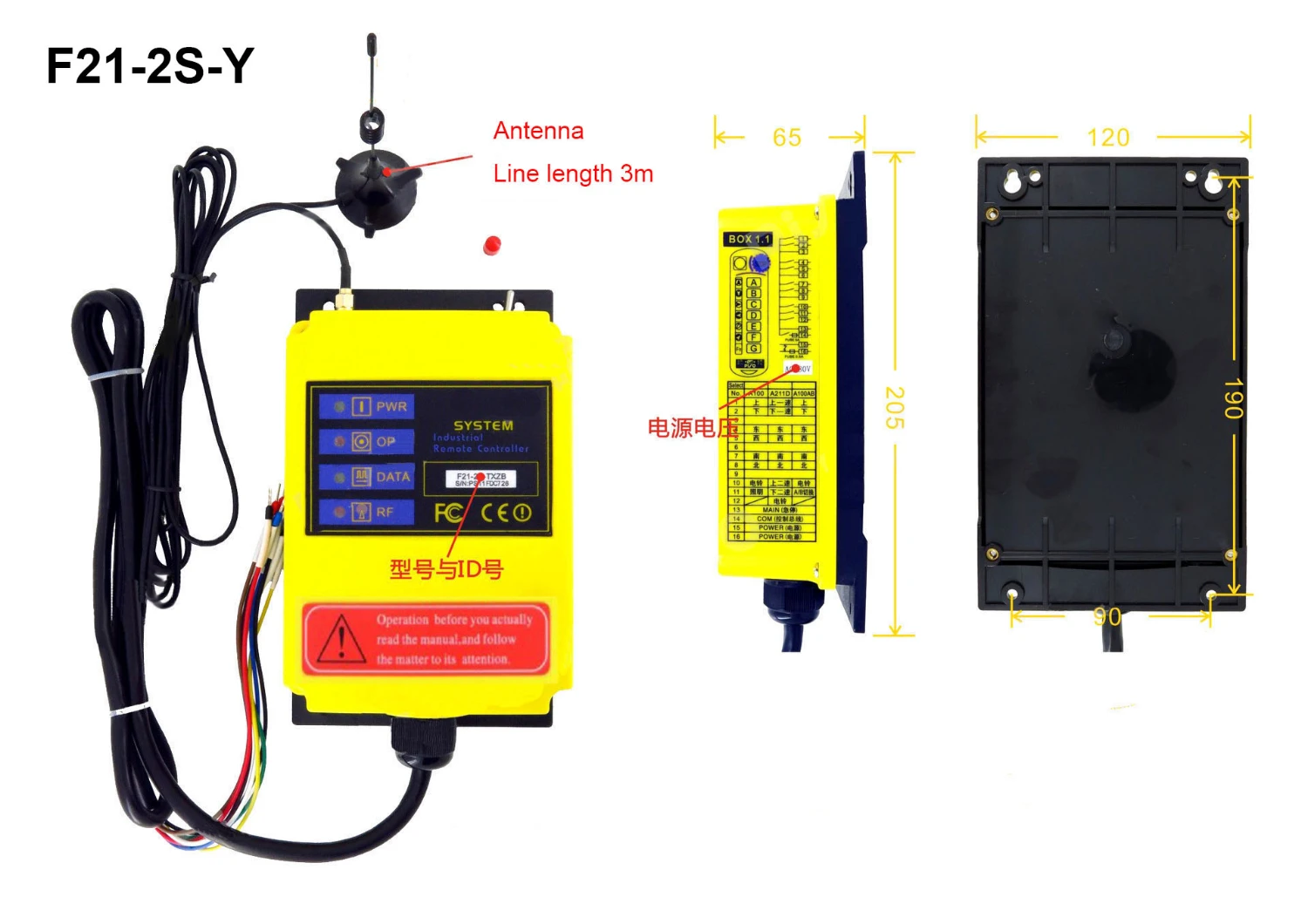

Receiver (installed beside the crane)

   ☆Model:F21-2S-TXZB

   ☆Outer shell: reinforced nylon

   ☆ Weight: about 1050 grams

   ☆Protection level: IP65

   ☆Frequency range: UHF 430~440MHz

   ☆Receiving sensitivity: -110dBm

   ☆Security code: 32 bits (4.3 billion unique identification codes)

   ☆Ambient temperature: -35ºC ~ +80°C

   ☆Receiver power supply: AC36V/AC110V/AC220V/AC380V/AC440V/DC12V/DC24V (according to customer requirements)

   ☆Control contact capacity: 5 ampere fully sealed relay (using AC 250V/5A fuse)
