SPECIFICATIONS

Antenna placement: Outdoor

Supported standard connection: GSM1800, WCDMA2100 3G, IEEE802.11b/G/N (WiFi), LTE2600 (G)

Operating frequencies, MHz: 1700 - 2700

Gain, Max, DBI: 15

Wave resistance, Ohm: 75

Connector Type: 2 F-connector

Dimensions assembled (without mounting assembly), MM: 240x240x40

Weight, not more, KG: 1

Overview:

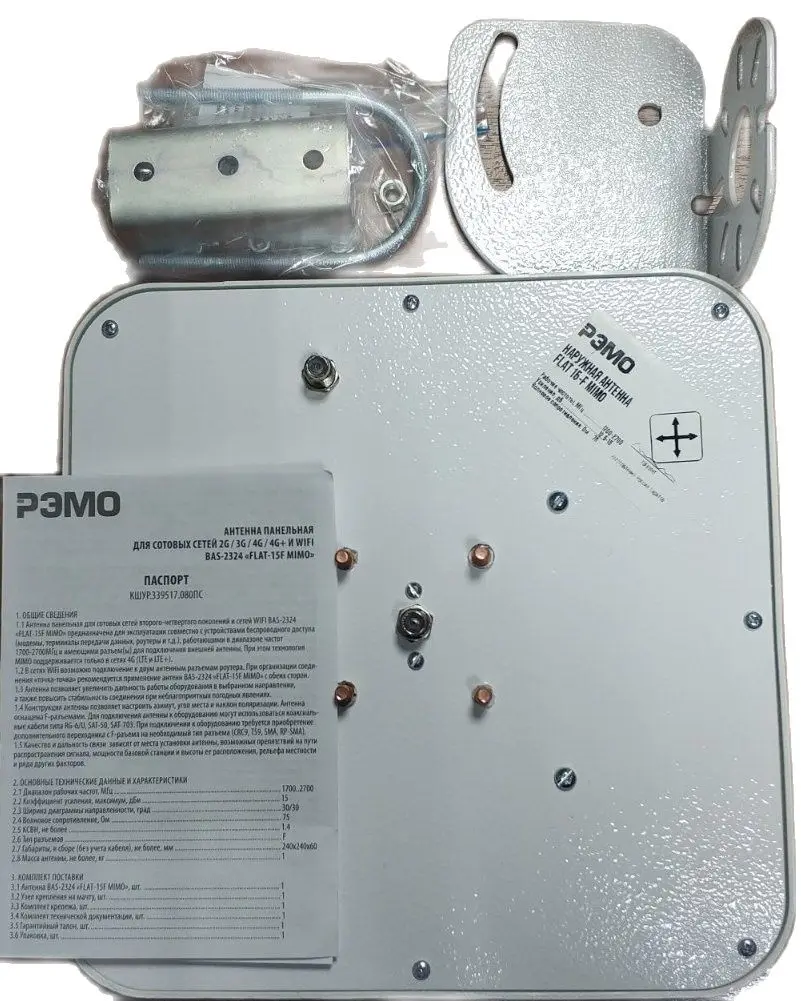

Passport:

DESCRIPTION

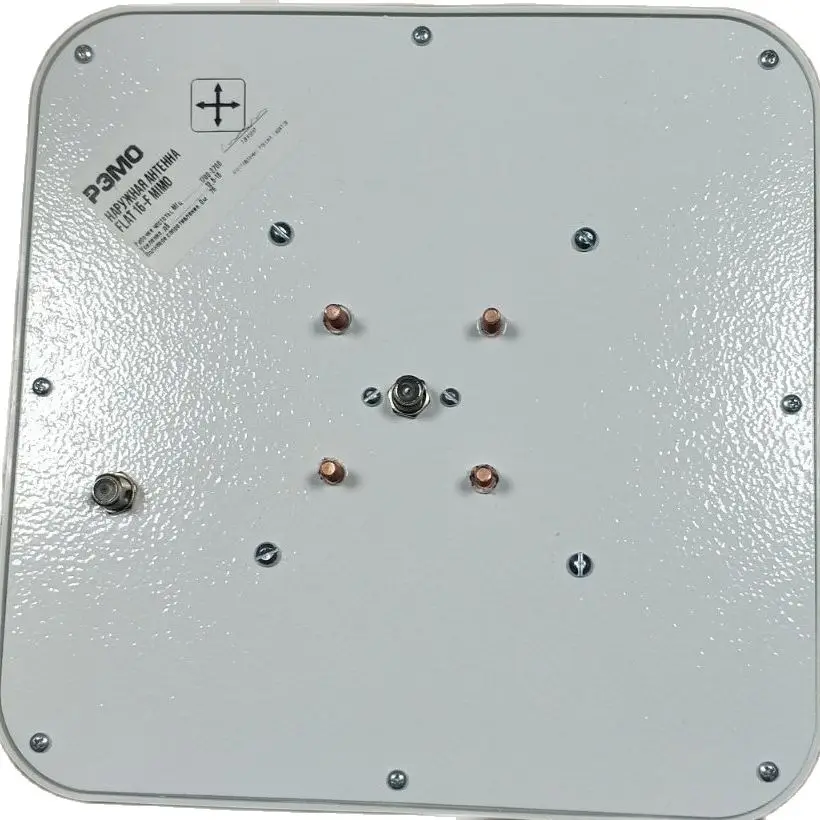

Panel antenna "BAS-2324 FLAT-15F MIMO" is designed for use with equipment wireless data transmission systems standards 2G(GSM1800), 3G (WCDMA2100, 4G WIMAX LTE2600). In 4G LTE networks, the antenna allows you to realize MIMO (Multiple Input Multiple Output) technology, significantly improving the stability, stability of the equipment and increasing data transfer speed. Equipped with two F-connectors for easy and quick connection of feeder lines. The antenna is directional (the width of the chart is 30 °/30 °). When installing the antenna, it is important to know the correct direction to the base station of your operator. The antenna is equipped with two F-connectors, which allows you to connect to it almost any equipment (for connecting to modems, appropriate adapters and/or cables are required), with a constant connection which provides protection of the plug-in equipment from static electricity.
