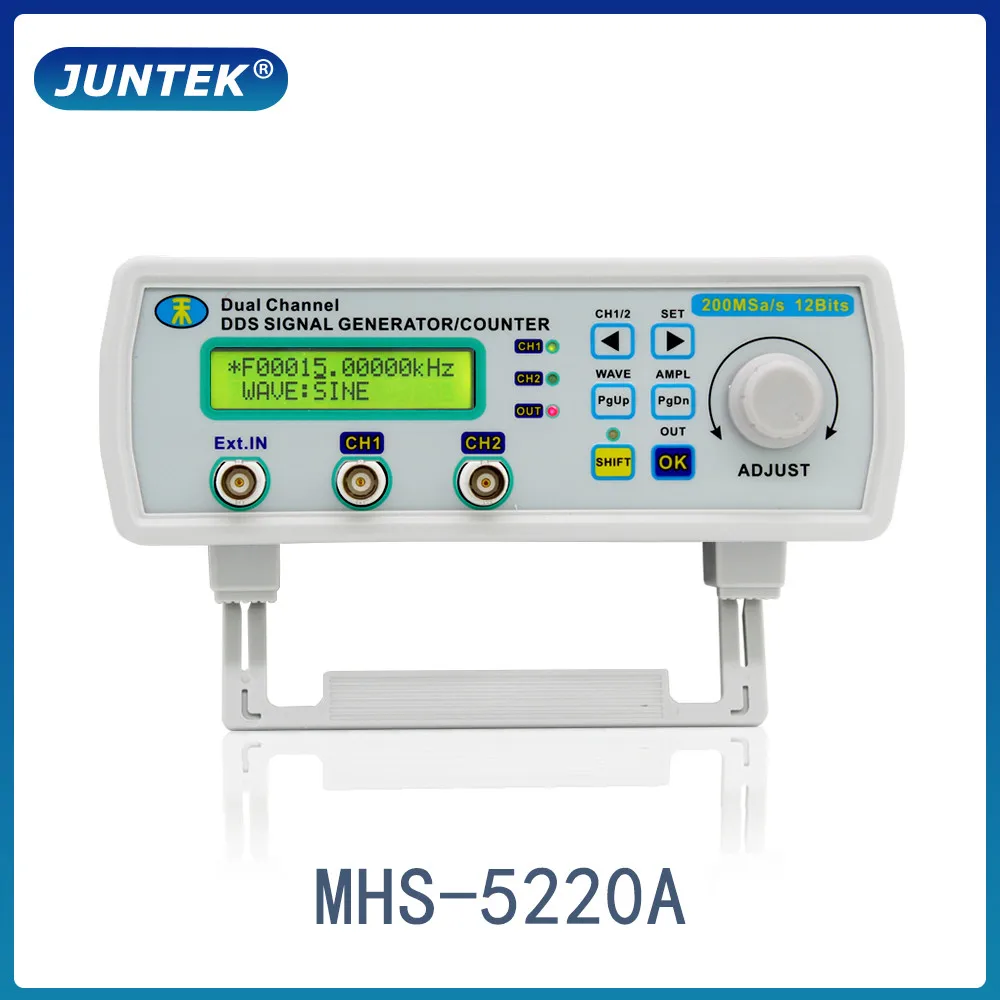

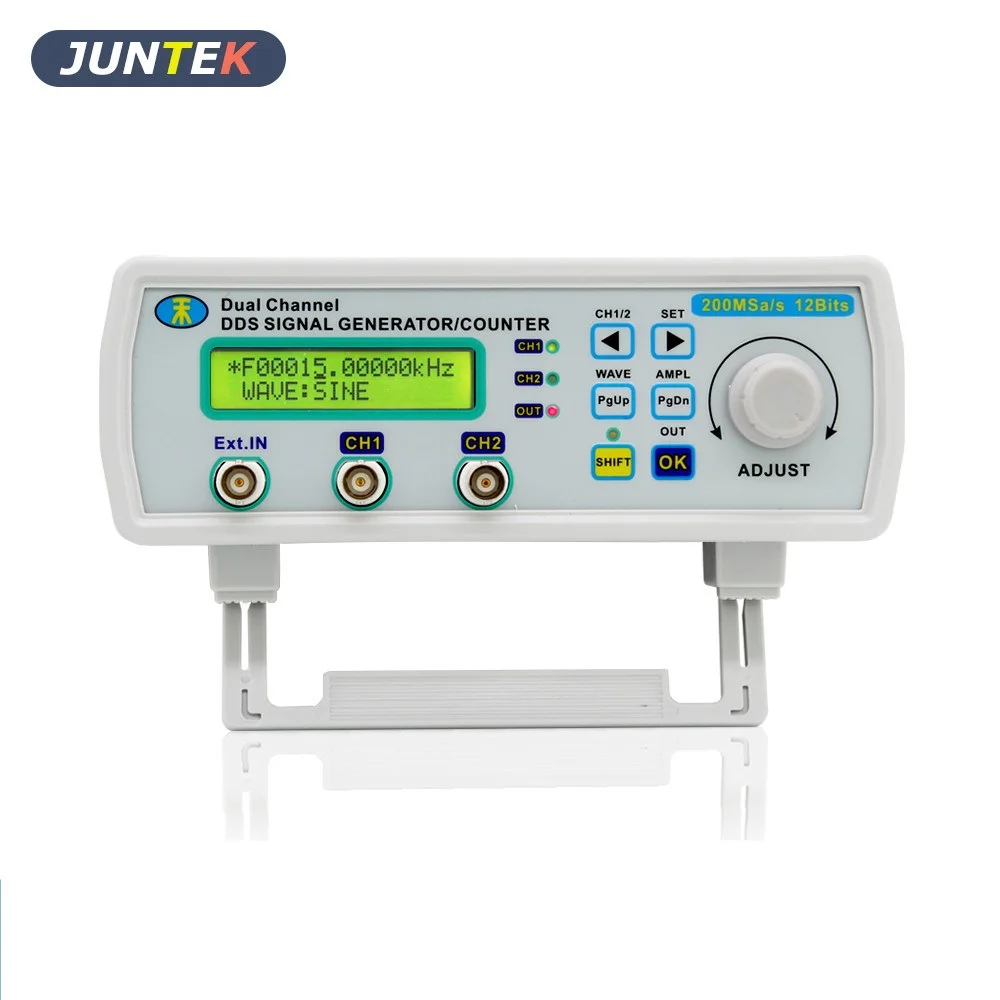

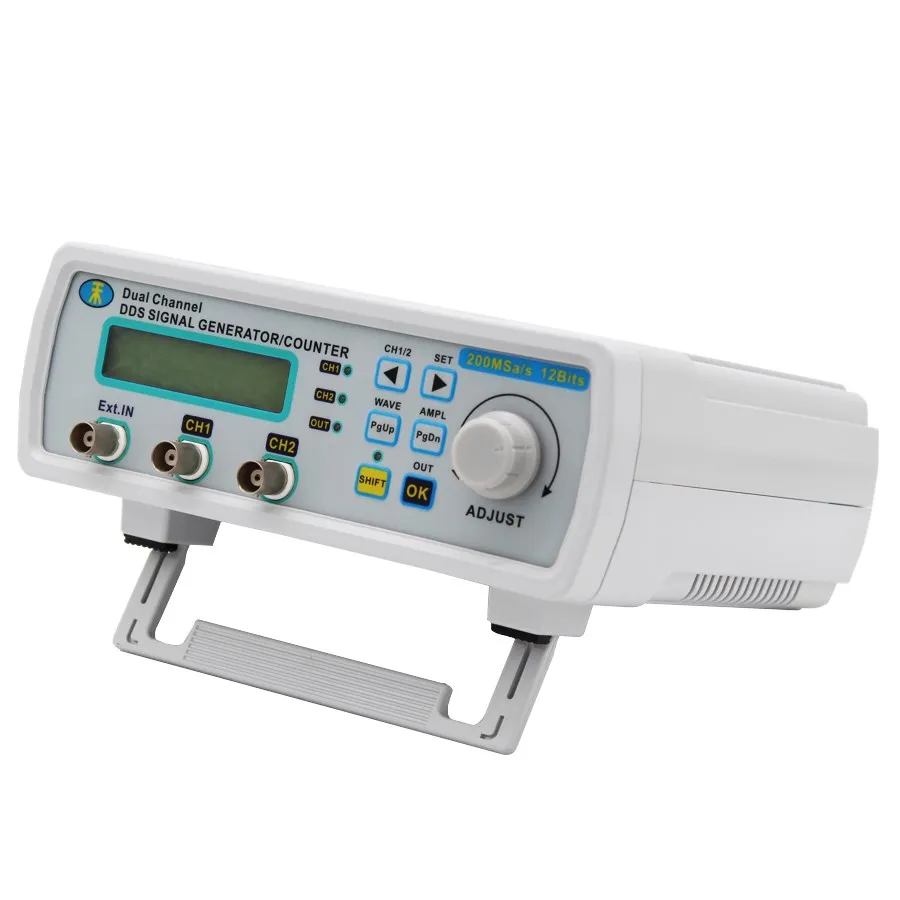

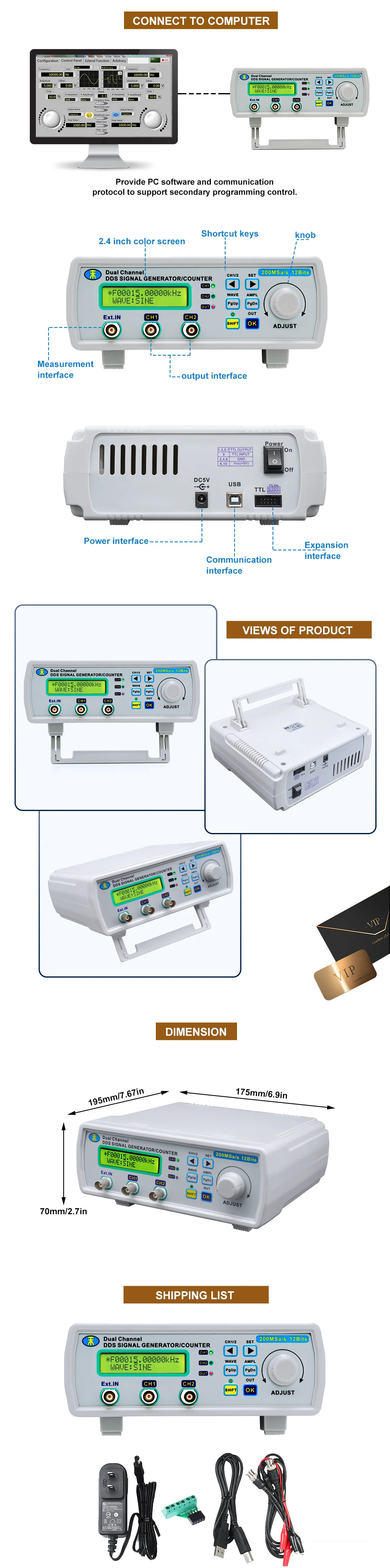

    MHS5200A series Dual-channel Function Signal generator combines multiple functions, such as Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Sweep, Counter and Frequency Meter, etc. The instrument adopts the Direct Digital Synthesizer(DDS) technology and provides stable, precise, pure and low distortion signals. It's a great testing or measuring instrument for electronics engineers, electronic laboratory, teaching and researching.

►Using DDS direct digital synthesis technology to generate precise, stable, low distortion output signal.

►CH1 and CH2 completely symmetrical two channels, each channel can be independently set the parameters.

►Supports user-defined waveform, each arbitrary waveform memory depth 2048*12bits, 200MSa/s sampling rate.

►With pulse trains burst output function，allow the unit to any output 1~1048575 arbitrary pulse trains.

►Measurement functions: 60MHz frequency meter and counter function.

►Signal output amplitude range is 5mVpp- 20Vpp, DC offset adjustment range is -120% to +120%, the resolution is 1%.

►Digital signal output function, CMOS output range 0~10V.

►Waveform generator up to 12 bits wide, the output waveform is more delicate, waveform distortion is low.

►With full CNC functions, display and adjust of current output signal parameters, such as the amplitude, offset, frequency, duty cycle, and the phase difference of two signals.

►After connected with computer, user can control signal generator functions and parameters, and can edit and download arbitrary waveform.

►High frequency accuracy and resolution: frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 0.01Hz.

►Tracking function: built-in frequency, amplitude, offset, duty cycle, waveform and other parameters follow function, easy to use.

►Scanning features: frequency linear sweep and logarithmic sweep function, start and end points of scanning can be set freely.

►Storage features: can store 16 groups parameters set by the user.

►Operation: key operation, LCD1602 display in English, directly digital setting parameters or continuous adjustment knob.

►Input over-voltage protection:DC5V power supply, insert more than 5V voltage will not damage the machine.

►Output short-circuit protection: all signal output can work above 60s in load short-circuit situation.

Model selection

MHS-5206A

MHS-5212A

MHS-5220A

MHS-5225A

Sine wave frequency range

0~6MHz

0~12MHz

0~20MHz

0~25MHz

Square wave frequency range

0~6MHz

Pulse wave frequency range

0~6MHz

TTL / COMS digital signal frequency range

0~6MHz

Arbitrary / other waveform frequency range

0~6MHz

Frequency characteristics

Frequency minimum resolution

10mHz

Frequency error

±5x10-6

Frequency stability

±1X10-6/5 hours

Arbitrary / other waveform

50Ω±10%

Amplitude characteristic

Amplitude range (peak-to-peak value)

5mVp-p~20Vp-p

Amplitude resolution

1mVp-p (-20db attenuation) 10mVp-p(No attenuation)

Amplitude stability

±0.5%(Each 5 hours)

Amplitude error

±1%+10mV(Frequency1KHz,15Vp-p)

Offset range

-120%~+120%

Offset resolution

1%

Relative range

0~359°

Phase resolution

1°

Waveform characteristics

Waveform type

Sine、Square、pulse (adjustable duty cycle, precise adjustment of pulse width and period), triangular wave, partial sine wave, CMOS wave, DC level (set DC amplitude by adjusting offset), half wave, full Wave, positive staircase wave, anti-ladder wave, noise wave, exponential rise, exponential drop, Symplectic pulse and Lorenz pulse and 60 arbitrary wave forms

Wave length

2048 points

Waveform sampling rate

200MSa/s

Waveform vertical resolution

12 bits

Sine wave

Harmonic Suppression

≥40dBc(<1MHz);≥35dBc(1MHz~25MHz)

Total harmonic distortion

<0.8%(20Hz~20kHz)

Square wave

Rise and fall time

≤20ns

Overshoot

≤10%

Duty cycle adjustment range

0.1%-99.9%

TTL signal

Output level

≥3Vpp

Fan-out coefficient

≥20TTL

Rise and fall time

≤20ns

COMS signal

Low level

＜0.3V

High level

1V~10V

Rise and fall time

≤20ns

Saw tooth wave

Duty cycle＞50%

Saw tooth wave

Duty cycle＜50%

Saw tooth wave

Arbitrary wave

Quantity

16 groups

Storage depth / group

1KB / 16 groups

Waveform output

Frequency measurement range

GATE-TIME=10S   0.1HZ-60MHZ

GATE-TIME=1S   1HZ-60MHZ

GATE-TIME=0.1S   10HZ-60MHZ

GATE-TIME=0.01S   100HZ-60MHZ

Input voltage range

0.5Vp-p~20Vp-p

Counting range

0~4294967295

Counting method

Manual

Positive and negative pulse width measurement

10ns resolution, maximum measurement 10s

Period measurement

20ns resolution, maximum measurement 20s

Duty cycle measurement

0.1% resolution, measuring range 0.1% ~ 99.9%

Source selection

1. EXT.IN input (AC signal)

2. TTL_IN input (digital signal)

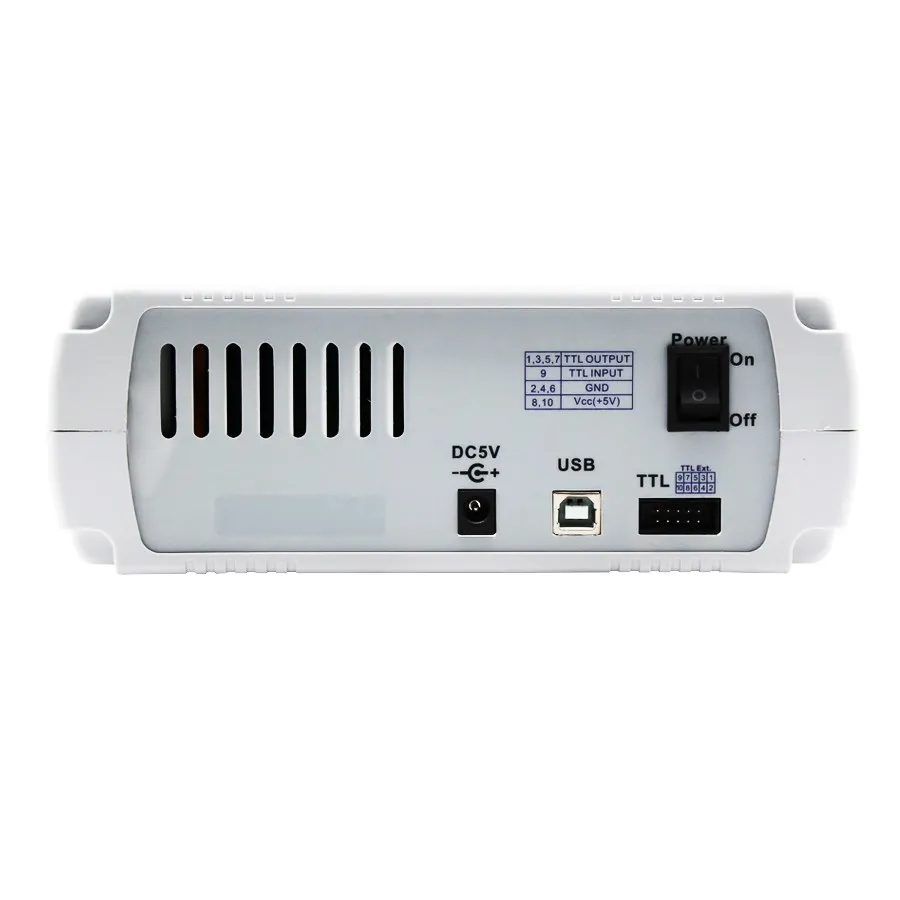

Communication characteristics

Interface method

Use USB to serial interface

Communication rate

57600bps

Protocol

Using the command line, the agreement is open

Other

Power supply

DC 5V±0.5V

Dimension

180*190*72mm

Net weight

550g(Host) 480g(Annex)

Gross weight

1090g

Working environment

Temperature:-10℃~50℃ Humidity＜80

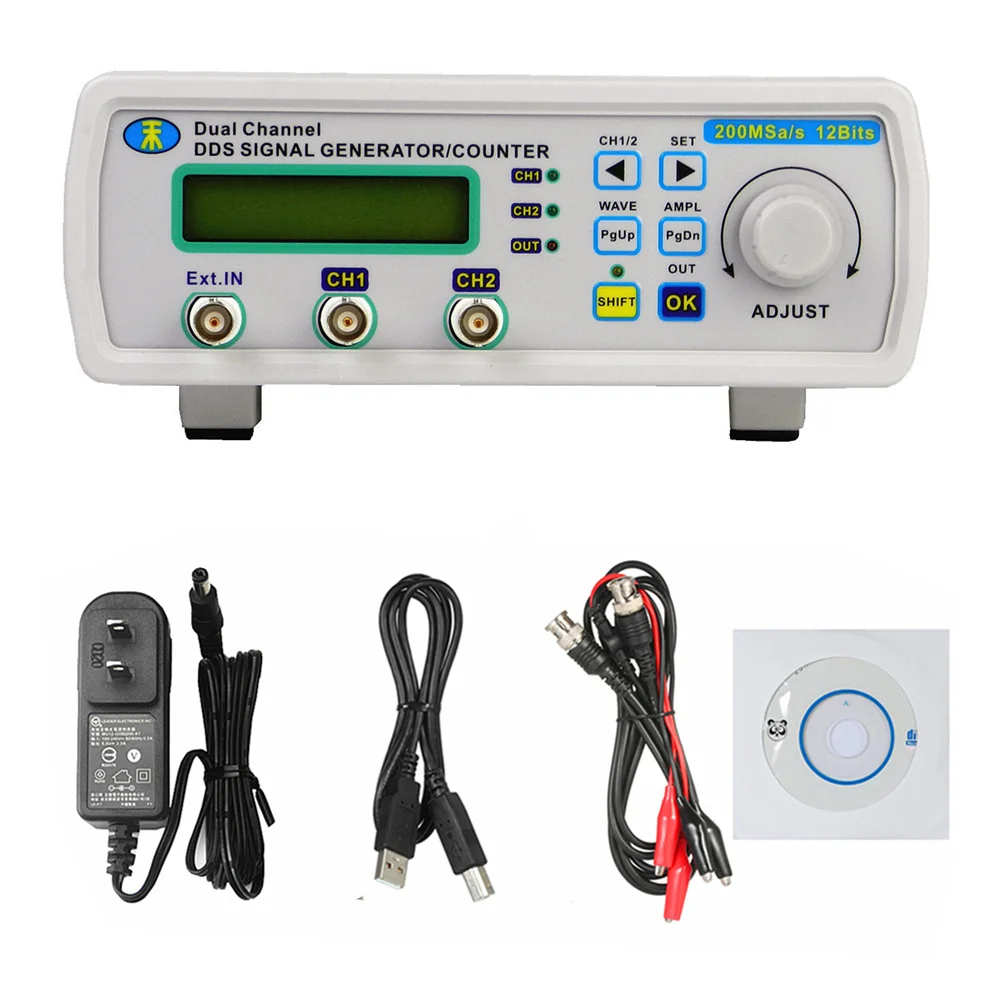

                      1. MHS-5200A Signal Generator*1

                      2. Power Adapter(In:100~240V~50/60Hz,Out:5.0V-0.2A)*1                   3. TTL Expansion Board

                      4. USB Data Cable*1                                                                                 5. Q9 Clip Line*2
