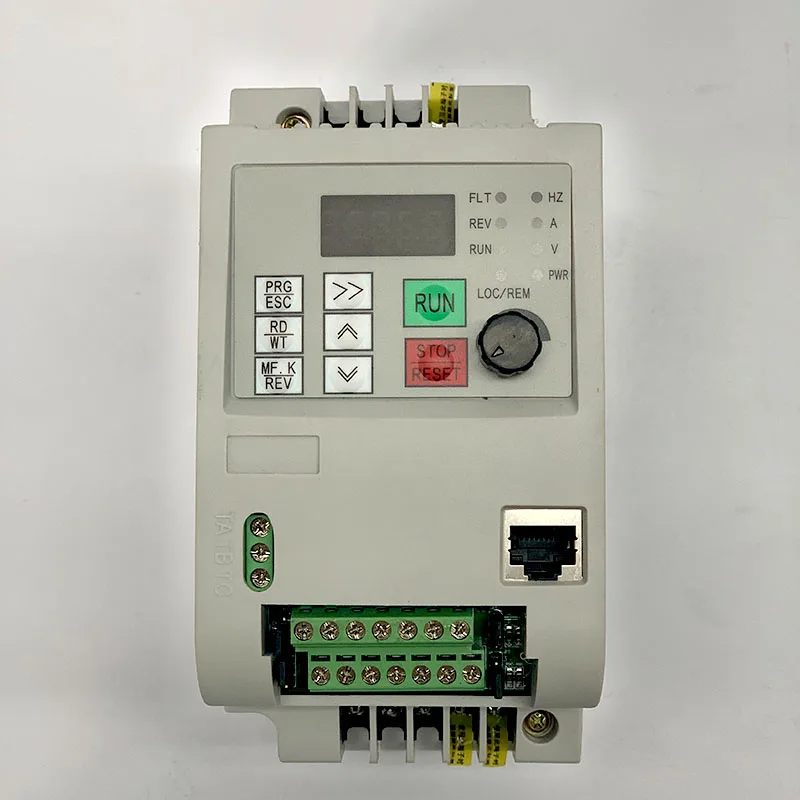

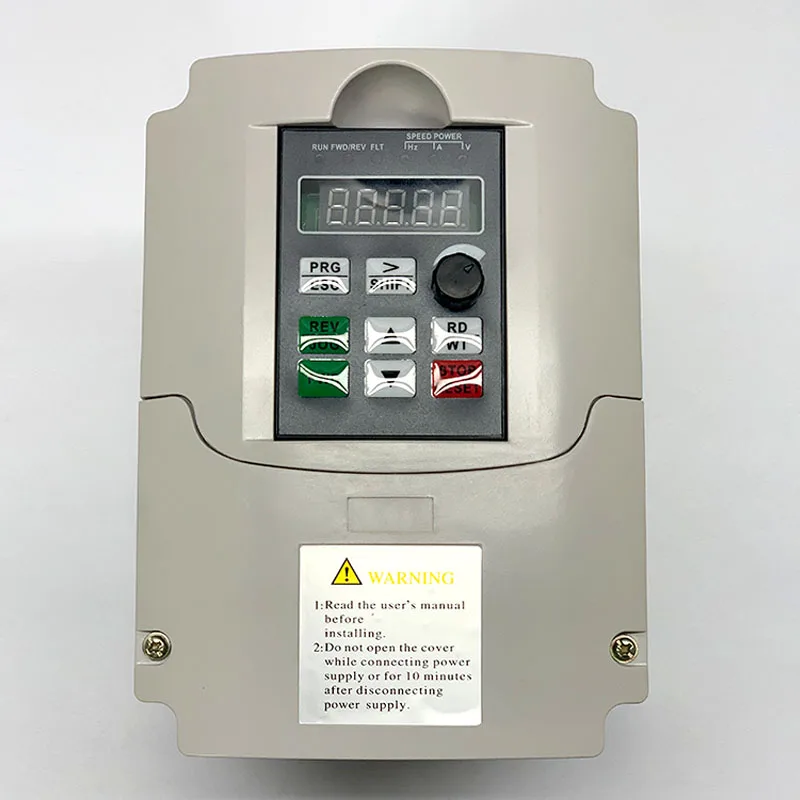

For Russian NF 380v 4kw 3 phase input and output frequency converter/ ac motor drive/ VSD/ VFD/ 50HZ Inverter | Обустройство дома

For Russian NF 380v 4kw 3 phase input and output frequency converter/ ac motor drive/ VSD/ VFD/ 50HZ Inverter | Обустройство дома

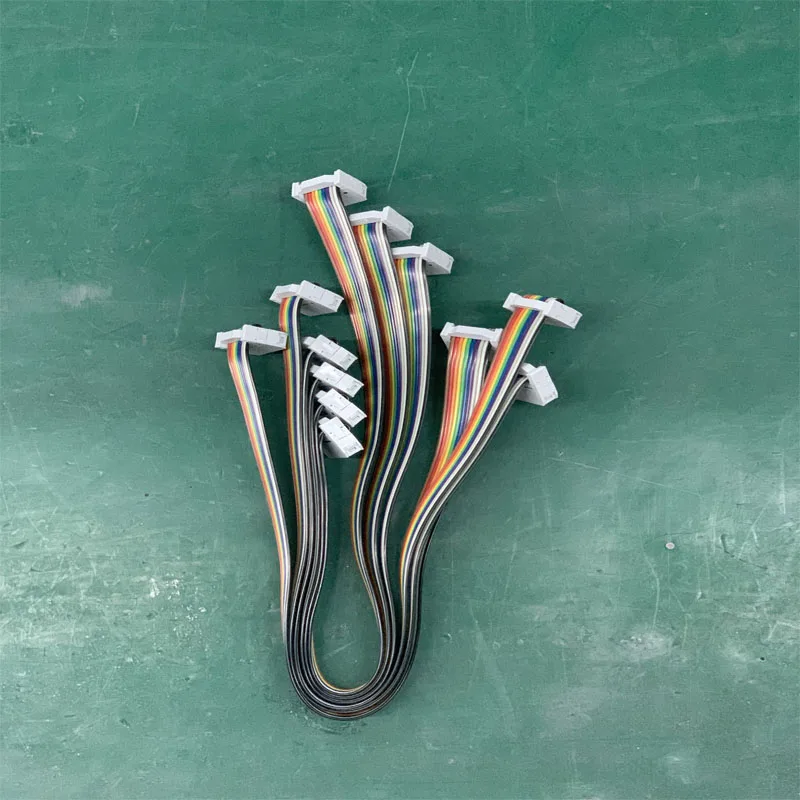

Tip: If you need a keyboard extension cable, please let us know (free)

Rated Frequency :50hz/60hz

Output Frequency Range:0~400Hz

Input Voltage Range:3 phase (1 phase) 380V±15%

Output Voltage Range:3 phase 380V±15%

Control way: Open loop vector control(SVC)      V/F control

Main function: Control and adjust the speed of the ac motor

Size: 85mm*125mm*150mm

01 V/F control, vector control  and output torque control;
02 Built-in RS-485 communication interface
03 Compact size, easy to install;

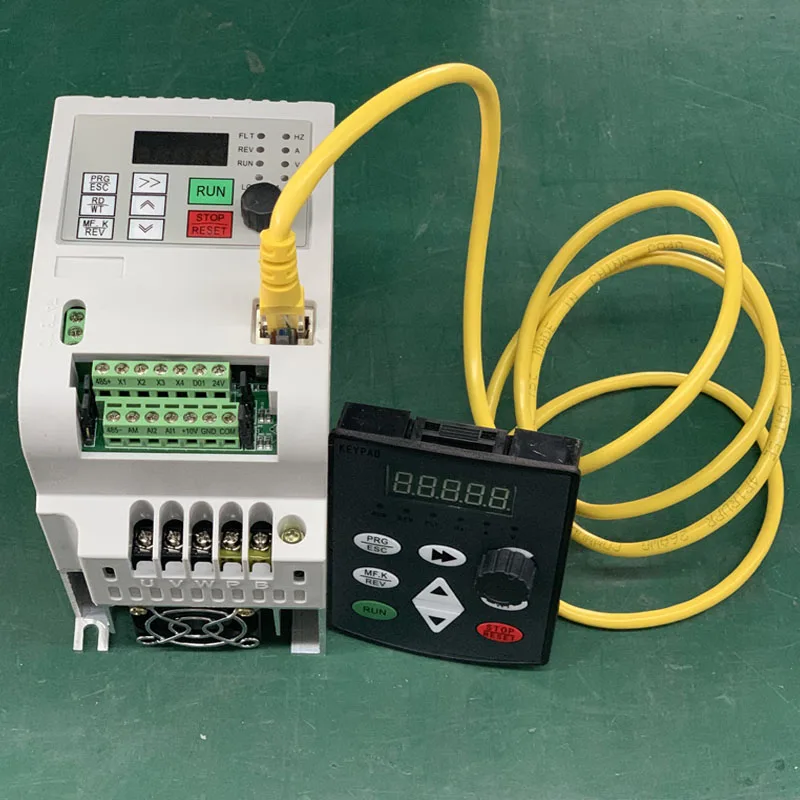

04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake function,instead foreign inverter application on freight elevator and crane.
