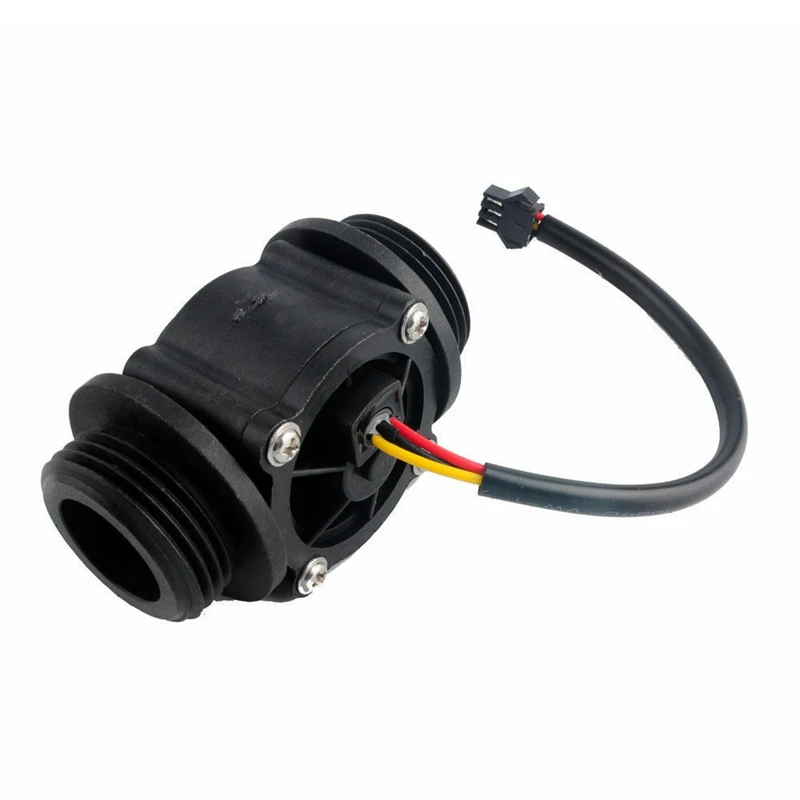

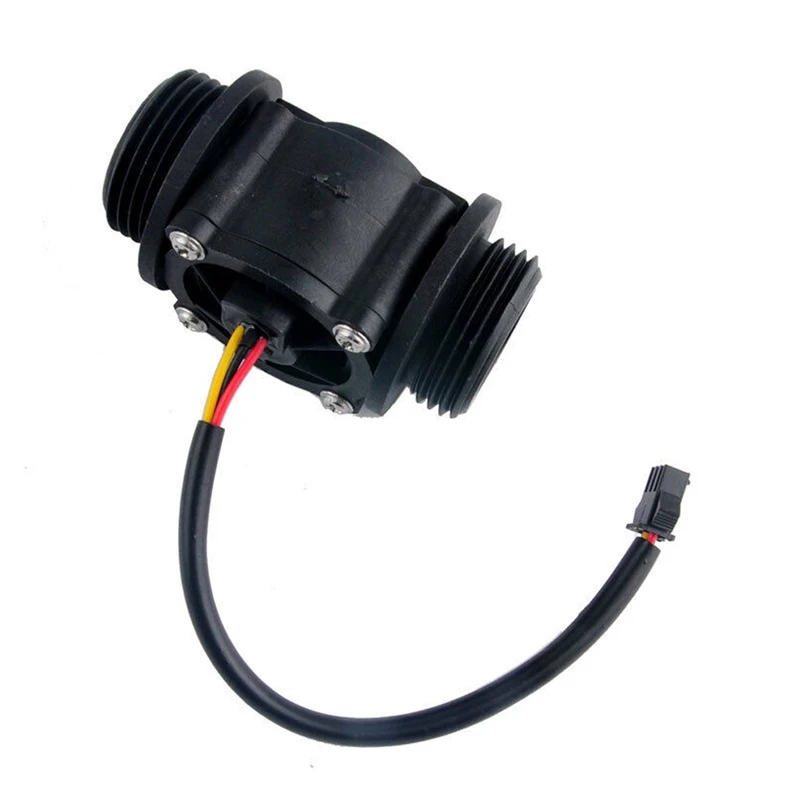

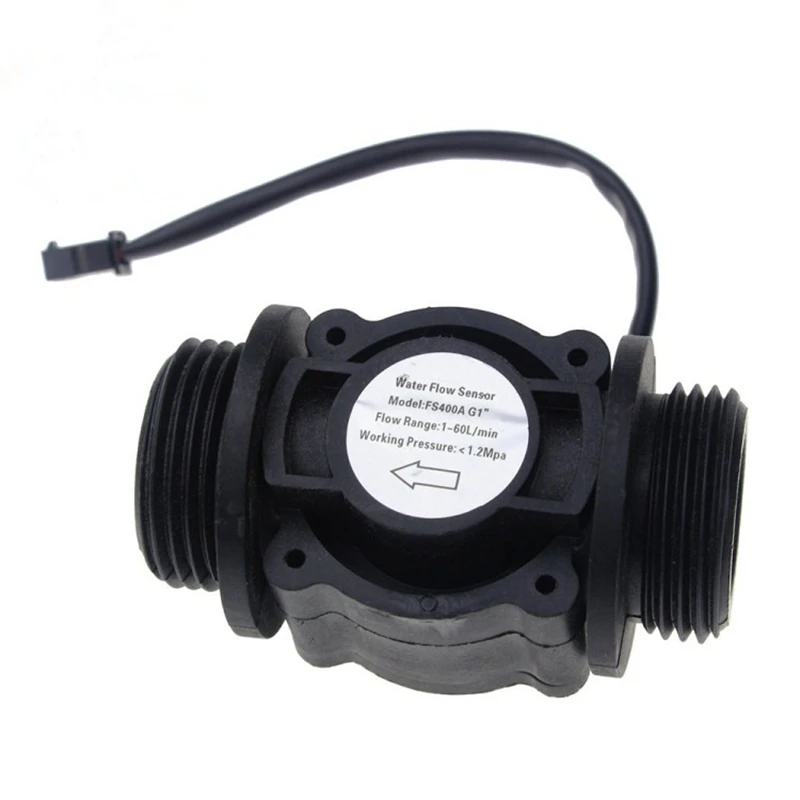

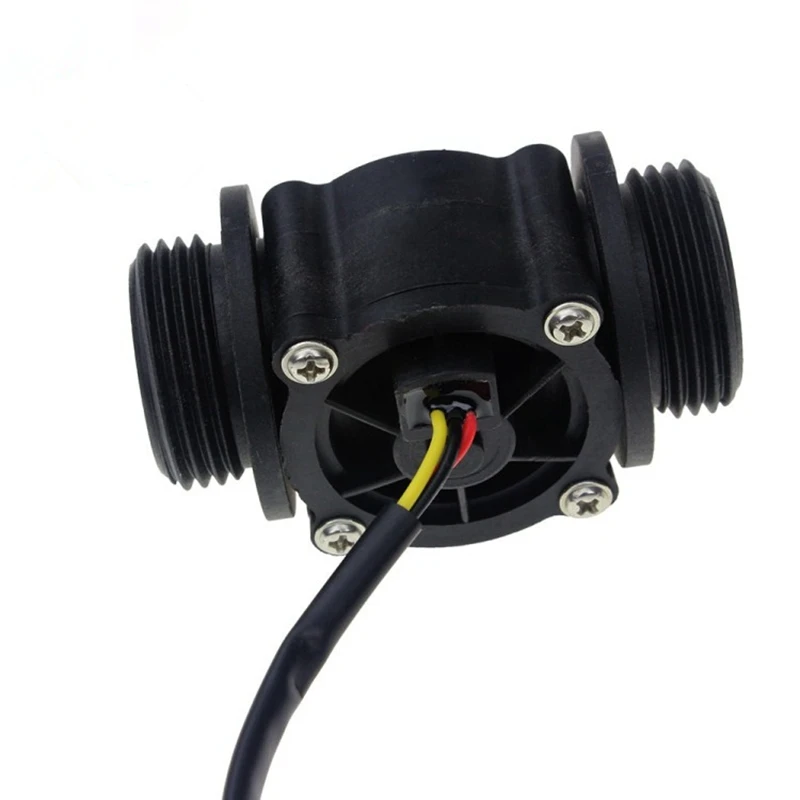

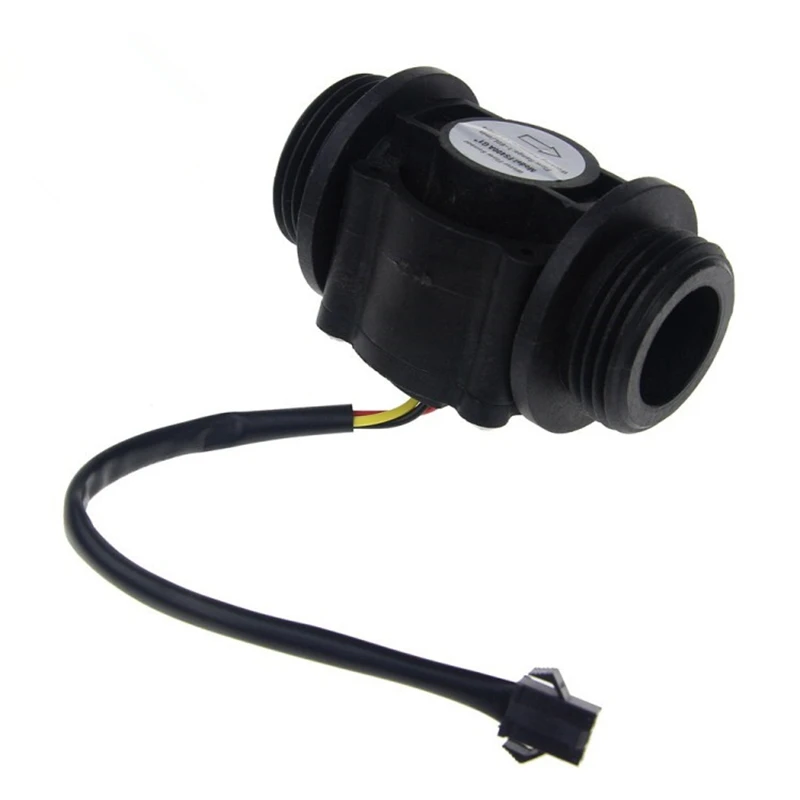

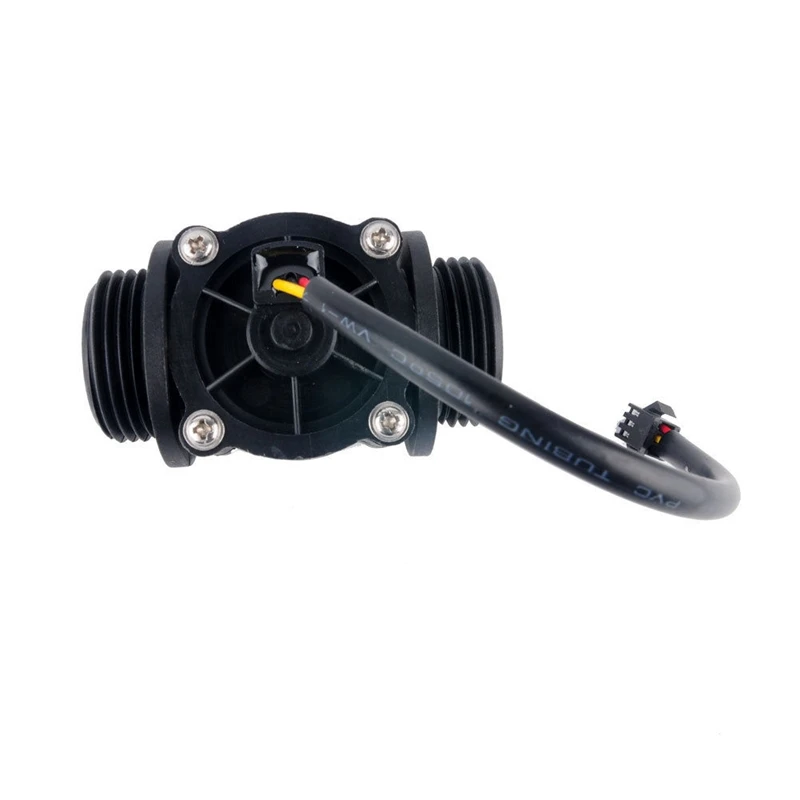

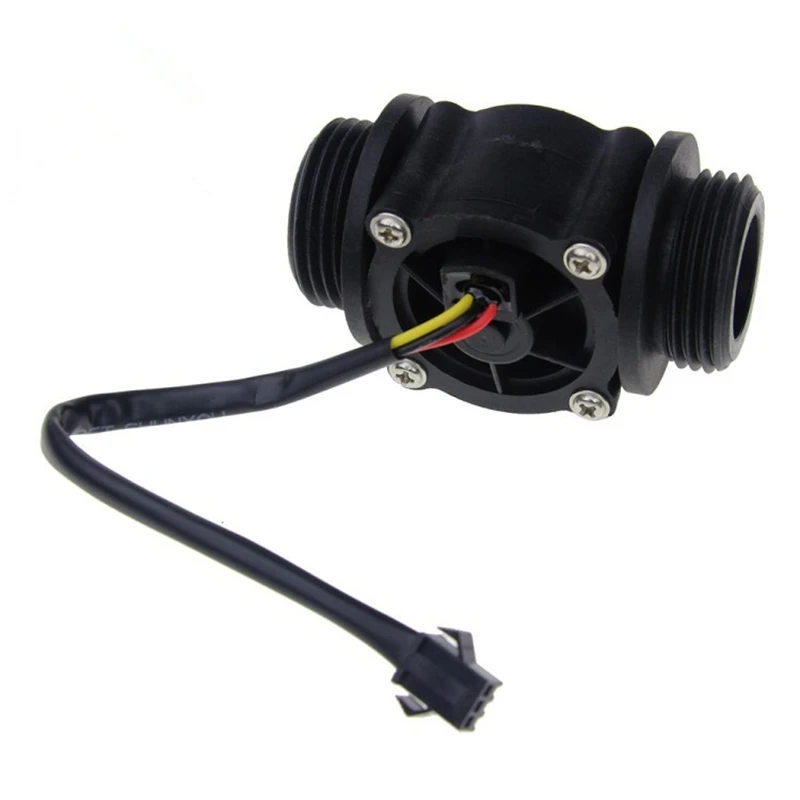

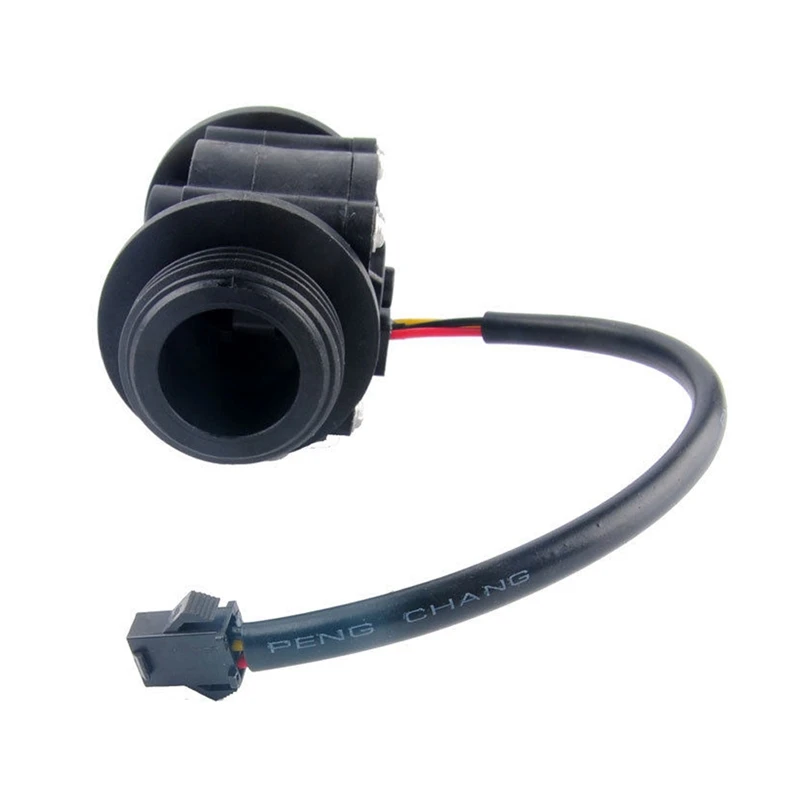

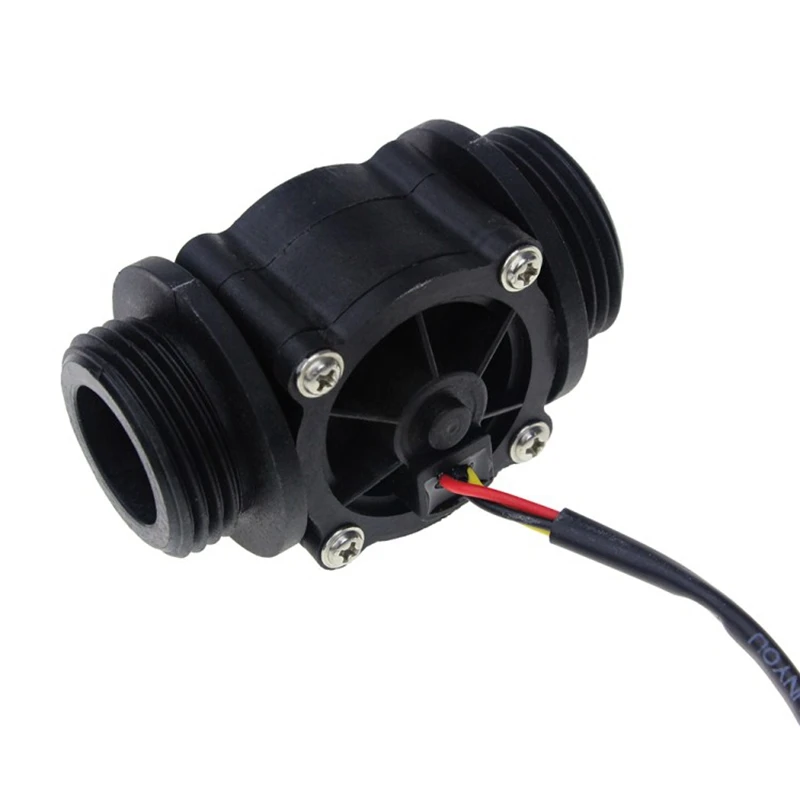

Dn25 Fs400A G1Inch Water Flow Sensor Hall Flowmeter Meter Counter 1-60L/Min 1.2Mpa

Frequency: F = 4.8 * Q (L / Min)
voltage output of the premium: 3.5-24VDC
a liter of water flow after pulse output 288
Flow range: 1-60L/min
It can be used for:Apply to food, credit card machines, water vending machines, and other flow measurement devices
Lowest rated operating voltage: DC4.5
The maximum operating current: 15 mA (DC 5V)
Operating voltage range: DC 5 ~ 24 V
Load capacity: Less than or equal to10 mA (DC 5V)
Operating temperature range: Less than or equal to80 ℃
Operating humidity: 35% ~ 90% RH (no condensation state)
Allow pressure less pressure: 1.75Mpa
Storage temperature: -25 ~ + 80 ℃
Storage humidity: 25% ~ 95% RH
Colour: Black
Material: ABS
Package Included:1* DN25 Water Flow Sensor
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
