ESP32-CAM-MB WiFi Bluetooth Development Board OV2640 2MP Camera Module ESP32-CAM WIFI with IPX interface for Arduino | Электронные
Описание товара

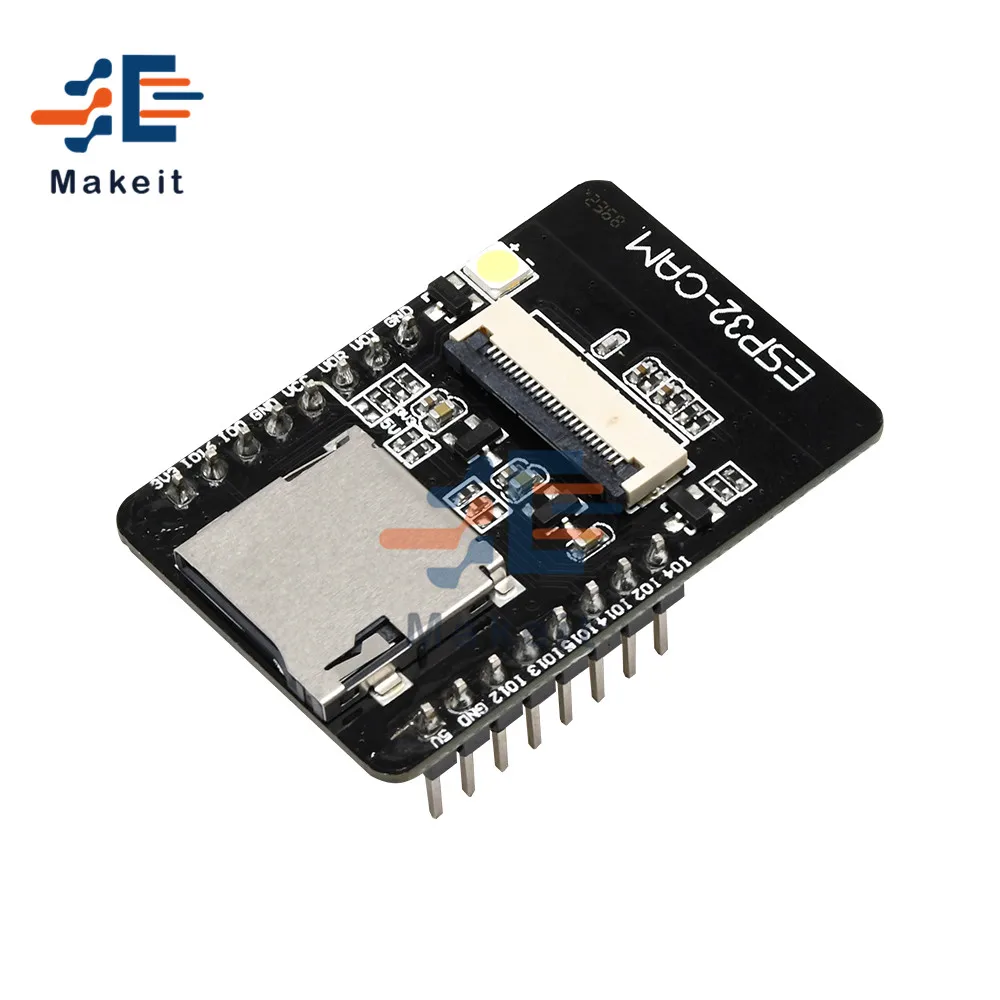

ESP32-CAM-MB WiFi Bluetooth Development Board OV2640 2MP Camera Module ESP32-CAM WIFI Module with IPX interface for Arduino

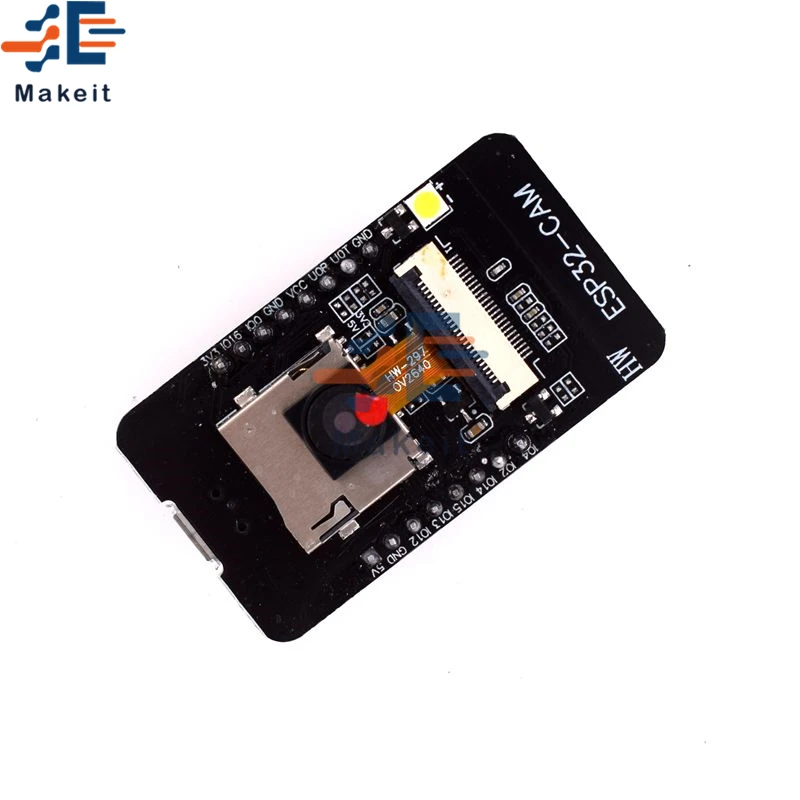

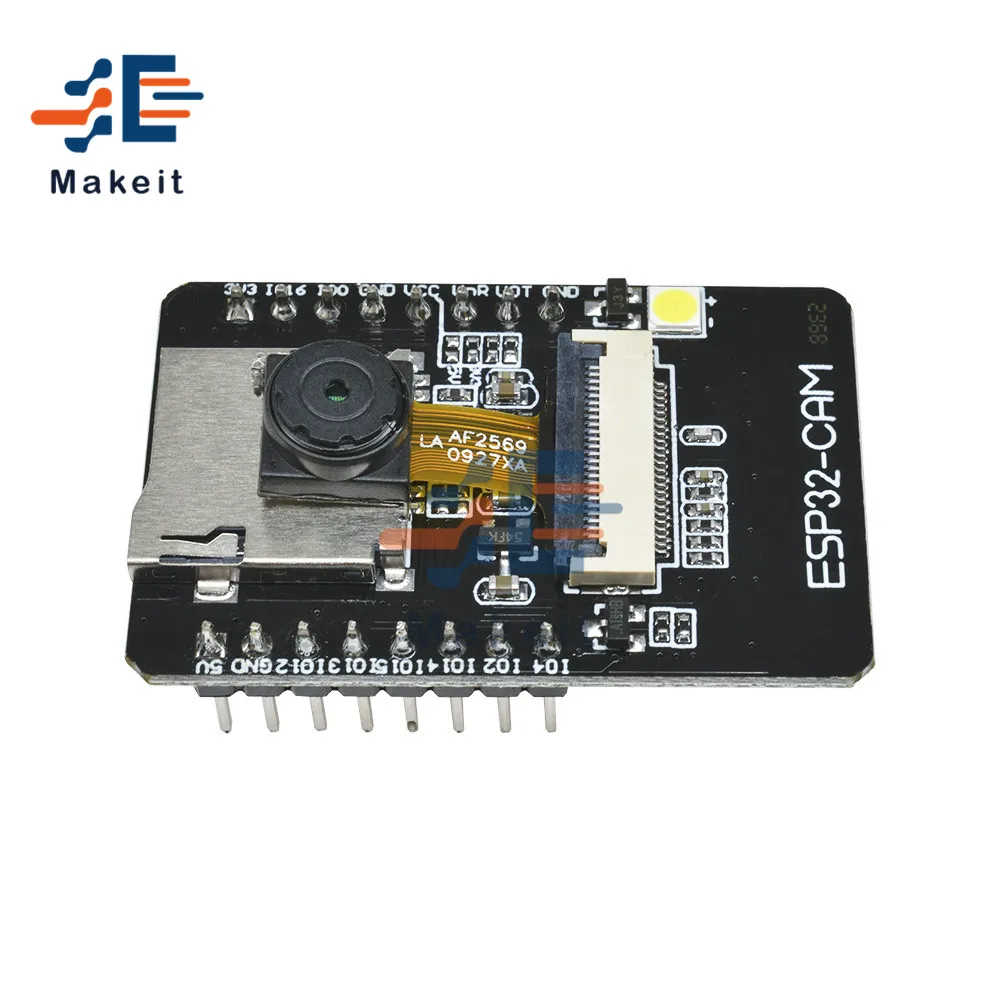

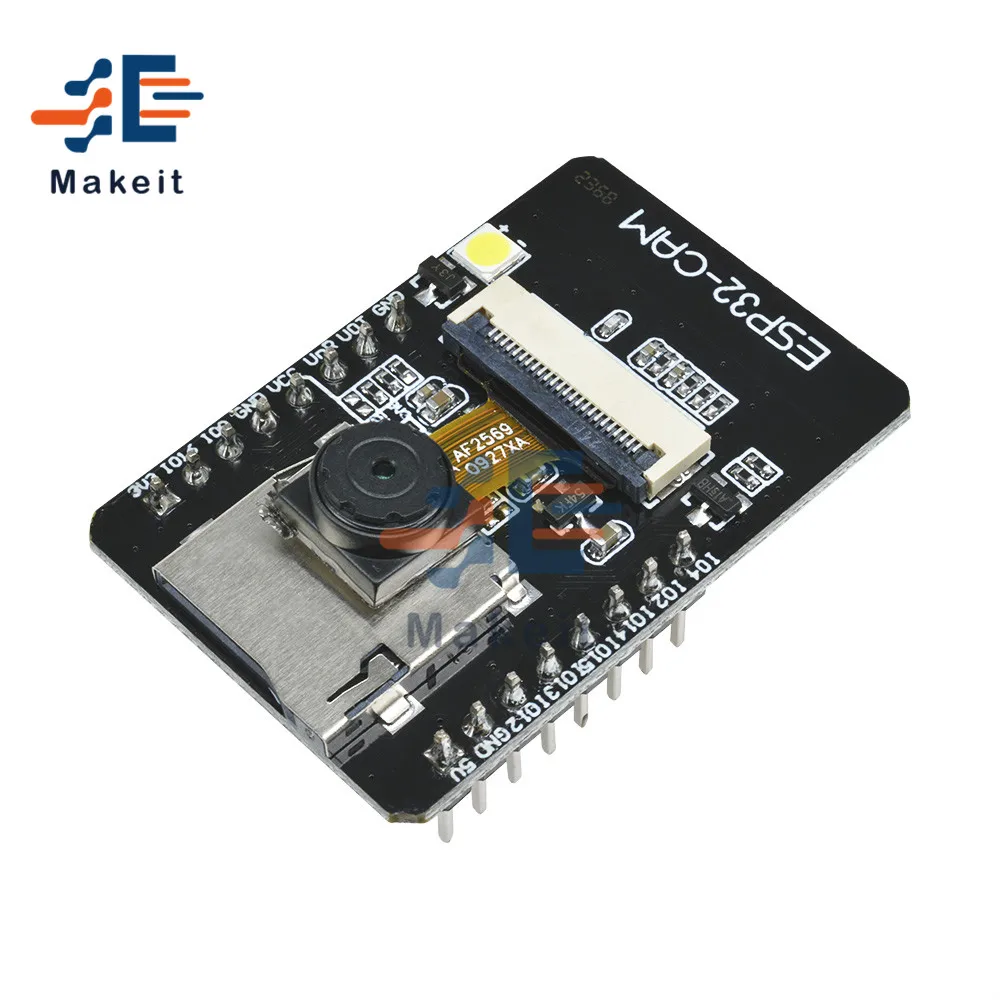

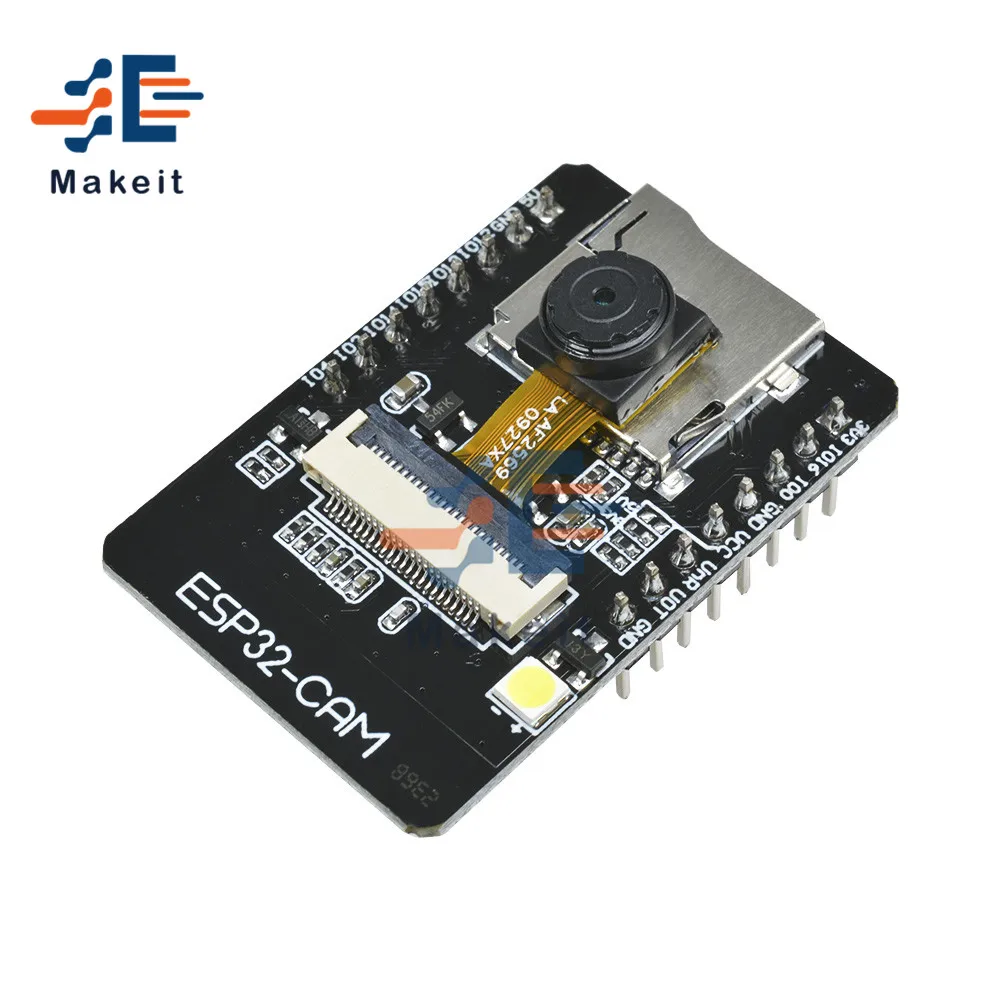

[ESP32-CAM]
Description:
Modle: ESP32-CAM
Operating Voltage: 5V
SPI Flash: 32 Mbit
RAM: Inter 520KB+, External 4M PSRAM
Bluetooth: BLuetooth 4.2 BR/EDR & BLE standard
WIFI: 802.11/b/g/n/e/i
Port: UART, SPI, I2C, PWM
IO Port: 9
Serial port rate: 115200 bps
Picture form: JPEG (only OV2640 support), BMP, GRAYSCALE
Spectrum range: 2412 -2484MHz
Antanna: Onboard PCB Antanna 2dBi
Security: WPA/WPA2/WPA2-Enterprise/WPS
Operating Temperature: -20 -85 Degrees Celsius
Storage Tepmerature: -40 -90 Degrees Celsius, <90%RH
Transmit power:
802.11b: 17+/-2 dBm (@11Mbps)
802.11g: 14+/-2 dBm (@54Mbps)
802.11n: 13+/-2 dBm (@MSC7)
Receive Sensitivity:
CCK, 1 Mbps: -90dBm
CCK, 11 Mbps: -85dBm
6 Mbps(1/2 BPSK): -88dBm
54 Mbps (3/4 64-QAM): -70dBm
MCS7 (65 Mbps, 72.2 Mbps): -67dBm

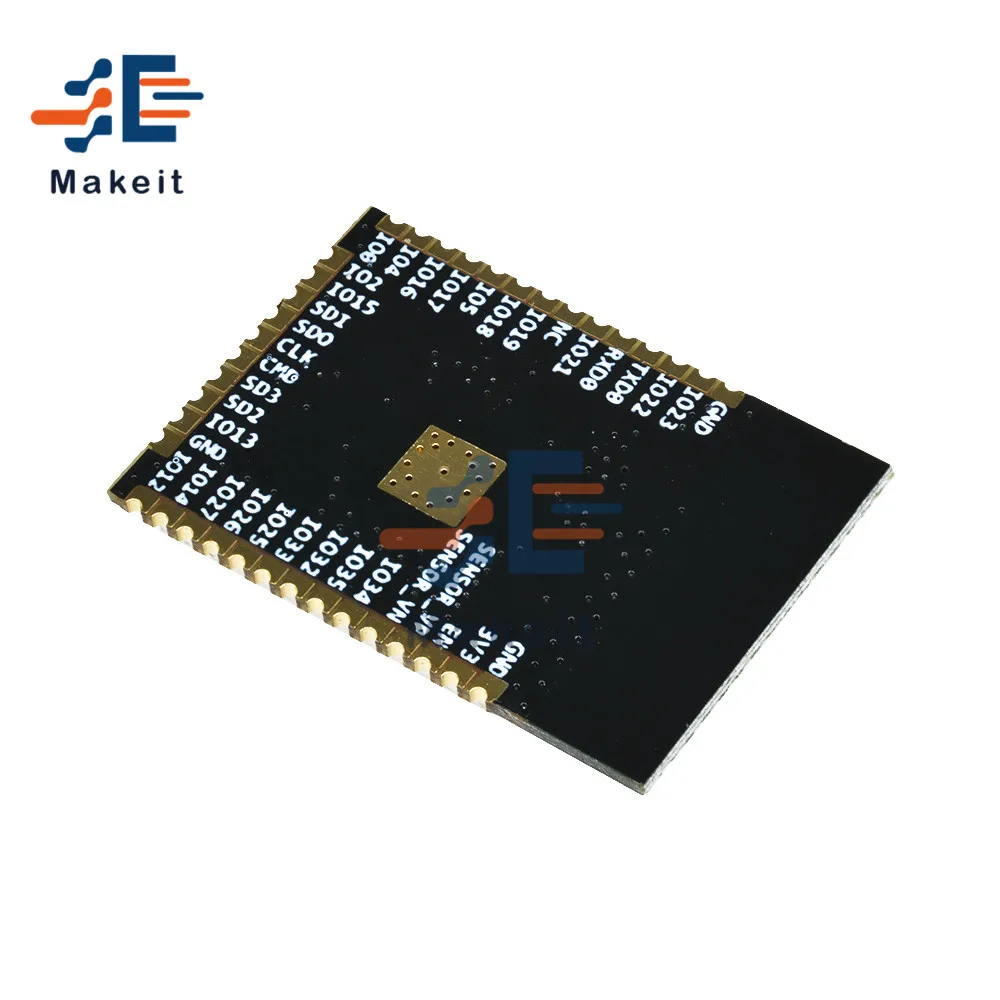

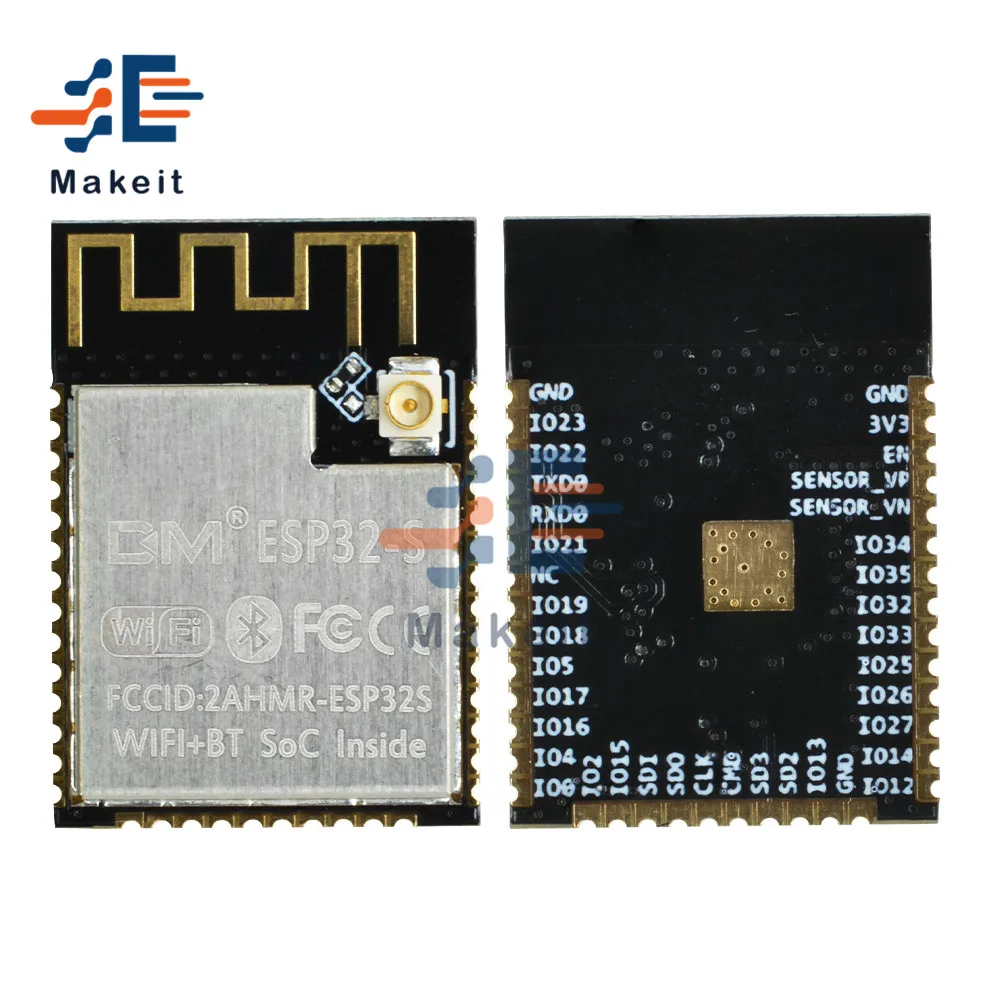

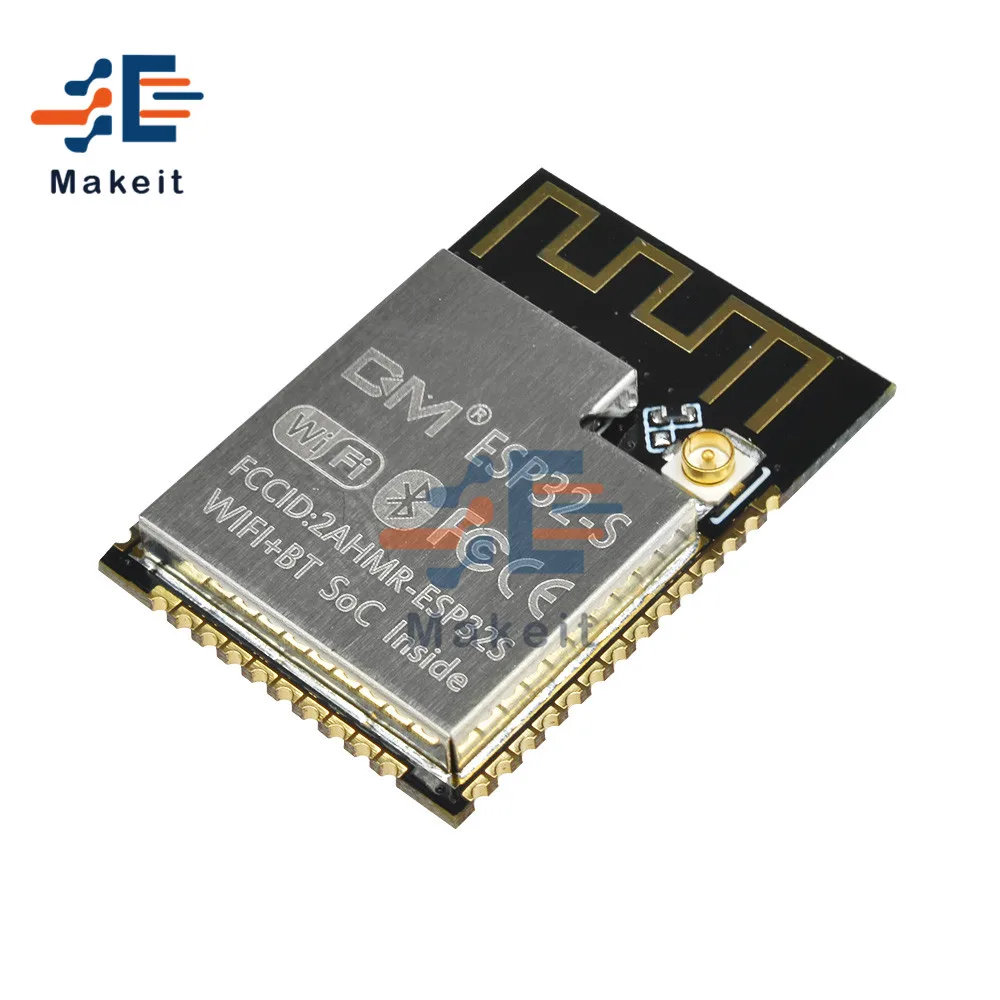

[ESP32-S]
The main chip uses a low-power dual-core 32-bit CPU with a frequency of up to 240MHz and a computing power of up to 600DMIPS.
Default 32Mbit SPI Flash, 520KB SRAM
Support SoftAP and Station mode
Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
Support UART/SPI/I2C/I2S/PWM/ADC/DAC, etc.
Support for firmware upgrade (FOTA)
Antenna supports on-board antenna or IPEX block output

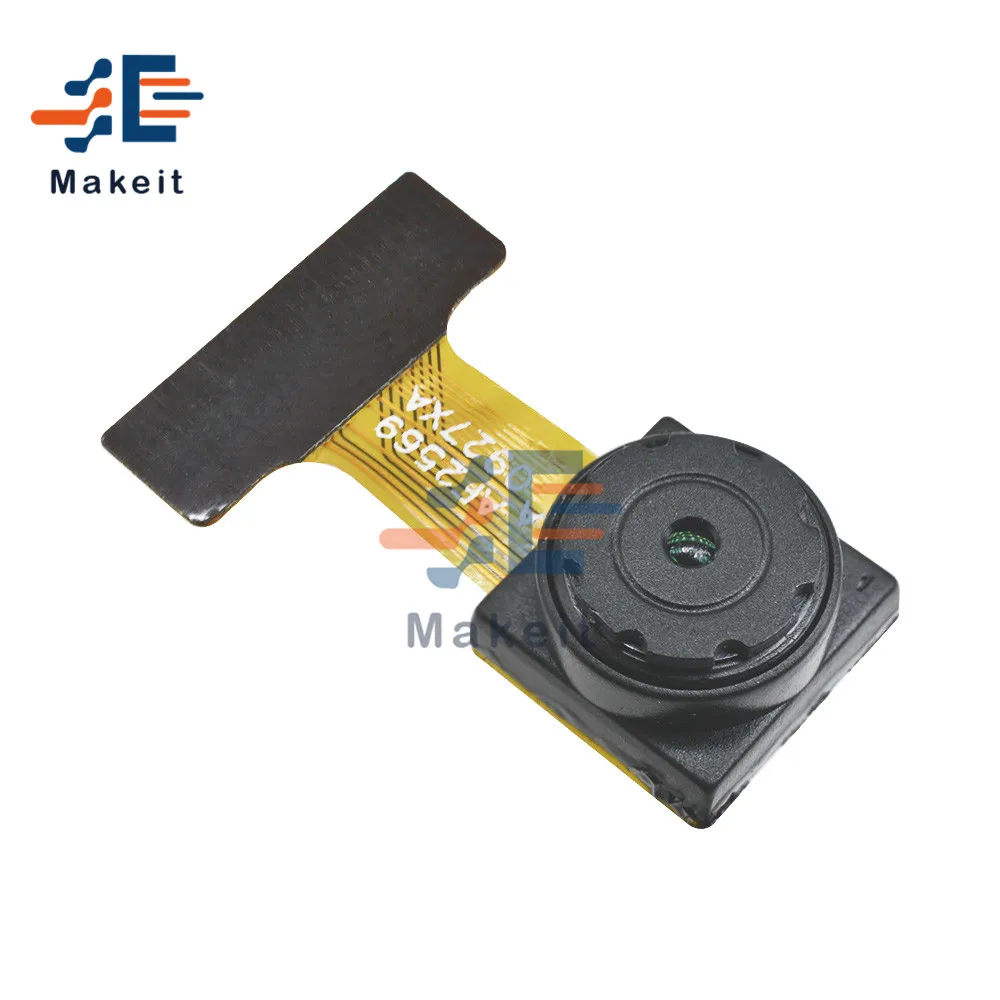

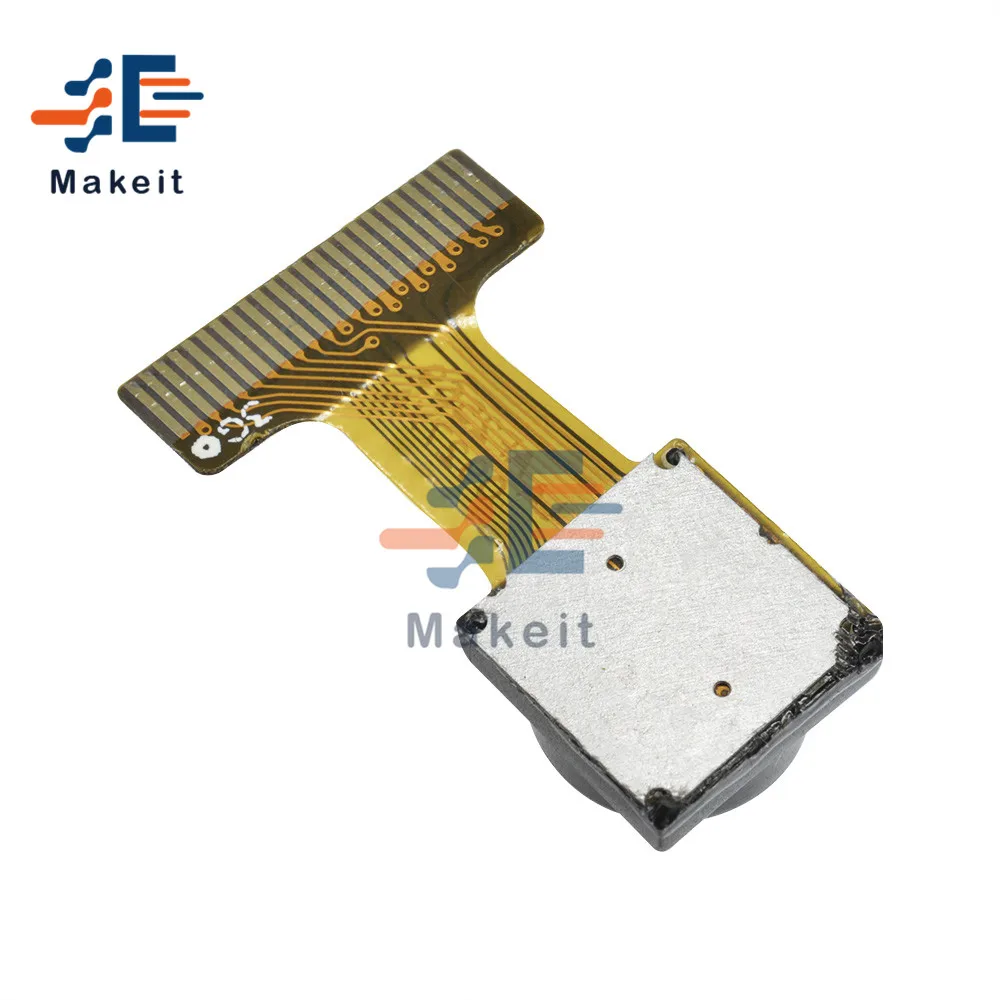

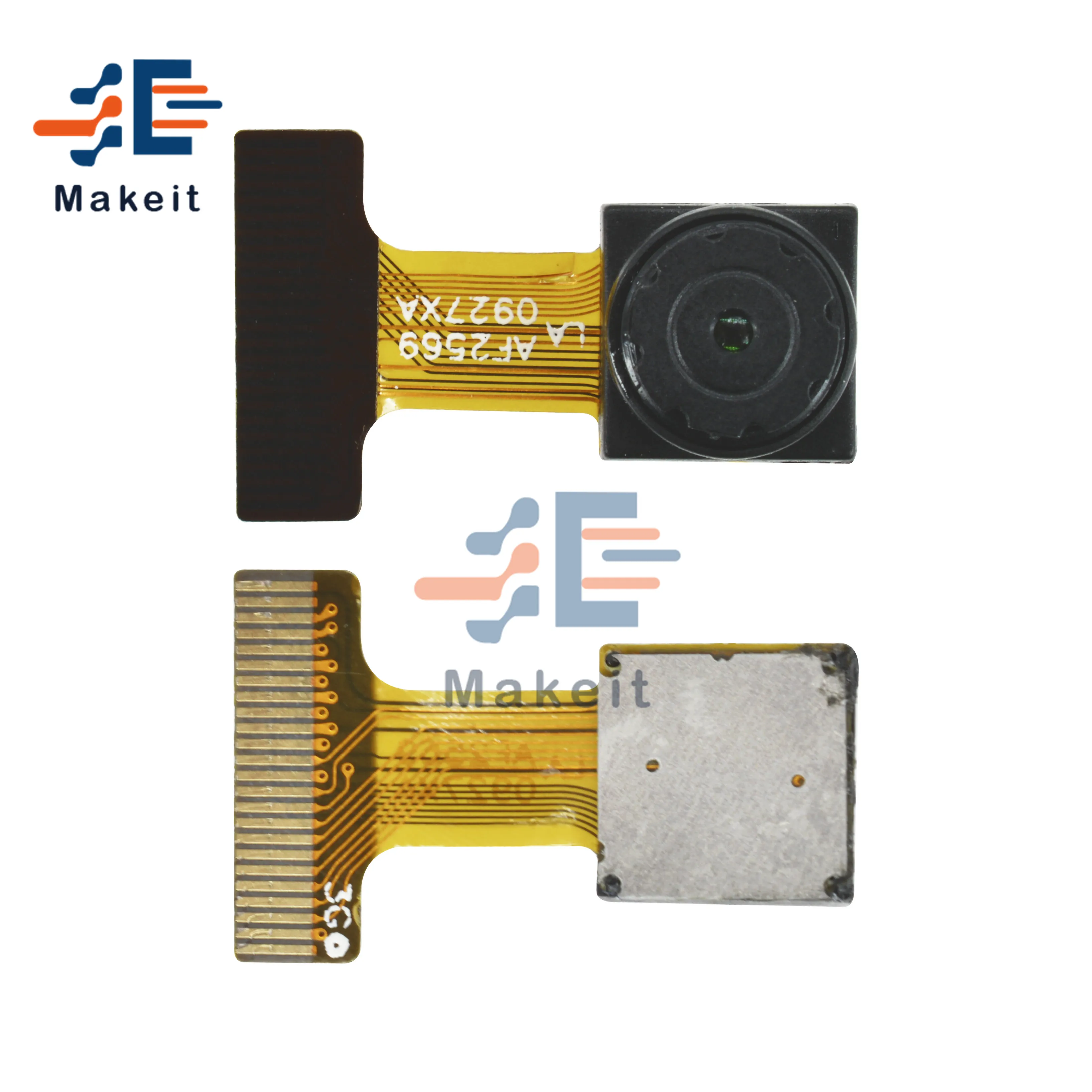

[OV2640 Camera Module]
Feature:
The OV2640 image sensor features 2 megapixels (1632x1232 pixels)
Small size, low operating voltage, and provides all the features of a single chip UXGA camera and image processor.
Through the SCCB control, you can output the entire frame, sub-sampling, take the window, and a variety of resolution 10-bit sampling data.
The product UXGA images up to 15 frames per second.
The user can fully control the image quality, data format and transmission mode.
Specification:
High sensitivity for low-light applications
Low voltage for embedded applications
Standard SCCB interface, compatible with I2C interface
RawRGB, RGB (GRB4: 2: 2, RGB565 / 555/444), YUV (4: 2: 2) and YCbCr (4: 2: 2) output format
Supports UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and up to 40x30 size
Supports VarioPixel sub sampling mode
Automatic impact control functions include: automatic exposure control, Automatic gain control, automatic white balance, automatic elimination of light stripes, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
ISP with noise cancellation and dead pixel compensation
Support image scaling
Lens loss compensation
Saturation automatic adjustment
Edge enhancement automatic adjustment
Noise reduction automatic adjustment
Sensing array 1632x1232
Maximum format UXGA IO
Voltage 1.7V -3.3V
Analog voltage 2.5 -3.0V (internal LDO to power supply 1.2V)
Power consumption TBD sleep<20μA
Temperature operation -30 ℃ to 70 ℃
Stable working 0 ℃ to 50 ℃
Output format (8-bit)
YUV / YCbCr4: 2: 2 RGB565 / 555/444
GRB4: 2: 2 Raw RGB Data
Optical size 1/4"
Viewing angle 25 Degree
Maximum rate 15fps
SXGA sensitivity 1.3V / (Lux-sec )
Signal to noise ratio 40dB
Dynamic range 50 dB
View mode Progressive electron exposure 1 line to 1247 lines
Pixel area 2.2 μm x 2.2 μm
Dark current 15 mV / s at 60 C

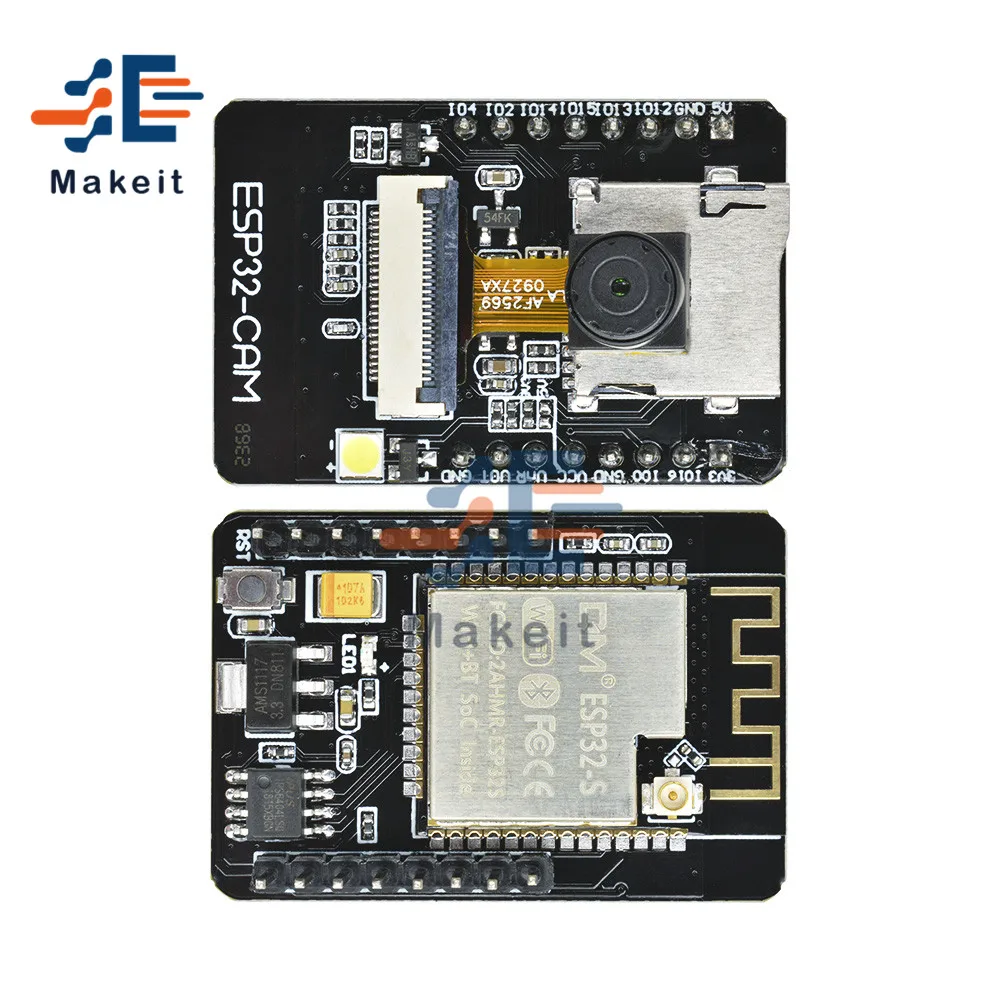

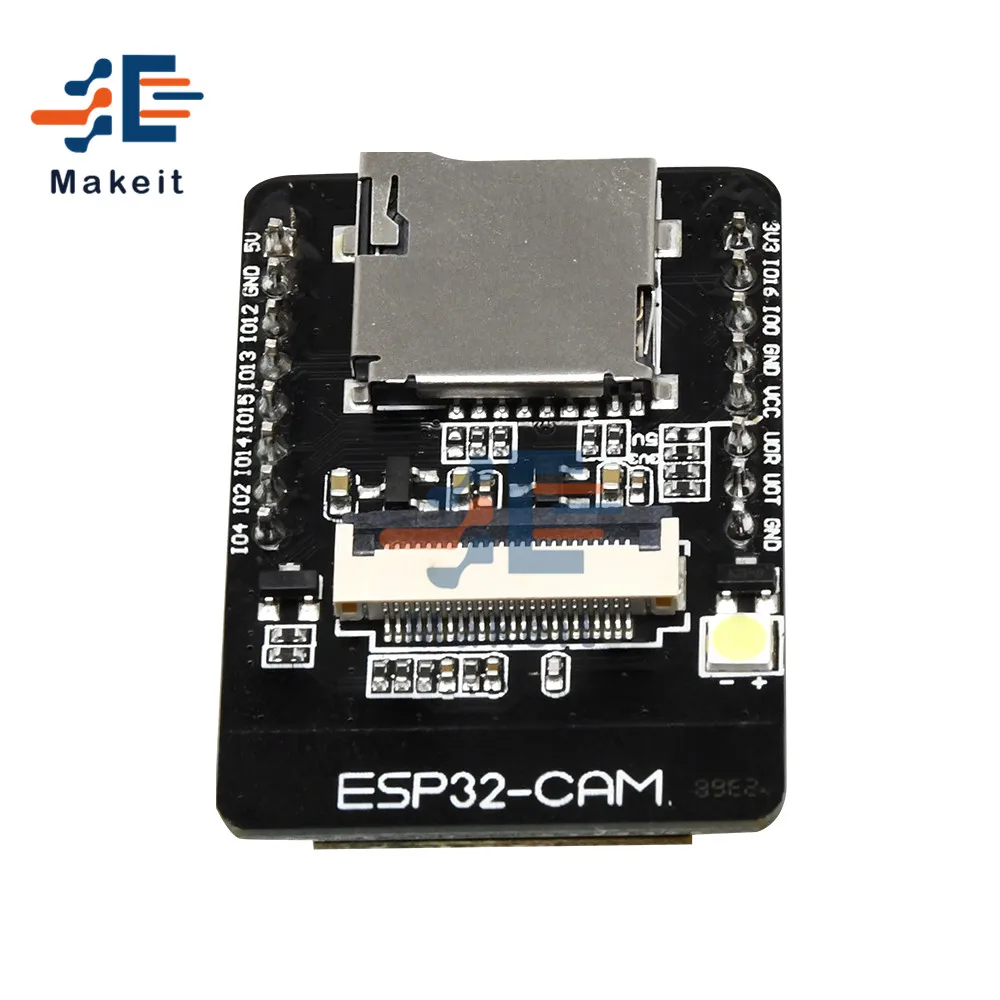

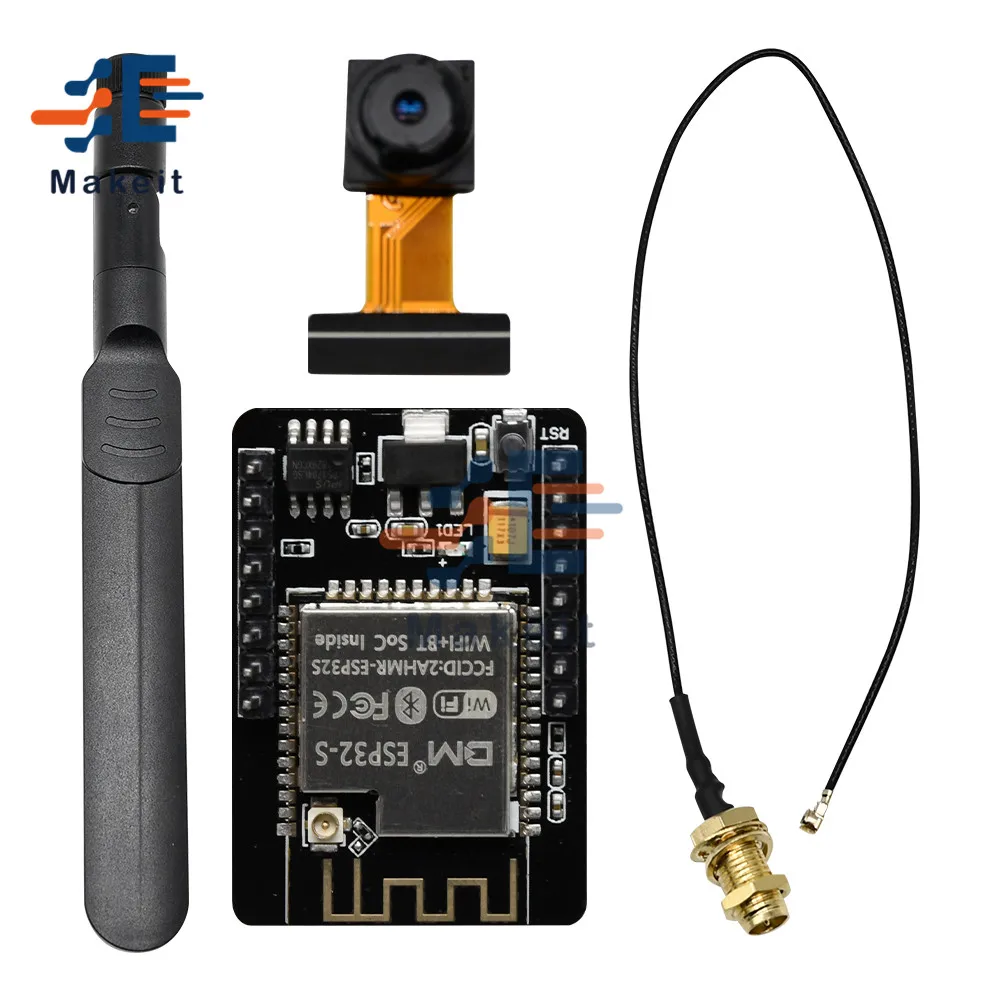

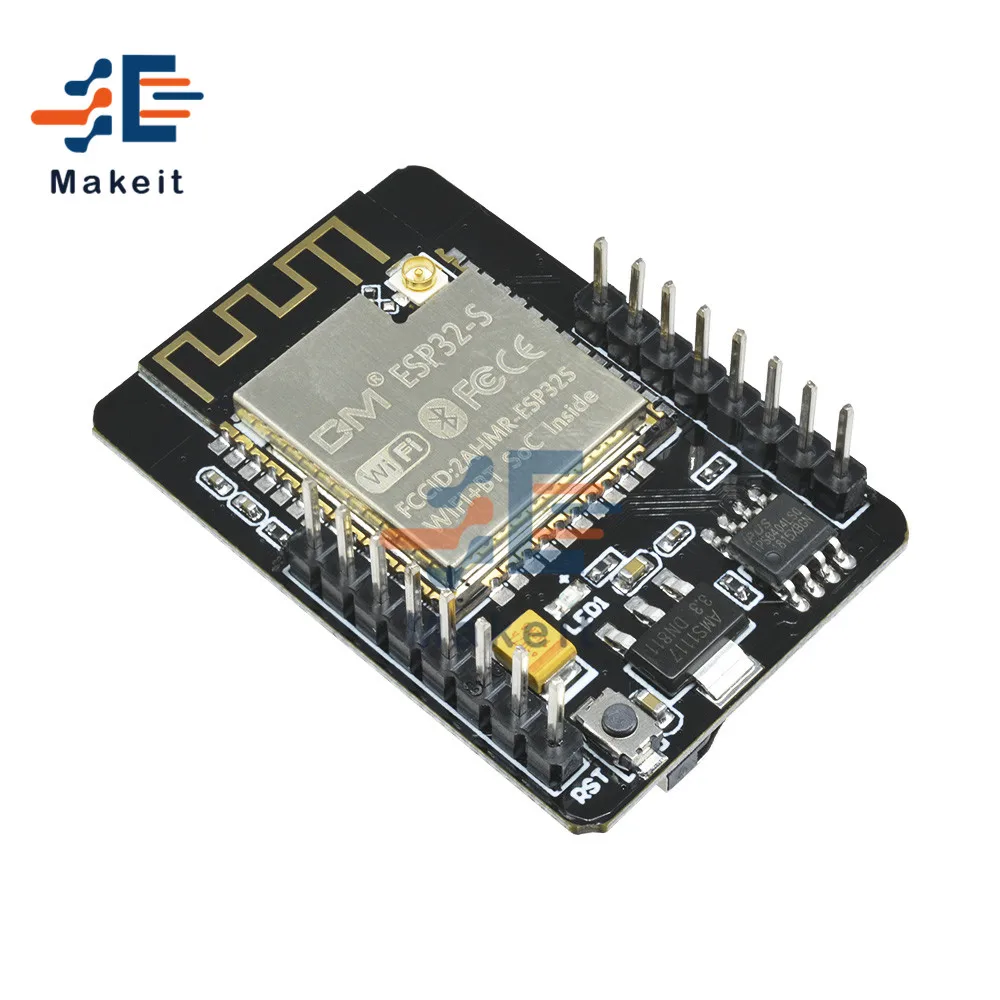

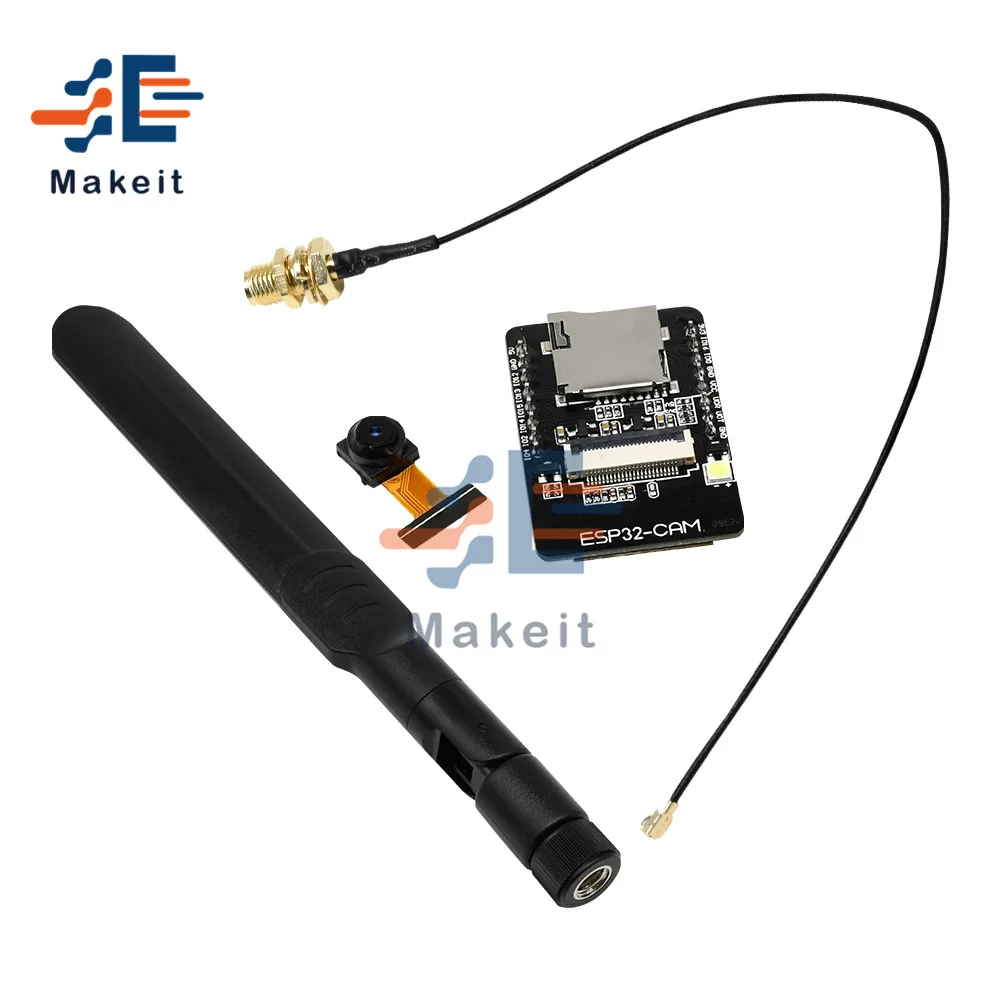

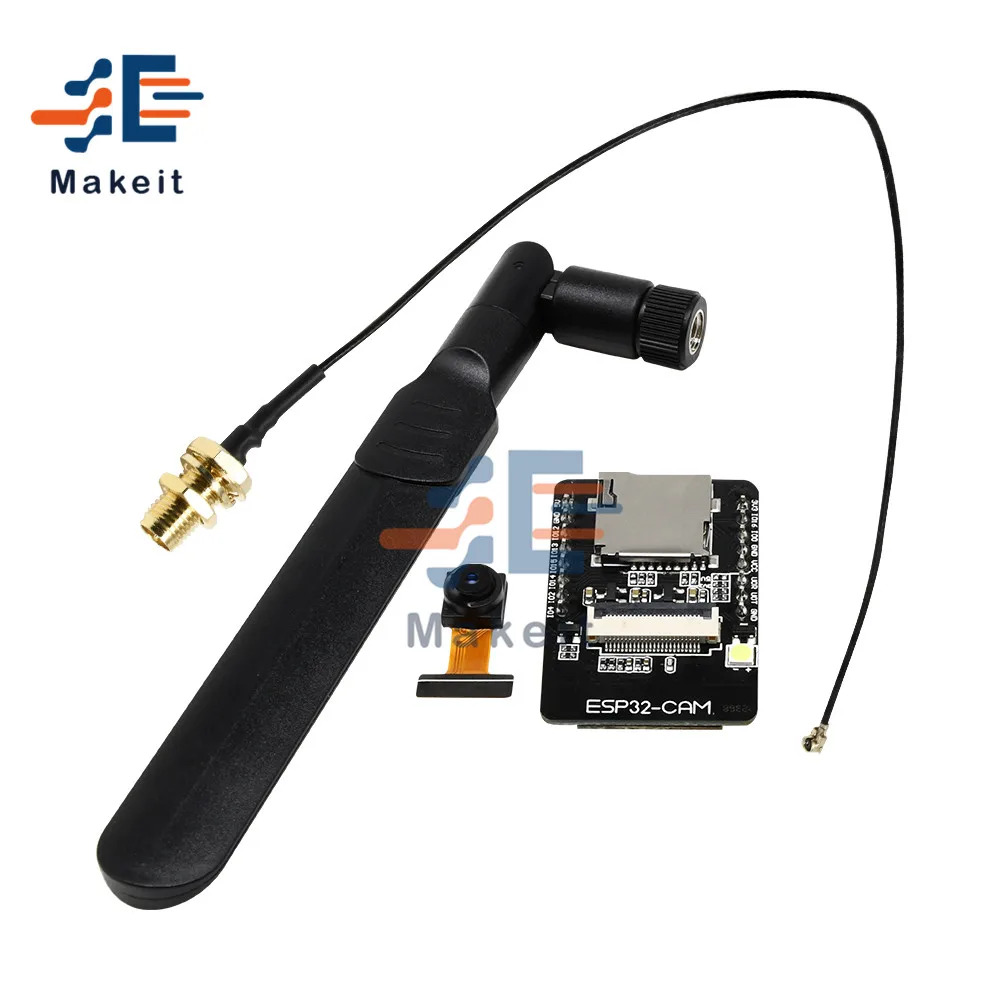

ESP32-CAM（Camera Module+Antenna+IPEX Cable）
Features:
Low-power dual-core 32-bit CPU for application processors
Main frequency up to 240MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
Support OV2640 and OV7670 cameras, built-in flash
Support image WiFi upload
Support TF card
Support multiple sleep modes
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click distribution network
Support secondary development

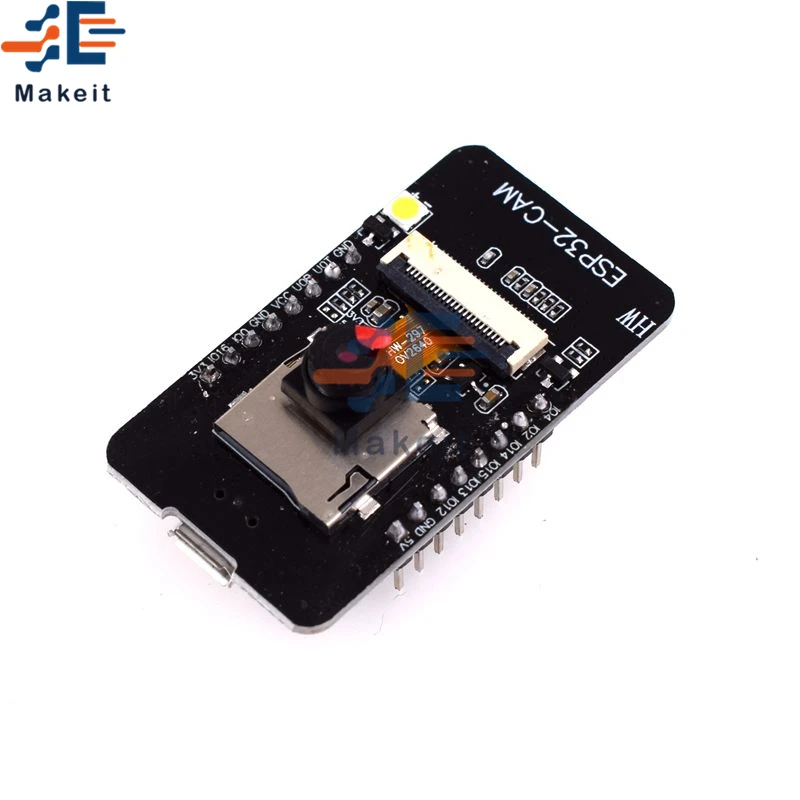

Description:
The ESP32-CAM has a very competitive small form factor camera module that can operate independently as a minimum system with a footprint of only 27*40.5*4.5mm and a deep sleep current of up to 6mA.
ESP-32CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.
ESP-32CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT
hardware terminals.

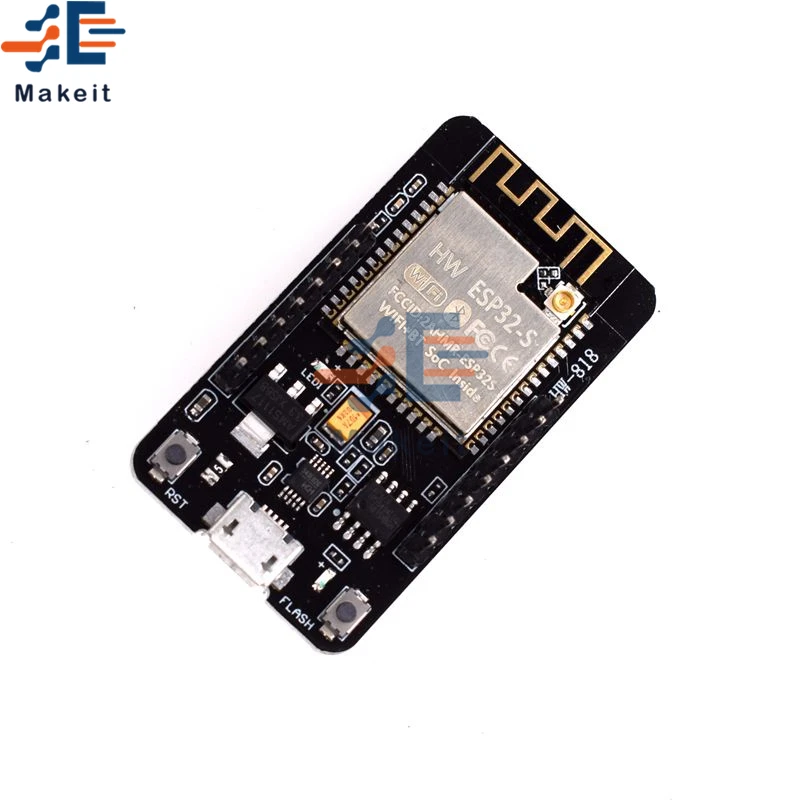

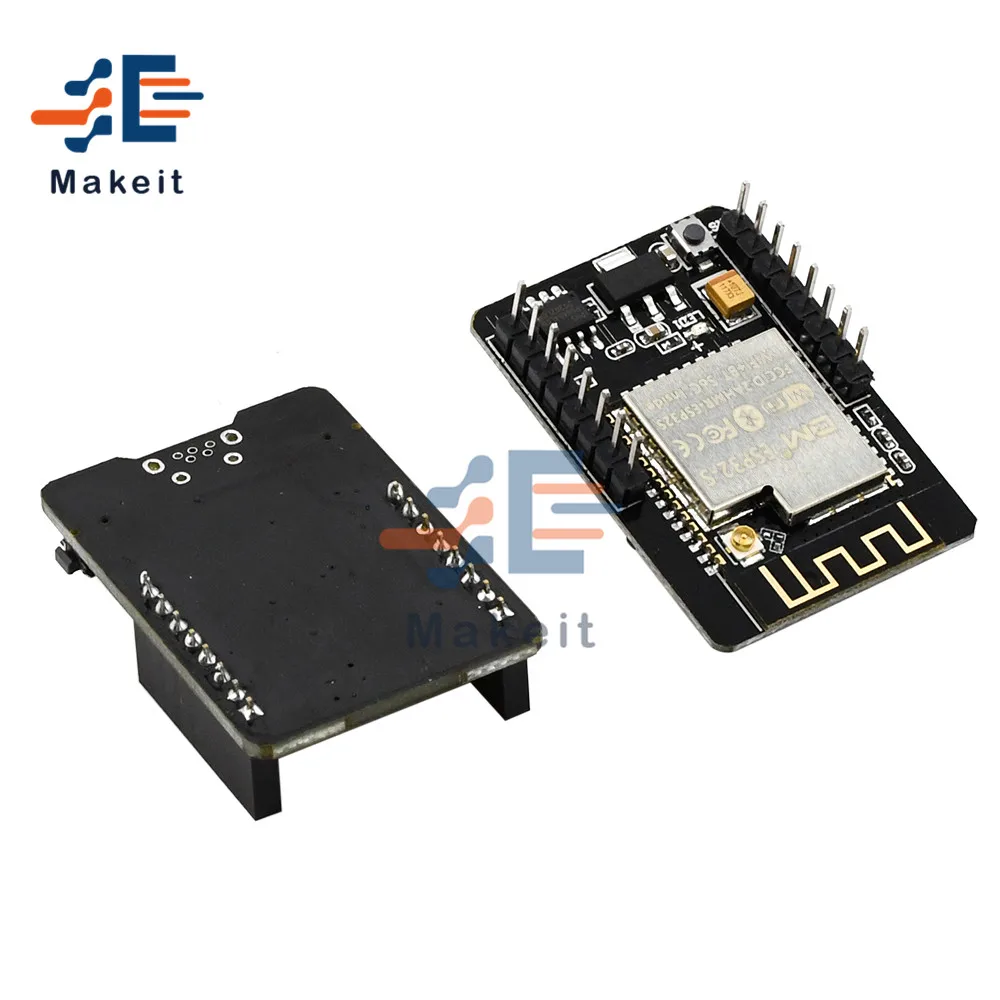

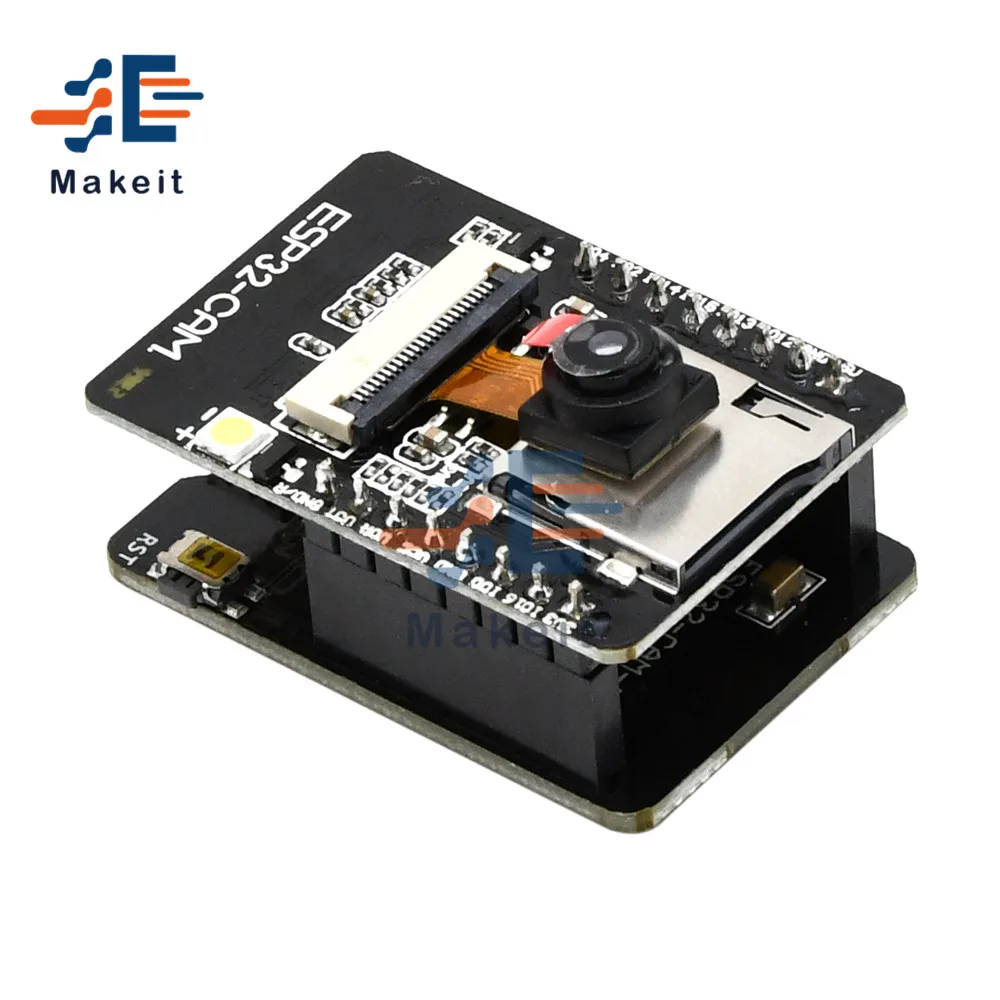

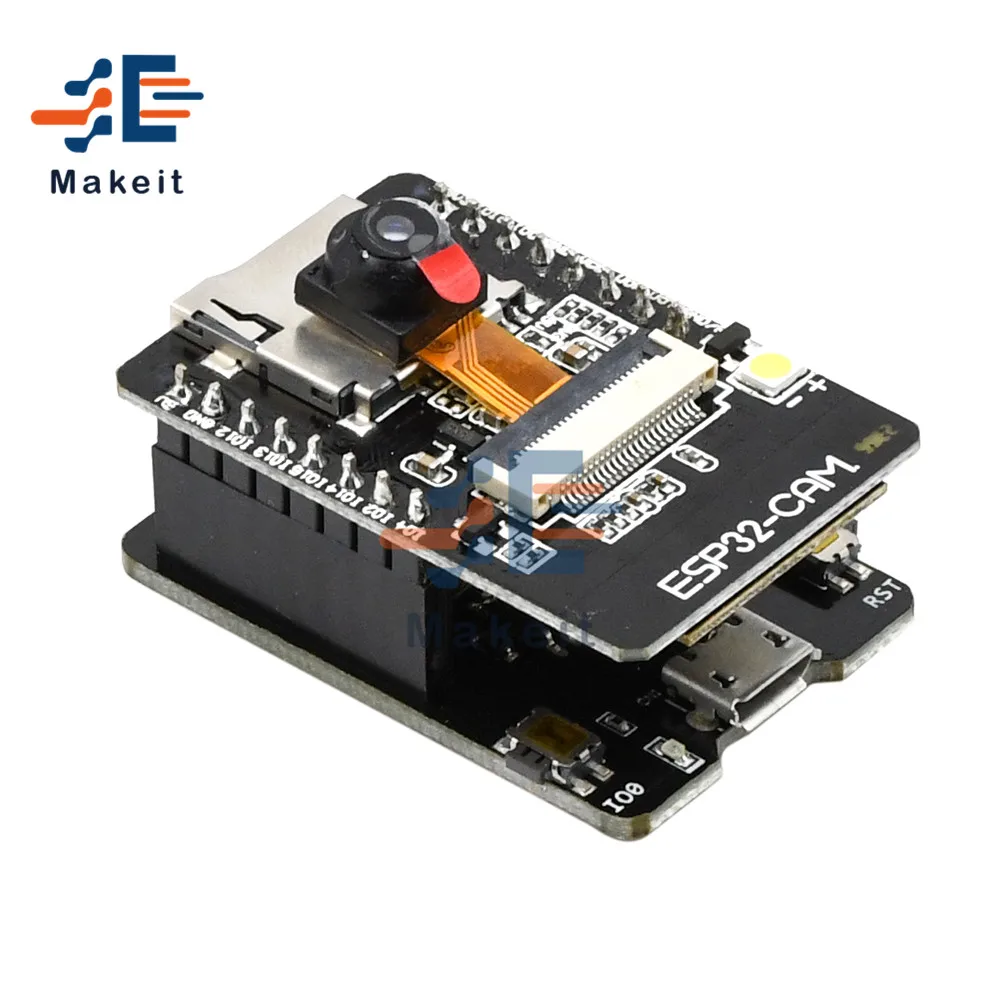

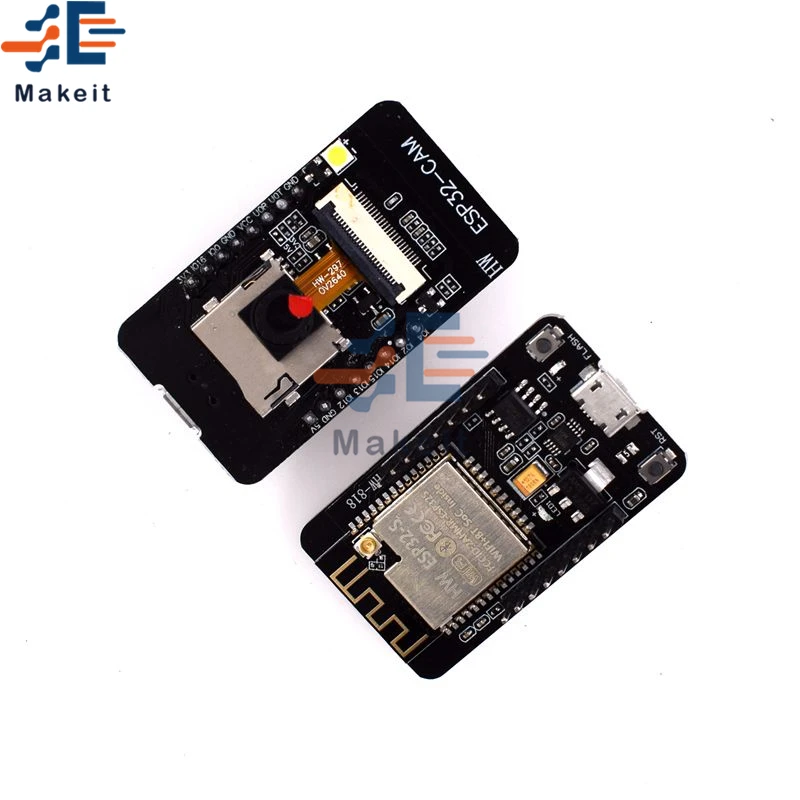

ESP32-CAM-MB（Camera Module+USB to Serial Port CH340G）
Introduction:
The HK-ESP32-CAM-MB module is a small camera module with a size of 39.8*27*. This module can work independently as the smallest system. A new WiFi+Bluetooth dual-mode development board based on ESP32 design, using PCB on-board antenna, with 2 high-performance 32-bit LX6CPU, using 7-level pipeline architecture, main frequency adjustment range 80MHz to 240Mhz. Ultra-low power consumption, deep sleep current is as low as 6mA. It is an ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
HK-ESP32-CAM-MB adopts Micro USB interface, convenient and reliable connection method, convenient to apply to various IoT hardware terminal occasions.
Basic performance parameters:
Using low-power dual-core 32-bit CPU, which can be used as an application processor.
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB SRAM, external 8MB PSRAM
Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFI upload
Support TF card
Support multiple sleep modes.
Lwip and FreeRTOS embedded
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development
Parameter:
Working voltage: 4.75-5.25V
SPIFlash: Default 32Mbit
RAM: Internal 520KB + external 8MB PSRAM
Wi-Fi: 802.11b/g/n/e/i
Bluetooth: Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps): UART, SPI, I2C, PWM
Support TF card: maximum support 4G
IO port: 9
Serial port rate: default 115200bps
Spectrum range: 2400 ~2483.5MHz
Antenna form: onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Package method: DIP-16
Transmit power: 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiving sensitivity: CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps(3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption: Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Moderm-sleep: the lowest can reach 20mA@5V
Light-sleep: the lowest can reach 6.7mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Working temperature: -20 ℃~ 70 ℃
Storage environment: -40 ℃~ 125 ℃, <90%RH
Weight: 10g
Application scenarios:
Image transmission of home smart devices
Wireless monitoring
Smart agriculture
QR wireless recognition
Wireless positioning system signal
and other IoT applications

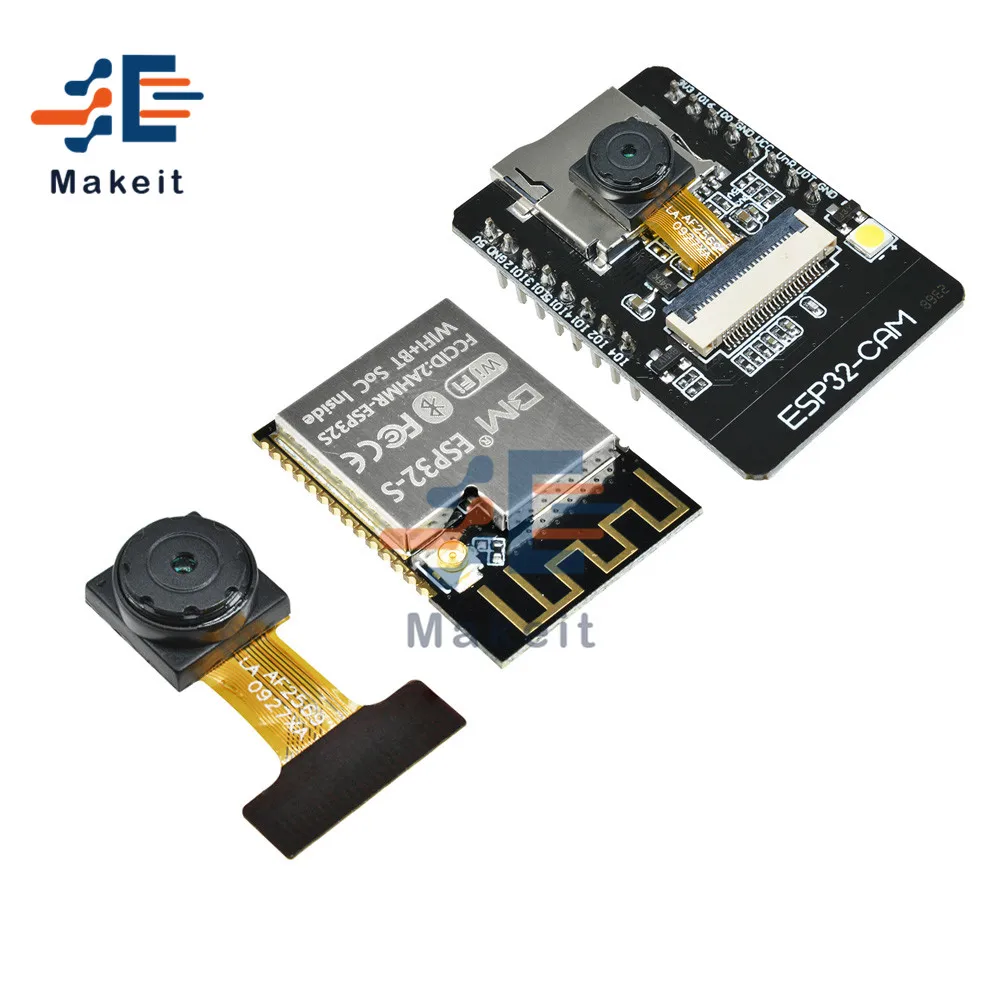

Package include:
1 x ESP32-CAM
1 x ESP32-S
1 x OV2640 Camera Module
1 x ESP32-CAM-MB

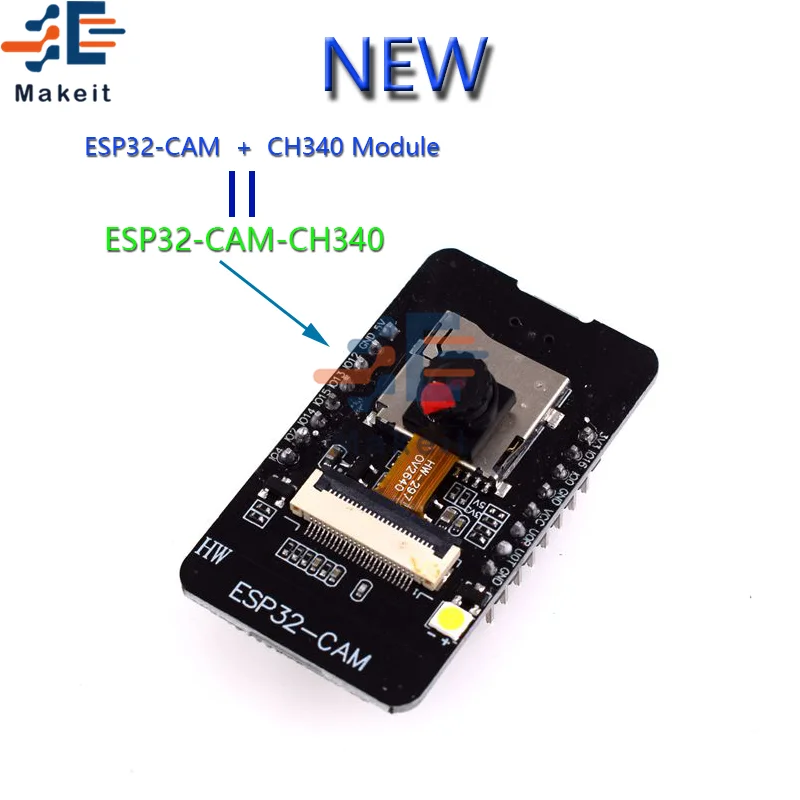

ESP32-CAM-CH340 camera module
