NOTE:

1. OBD model can not support some car, pls contact with us before buy

2. GPS Model for All car

3.pls let us know your email  if need Car List

T900 HUD Head Up Display Car Speedometer Windshield Projector With Reflection Board Mirror OBD2 Gauge Diagnostic Tool hud gps

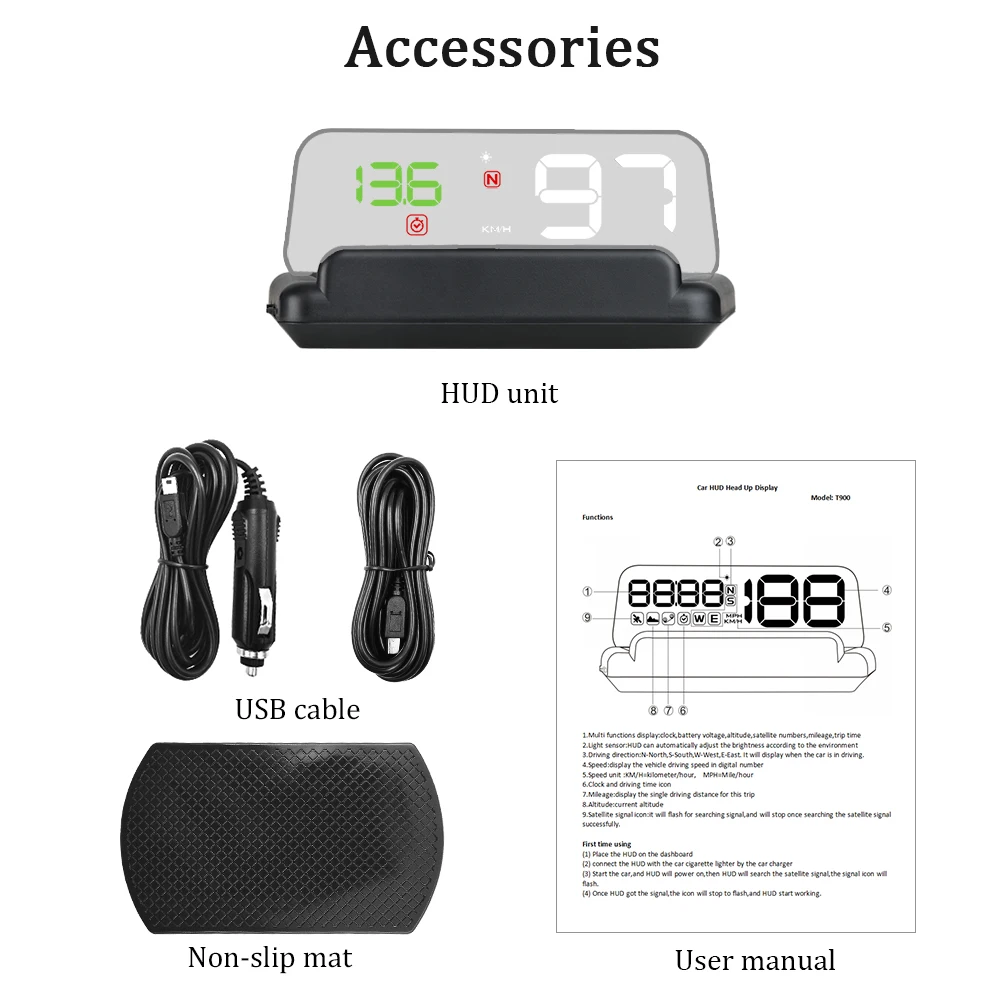

First time using

(1) Place the HUD on the dashboard

(2) connect the HUD with the car cigarette lighter by the car charger

(3) Start the car,and HUD will power on,then HUD will search the satellite signal,the signal icon will flash.

(4) Once HUD got the signal,the icon will stop to flash,and HUD start working.

Technical Parameters

1.Environment temperature: - 40 0C— +80 0C

 Barometric press: 86-106KPa

 Relative humidity:10%-95%

 Environment voice:<=60dB

2.Work voltage:5V~28Vdc(12Vdc/200mA)

3.Sleep current:<=30mA

4.Product size:fold 135X68X30 mm,full size:135x68x56mm

5.Projector image size:90x20mm

6.Display way:projector

7.Display channel :LED Display

8.Reflector transmittance: 96%

9. Virtual image distance: 55 mm

10: Left and right angle view: 60°

11. downwards angle view: 15°

Troubleshooting

1.HUD screen without any display,and no power

Checking the car charger cable if it is tight, pull down the car charger cable and repeatedly plug several times, check the HUD switch if it powers on. If there still no display,please try another car to test and check whether the car cigarette lighter interface is bad, if it is a bad cigarette lighter, please try to connect the cable line to the car battery.

2.When HUD power on, HUD automatically power off after 20 seconds driving

 When the car battery voltage is less than 13.2V,HUD cannot power on,please check the car engine if turn on or not,if yes,please set the HUD menu 7. Long press in the setting button for 5 seconds to enter into the menu mode,and short press in 7 time change to menu 7,then set the voltage value at 12.8V or 12.6V. Once finishing setting,long press in the button for 5 seconds to save and exit.

3.When car power off,HUD cannot auto power off

 Please adjust the menu 7,to change the voltage at a higher value,13.3V-13.8V.

 Once finishing the setting,long press in the button for 5 seconds to save and exit,HUD will turn off in 3 minutes.

4.Inaccurate Speed

a.First check the speed unit is correct or not, the speed unit including KM/H and MPH, set it at the correct one(refer to menu 3)

b. When HUD is power on,vertical press the wave button 5 seconds to enter into the menu options, here menu option shows 0,parameter shows 107,up or down the wave button to increase or decrease the value according to the difference until it shows correct one.After adjustment, vertical press in 5 seconds to save.(Exp. If Dashboard shows 60km/h,but HUD shows 57km/h,change the HUD speed default value from 107 to 108 or 109)

5.Overspeed Alarm

The default value for over speed alarm is 150,users can choose to increase/decrease the value.

When HUD is power on,vertical press in the wave button 5 seconds to enter into the menu option,short press 1 time that time menu option shows 1, the parameter shows 150,it represents HUD will give an alarm when it reaches 150, then pull up or down the wave button to increase or decrease, after adjustment,vertical press 5 seconds to save.

6.See not clearly when HUD under the sunlight.

Check whether the reflection board protective film is torn,and change the menu setting 2 to default 2, make it at brightest.

7.wrong operation lead to crashes. Or inaccurate datas

Do a reset setting.

8.Inaccurate Time

Make sure your GMT(the default is GMT+8).According to your time zone to adjust HUD.Vertical press 5 seconds to enter into menu setting,short press 6 times to menu 6,parameter shows 8 (means GMT +8)up or down the wave button adjust to the time zone of your own country.

Once finishing setting,long press in the button for 5 seconds to save and exit.
