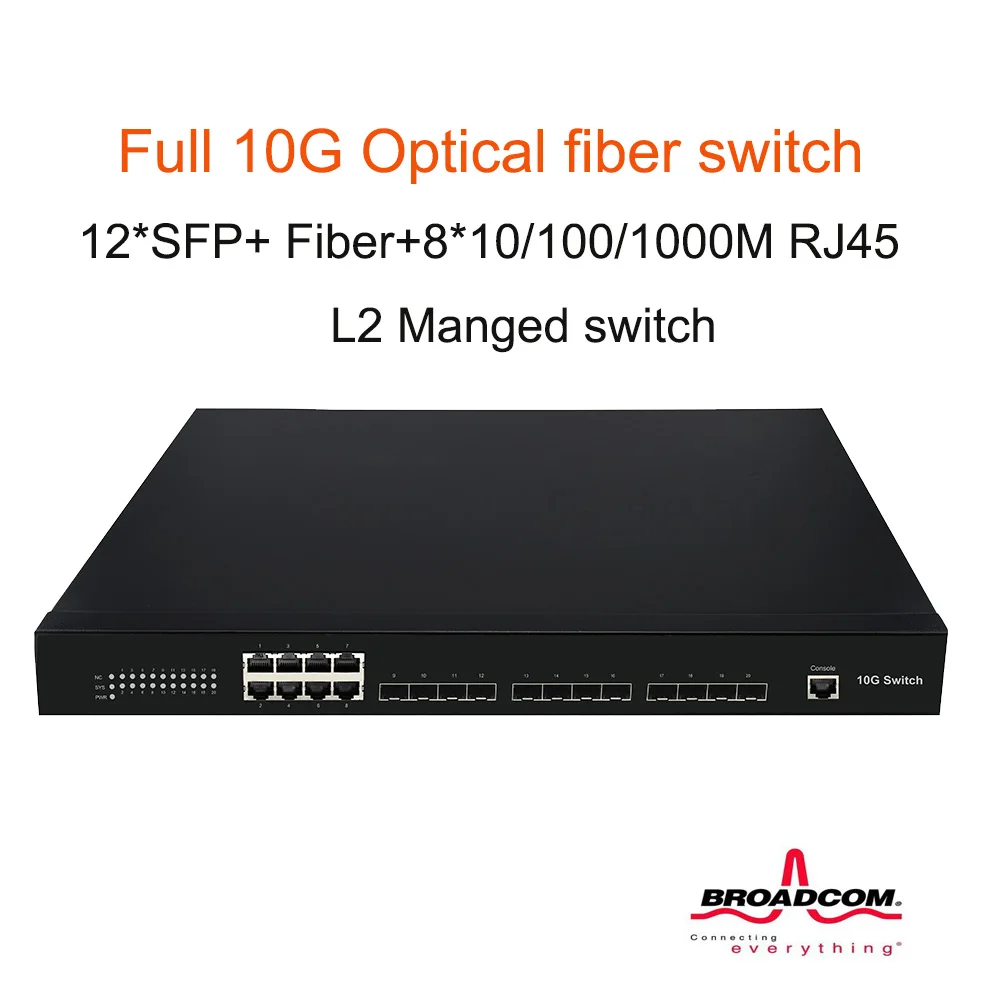

6210-12HC 10Gigabit Data Center Switch is layer 2 non-blocking switch with Broadcom chip. Providing 258Gbps switching capacity and 192Mpps forwarding performance, L2 / L3 full wire-speed forwarding. Its flexible networking capability ensures the stability of the network and the balance of the load link. With the modular design, it provides 12 10G SFP+ optical ports, 8 10/100/1000M RJ45 electrical ports, 1 Console port, 1 OOB management port, which offer enough bandwidth for data aggregation and data exchange. And in order to flexibly respond to the network requirements, users can select appropriate 10G ports according to their needs.With high bandwidth and low latency, pipe network., UK6410-12HC located in density of the next generation of data center and cloud computing network access, can also be used for large Internet cafes, the core of enterprise network, metropolitan area network, or aggregation.

Remarkable performance

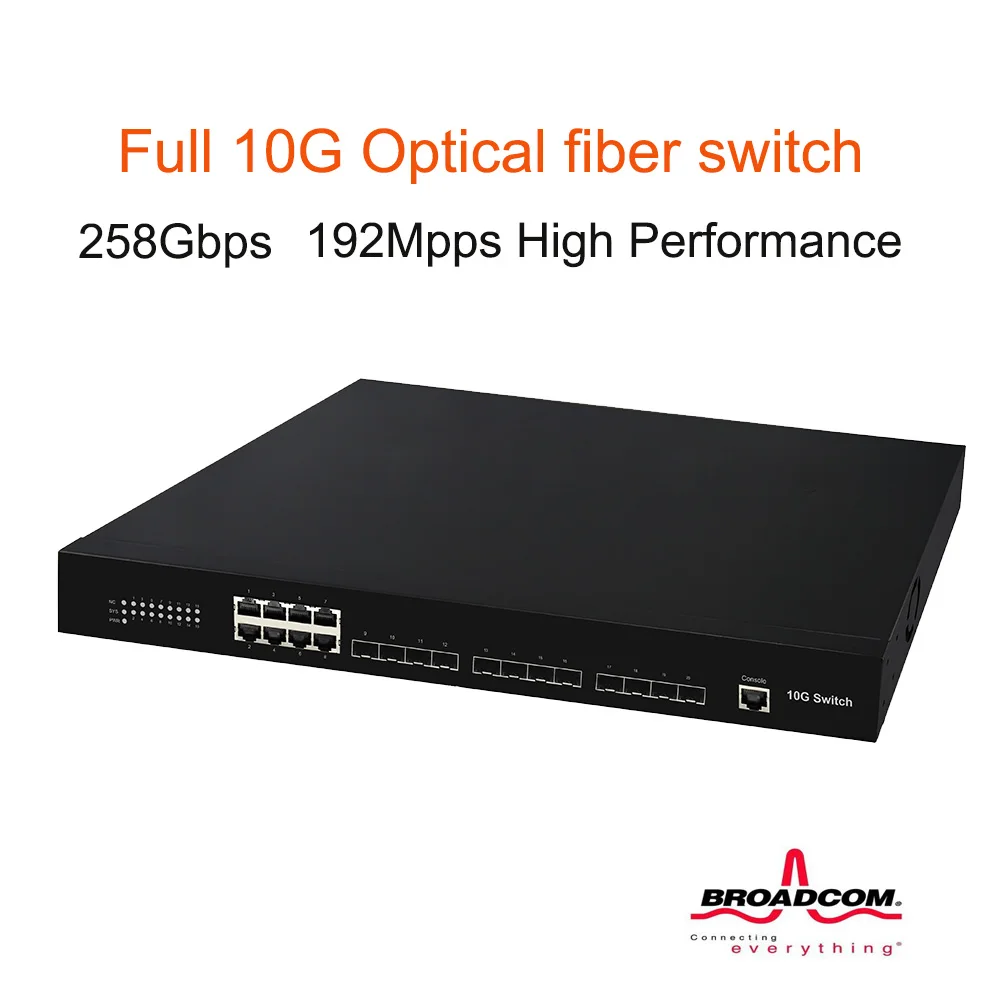

1. With 258Gbps backplane bandwidth, the industry the highest performance (1U TOR);

2. Hardware routing, wire speed packet rate reached 192Mpps, L2 / L3 forward full speed;

3. Able to be deployed in the Metropolitan Area Network and provide several last kilometer technology.

Safe and Reliable

1. Provide DOS, DDOS, spoofing and virus defense;
2. Support IEEE802.1x, provide port-based user authentication, network shield, safety control, and policy control technology;
3. Restrict the maximum number of  hosts connected with the port, multi-binding Ethernet interface , increasing bandwidth and system redundancy;

4. Powerful ACL, support L2-L4 data filtering;

5. Policy control list and flow regulation.

Convenient in operation and maintenance

1. Support flexible port configuration;

2. Management support with Web, SNMP and telnet;
3.Support XModem protocol, use TFTP/ZMODEM to software upgrading and BootRom upgrading;

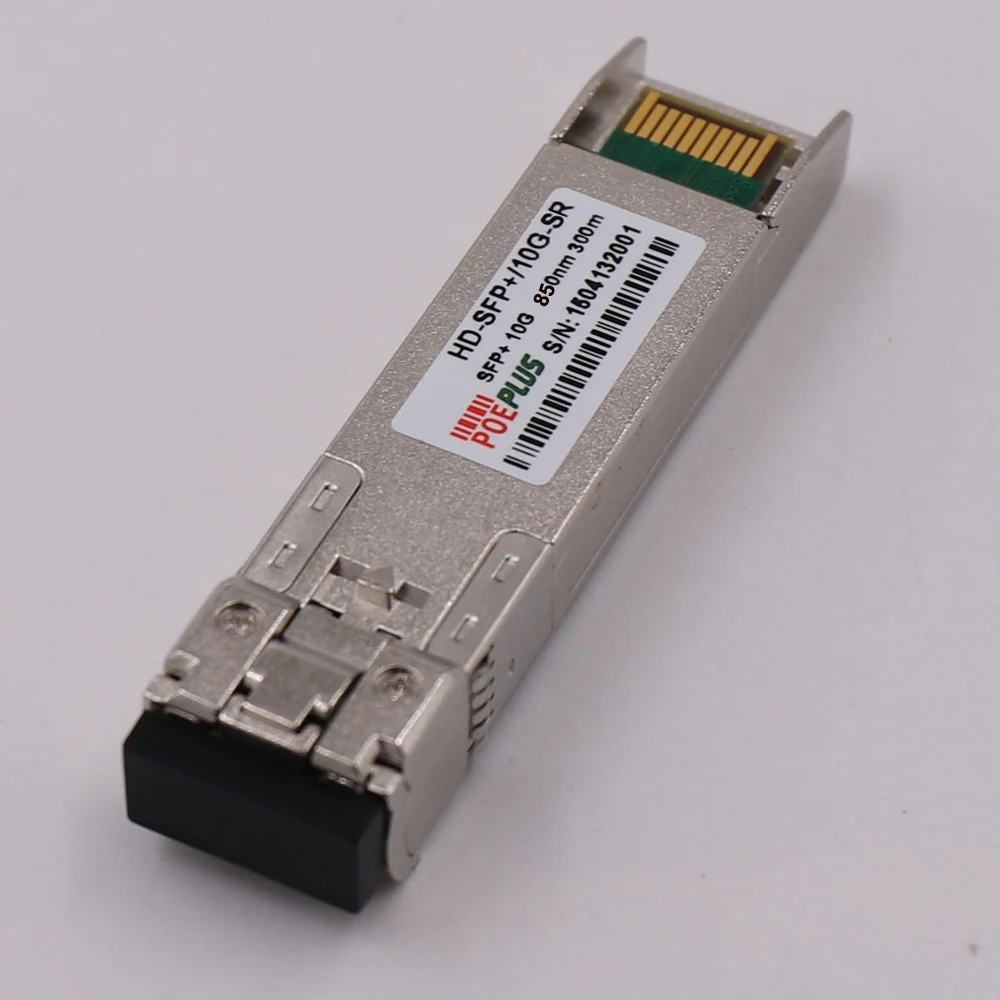

4.Support SFP+, also backwards compatible XFP;
5. Enter or exit low-power condition from PHY.

Powerful Flow and Broadcast Management
1. Automatically detect and control broadcast storm, support IGMP packets detection, effectively limit the flooding of broadcast packets;
2. Support Ethernet interface taking 1M as the step length for rate limiting.
3. Support full duplex mode and half duplex mode flow control;

4. Support IP multicast and QoS.

Product model

6210-12HC

Basic Characteristics

Fixed port

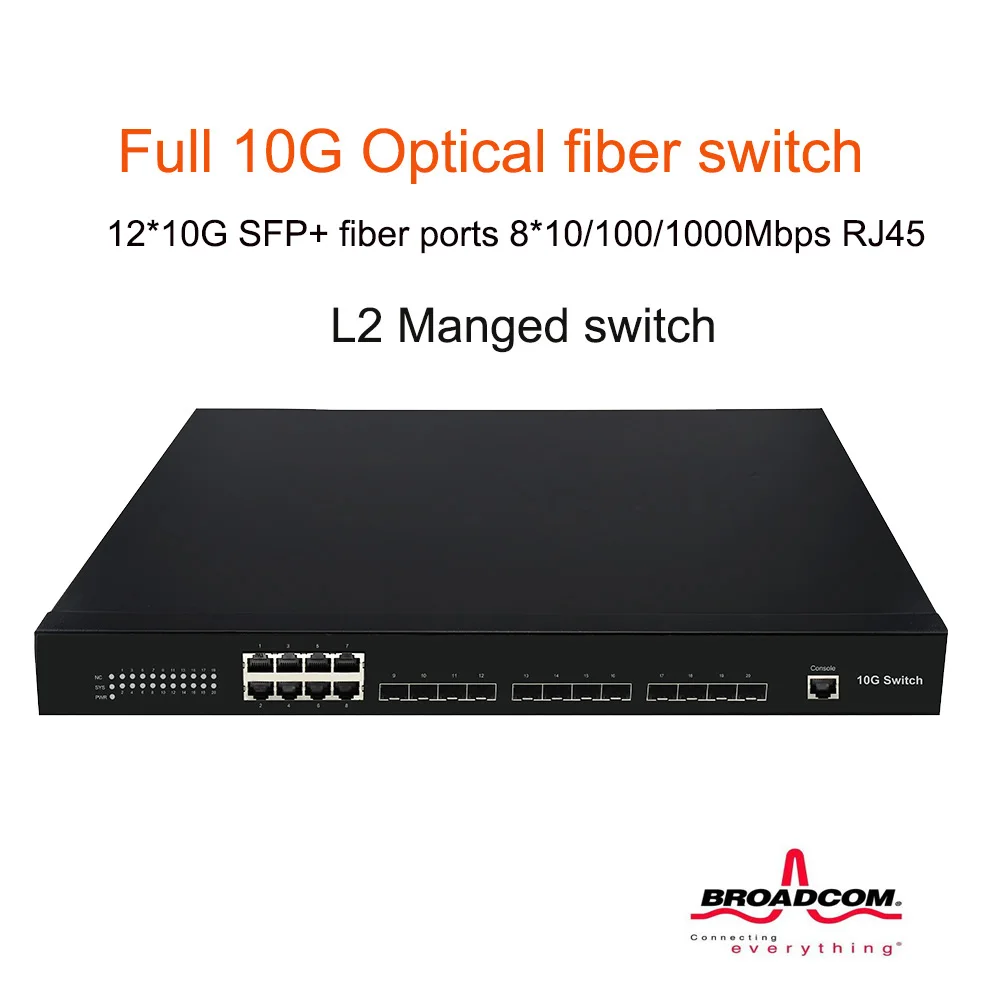

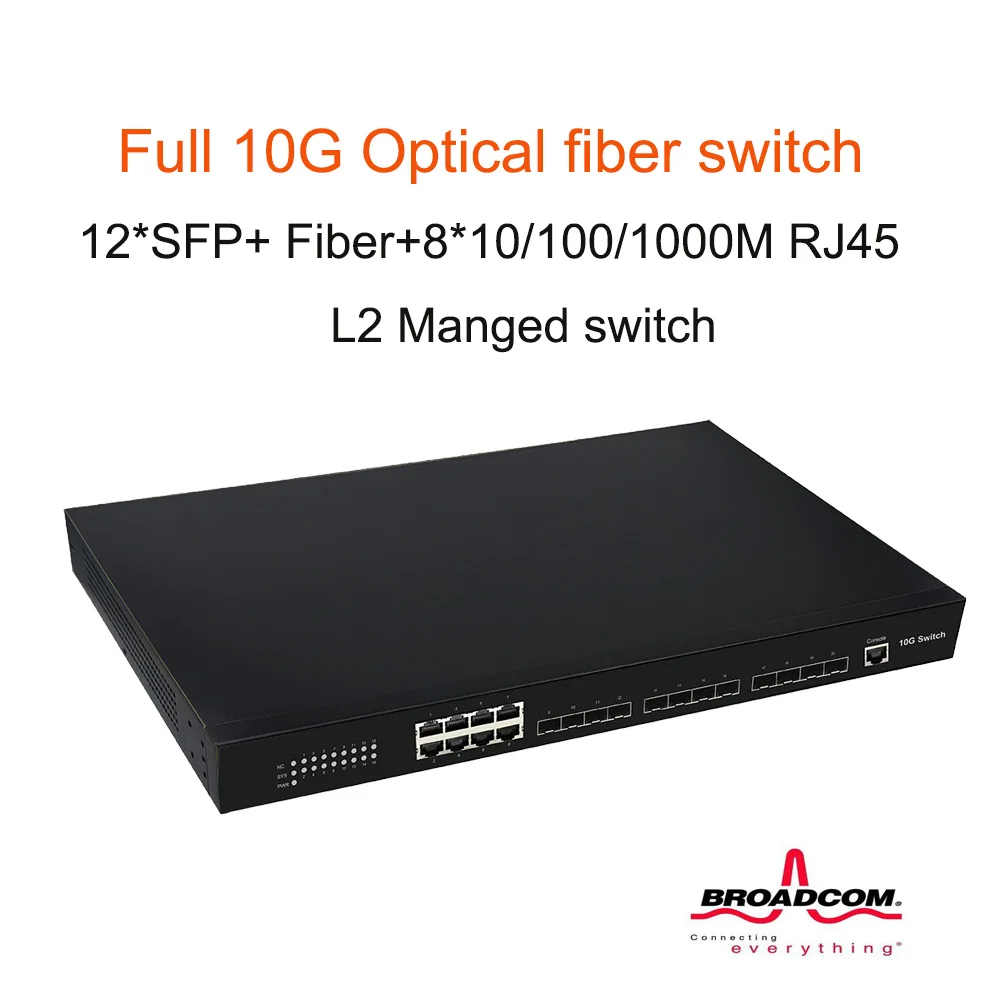

12 10G SFP+ optical ports, 8 10/100/1000M RJ45 electrical ports

Console port

1

Backplane bandwidth

258Gbps

Packet forwarding rate

192Mpps

Jumbo frames

12k bytes

Transfer mode

Support store-forward mode and cut-through mode

IPv4/IPv6 route

512/256

MAC address table

16K

Packet Buffer

2MB

VLAN ID

4K

Memory capacity

512MB DDR3 SDRAM

Flash memory capacity

8MB

CPU

600 MHz ARM Cortex-A9 single-core processor

Soft Specification

Security feature

IP+MAC+PORT+VLAN binding

ARP inspection

DOS defend

Port protect

IP Source Guard binding

VLAN

Port based VLAN

802.1Q VLAN

IP based VLAN

MAC based VLAN

MAC address table

Static MAC address table

Dynamic MAC address table

Storm Control

Broadcast suppression

Multicast suppression

DLF suppression

Limiting rate

Traffic Control

Half-duplex control based on the back pressure type

Full-duplex control based on the PAUSE frame

Port Mirror

Support port mirror

Port management

General setting

Port counting

Config port

Port trunk

Port-isolation

QoS

IEEE 802.1Q Congestion mechanism

Each port has 8 send queue mapping to 8 802.1p priority

IP services

Ping detection

DHCP Snooping

Spanning Tree Protocol

MSTP(802.1s)、STP、RSTP

Multicast management

IGMP Snooping frame

System management

Support SNMP v1/v2

Support Console

Support TELNET

Support WEB

Remote Upgrade

Support version upgrading via web     Support version upgrading via local

Physical Characteristics

External Dimension

440mm*285mm*44mm

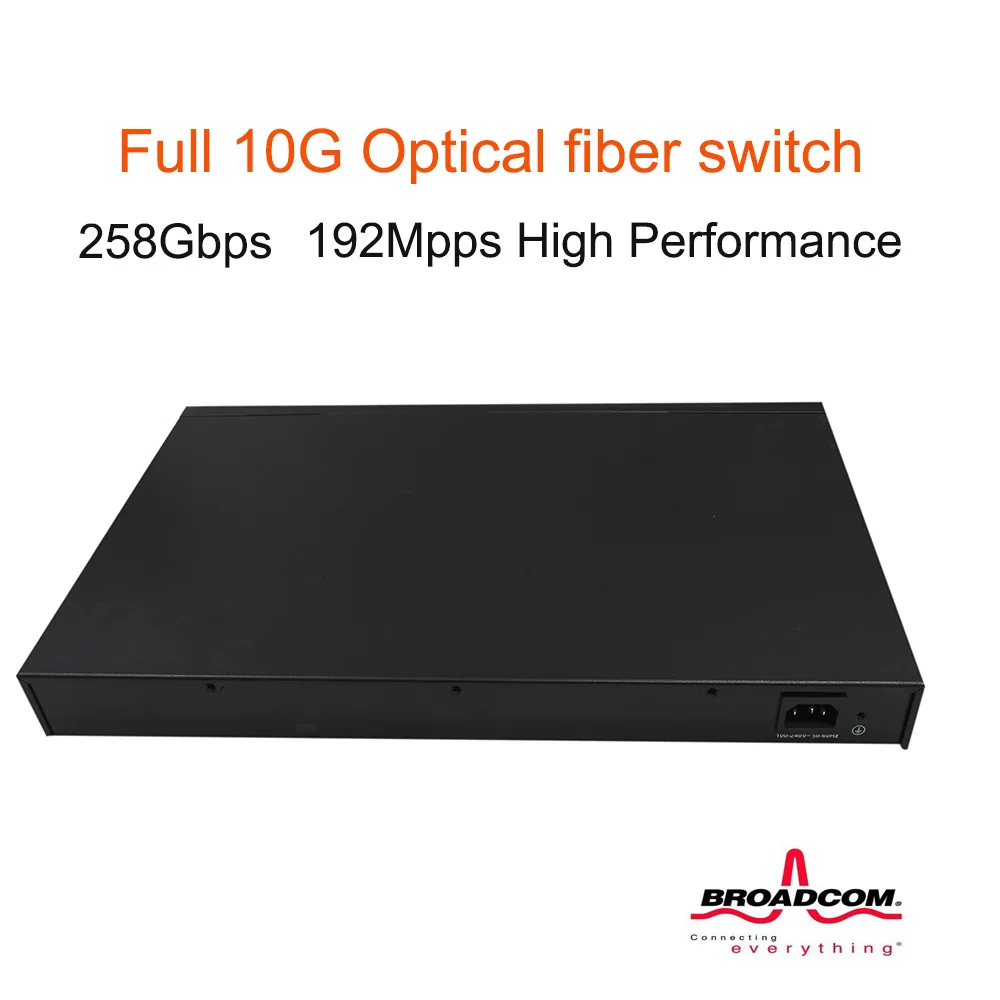

Power Supply Features

AC: 110V～260V

Power

≤100W

Indicator light

Power indicator, system, connection/sending and receiving instructions

Environment temperature/humidity

Operating temperature: 0°C～50°C (0m～1800m) ;

Storage temperature: -40°C～+70°C;

Relative humidity: 5%RH～95%RH, Non-condensing.
