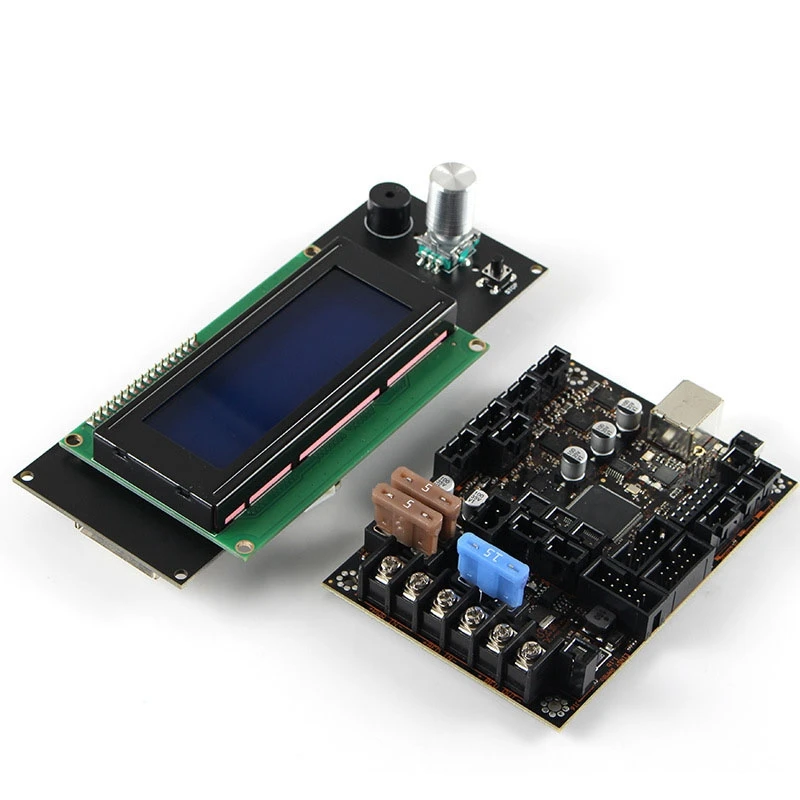

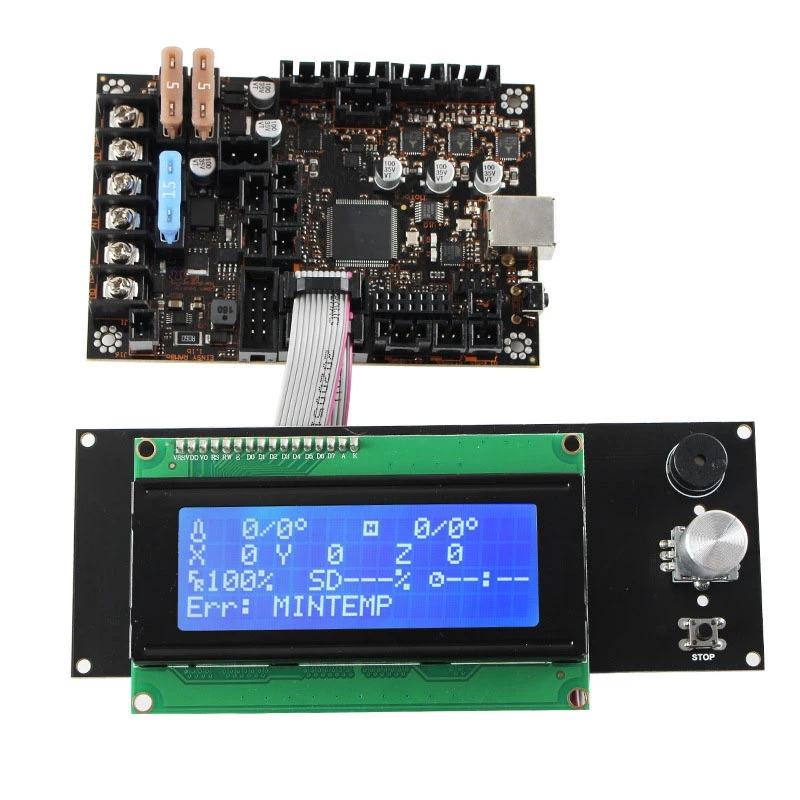

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } 3D Printer Motherboard Kit for Reprap Prusa I3 MK3 Einsy Rambo 1.1B Board with TMC2130 SPI Control + 2004Lcd

Logic:For Arduino MEGA compatible Atmega2560 and Atmega32u2 processors are compatible with all RAMPS cl firmware
Crystals for both usb and mcu (timing accurate to 10ppm)
3 Thermistor jacks + 4th Thermistor circuit on ZProbe.
Motor Drivers:4 Trinamic TMC2130 1/256th microstep motor drivers(2 connectors on Z for Prusa Mendel and other dual Z printer designs)
SPI Control of stepper current instead of PWM.

Microstep mode configured by MCU through firmware (SPI, no jumpers needed)
PWM DC outputs (Extruders, Fans, Etc.)
4 outputs (1 Extruder, 1 BED, 2 low power (fan,etc)
Low resistance mosfets for cool running
Indicator led for each channel
FANS have 3pin fan connector.
FANS have 5V instead of 12-24V power source.
FAN connectors have tachometer feedback pin to the MCU to measure fan speed in capable firmware.
Power
2 power input rails
Heated Bed, 15A 12-24V (15A dedicated fuse)
Primary Power 10A 12-24V: Motors, Logic & Fans (5A dedicated fuse) + Extruder (5A dedicated fuse)
Built in SMPS for 5V generation from the Motors, Logic & Fans rail
Provides 5V power to FANS
Connectors
4-pin motor,zprobe plug - Molex 5057-9404
3-pin fan plug - Molex 5057-9403
2-pin thermistor, mech. endstop plug - Molex 5057-9402
colour:Black
Material:PCB

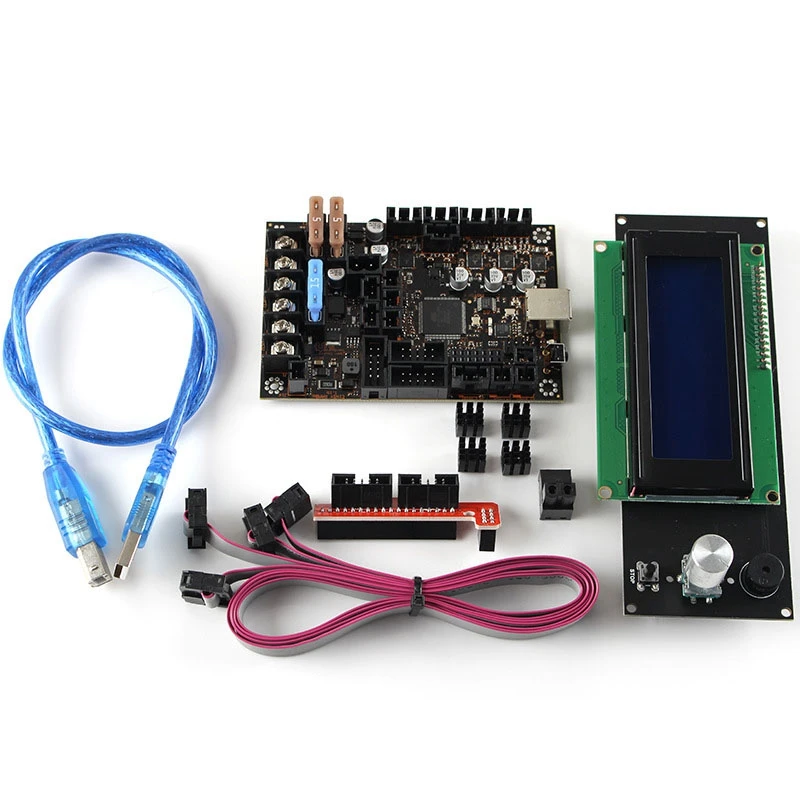

Package Contents:
1 x Data line
2 x Gray cable
1 x Einsy Rambo 1.1b motherboard

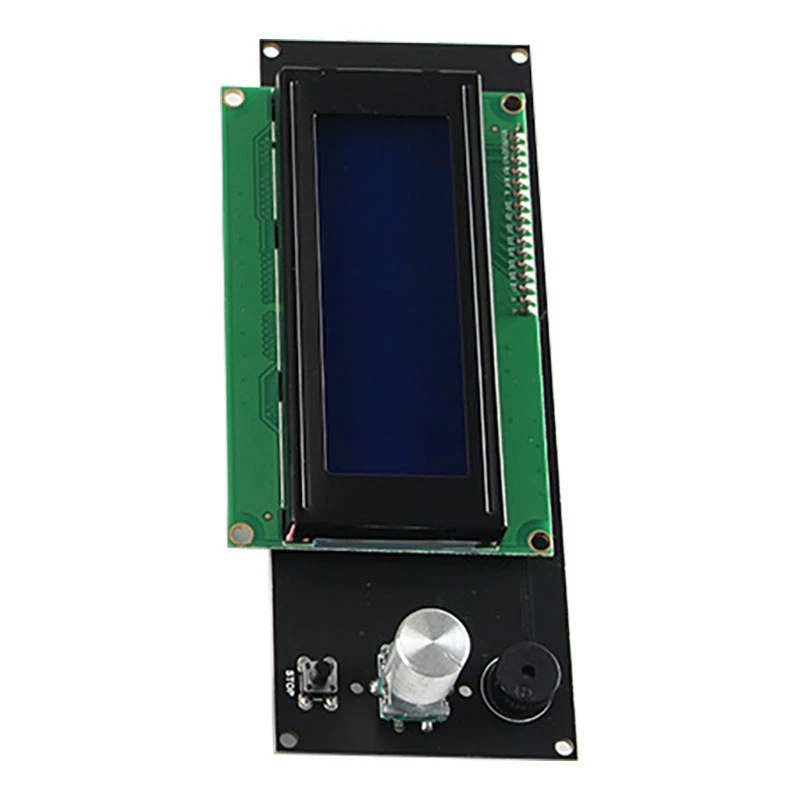

1 x 2004lcd
1 x Terminal
4 x Heat sink
1 x Adapter board

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
