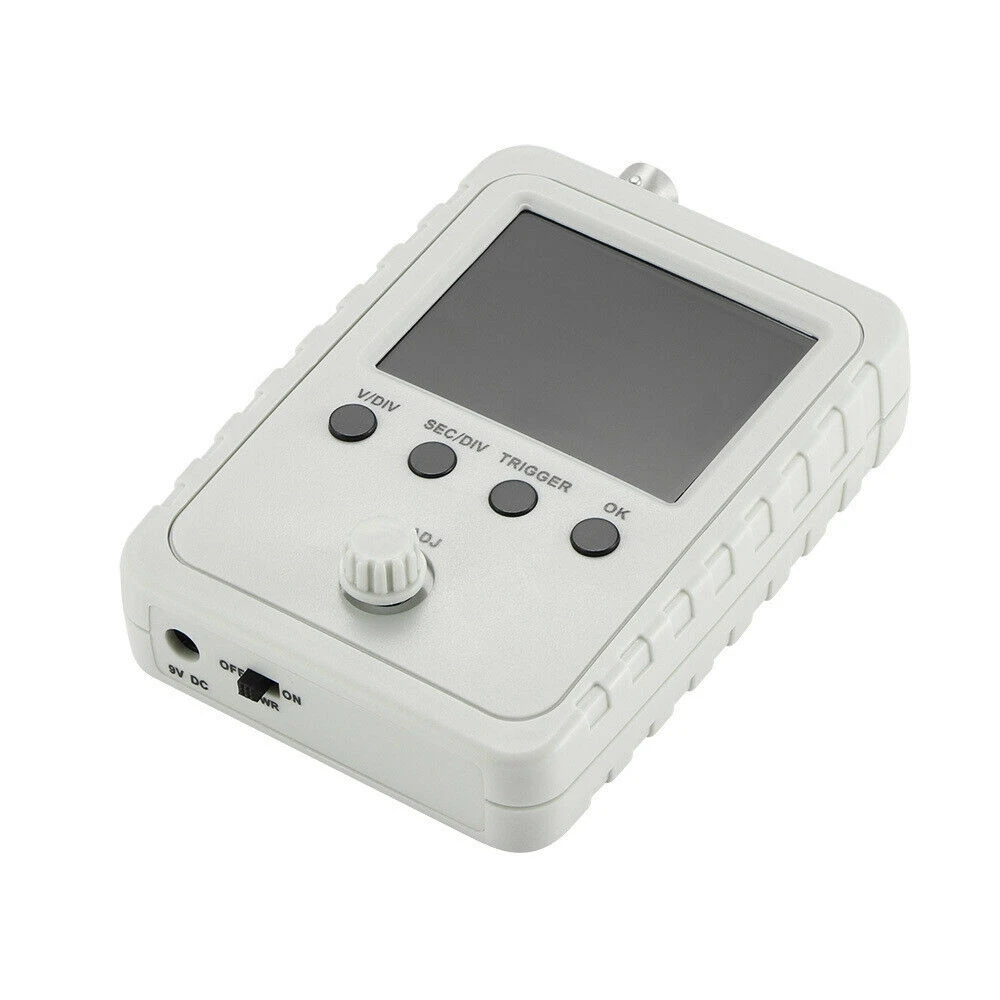

DSO150 Oscilloscope 2.4 Inch FT Digital Oscilloscope Kit BNC Probe Fully Assembled Finished Machine 15001K DIY Digital Tools

Features:

Used for secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.

Come with instructions, easy to install and operate.

With Auto/Normal/Single trigger modes, easy to capture the moment waveform.

Available rising or falling edge trigger.

Observable previous waveform before trigger(negative delay).

Can freeze waveform display at any time(HOLD function).

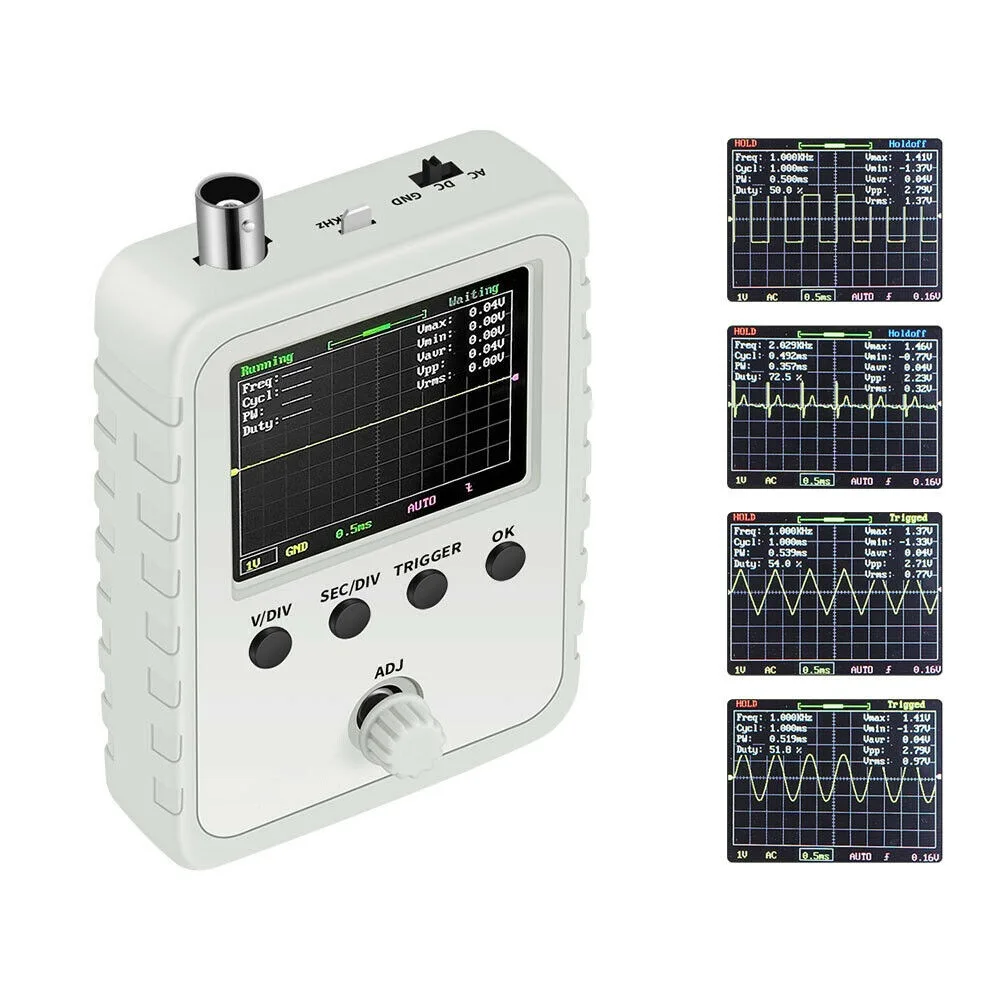

With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Waveform storage function: will not lose the waveform after power off.

With 1KHz / 3.3v square wave test signal source.

Trigger level position adjustable and with indication.

The analog plate patch elements have been welded, more suitable for electronic beginner.

Specifications:

Item Type: Digital Oscilloscope

Quantity: 1pc

Material: Plastic

Item Color: As shown

Maximum Real-time Sampling Rate: 1Msps

Analog Bandwidth: 0-200KHz

Vertical Sensitivity Range: 5mV/div-20V/div (progressive in 1-2-5 mode)

Maximum Input Voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)

Input Impedance: 1MΩ

Accuracy: 12 Bits

Record Length: 1024 points

Coupling Modes: DC / AC / GND

Horizontal time base range: 10μs/Div – 50s/Div (progressive in 1-2-5 mode)

Trigger Modes: Auto, Normal, and Single

Trigger Position: Center of Buffer

Supply Voltage: DC 9V(8-10V)

Current Consumption:~120mA @ 9V

Item Size: 102*75*23mm/4*3*0.9” (L*W*H)

Net Weight:140g/4.9oz

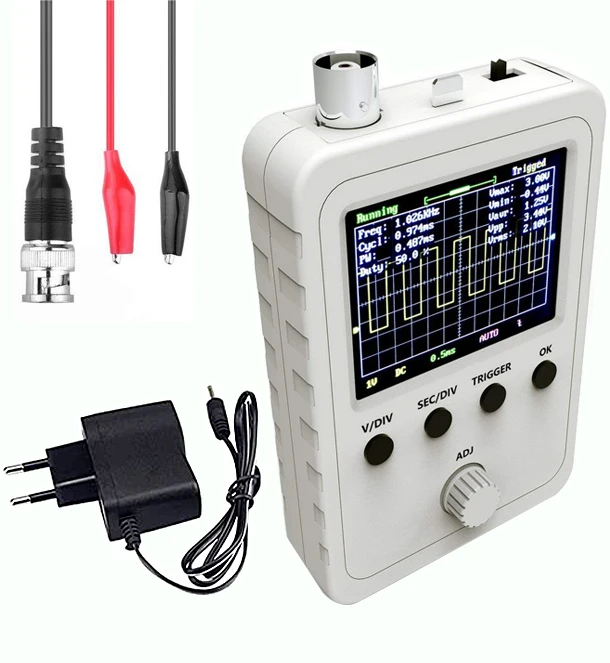

Package Includes:
1 x Oscilloscope
1 x BNC-clip cable
1 x US plug
1 x English manual
