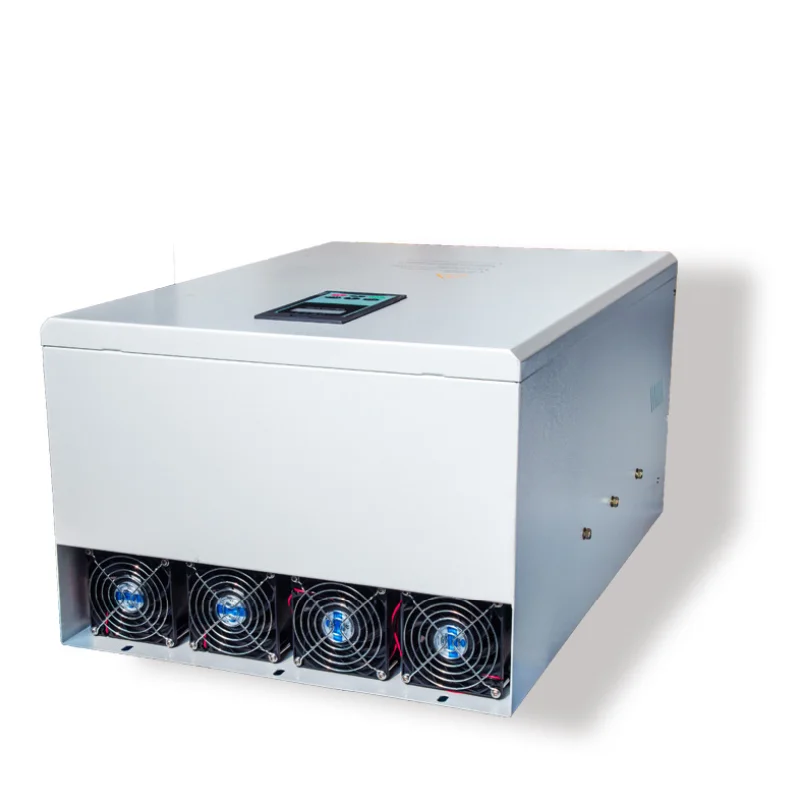

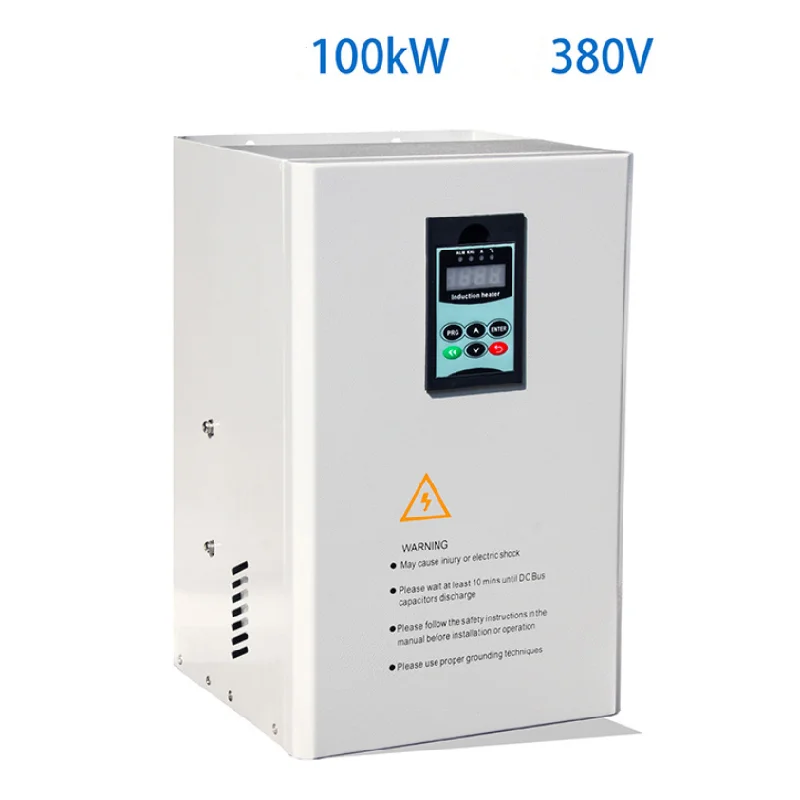

100kW electromagnetic heating controller 100kW electromagnetic heating controller

100kW electromagnetic heating controller is specially designed for the application of pipeline heating and plane heating equipment, such as plastic machinery, food machinery, aluminum plastic machine, drum equipment, heating, boiler, oil, and natural gas transmission, etc. With stronger industry pertinence and better energy-saving effect, this product adopts the fifth generation DSP digital processing platform technology of our company, open application structure, wide inductance to adapt to the coil range, through the digital programmable control system, it can realize the special functions of different customers and different occasions, which brings great convenience to customers. It is an electromagnetic heating transformation project and supporting heating equipment Products. 1, Connect the power supply voltage of the cooling fan, but connect the 220V power when the fan is 220V, and connect the 380V power when the fan is 380V 2, Connected with cooling fan 220V / 380V (depending on the user, generally 380V) 3, When the external cooling fan is DC 24V, this interface is a switch that controls the 24V fan to work or stop. The two ends of the interface are actually the normally closed contact points of the relay output on the motherboard. 4, Dual AC 24V power supply (choose 4 or 5 when making half-bridge) 5, Dual AC 24V power supply (choose 4 or 5 when making half-bridge) 6, Single AC 16V power supply 7, Power indicator (red) 8, Work indicator light, flashing during standby, and always on (green) during work 9, External indicator light, led to the LED interface outside the chassis 10, The soft start interface is connected to the R / s interface outside the chassis (can be set to open or close work through F-20, factory default close work, open stop status 11, Finely adjust the power potentiometer. When there is a large deviation in power, this potentiometer can be adjusted appropriately. 12, 32-bit high-speed DSP processor 13, Externally connected programmable operating display 14, Isolated RS485 communication interface 15, External load temperature detection interface 1, with an accuracy of ± 1 ° C (maximum 150 ° C) single-channel, default 1 is used to measure external working temperature 16, External load temperature detection interface 2, with an accuracy of ± 1 ° C (maximum 150 ° C) 17,Multi-function input interface (set by F-20) (1)10K input for external connection potentiometer can adjust the power range from 20% to 100% (2)Externally connected PID input (0 ~ 5V) input Do infrared thermometer or thermocouple conversion voltage 0 ~ 5V input to achieve the display temperature and control power size (up to 1000ºC can be measured and displayed) 18, Connect the high-frequency Mutual inductor and pay attention to the direction. If the direction is reversed, the power is very small 19, IGBT module drive (when doing half-bridge, choose 19, 20 or 23, 24) 20, IGBT module drive (when doing half-bridge, choose 19, 20 or 23, 24) 21, Connected to high voltage DC bus 22, IGBT temperature sensor interface 23, IGBT module drive (when doing half-bridge, choose 19, 20 or 23, 24) 24, IGBT module drive (when doing half-bridge, choose 19, 20 or 23, 24) 25, Connected to high voltage DC bus 26,RS485 communication interface, connect A ,B 27, Externally connected K-type thermocouple 28, Externally connected 12V relay drives other required loads, synchronized with the fan start/stop of the machine

FAQ

Q: Is it easy for a new operator ?

A: Yes, this device easy operate and you will love it!

Q:Can I watch the heating test video before place order ?

A: Yes, you can! please contact us if you want to watch the machine video

Q: Do you have any Certification for entry EU market ?

A: We have CE certification, you can chat with me and get it.
