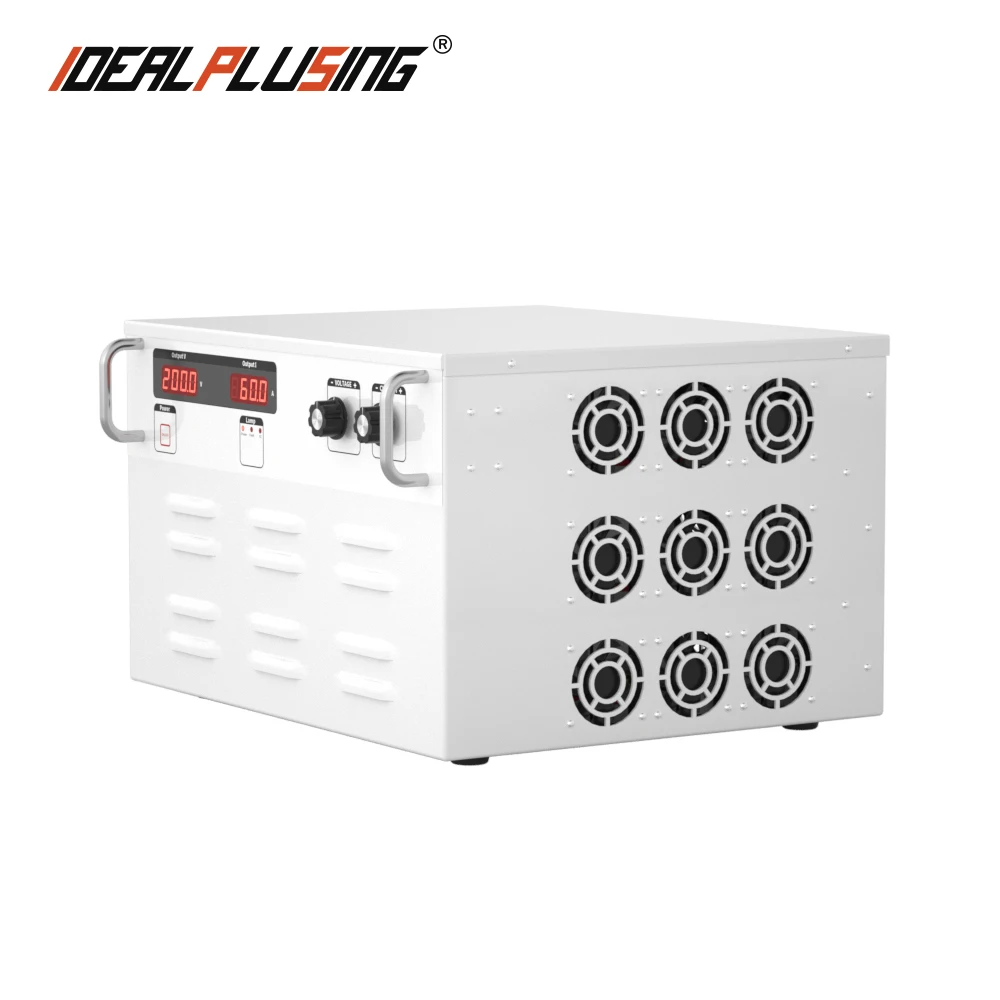

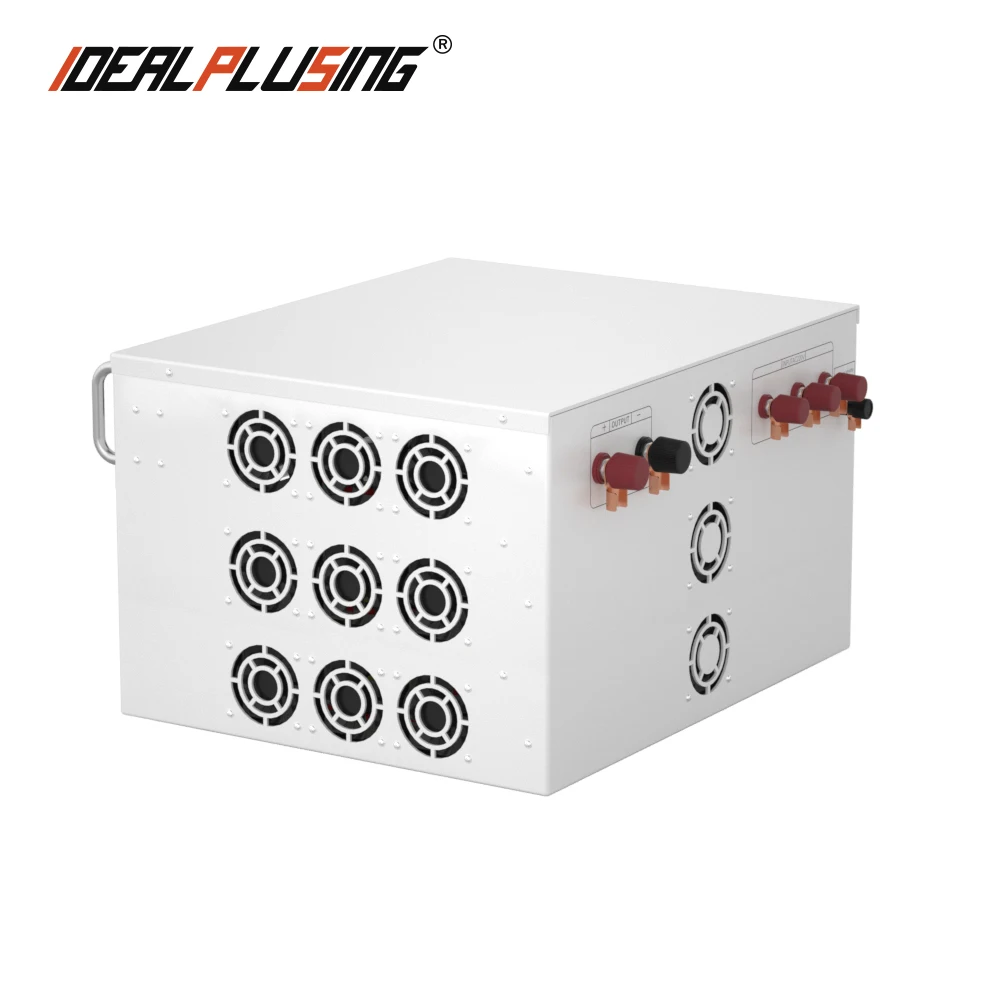

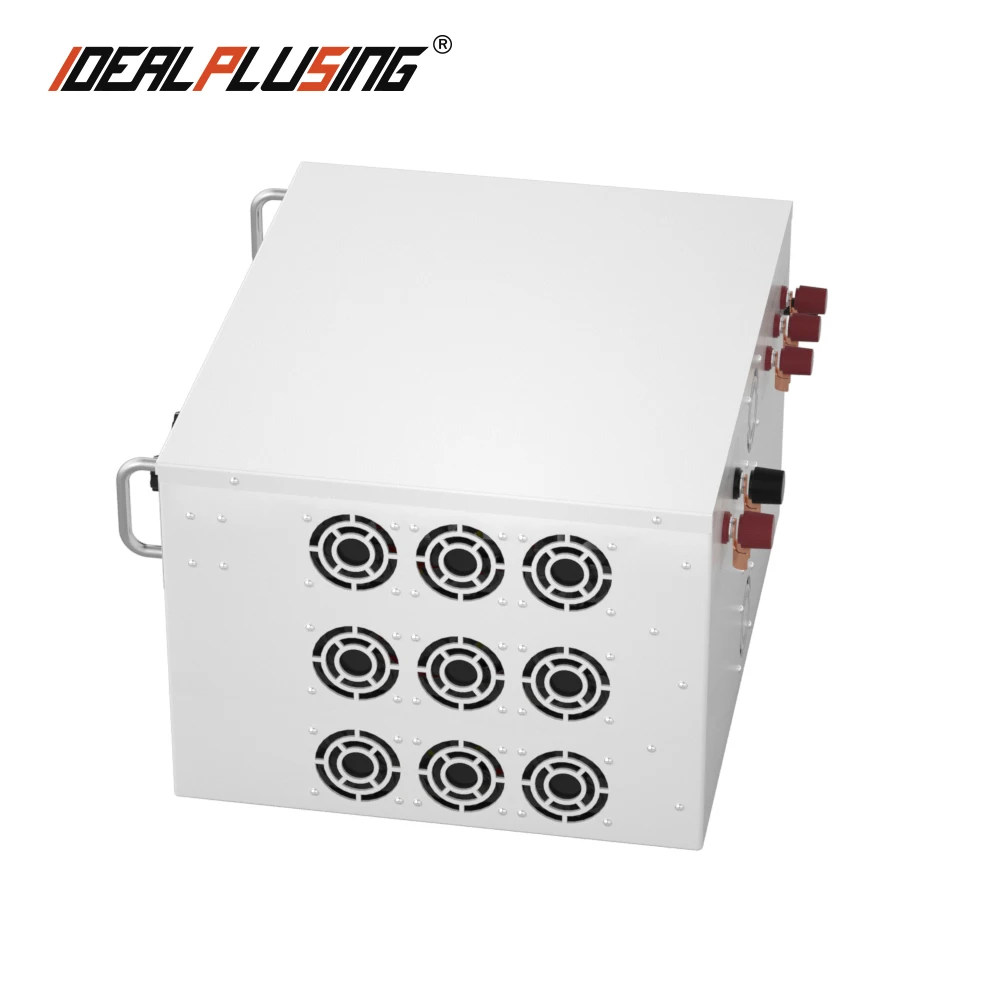

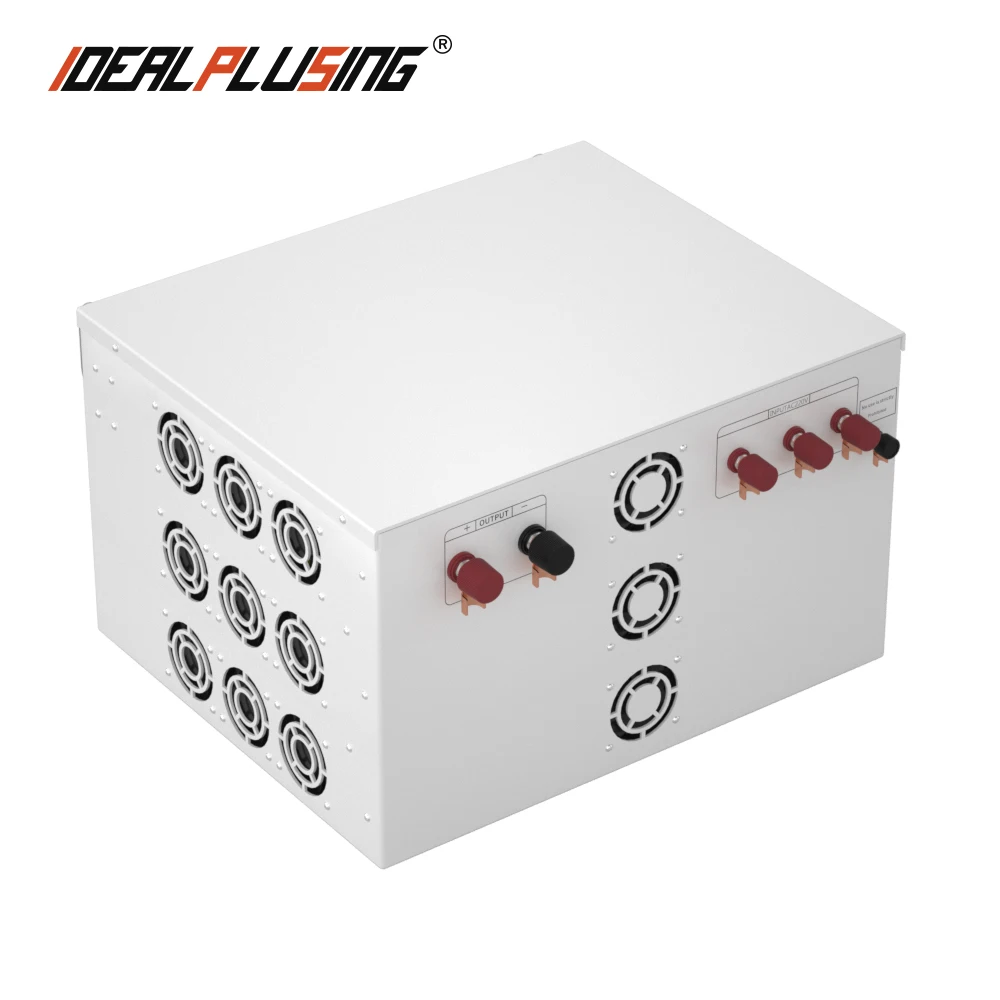

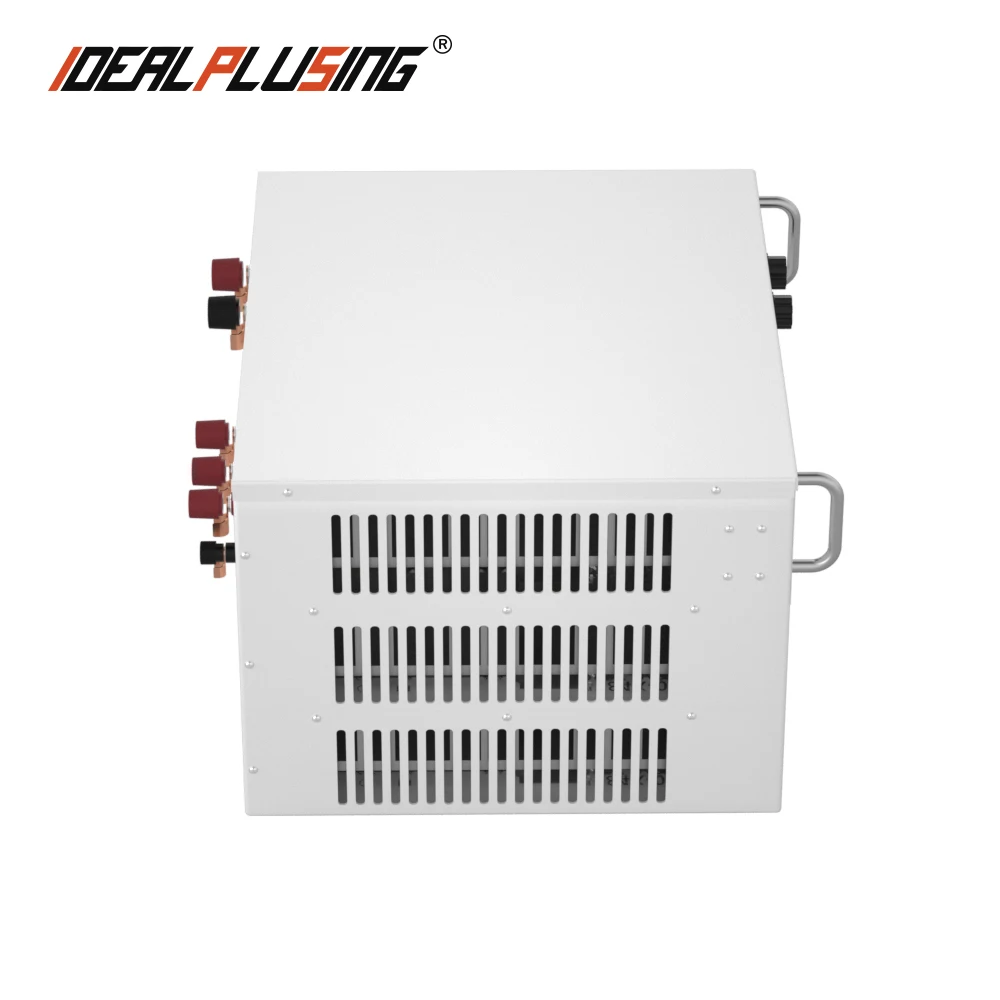

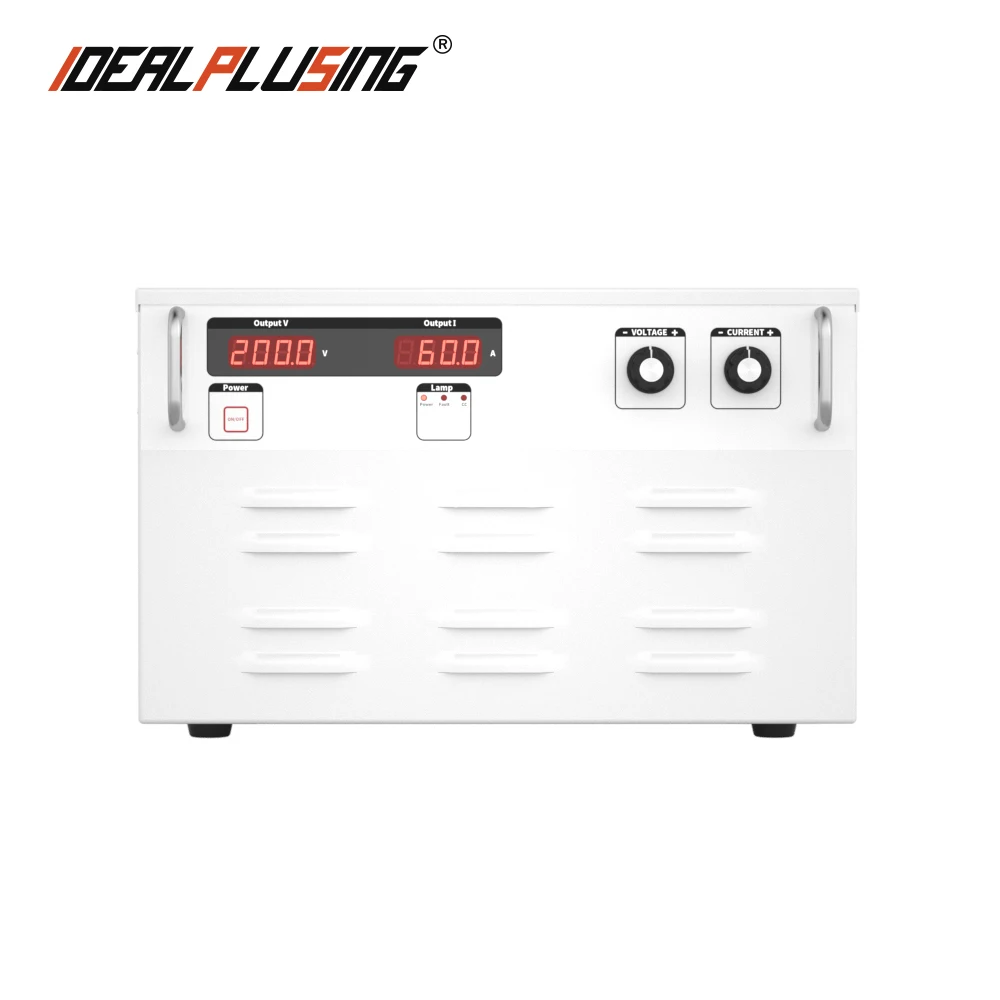

High power 3 phase 380v 500v ac to dc 600v 16a connector 9600w Adjustable variable voltage regulator supply | Строительство и

High power 3 phase 380v 500v ac to dc 600v 16a connector 9600w Adjustable variable voltage regulator supply | Строительство и

Buyers Note:

If you do not know how to choose the item, you can send email to us. converter@idealplusing.com
If you do order in bulk order and pay by T/T, please send email or message seek for discount.
The products on sale are equipped with installation instructions and technical support.

I.FEATURES

1

Small size and light weight are suitable for work surface use and rack installation.

2

Using PWM modulation, the consumes power of crystal module is low, high efficiency, and more power.Well-designed electronic technology circuit, forced air cooling and heat treatment, with a very low temperature coefficient.

3

Low noise and low ripple.

4

Using high gain amplifier circuit design, with good fast response characteristics.

5

Using a 4-bit high sampling rate, high-resolution voltage, current digital display meter.

6

Built-in O.V.P over-voltage protection circuit and O.T.P over-temperature protection circuit, the protection function is perfect and reliable.

7

This product is designed with load terminal voltage detection terminal, which has the function of accurately reading the voltage of the load terminal and performing precise control.

8

Voltage remote compensation connector (COLRAGE SENSING), compensates for line voltage drop and improves test accuracy.

II.TECHNICAL PARAMETRIC

Name

High power 3 phase 380v 500v ac to dc 600v 16a connector 9600w Adjustable variable voltage regulator power supply

Brand

IDEALPLUSING

Model

IPS-ATD60016

AC Input

Single phases 110VAC±10%or220VAC±10%optinal

Input Voltage Range

110VAC±10%or220VAC±10%optinal

Input frequency

50Hz/60Hz

Output voltage

6~600VDC

Output current

0.16~16A

Output Power

9600W

Voltage Stabilization

≤0.3%+10mV

Load Stabilization

≤0.5%+30mV

Ripples and Noises

≤0.5%+10mVrms

Voltage Display Accuracy

3-digit Accuracy: ±1%+1 word

Display Format

0.000V-9.999V;  0.00V-99.99V;  0.0V-999.9V

Current Display Accuracy

0.000A-9.999A;  0.00A-99.99A;  0.0A-999.9A

Output Over Voltage Protection

Built-in O.V.P. protection, protection limited value is rated +5%

Output Over Load Protection

Overload, current limit, constant current output

Over Temperature Protection

Built-in O.T.P. protection, Protection value 85℃±5%heat sink temperature

Voltage Setting

10-turn precision potentiometer

Current Setting

NO current displaypotentiometer

Output Polarity

Output Positive(+) negative(- ) Can be grounded at will

Heat Dissipation Way

Forced fan cooling

Work Conditions

Indoor use design,Temperature:0℃~40℃; Humidity: 10%~85%RH

Storage Conditions

Temperature:-20℃~70℃;Humidity: 10%~90%RH

Power SupplyDimension

L430*W370*H264(MM)

PackagingCartonDimension

L510*W510*H280(MM)

NetWeight

27KG

Gross Weight

29KG

Optinal Function

#1

Desk/ tower type /19inch Rack Mount Type

#2

0-5VDC /0-10VDC analog signal control output voltage & current

#3

0-5VDC /0-10VDC analog signal to read-back output voltage & current

#4

0-5VDC /0-10VDC analog Switch signal to control output ON/OFF

#5

4-20mA analog signal control output voltage & current

#6

RS232/RS485 Communication port control by computer
