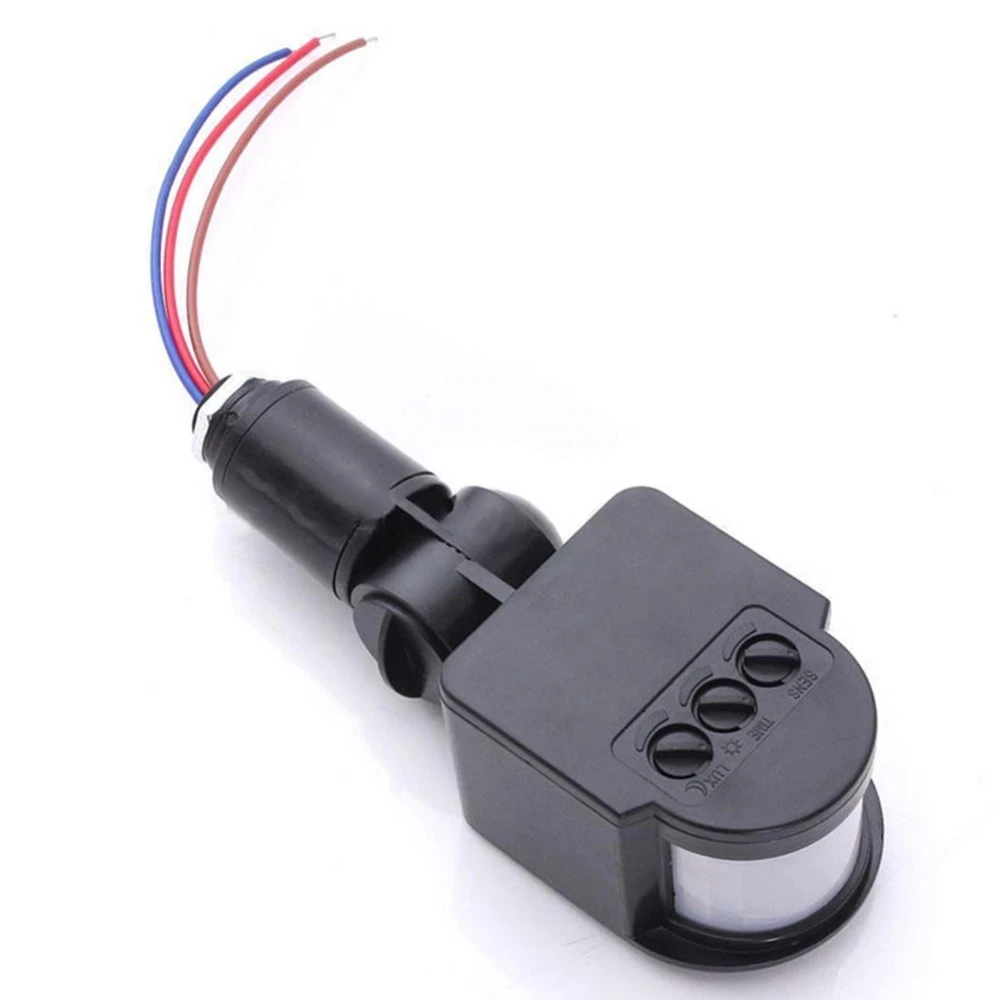

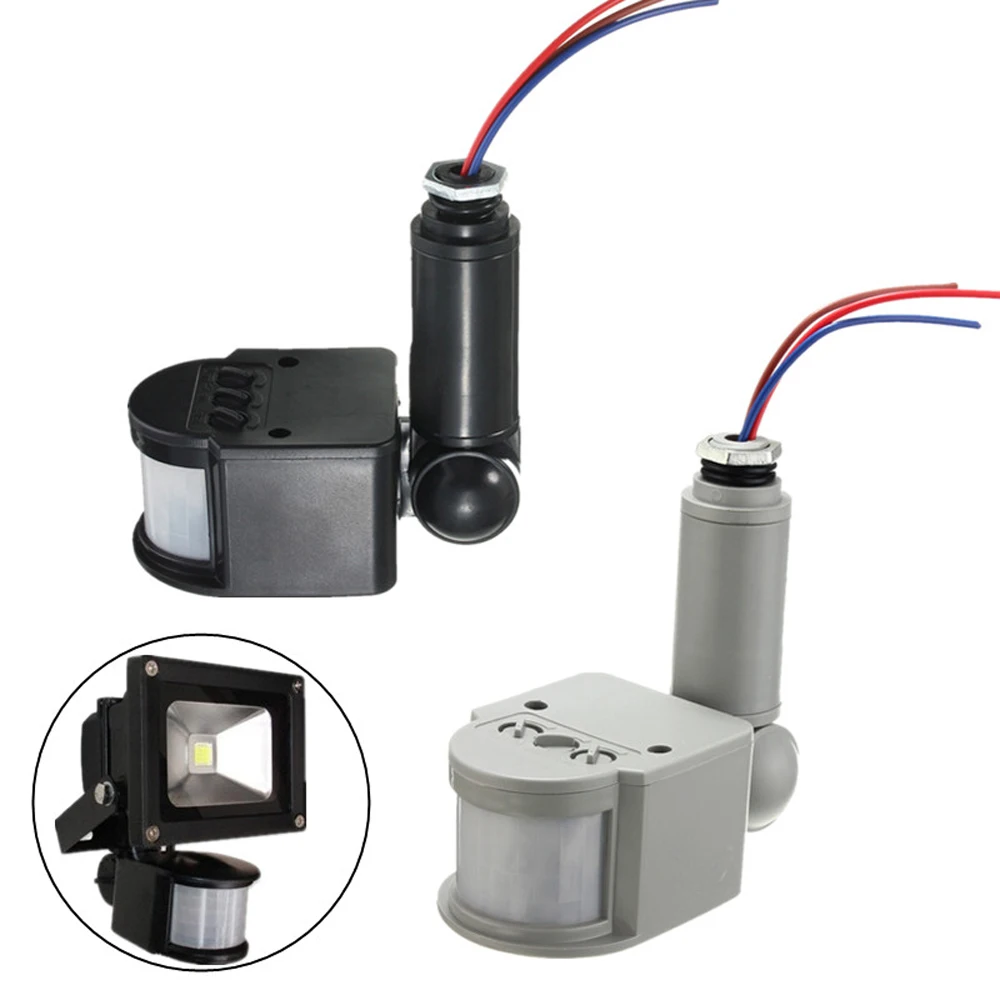

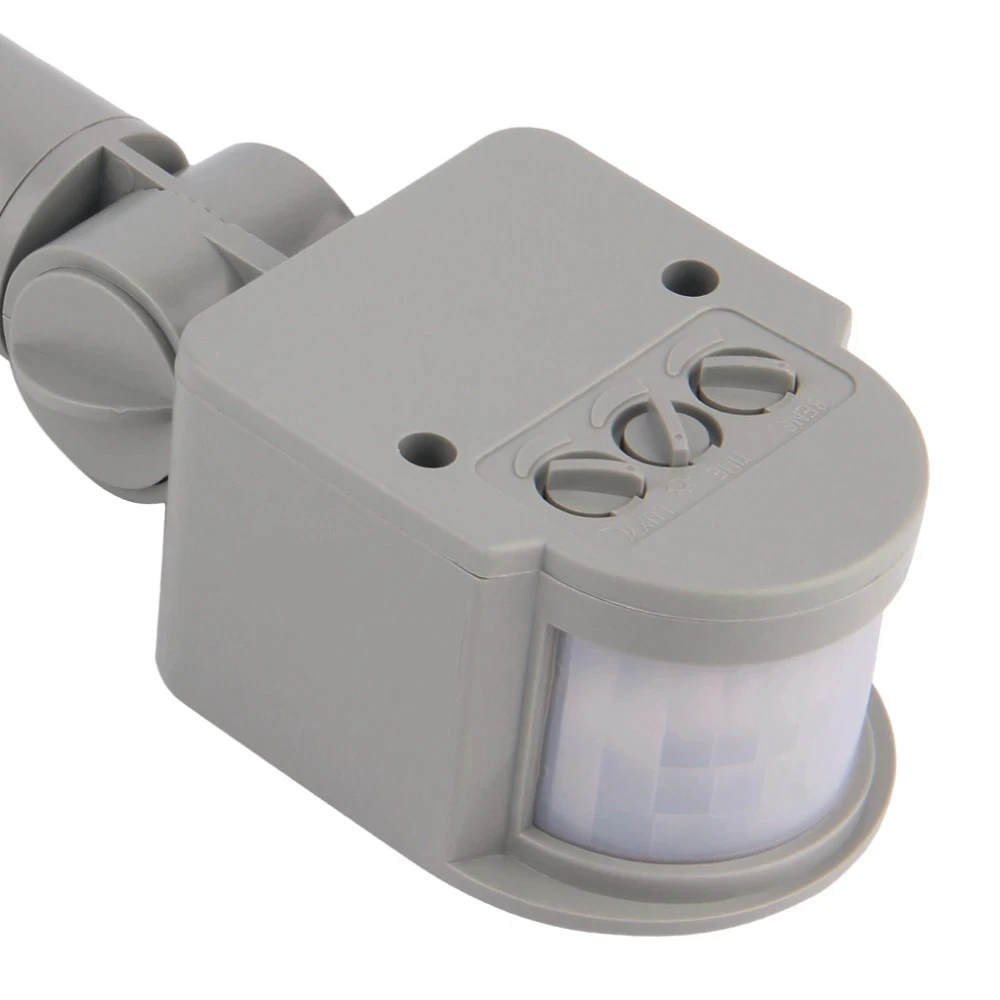

Description

Item Type：Motion Sensor

Specifications:

Voltage choose: AC110V~220V(50Hz)
Material: ABS
Working Rotation: 180°
Standard: LVD, EMC, CE, RoHS
IP Rating: Indoor application IP44
LUX Setting: 2-2000lux (adjustable)
Size: 60*45*160mm (approx.)
Induction lighting time:15s~7min adjustable time
Detection distance: Approx 15m, installation 1.8-2.5M High
Load power: 50w
Working Temperature: –10℃~ +40℃
Working Humidity: <93%RH
Installation: Open type, (open hole 16mm), when installing, adjusting button face down.

Features:

1.It has the function of power and detection indication.
2.The motion sensor can identify day and night automatically.

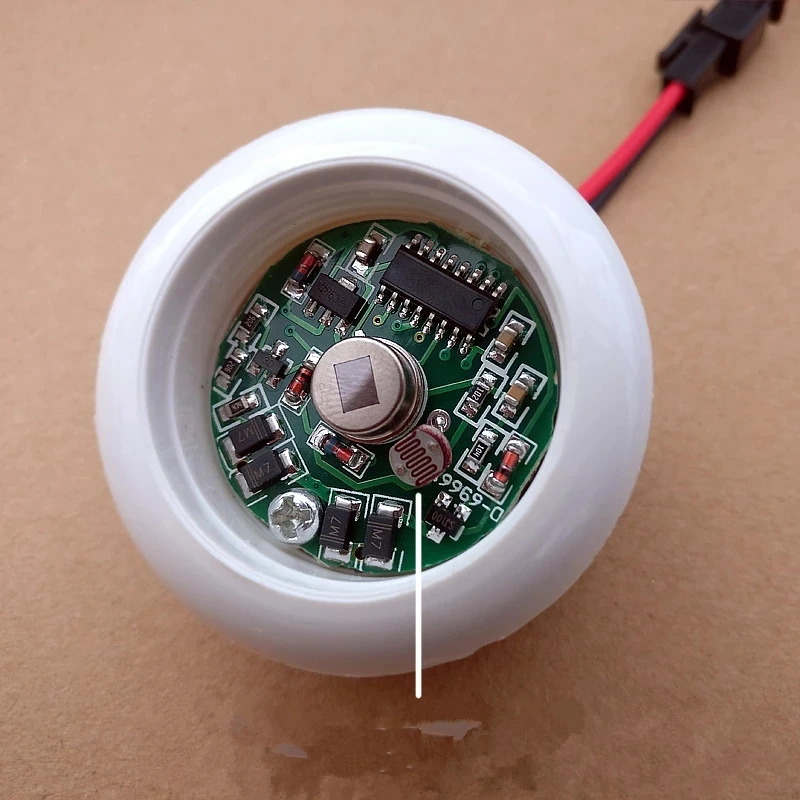

3.Adopts high sensitivity detector, integrate circuit and SMT.

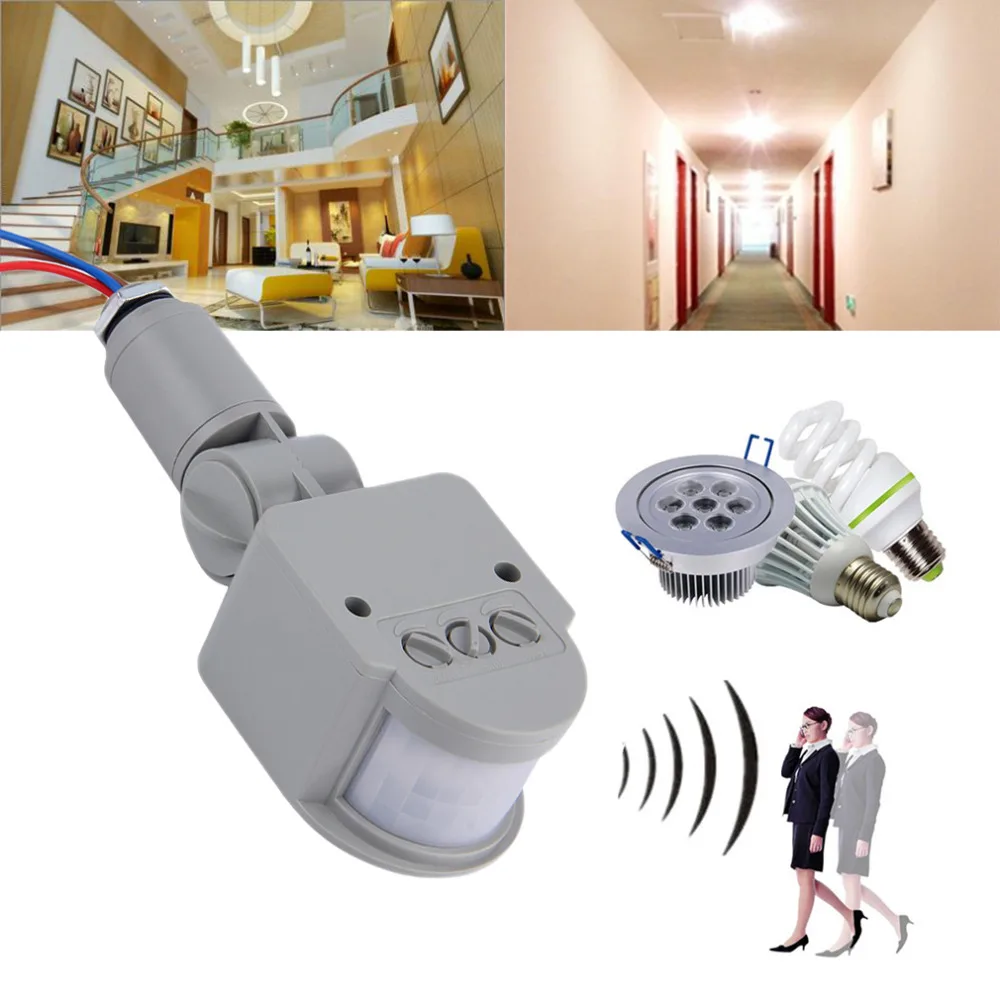

4.It utilizes human motion infrared rays as control signal sources, when one enters the detection field, it will start the controlled load at once.

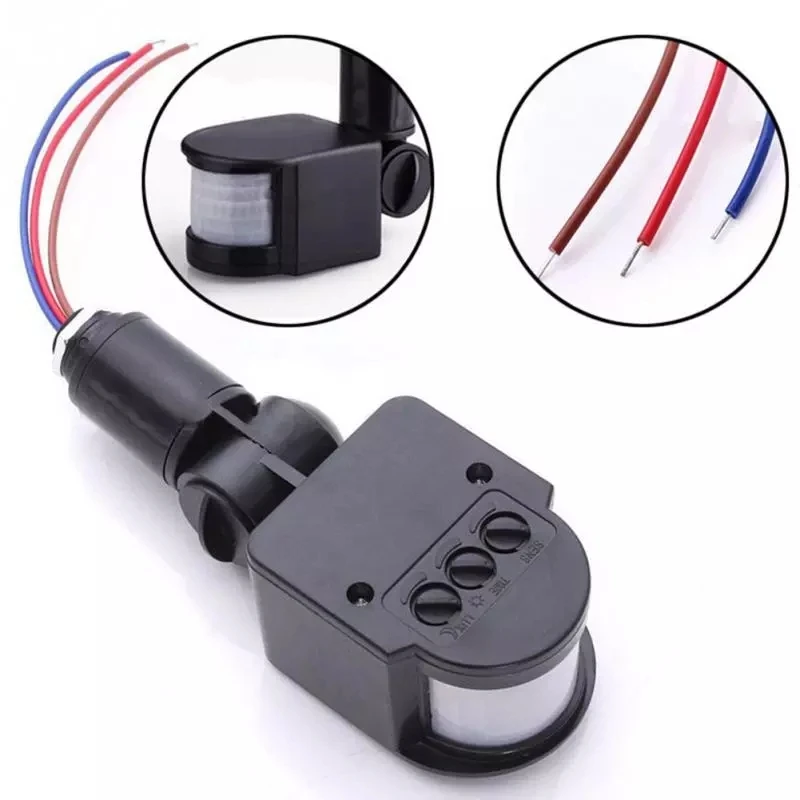

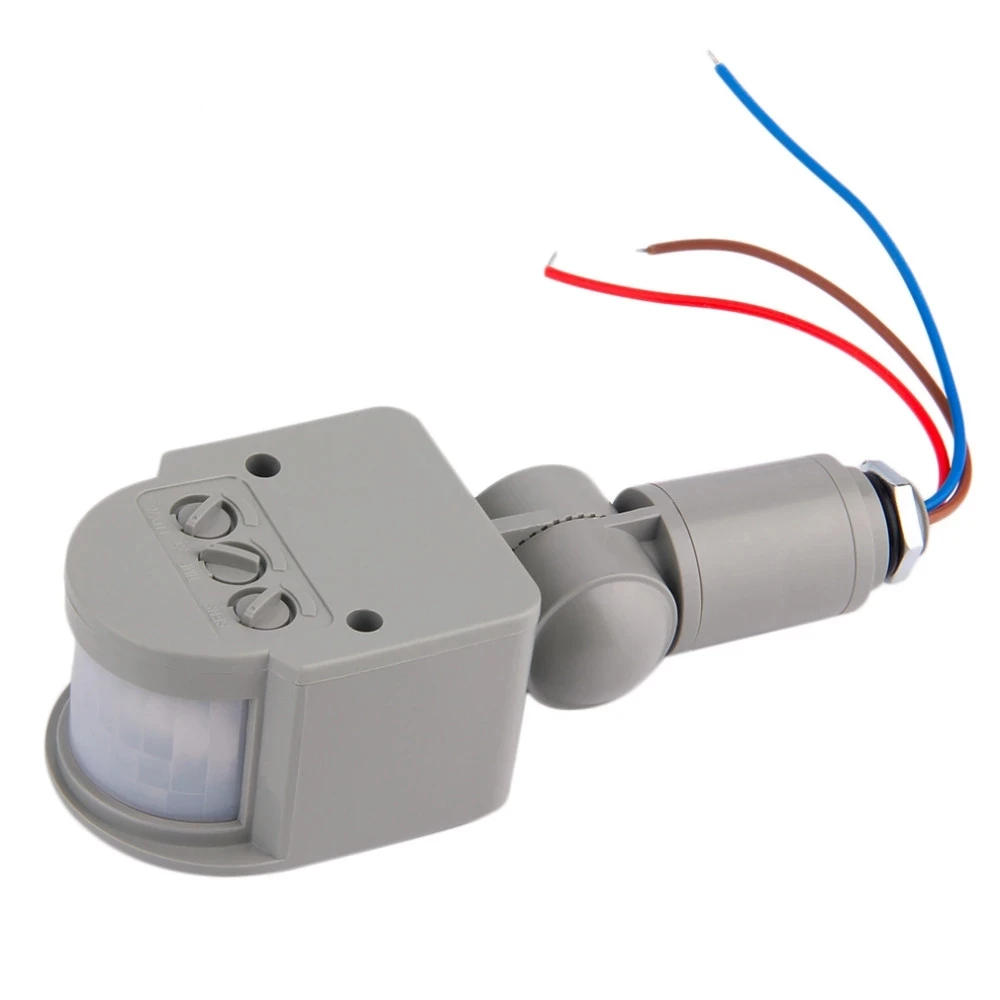

Connection:
Blue color: Zero line (Neutral)
Brown color: Live wire
Red: Ground wire

Output: Maximum 1000W incandescent lamp, 100W fluorescent lamp , Exhaust fan 100W, Motor 100W, Electric bell 100W

Package includes:
1 x Motion Sensor
