please go through below listing to order coil cable

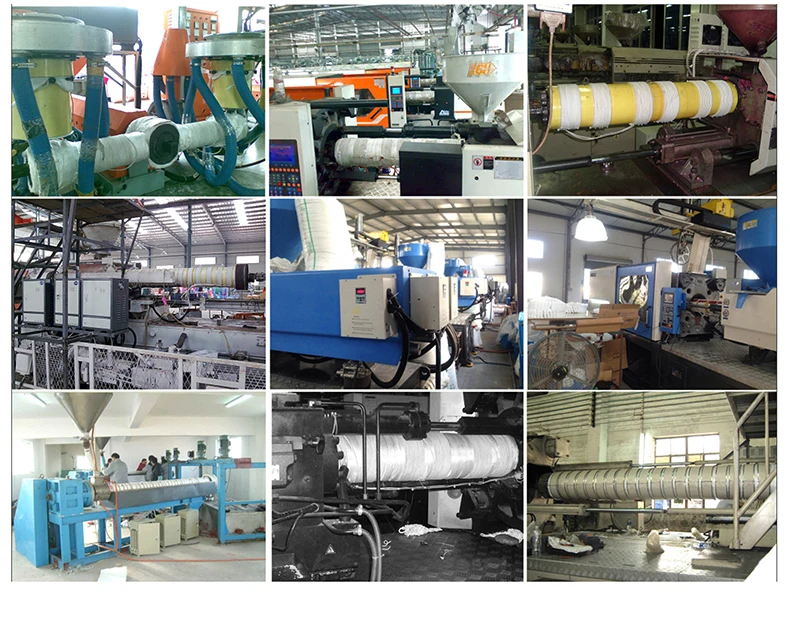

Single Phase 220V 2500W Smithermal Induction Heat Converter for Plastic Extrusion, Molding heating, Die heating and Tea heating Food processing heating, Oil heating.Parameters

Item

specification

Model Number

Smithermal 2500W

Rated power

2500W

Rated voltage

AC 220V/50hZ/60HZ

Input voltage range

100-260V,210-260V constant power input

Work environment temperature

-20-50℃

Work environment humidity

≤95%

Power adjust

20%-100%

Thermal transfer efficient

≥95%

Work frequency

5-40KHZ

Main circuit structure

Half-bridge series resonance

Control system

Digital phase-looking automatic tracking
Control based on AVR micro control

Application mode

Open application platform

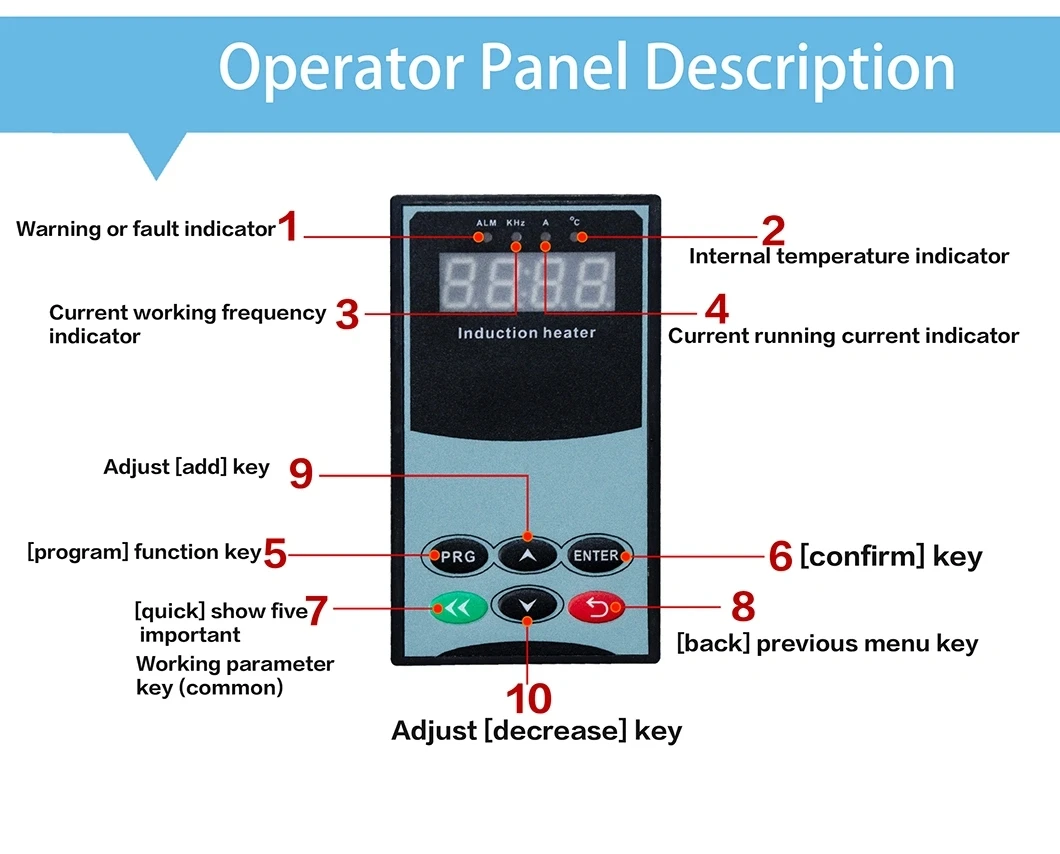

display

Programmable digital display

Start time

＜1s

Instantaneous over current
protection time

≤2us

Power overload protection

130% instant protection

Soft start mode

1. with full electrical isolation
soft start heating/stop mode

2.With 12V and 24V input enable/stop
mode

Supports PID regulation power

Identify 0-5V input voltage

Support 0-150℃load temperature detection

Accuracy of ±1℃

1) Place Fiberglass cotton thickness 15-20mm when flat shape coil, 10-15mm when oval, and
within 10mm when super oval

2) Coil and load distance (thickness of thermal
insulation cotton): 20-25mm when round pipe,

3) Adapted coil parameters: 4mm², Efficient length
11-13m, inductance: 100-150uH measured by LC Meter. (Without load coil inductance value 100uh)

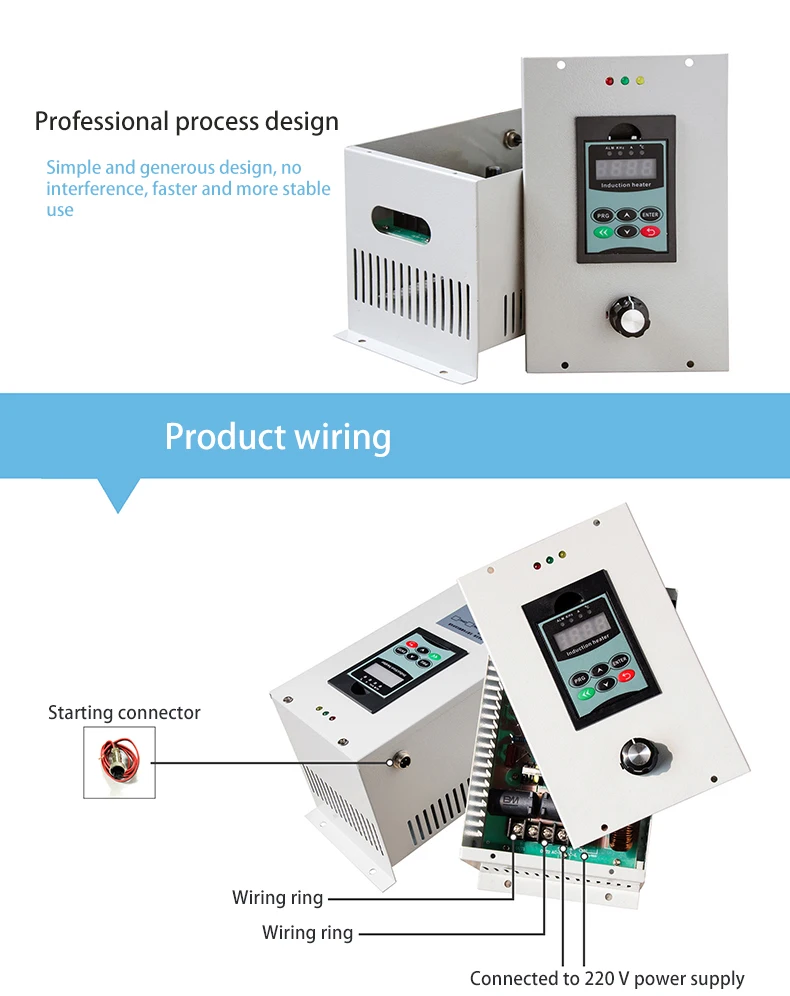

Reference Installation Steps.
