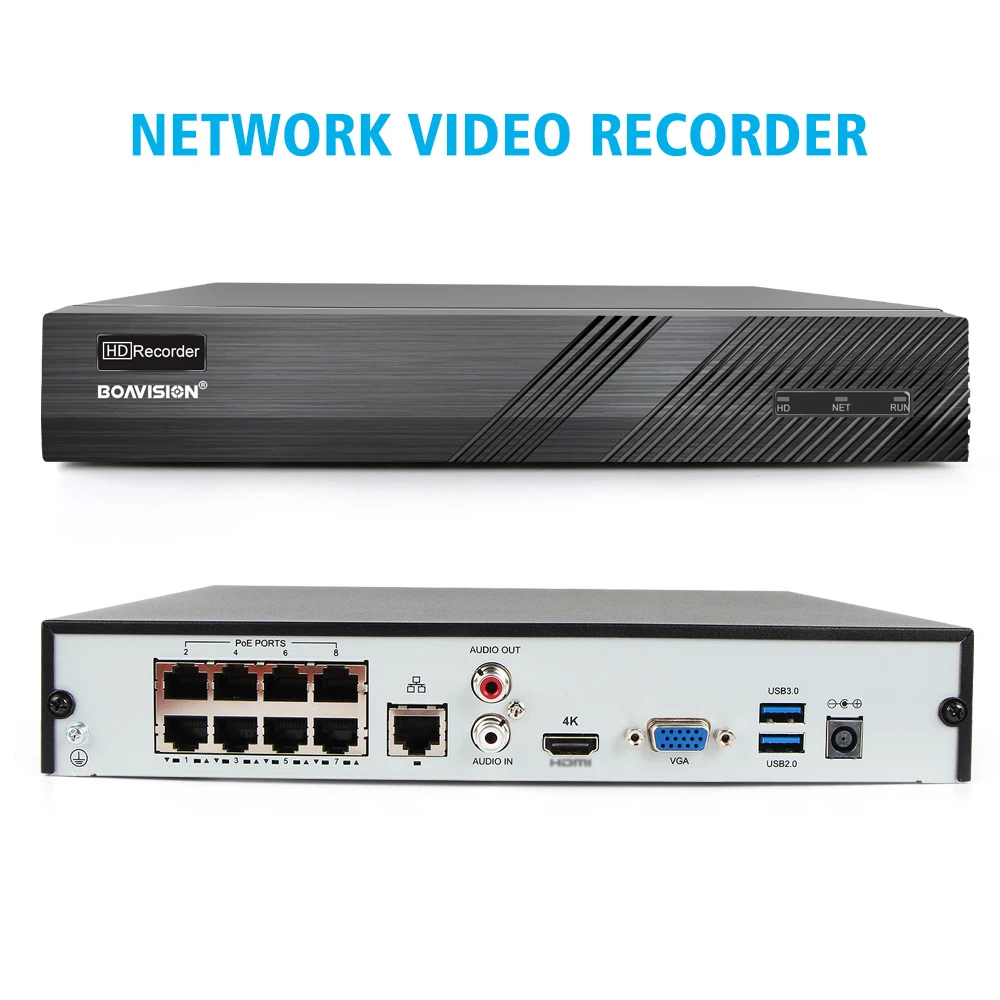

4K H.265 8CH 4MP 5MP 25/30fps REALTIME POE CCTV NVR

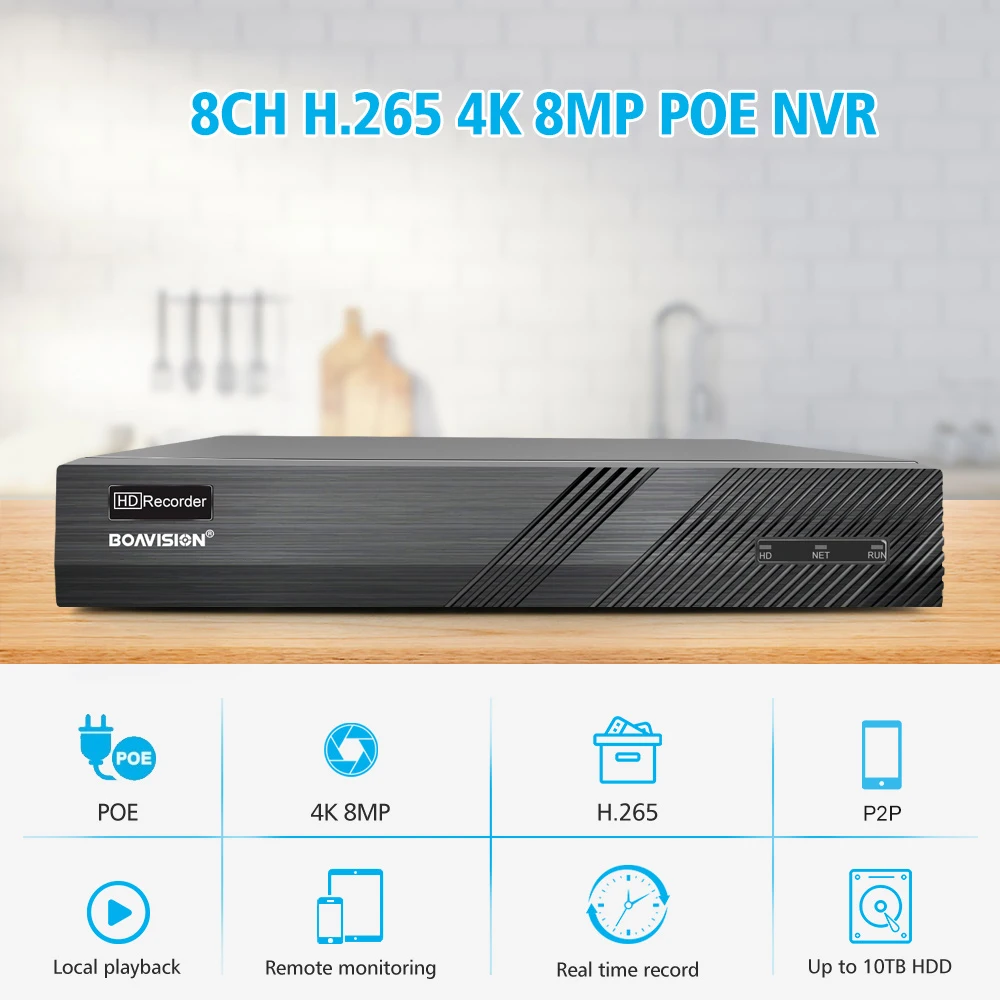

8CH H.265 4K 8MP 25/30fps Real time Industrial Grade NVR, Adopted the Latest H.265 Video Compression

PoE IP Security NVR

8 Channel H.265 4K 8MP HD Video Audio Recorder,

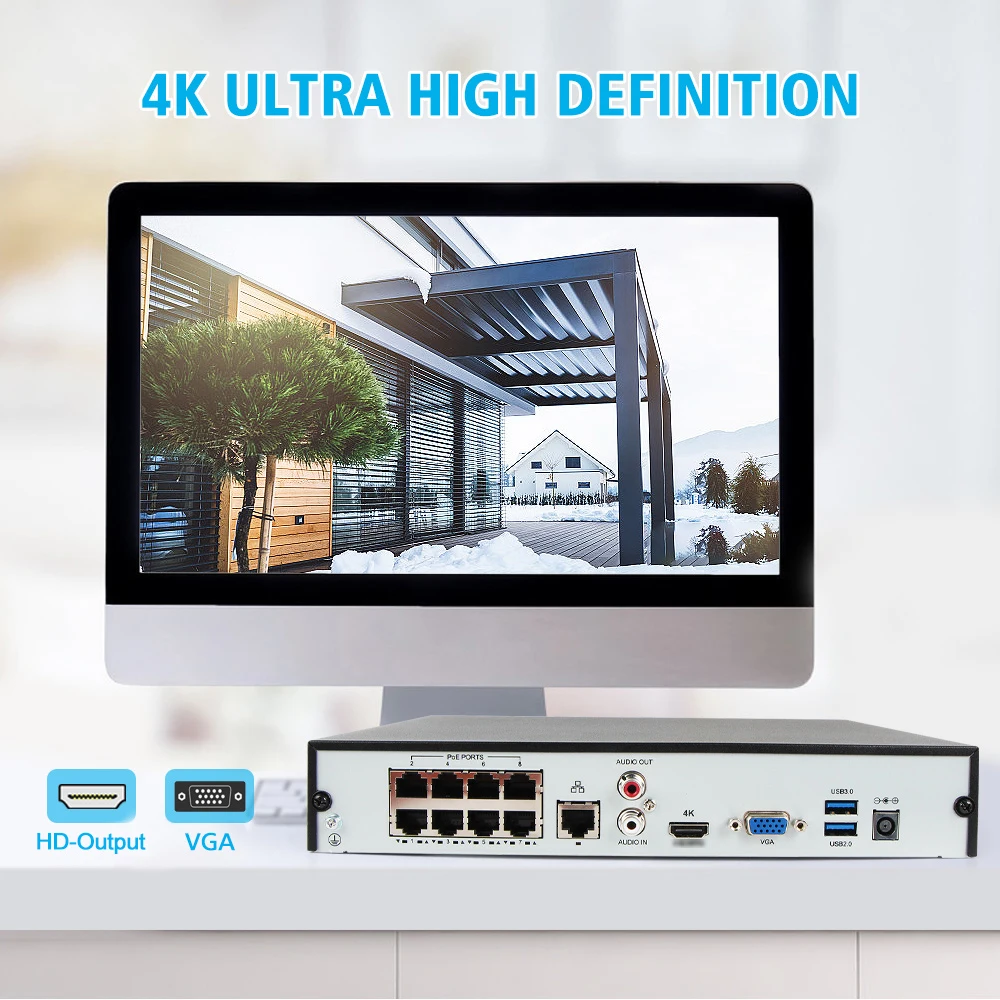

4K ULTRA HIGH DEFINITION

4K 8MP(3840x2140)/5MP

Advanced H.265 compression technology

Advanced H.265 compression technology lets you save on storage space which allows for longer recording times. H.265 technology compresses your video without sacrificing any of the UltraHD video quality.

Smart Recording- Combine 24*7 Recording & Motion Detected Recording

Never miss a moment and get the motion detecion records easily! Allows you to create specific motion detecting zones to monitor certain areas.

Easy Remote Viewing

Free APP : " Guard Viewer " , easy remote viewing on iPhone, iPad, Android devices and PC.

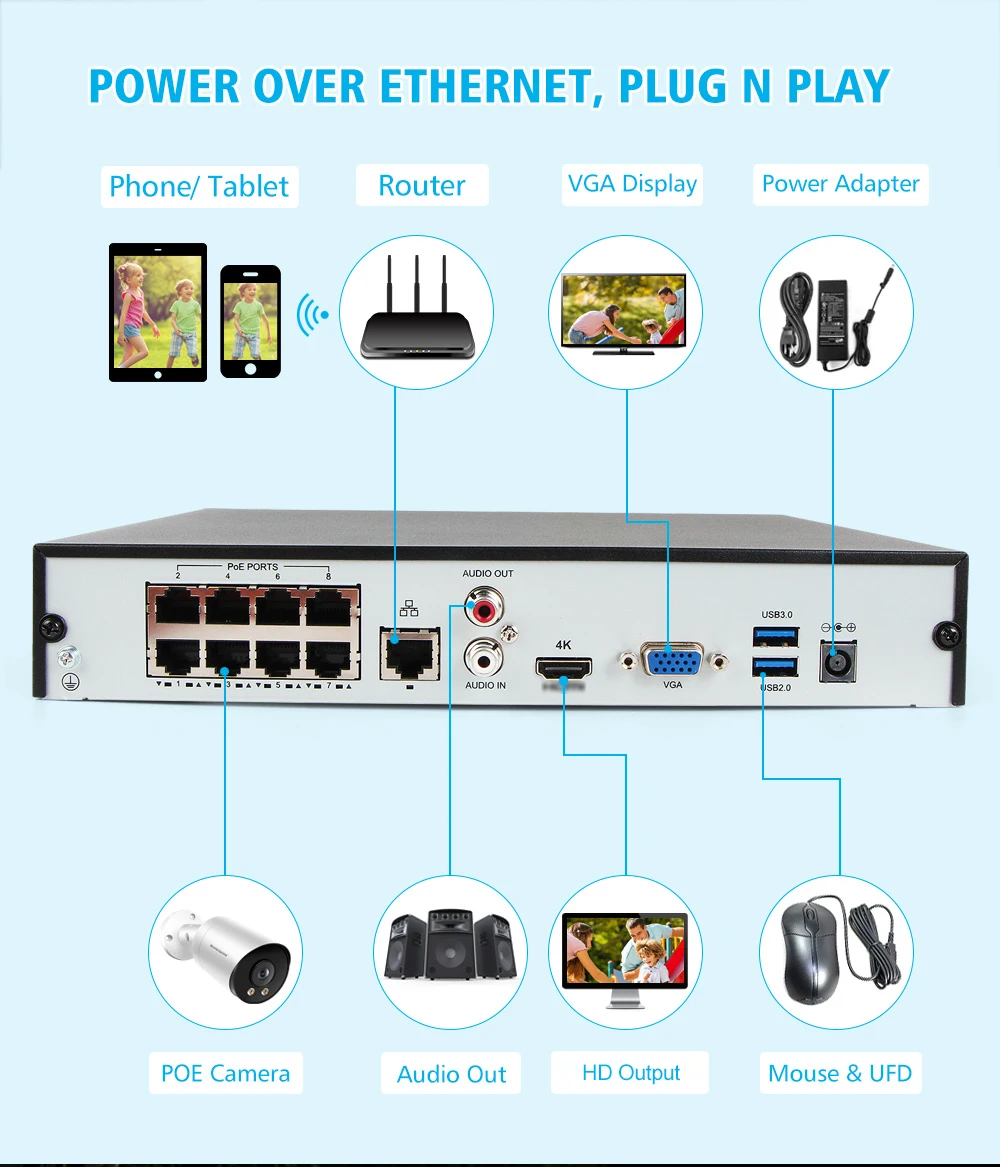

Power over Ethernet, Plug & Play

This security system features Power over Ethernet (PoE) technology, a single network cable run between your NVR and each IP camera provides both power, video and audio transmission, allowing you to position your cameras anywhere without a nearby power outlet.

Real Time Motion Alerts

Cameras will detect moving objects, send real time email alerts and mobile notifications.

Product Details

Features:

*Face detection/Intrusion detection/ Cross line detection/Audio detection/Defocus detection/Scene change detection/Auto tracking

*Power over Ethernet, Plug n Play

*Run up to 330ft CAT6 8-pin Ethernet cable, great for DIY users.

*Support up to 8 cameras, 4K/ 5MP, work with all PoE IP Cameras

*Support 24/ 7 Recording, NO Hard Drive is Included. Support up to 10TB hard drive at most.

*H.265 video standard to save storage space.

*Smart Recording- Combine 24*7 Recording & Motion Detected Recording, never miss a moment and get the motion detecion records easily! Allows you to create specific motion detecting zones to monitor certain areas.

*Easy Remote Access with Real Time Motion Alerts

*Free APP, easy remote viewing on iPhone, iPad, Android devices and PC.

*Easy Video Playback,Playback video records on your mobile app remotely or NVR video recorder locally. Install hard drive first.

*Real Time Motion Alerts,Cameras will detect moving objects, send real time email alerts and mobile notifications.

Model

NVR8108-P8

Video/Audio Input

IP Video Input

8-ch

Two-way Audio Input

1-ch, RCA

Network

Incoming Bandwidth

64Mbps

Outgoing Bandwidth

64Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

hd output/VGA Output

HD output

3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA:

1920x1080p/60Hz, 1920x1080p/50Hz,1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Recording Resolution

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

NO

Synchronous Playback

8-ch

Corridor Mode Screen

3/4/5/7/9

Decoding

Decoding format

Ultra 265/H.265/H.264

Liveview/Playback

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30, 16 x 720p@30

Hard Disk

SATA

1 SATA interface

Capacity

up to 10TB for each disk

Smart

VCA Detection

Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking

VCA Search

Facesearch, Behavior search

Statistical Analysis

People counting

External Interface

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 1 x USB2.0,1 x USB3.0

Alarm In

NO

Alarm Out

NO

PoE

Interface

8 independent 100 Mbps PoE network interfaces

Max Power

Max 30W for single port

Max 108W in total (13.5W for each)

Supported Standard

IEEE 802.3at, IEEE 802.3af

General

Power Supply

52V DC

Power Consumption: ≤8W (without HDD)

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH(non-condensing)

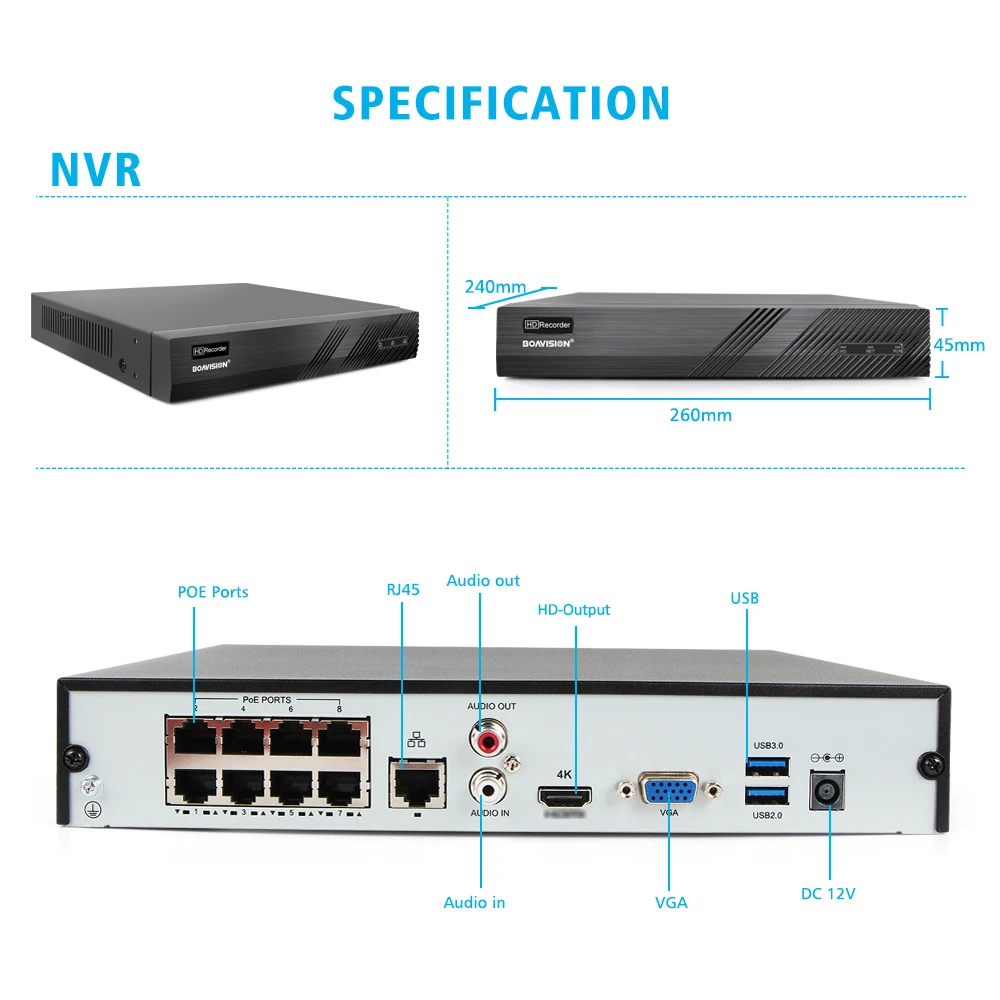

Dimensions (W×D×H)

260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")

Weight (without HDD)

1kg (2.20 lb)

PACKING LIST:

1x 8 Channel 4K 8MP HD H.265 PoE NVR

1x 52V 1.8A DC Power Adapter

1x 3ft Network Cable for Internet Connection

1x Mouse

1x Quick User Guide

Tips:You need a HD TV or PC Monitor with HD output port to view and do settings on screen, the hd output cable is not included
