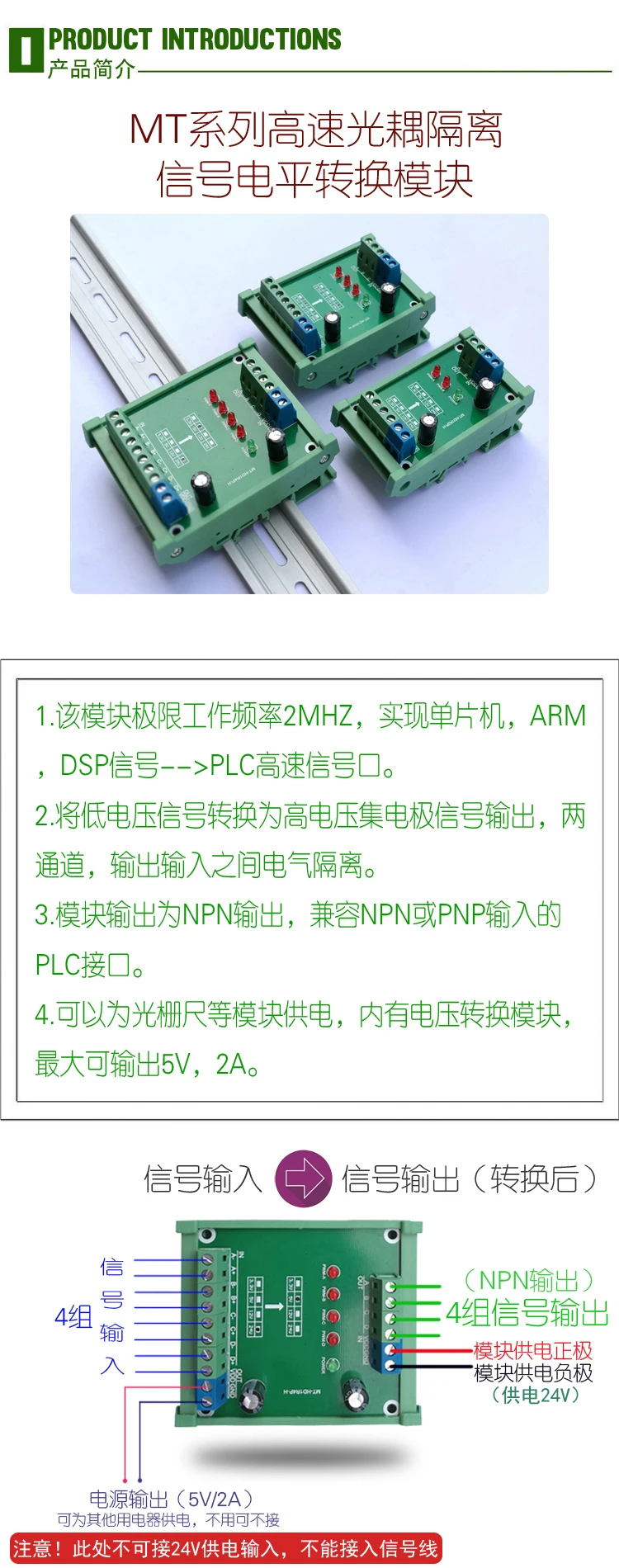

Product introduction :

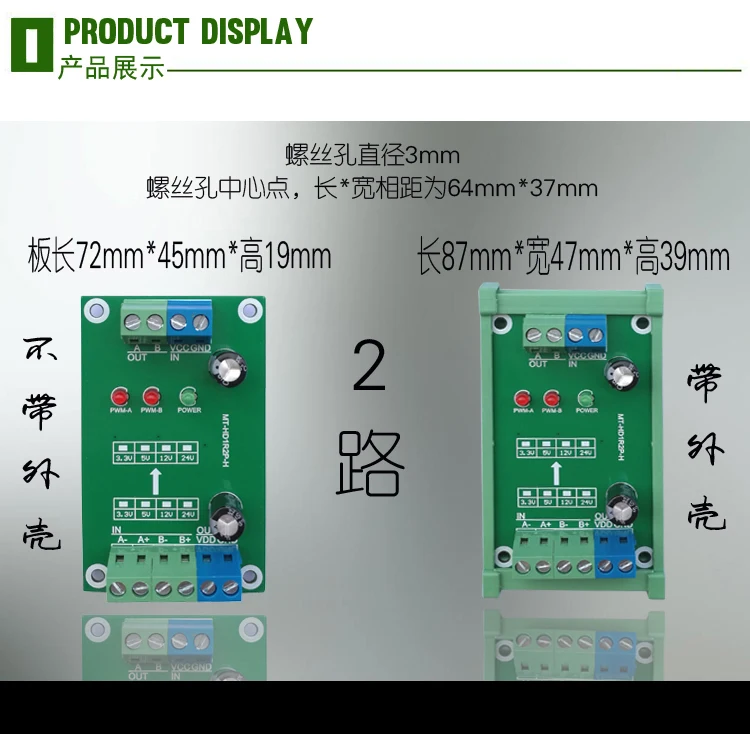

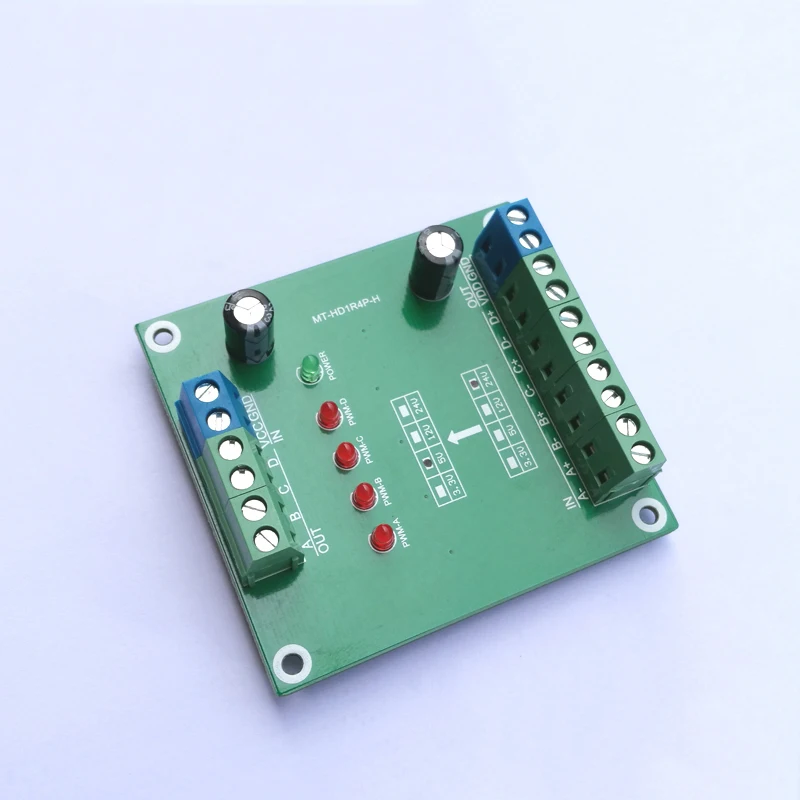

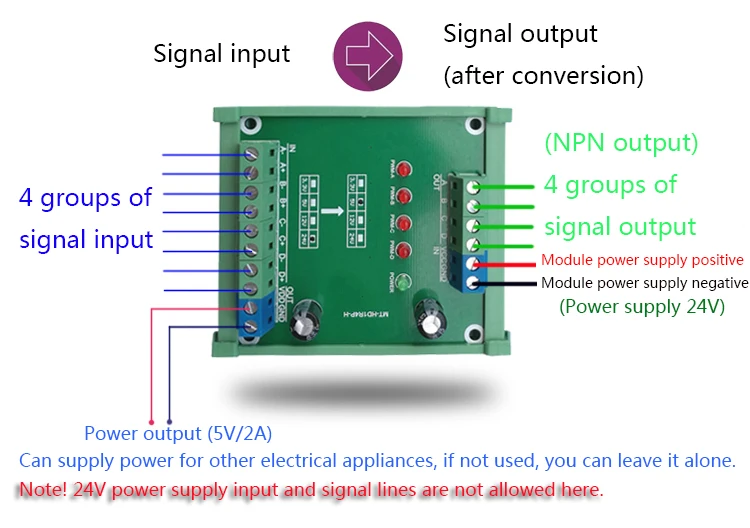

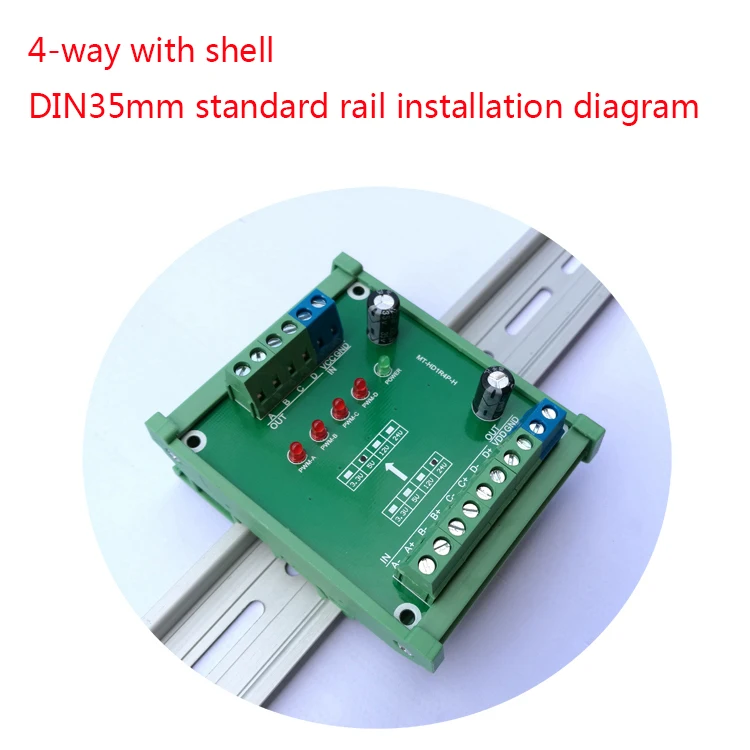

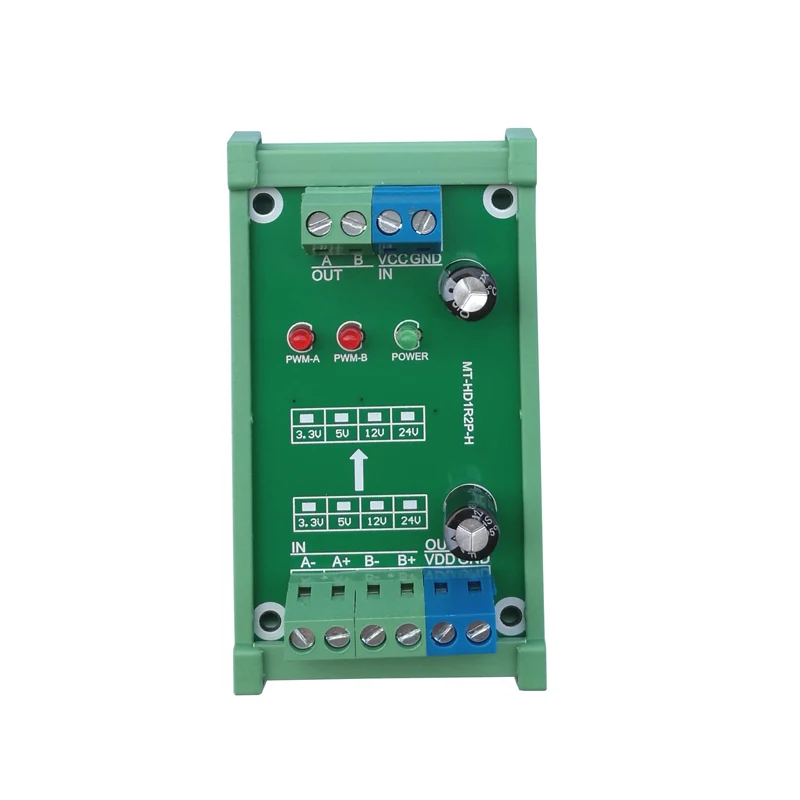

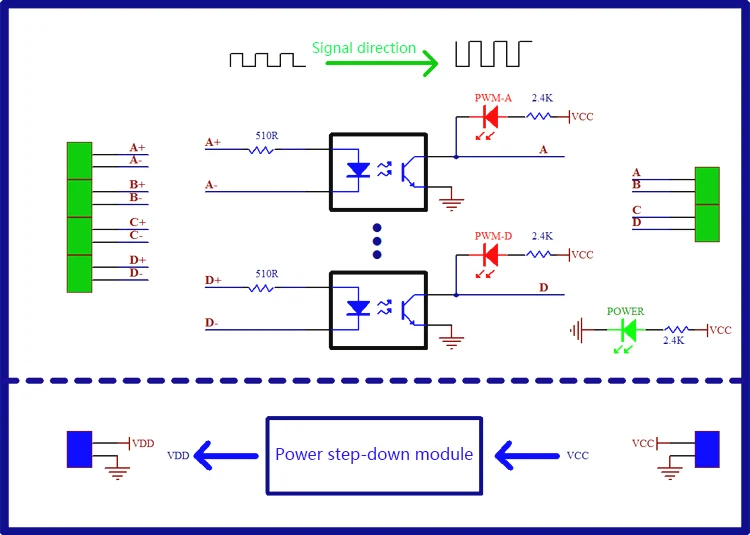

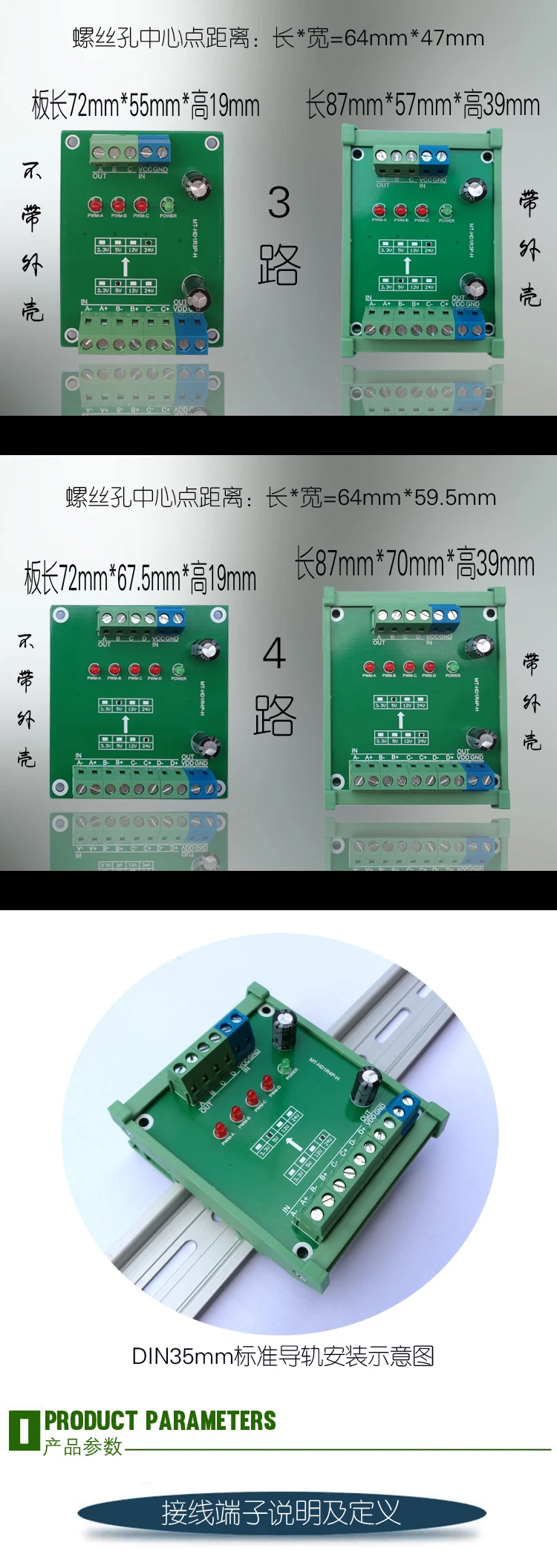

MT series high speed optocoupler isolation signal level conversion module 1. The module's limit operating frequency is 2MHZ, which realizes the single-chip, ARM, DSP signal -> PLC high-speed signal port. 2. Convert the low voltage signal to a high voltage collector signal output, electrically isolated between the two channels and the output input. 3. The module output is NPN output, compatible with NPN or PNP input PLC interface. 4. It can supply power to modules such as grating scales. There is a voltage conversion module inside, which can output up to 5V, 2A. It can be installed with screws and also supports rail installation (standard DIN35mm rail). 2 way: 2 channel finished board 3 way: 3-channel finished board 4 way: 4-channel finished board 2 way with shell: 2 channel finished board + DIN35mm rail mounting shell/bracket/shell 3 way with shell: 3 channel finished board + DIN35mm rail mounting shell/bracket/shell 4 way with shell: 4 channel finished board + DIN35mm rail mounting shell/bracket/shell 6 way with shell: 6 channel finished board + DIN35mm rail mounting shell/bracket/shell 8 way with shell: 8 channel finished board + DIN35mm rail mounting shell/bracket/shell

Applications:

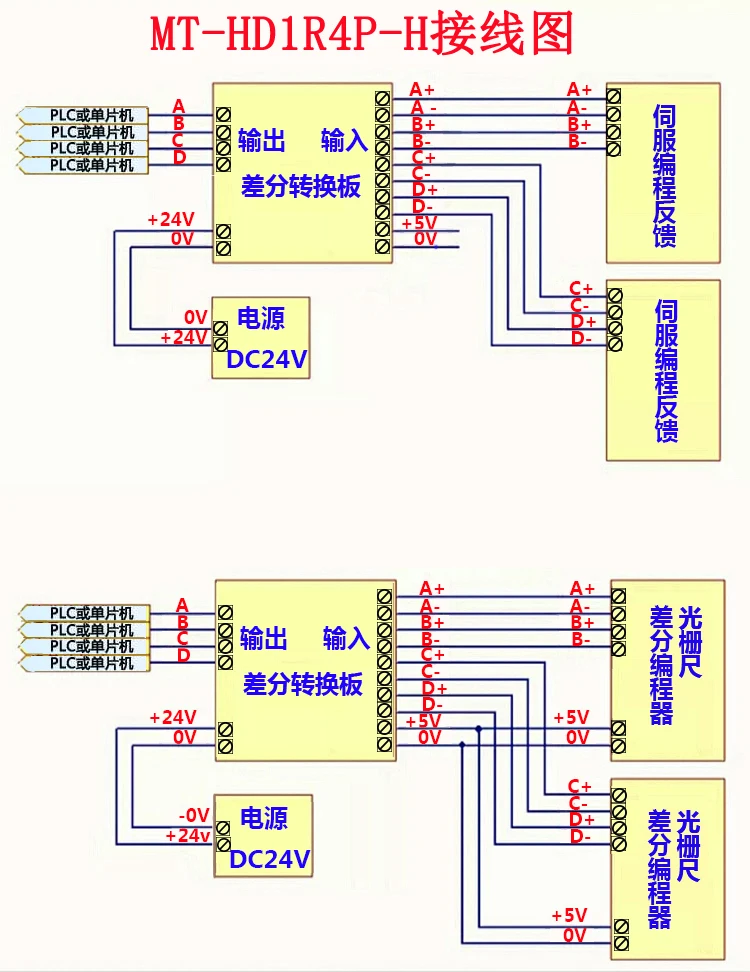

1. Servo drive output ABZ signal is converted into collector output signal and input to PLC high-speed counting interface, compatible with all kinds of servo/PLC. 2. Convert the differential output encoder signal to the collector output signal and input it to the PLC high-speed counting interface. 3. Used for synchronous speed control of multiple servo motors.
