No-load speed: 2-4 words / 10 seconds

Uses: commercial manufacturing

Maximum torque: other

Size: 32 * 28 * 27cm

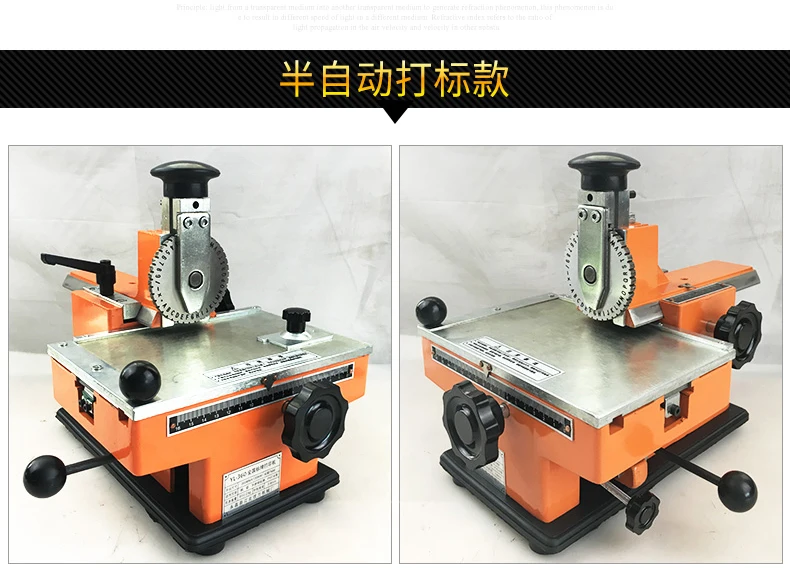

Name: YL-360 pneumatic marking machine

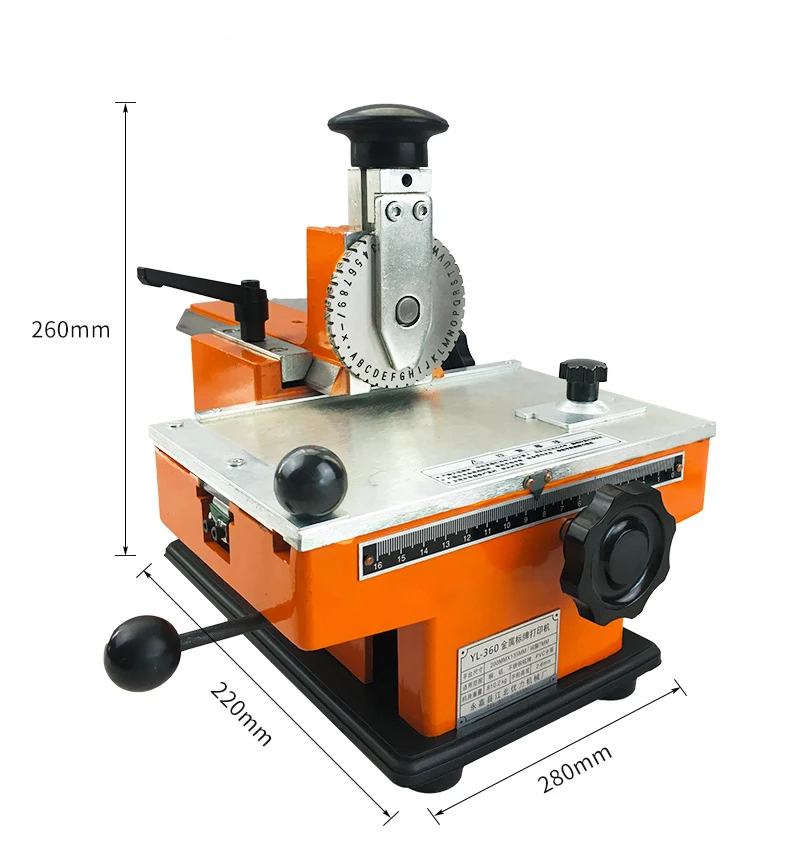

Three-dimensional size: 320 * 285 * 270mm

Marking area: 180 * 135mm

Marking depth: 0.1-0.3mm

Marking speed: 2-4 words / 10 seconds

Packing size: 32 * 28 * 27cm

Weight: 9kg

use:

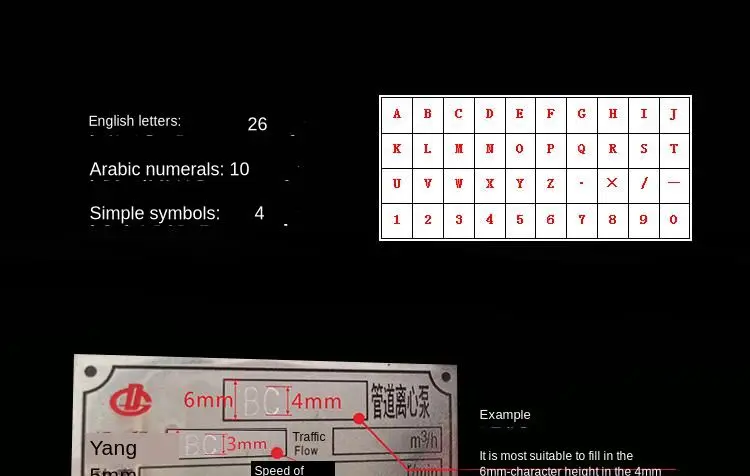

Imprint variable parameters on metal nameplates less than 1 mm thick: eg product model number,
Date, batch number, serial number, serial number, etc.

application:

Mechanical equipment, electromechanical, water pump, valve, all kinds of aluminum, copper, stainless steel
Steel and plastic nameplate on electrical appliances

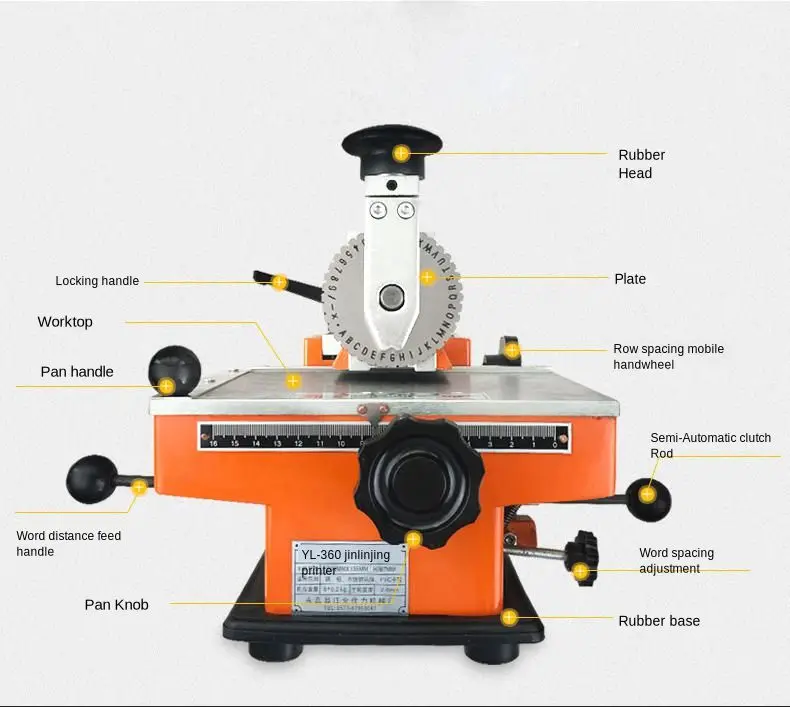

Working principle:

1. The alloy steel plate of high frequency quenching heat treatment is under the action of external force

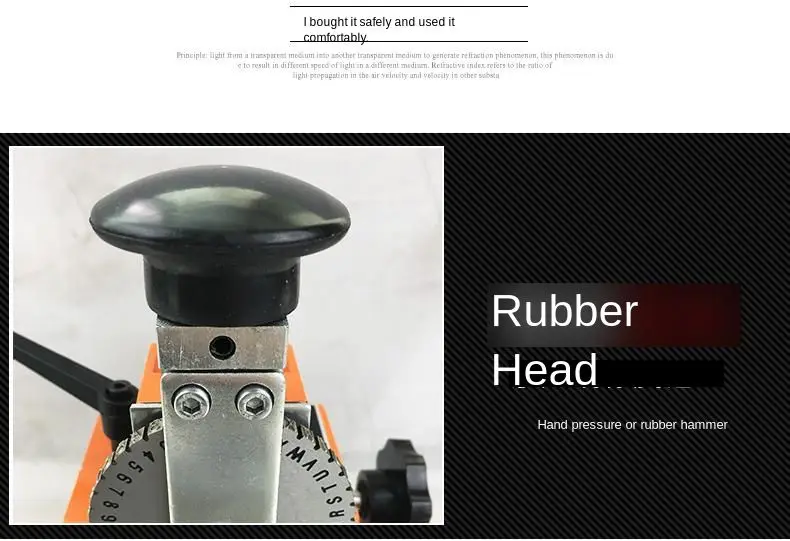

(use a rubber handle by hand) and then generate a certain impact force to mark characters or numbers
A certain depth on the nameplate (0.1 to 0.3 mm).

2, heat-treated steel letter board can be rotated to the desired character or number, easy to change words

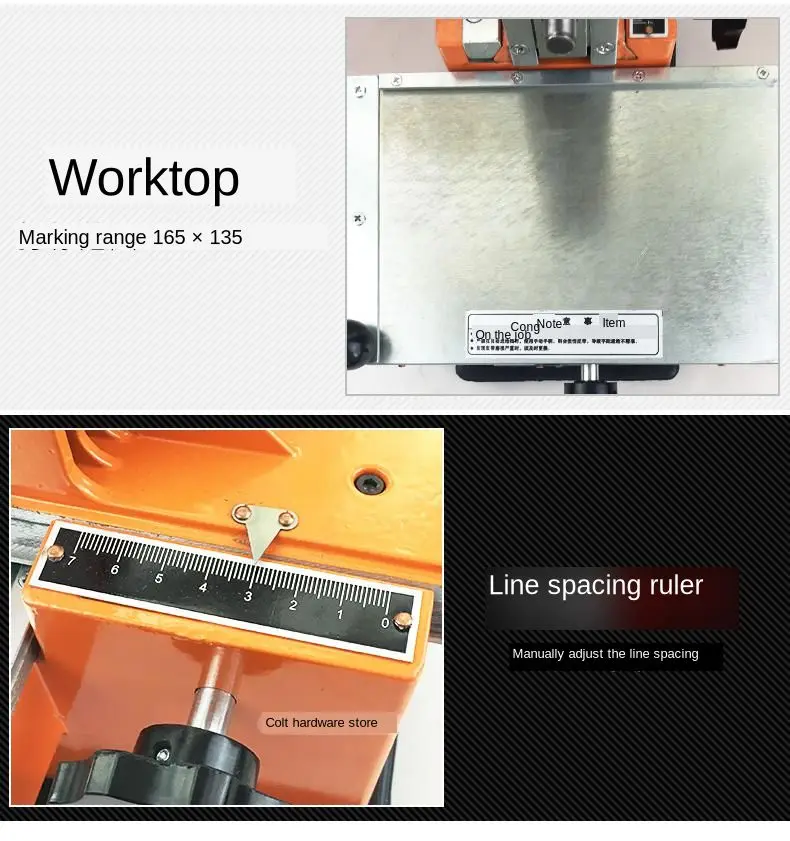

3, marking position, line spacing is adjusted by special mechanical mechanism

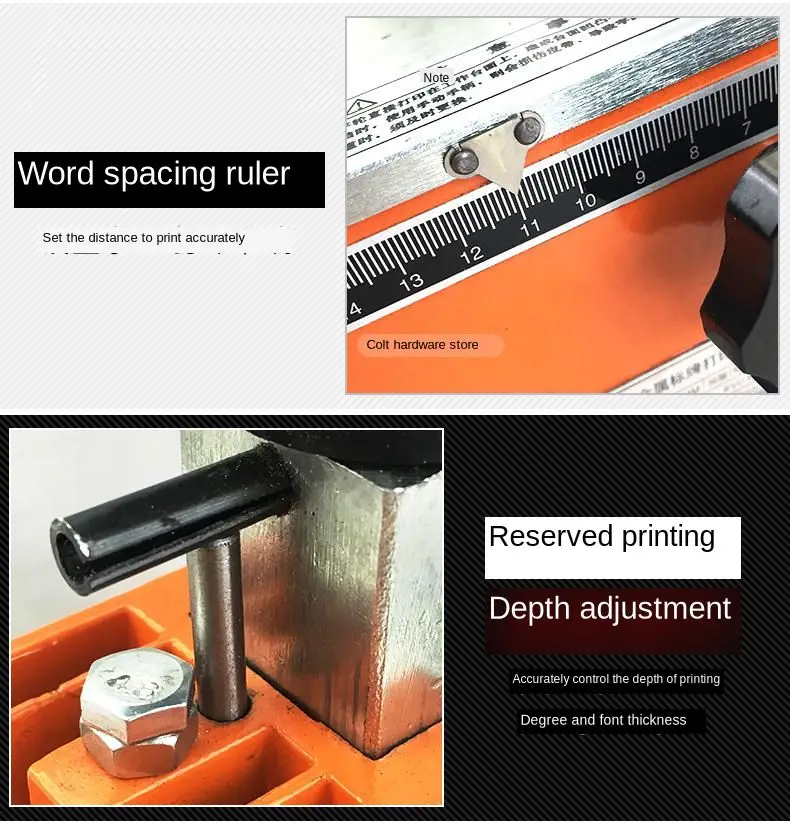

4, the kerning can be adjusted by the small handwheel

5, need different word height can be achieved by replacing the dial

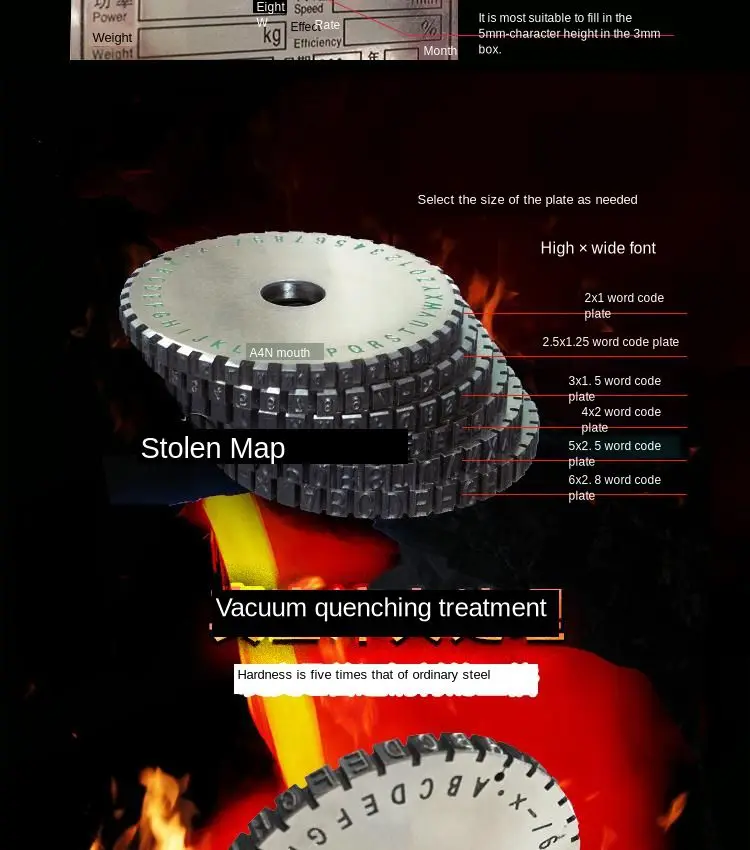

The choice of the word wheel:

No. 2 character wheel - word height 2mm word width 1.1mm (suitable for signage front frame height 3~4mm)
2.5-character wheel - word height 2.5mm word width 1.4mm (suitable for signage front frame height 4~5mm)
No. 3 character wheel - word height 3mm word width 1.6mm (suitable for signage front frame height 5~6mm)
4th character wheel - word height 4mm word width 2.1mm (suitable for signage front frame height 6~7mm)
