Original North Edge GAVIA 2 Smart Watch Men's Watches Waterproof 200m Altimeter Compass Dive Quartz Business Sport Digital |

Original North Edge GAVIA 2 Smart Watch Men's Watches Waterproof 200m Altimeter Compass Dive Quartz Business Sport Digital |

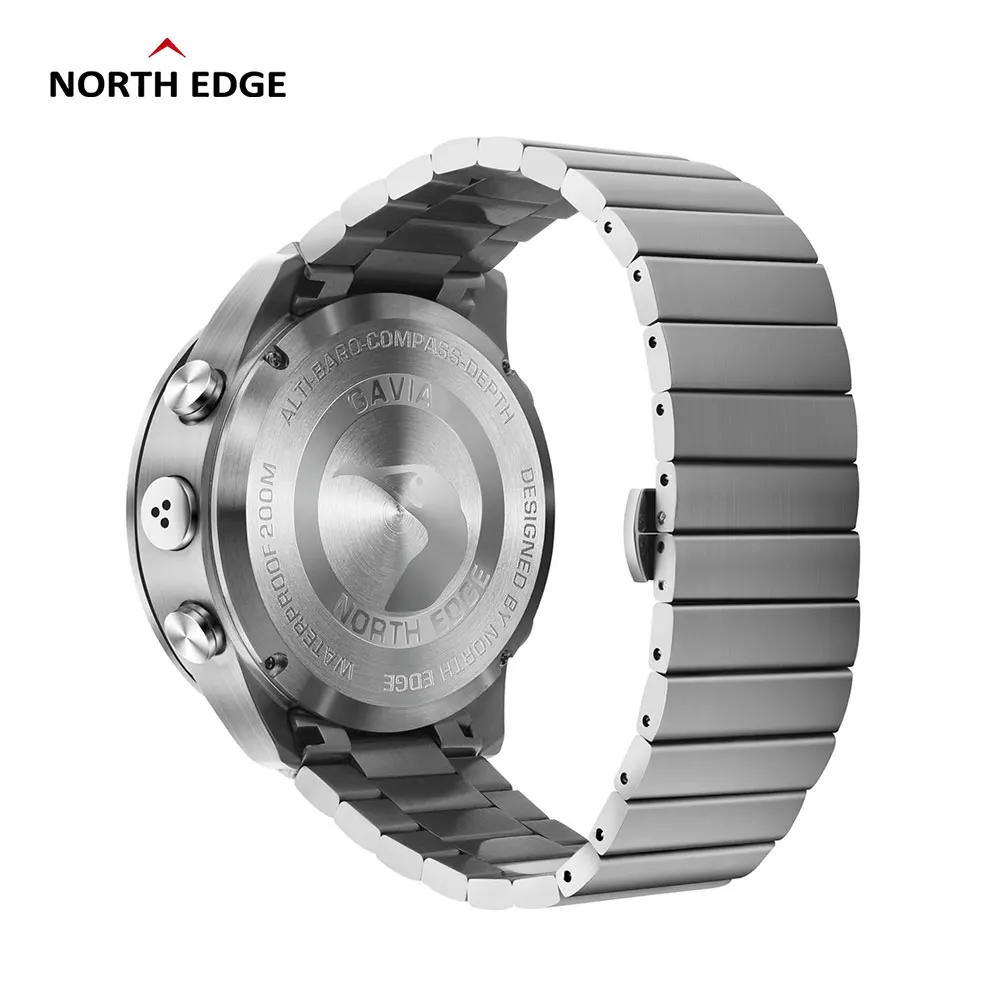

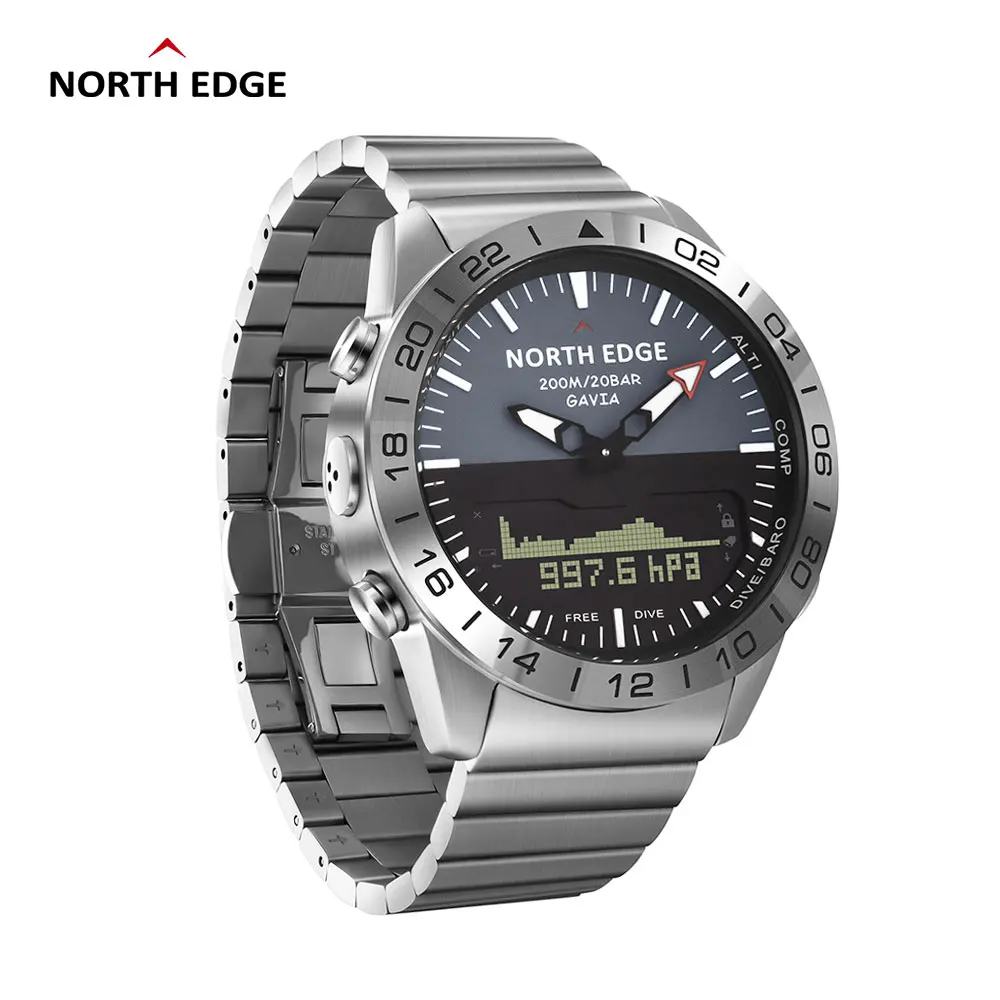

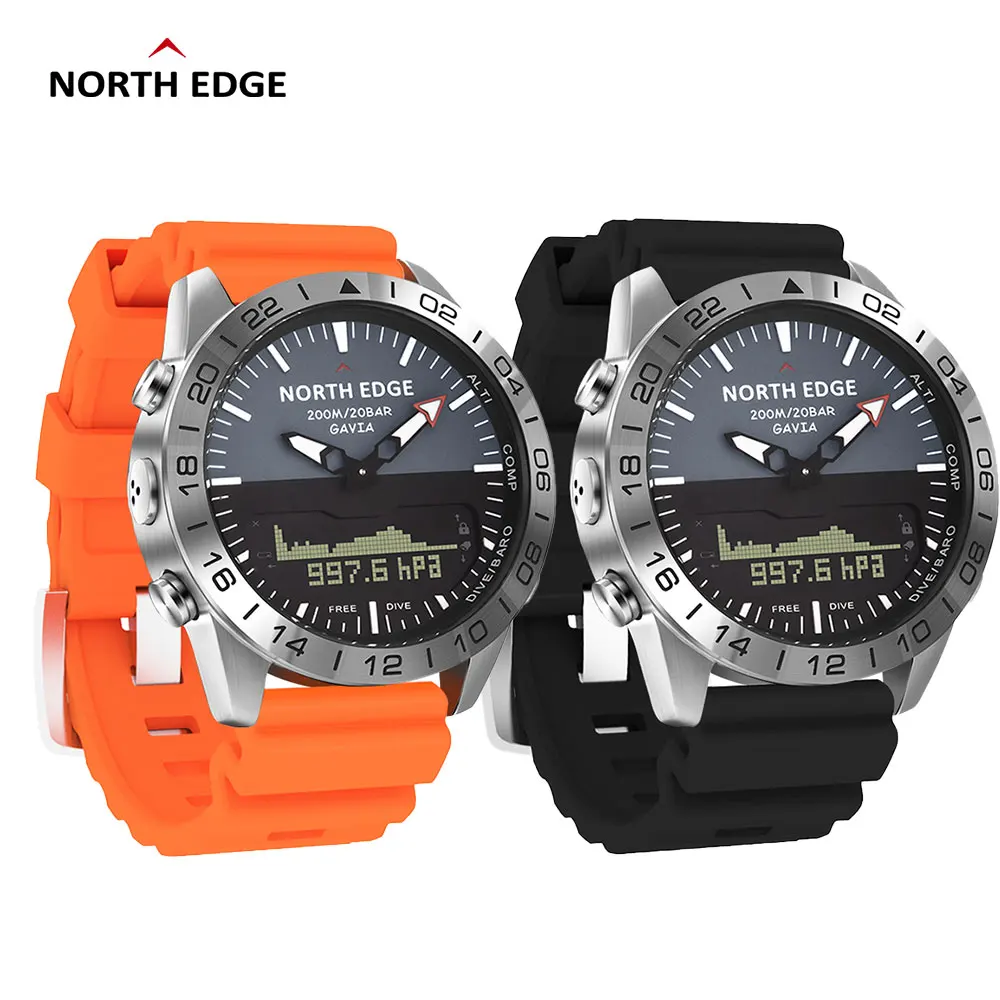

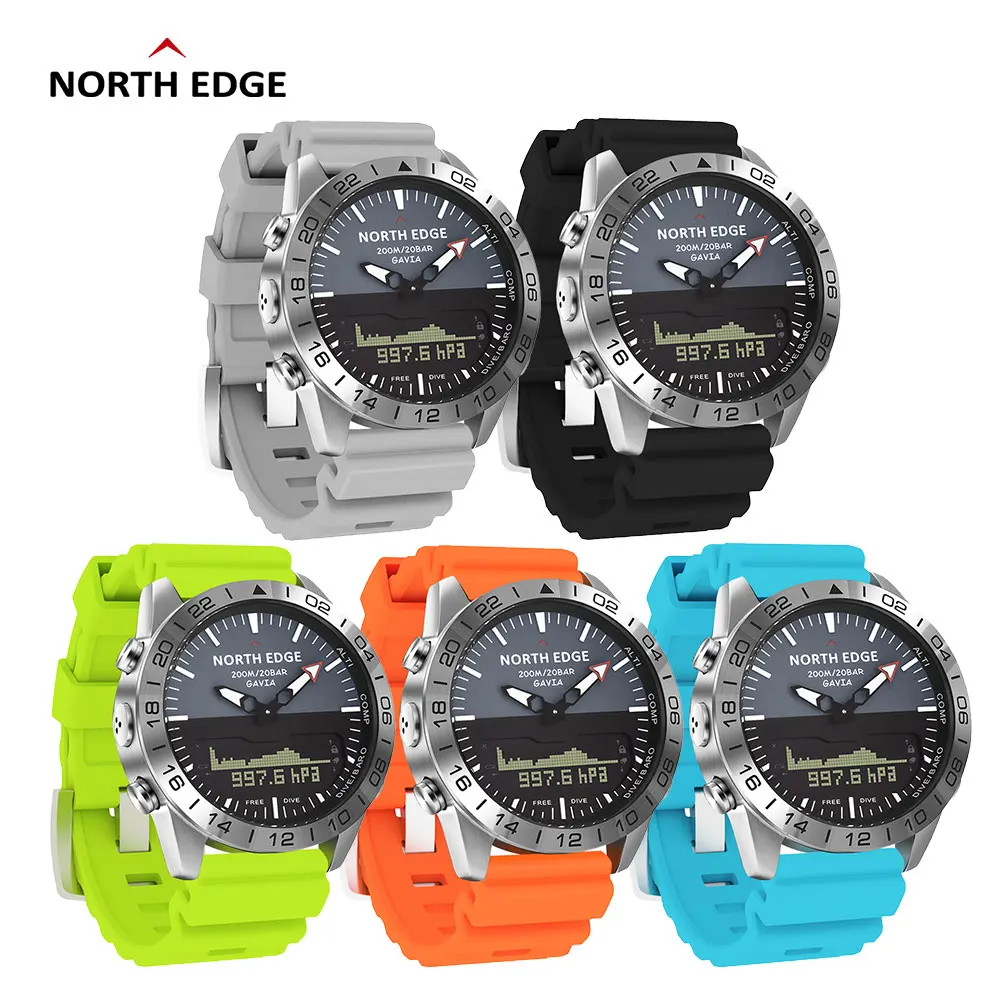

North EDGE GAVIA 2 Smartwatch
BasicFunction ：
Altimeter/Barometer/Compass/Diving/Waterproof 200M/Dual Time/Count Down/Calories/Time Alarm/ Temperature/ Back-lit/ Low power reminder/ Pedometer/ Low temperature resistant
MoreFunction :
●date, week, two time display modes switch● Countdown function (99 hours, 59 minutes, 59 seconds to 0),
● Stopwatch function (0 ～ 99 hours, 59 minutes, 59 seconds, 99,50 sets of LOOP)
● 2 groups of alarm reminders
● World time, sunrise and sunset time, summer time setting.
● Height, can measure absolute height and relative height
● Barometric pressure, 24-hour barometric pressure curve, sea level pressure,
● Temperature function, -20 ~ 60 working range.
● Compass function, 16 directions indication
● Step counting, speed measurement, calorie measurement, mileage record
● Dive function, depth, water temperature, depth alarm function
● Maximum dive depth of 50 meters
● EL backlight, lit for 5 seconds each time
Feature :
1:StartButton definition:
A.Altimeter /up/start/stop
B.Barometer/diving/down/Reset/switch, compass calibration
C.Compass measurement
M. Time/setting/confirm/history
L. Backlight/lock/return
Sleep mode: under time mode, long press [L] and [B] to enter into the sleep mode, awake sleep mode by pressing any button.

2:Function mode LCD display

3:Menu Setting
Before you start to use your sports watch, it is better to set the measure units, calibrate watch hand and general setting according to your preference. You can change the general setting in the MENU. If you want to enter the MENU, please long press the [M] button for 2 seconds under the time mode, press [L] button to exit the MENU. When exit option in the MENU is usable, a "X" will appear on the nearby of the [L] button. You can choose press any button to exit the MENU or press [L] button to exit.
3.1 Backlight
Under each function mode, press [L] to open backlight; Under setting mode, long press [L] button to open backlight, the backlight will automatically close after 5 seconds.
3.2 Activate Key Lock
Long press [L] button to activate or stop Key Lock. When the Key Lock is in an activate state, it will display lock A
4:Time mode
You can change time mode in MENU.
If you want to enter into the time mode in MENU as following:
1)Under time mode, long press [M] button to enter MENU.
2)press [A] or [B] button to roll in UNITS item, press [M] to enter.
3)Press [A] or [B] button to roll in the Time mode item, press [M] to enter.
4)Press [A] or [B] button to switch A and B mode, press [L] to confirm and return the last item.
5.1 Change World Time
Under time mode, press [M] four times to enter world time mode, the upper part displays world time, and the lower part displays current time. Press [A]or[B] to switch the world time display in an upper-down manner.
5.2 Stopwatch (STP)
The stopwatch is used for measuring time.
the division data is 0.1 second.
Details as following:
1)Press [M] button 2 times under TIME mode to enter into the stopwatch mode.
2)Press [A] to start, stop or restart the stopwatch.
3)Press [B] to record the timing time of each loop, max 50 sets ofLOOPS.
4)Press [B] to check record after stop the stopwatch.
6: Use Compass
1)Under compass mode, the watch rotates uniformly in a clock wise manner, the arrow arranged on the upper part of the screen is forward direction like the direction arrow of the compass, the forward direction displays on the left side of the lower part of the screen; the forward direction data is display on the right side of the lower part of the screen.
2)Under compass mode, the hour hand and minute hand in direct line. The minute hand Point to the NORTH.
* (If hour hand and minute hand are not in direct line
please calibrate watch hand firstly (refer to 5.0)) *(If compass is not accurate please calibrate compass (refer to 8.1.1))
7: Dive mode setting
If you want to change dive mode setting in MENU, please enter into the dive mode setting in MENU,
1)Under time mode, long press [M] to enter into MENU.
2)Press [A] or [B] to roll to the DIVE item, press [M] to enter into Deep alarm.
3)Press [A] or [B] to roll to add or decrease data, long press [A]or[B] to rapidly add or decrease data.
4)Press [L] to confirm and return the last item.
It means that the sound reminding function is open when you set number, the dive watch will ring when the preset data is arrived after entering the dive mode. When the depth alarm setting is max 50m (165Ft), after entering dive mode, the dive watch will ring and display "full" when you dive the preset data. The "full replaces "165Ft . You can change depth or close depth alarm according to personal preference, (the number is 0, the depth alarm is closed.)
