NRedassigned for installation in the heating circuit or the circuit of warm floors up to 200 M2.

Serves to maintain the specified temperature of the heat carrier in automatic mode. Contains a built-in thermostatic element on which the desired temperature is set at the output. In most cases, the thermostatic mixing valve is great for installing warm floors with constant temperature.

The thermostatic element in the valve is adjusted to the required heat transfer temperature,
Feed to the contour. In the process of operation, the valve is mixed into the feed with a cooled heat carrier from the reverse pipe of the circuit thus maintaining the desired temperature in the heating circuit. As a result, the valve provides a constant temperature in the circuit in automatic mode, this mode of operation is ideal for the contours of the warm floor.

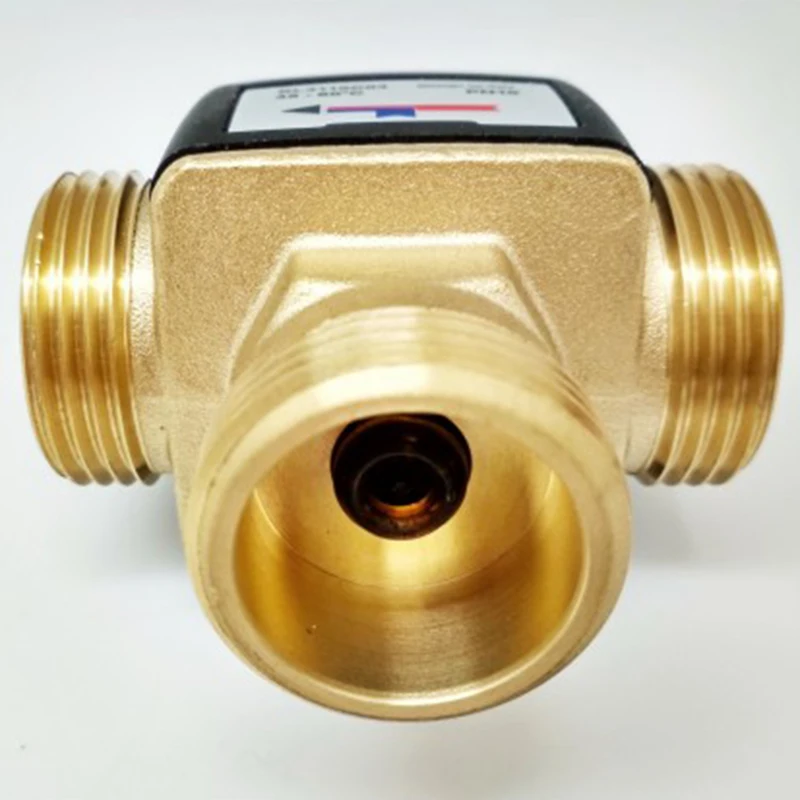

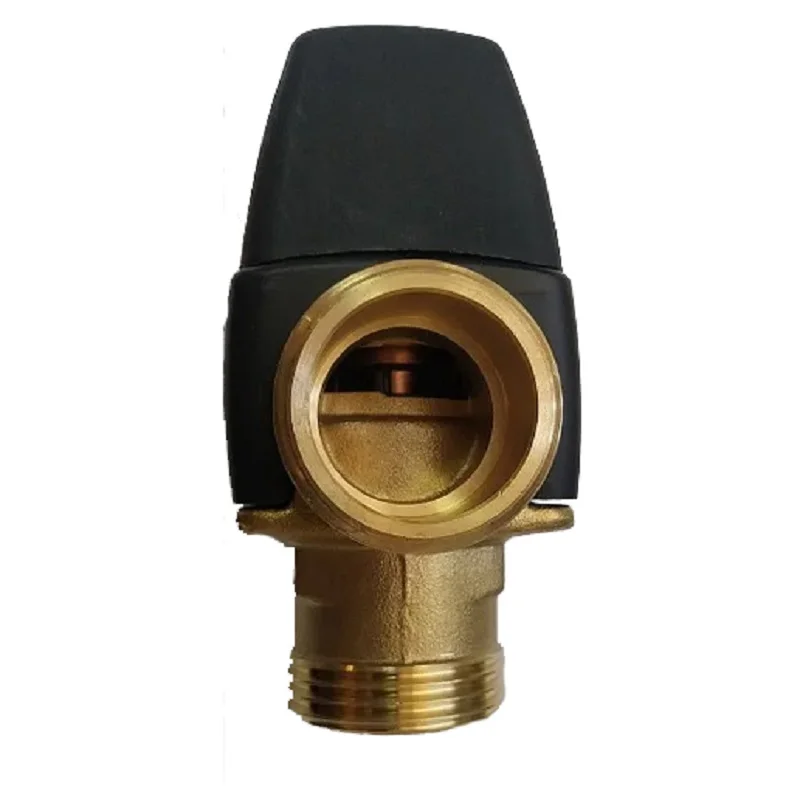

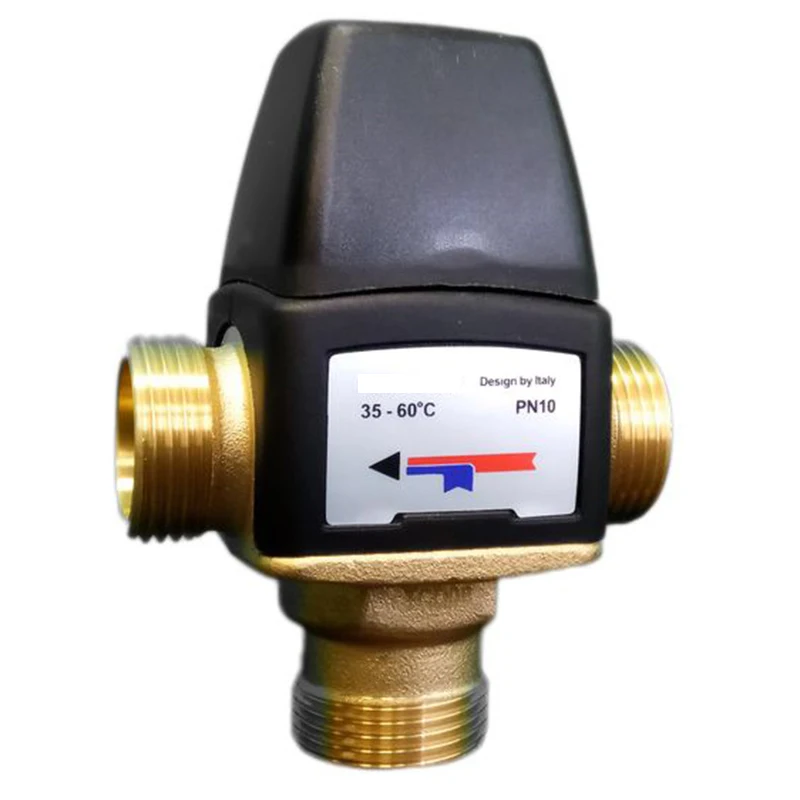

Body material: Brass;

Area of warm floors: up to 200 m2;

Range: regulation: 35 - 60

KVs: 1,6 m3/h;

Maximum operating temperature, °c 95

Maximum working pressure, bar 10
