Держатель инструмента для шпинделя ЧПУ из нержавеющей стали с патроном ER, уравновешенным по стандарту ISO, коллетой G2.5 и скоростью вращения до 30000 об/мин. с штифтами для крепления.

Держатель инструмента для шпинделя ЧПУ из нержавеющей стали с патроном ER уравновешенным по стандарту ISO коллетой G2.5 и скоростью вращения до 30000 об/мин. штифтами крепления.

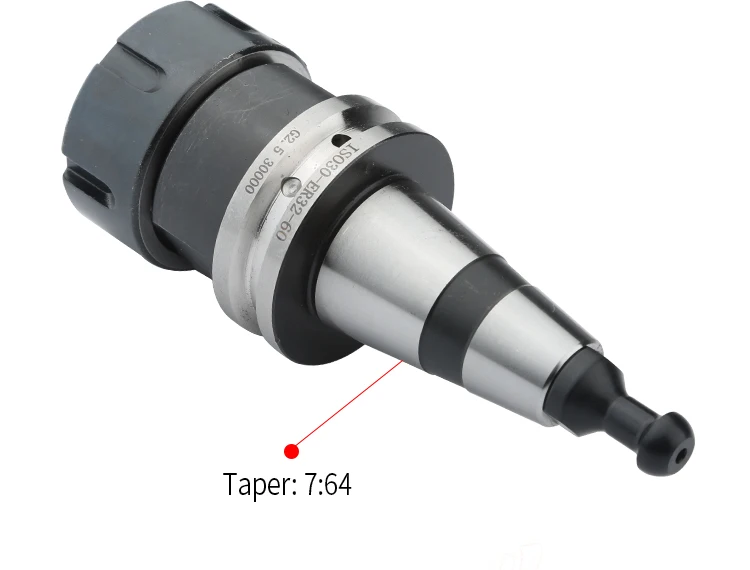

specification: Dynamic balance setting: 30000 rpm Nut specification: ER32 Runout accuracy: <0.002mm Coaxiality: <0.003mm Material: 20CrMnTi Hardness: >HRC56° Taper: 7:64 Anti-rust coating: electroplating anti-rust coating Processing hardness: hardened by quenching Excellent processing and fine production. Suitable for cutting machines, machining centers, engraving machines, and engraving machines.

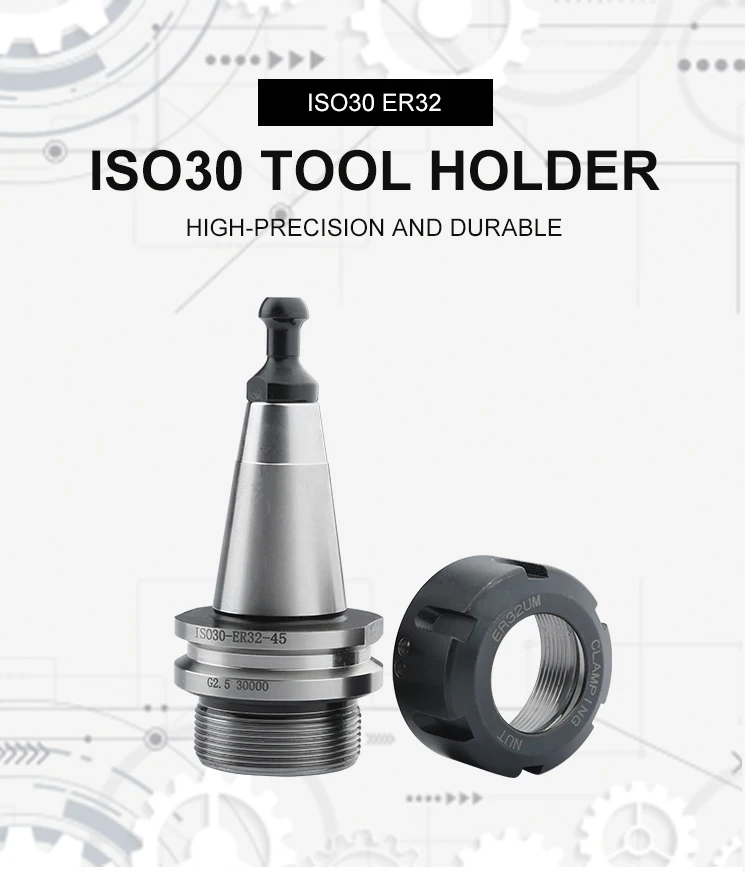

Tool name: ISO30 tool holder Coaxiality: <0.003mm Material: 20CrMnTi Hardness: >HRC56° Applicable equipment: cutting machine, processing center Carving machine, engraving machine

Runout accuracy: <0.003mm Anti-rust coating: electroplating anti-rust coating Processing hardness: hardened by quenching Dynamic balance setting: 25,000 revolutions-30,000 revolutions Nut specification: ER32

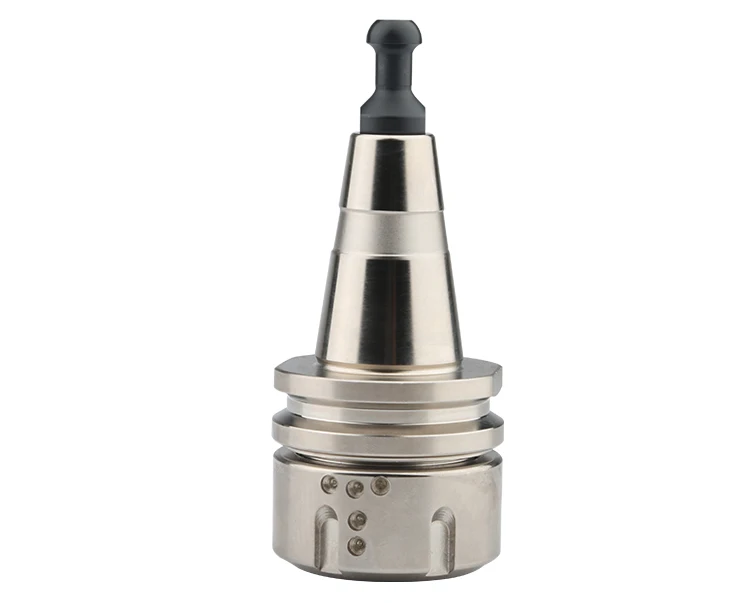

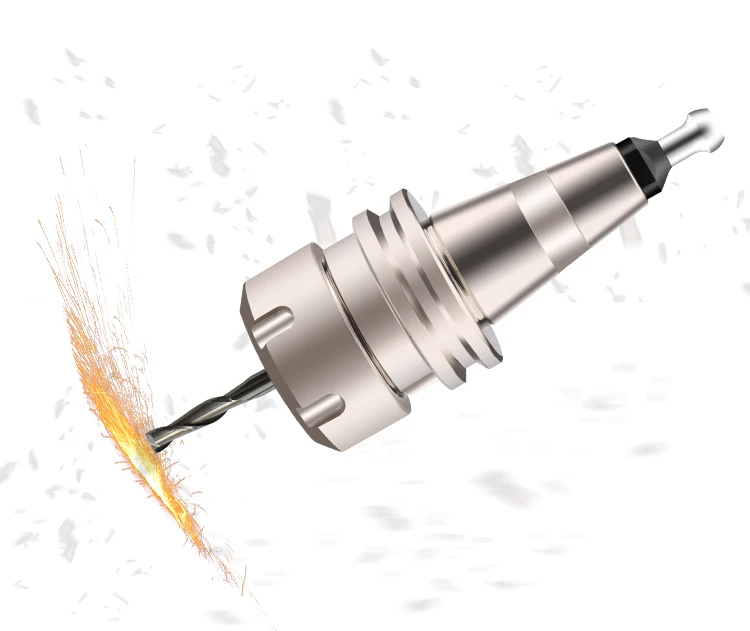

This ER32 dynamic balance chuck is made of high-density stainless steel, which is durable and tough. Excellent processing and fine production can absorb impact and impact. High speed, the maximum speed can reach 30000rpm. Properly packaged in a container can prevent damage to the balance chuck during transportation or storage. It is widely used on drilling machines, grinders, lathes and other processing machines.

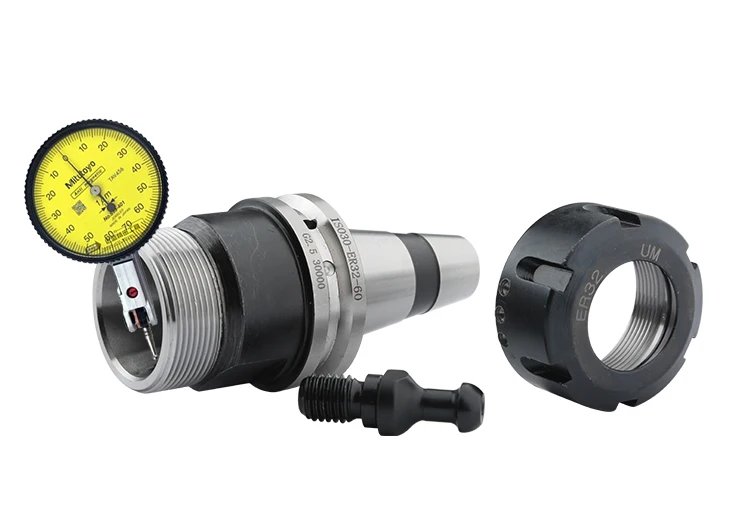

Body beating accuracy

Efforts to create a high degree of concentricity, so that the tool holder can withstand impact load, stable performance, speed beat accuracy <0.002mm

20CrMnTi alloy steel

Selected use of 20CrMnTi alloy steel, advanced vacuum quenching furnace, can realize carbonitriding to increase the hardness of the tool holder, and the inside and outside are formed at one time

Rigorous full inspection tool holder

Ensure that the taper requirements of each product meet the accuracy of the outer taper jitter

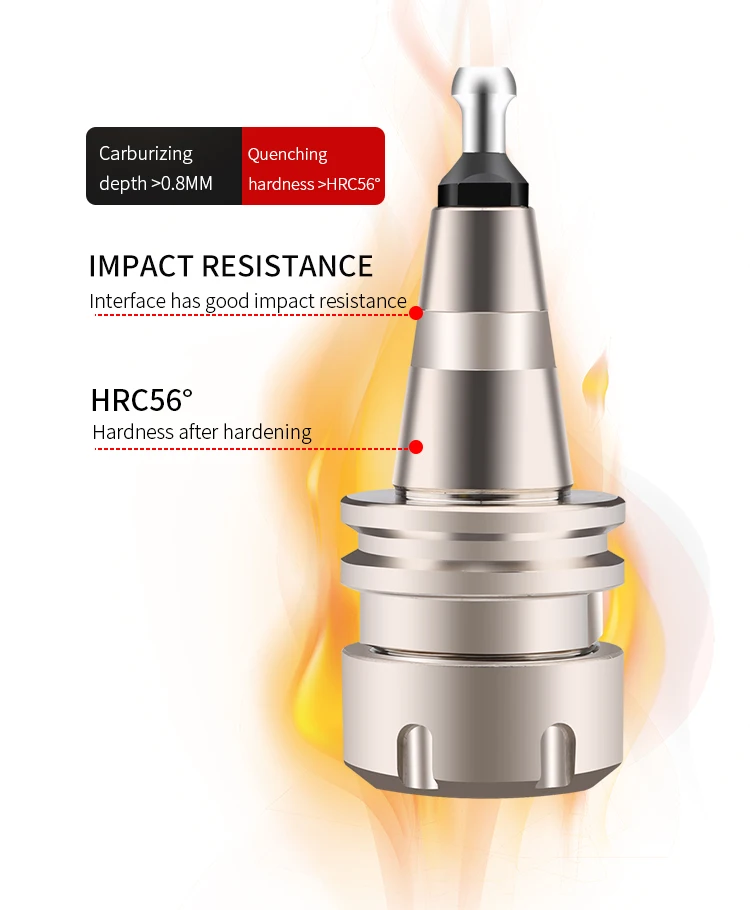

Quenching and hardening, strong fatigue resistance

Heat treatment: advanced vacuum quenching furnace, can realize carbonitriding, increase the hardness of the tool holder, and the interface is more resistant to fatigue

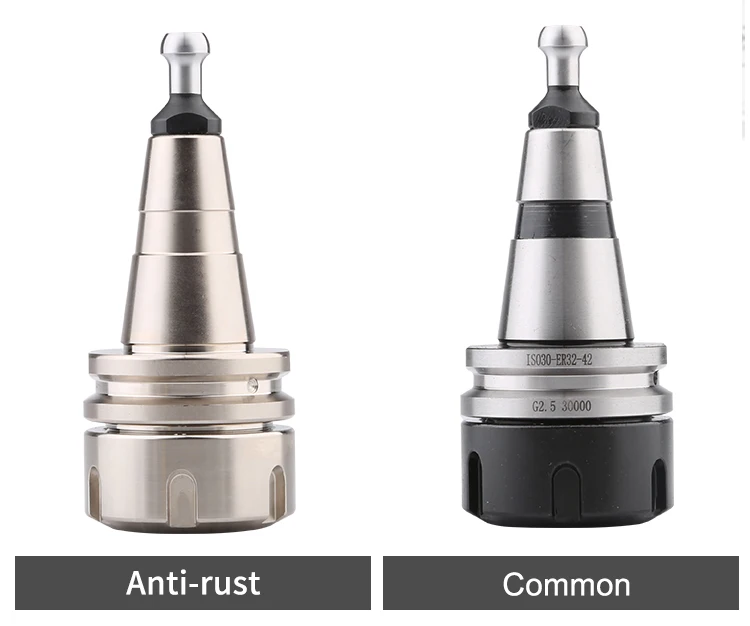

Electroplating anti-rust coating process

The body coating is added with electroplating and rust-proof coating technology, which is waterproof and oil-proof and rust-proof, keeping the taper unchanged and improving accuracy.

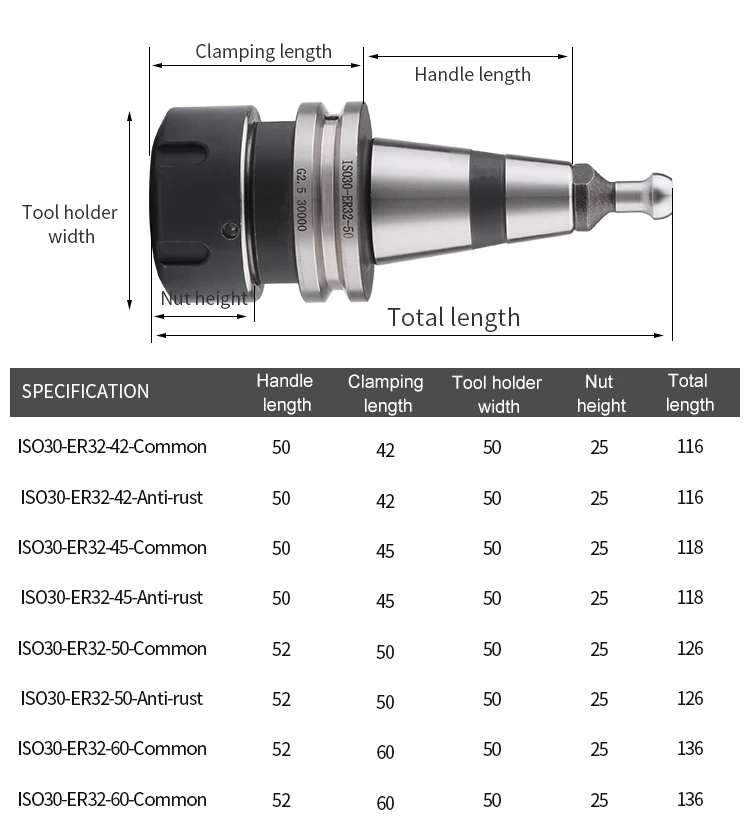

Product parameters

name:ISO30 CNC tool holder Overall clamping bounce:≤0.008 specification: Multiple Roundness: <0.8μ Body accuracy:<0.003mm Carburizing depth: >0.8mm Material:Steel 20CrMnTi Surface roughness: >0. 8mm hardness: >HRC55° Rotating speed:30,000 rpm

Principle of tool handle dynamic balance:

The principle of dynamic balance of rotating tools is similar to that of general rotating parts. The measured unbalanced weight and position can be balanced by removing the eccentric weight or adjusting the counterweight. After the dynamic balance is set, the tool processing is stable, the accuracy is more stable, the vibration is small, and the speed is high. High-speed machining of the tool can be implemented, and the speed can reach 10,000 to 50,000 rpm.

Product features:

steel 20CrMnTi, high hardness, full product inspection, full bright appearance. The craftsmanship is as good as Taiwan's quality, one clamping, one forming inside and outside, high concentricity.
