multifunctional tea table electric lift coffee table dining table adjustable remote control end table iron frame steady lifting

----- Product Description

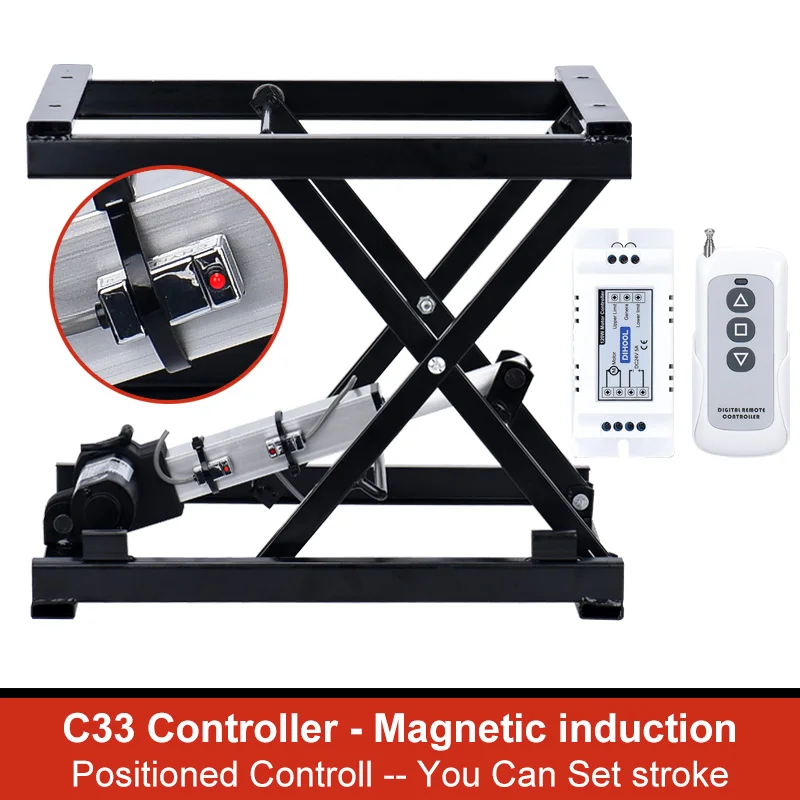

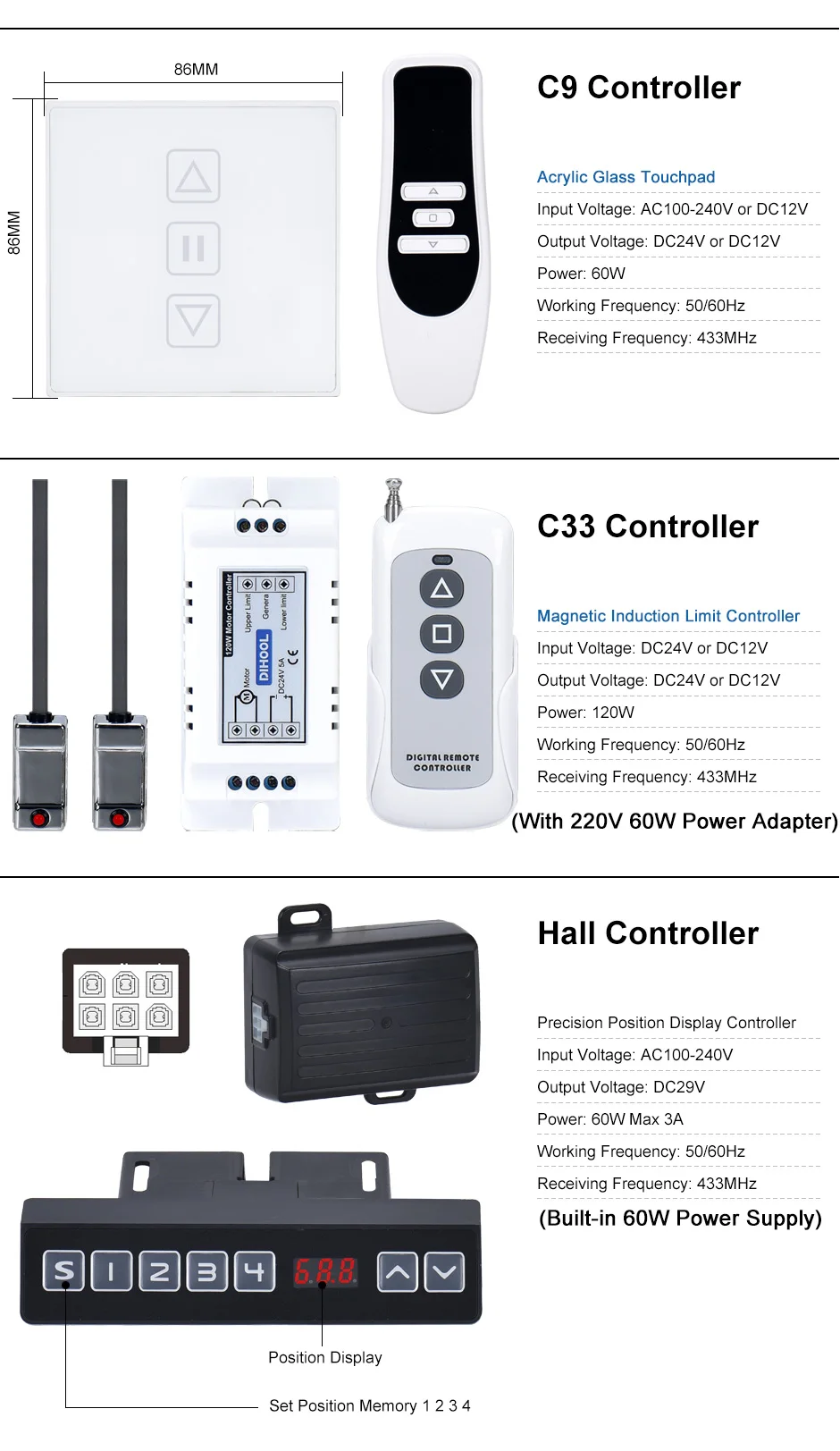

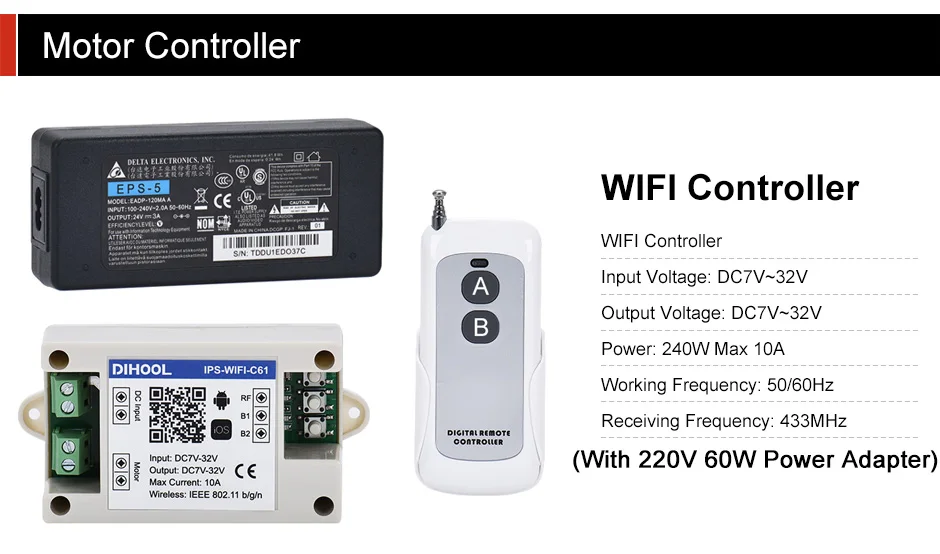

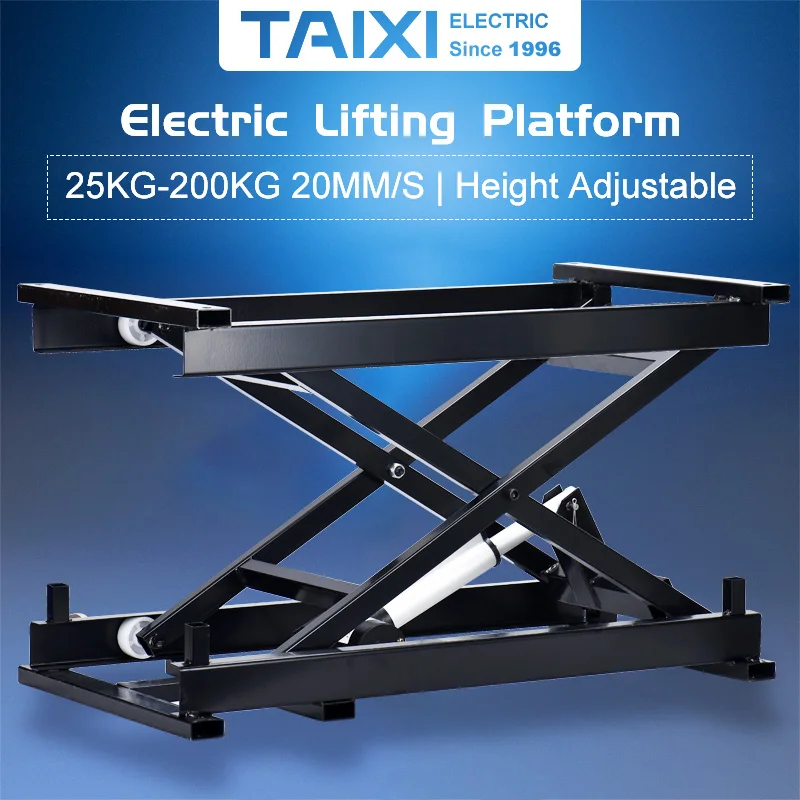

The DHLCT electric lifting platform is mainly composed of electric electric actuators and controllers, telescopic steel frames and other components. According to different brackets and electric linear actuators, different load capacities can be achieved. It has low operating noise, large telescopic range, stable operation, and external It has the characteristics of beautiful appearance, easy installation and convenient operation. With the controller, it can realize any height adjustment of the lifting column in the lifting position to meet the needs of free adjustment of the lifting height of smart furniture products.

Electric lifting platform is a new type of electric lifting device developed to realize the lifting of various intelligent furniture working platforms. The large electric lifting platform can load 200KG, can be used for the lifting of the platform, cargo handling, etc., can also be used for the lifting of coffee table, small load step elevator, etc. The initial height of the electric lifting platform is much smaller than the electric lifting column.

Widely used in smart furniture fields such as electric coffee table, smart lifting kitchen desktop, smart lifting desk, smart lifting lecture table, smart lifting writing desk, wheelchair lifting table, etc.

----- Technical Parameters

Input Voltage: 24V 12VDC

Maximum Load: 2000N / 1200N / 400N / 250N

Maximum Current: DC24V 2.5A / DC12V 5A

Motor Power: 60W

Maximum Speed: 20MMS

Protection Level: IP43

Working environment temperature: -10℃ to 65℃

Color: Black

Limit Switch: None;

Work Cycle: 10% Work System, Maximum 1 Hour Continue Working

Product Certification: CE

Mechanical Life: More than 30,000 times

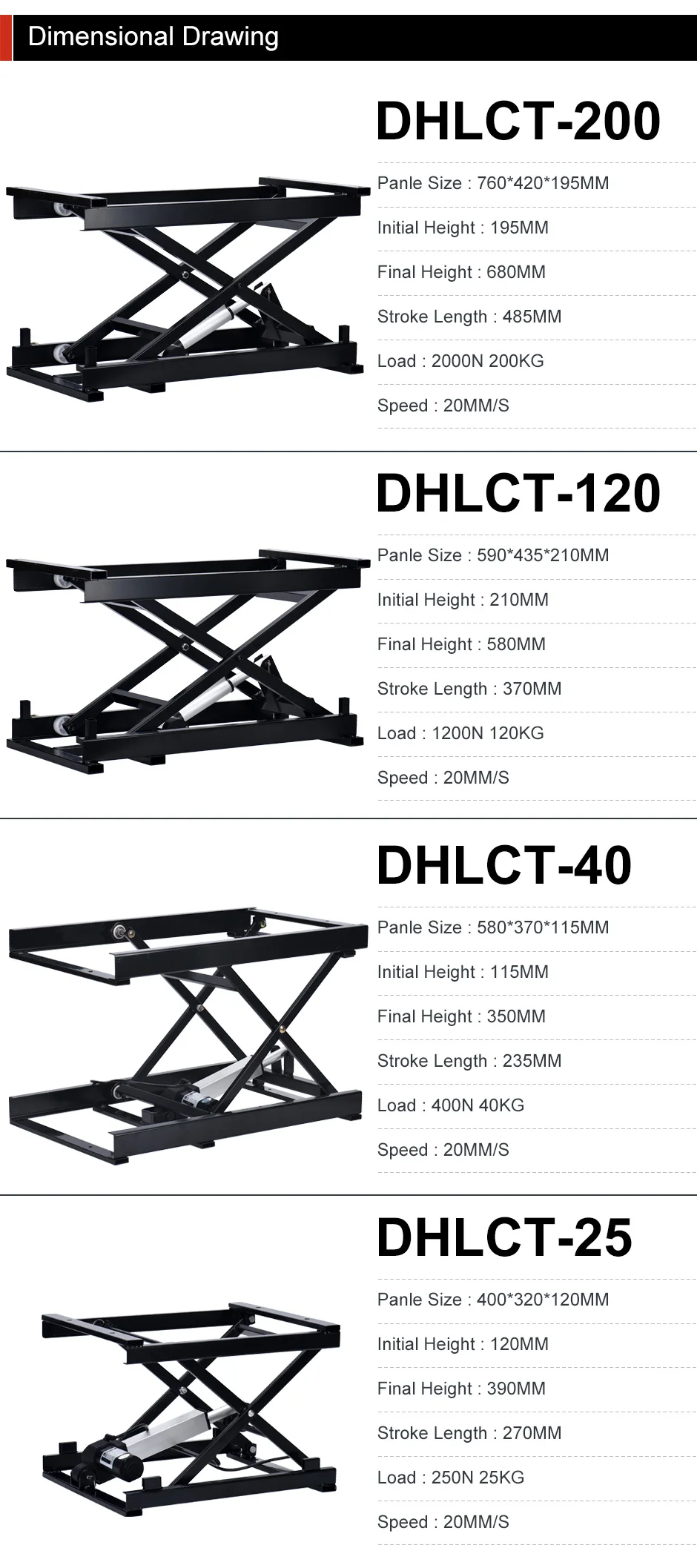

Model

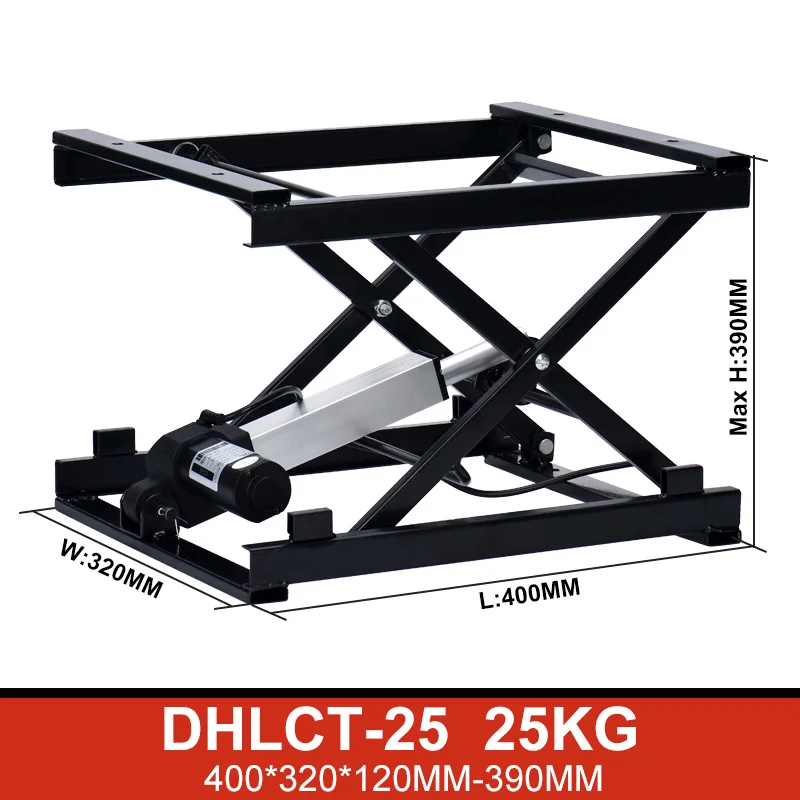

DHLCT-25

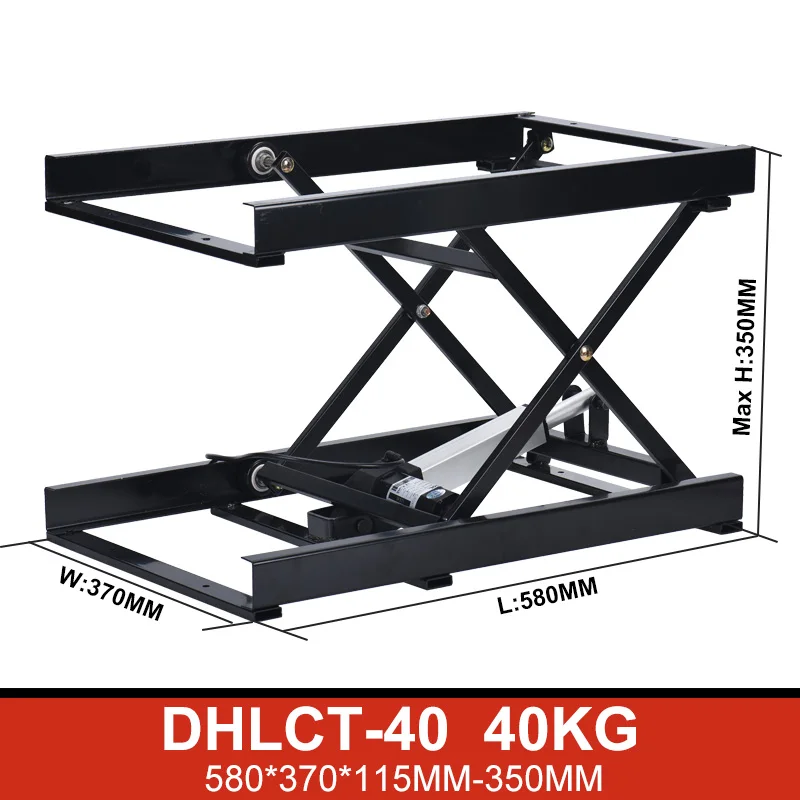

DHLCT-40

DHLCT-120

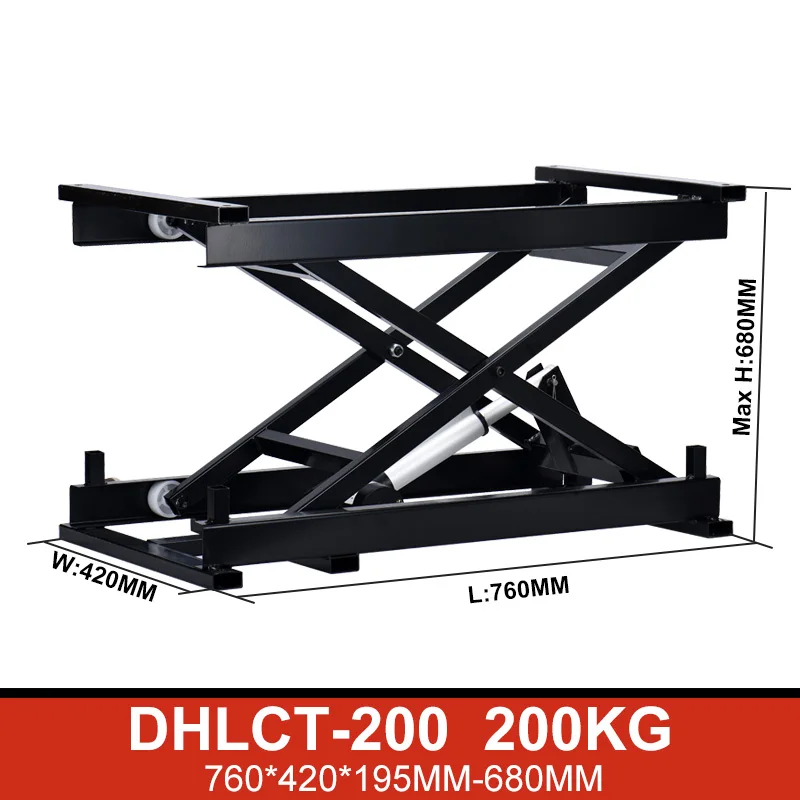

DHLCT-200

Load Pull Capacity

25KG/250N

40KG/400N

120KG/1200N

200KG/2000N

Linear Actuator

DHLA3000L-127MM

DHLA3000L-132MM

DHLA6000-150MM

DHLA8000-150MM

Min Height

120MM

115MM

210MM

195MM

Max Height

390MM

350MM

580MM

680MM

Size(L * W * H)

400*320*120MM

580*370*115MM

590*435*210MM

760*420*195MM

Weight

6KG

8KG

13.5KG

16KG

Surface Treatment

Electrophoretic Black

Speed

13.5MM/S

22MM/S

10MM/S

10MM/S

Operating Temperature

0°C~+40°C

IP Grade

IP43

Limit Switches

Built-in
