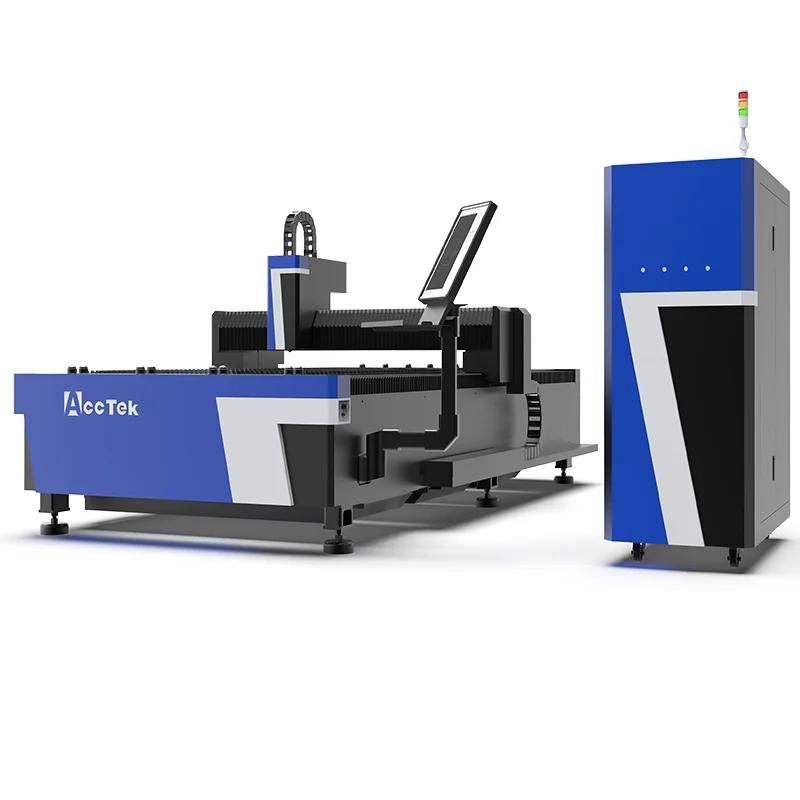

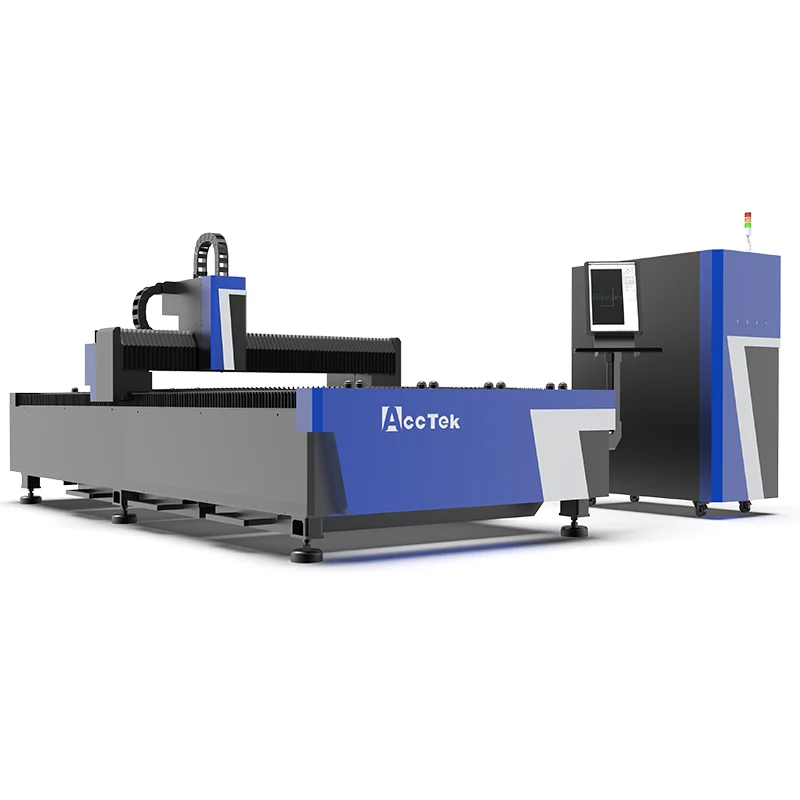

Fiber laser cutting machine

fiber laser cutting machine description:

Item  /  Model

AKJ1530F

Cutting area

1500 x3000mm

Laser power

500W/750w/1000w/2000w/3000W

Laser type

fiber laser

Engraving speed

0-60000mm/min

Cutting speed

0-40000mm/min

Focus Method

Dynamic Following and Automatic Adjust Focus

Resetting positioning accuracy

≤±0.01mm

Power supply

380V/50HZ (Optional 220V/50HZ)

Operating temperature

0 - 45°C

Operating humidity

5 - 95%

Min. shaping character

English 1.0 x 1.0mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

TAJIMA, CorelDraw, Photoshop, AutoCAD

Driving system

Japanese Panasonic Servo motor & Driver

Cooling mode

Water-cooling and protection system

Equipment Dimensions

4380x2280x1880mm

Net Weight:

1550kg

Shipping Dimensions

2090 x 1500 x 1570mm

Optional Spare Parts

Up-down clump, Rotary System, Honeycomb table

Control Method

offline movement Control

Machine parts:

Fiber laser cutting machine features:

1. Advanced Germany Technology:ensure most high tech in the world.
2. Advanced Laser Optical System:Ensure Excellent Laser Beam Quality Double-Xenon-lamp technology,

can strongly improve the laser power and laser beamquality.
3. Laser Path Pre-view & Pre-position Function:Laser beam is in-visible byadopting “Red Light Pointer”,

Realize the laser path pre-view and Pre-positionfunction.
4. Pre-view and pre-run function:Simulate the laser cutting path, Pre-run thecutting path in advance,

Ensurefinding the accurate cutting position.

5. Unique Mirrors and Lens Cooling Technology:All mirrors and lens is cooled bywater, Takes the mirror

heat during working, Prolong its’ lifetime, Save futureoperation cost.
6. Heavy Machine Body:Adopt 100mm*100mm*6mm thick, square metal tubeStable, Heavy Loading,

Won’tdistortion after long-time using, Worktable Max. Loadcan reach 500 kgs. Adopt a funnel-type machine

beddesign, Work with conveyorbelt, Easy for user to get the cutting pieces from the machine front.

7. Auto transfer system:Can automatically transfer the cutted work-pieces into thefront of machine, Improve

working efficiency, Save labor energy, No need user totake it by hand. Make the work-pieces neat and beautiful.
8. Auto Oil-filling system:Press for once, can lubricate the machine transmission rod for 2-3 months.
9. Red light pointer:As the laser beam is in-visible, We adopt red light pointer toindicate the real position of

thelaser beam, Make cutting more accurate.

10. Dynamic Auto-focus System:Keep the same distance between the metal sheetand laser head,

Realize theaccuracy of cutting effect.

11. Auto-feeding Design:Adopt feeding wheel design, Make the material feedingeasier, Labor energy saving.
12. Cutting Powder and Smell Absorbing System:Absorbing the cutting power anddust out of the room,

No dust, No smell, Air-Proof, Make cutting processenvironmental.
13. DSP Control Panel (Optional Item):East to operate, Enable remote control.
14. Industry Computer:CPU is Intel Core i3, DDR3 is 4G, SSD is 250G.

15. 7P Powerful Water Chiller:Increase the stability of cutting power, Support waterflow testing, Makes the

cutting power more stable. Avoid material cut un-completely.Enhance the working efficiency.
16. Professional Laser Cutting Software:Adopt CNC 2012 latest version, withpowerful editing function,

Friendlyinterface, Easy to Use. Supports DXF, PLT, G-Code and many graphs.

17. Laser Source:Adopt USA imported Laser Xenon lamp, Double lamp TechnologyStrongly improve the

powerand laser beam quality.

18. USA Dynamic auto focus system:When metal sheet is not so plain, Adjust thefocusing distance automatically.
19. Saw-tooth Type Working Table:Stable, Heavy Holding.
20. Taiwan Made Ball Screw Rod:Diameter 50mm ball screw rod, High accuracylinear running guide rail,

Improve the precision and accuracy of the machine.
21. Taiwan Linear Guide Rail:High speed with, Lower noise volume, High accuracyand long life span.
22. Japanese Servo motor and Driver:Extreme precise positioning,Make moving positioning

mechanism operate smoothly, Reliably and free ofmaintenance.
23. 45 degree lens:3 screws in the 45 degree lens, Easy to adjust laser path.
24. Foot Switch:Press it for cutting easily.

Fiber laser cutting machine  Applicable Material:

This machine is mainly used for cutting metal plates such as stainless steel,cabon steel,galvanized plate,various alloy,etc.

Fiber laser cutting machine  Applicable Industry:

This machine is widely used in various industries such as advertising decoration,kitchen ware,engineering machinery,steel and iron,automobile,metal plate chassis,air-conditioner manufacturing,metal plate cutting,etc.

Fiber laser cutting machine  samples:

Our service:

1. 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed or maintain free of charge if there is any problem during the warranty period.

2. Free training course at our plant.

3. We will provide the consumable parts at an agency price when you need replacement.

4. 24 hours on line service each day, free technical support.

5. Our staff can be sent to your company to install or adjust if necessary.
