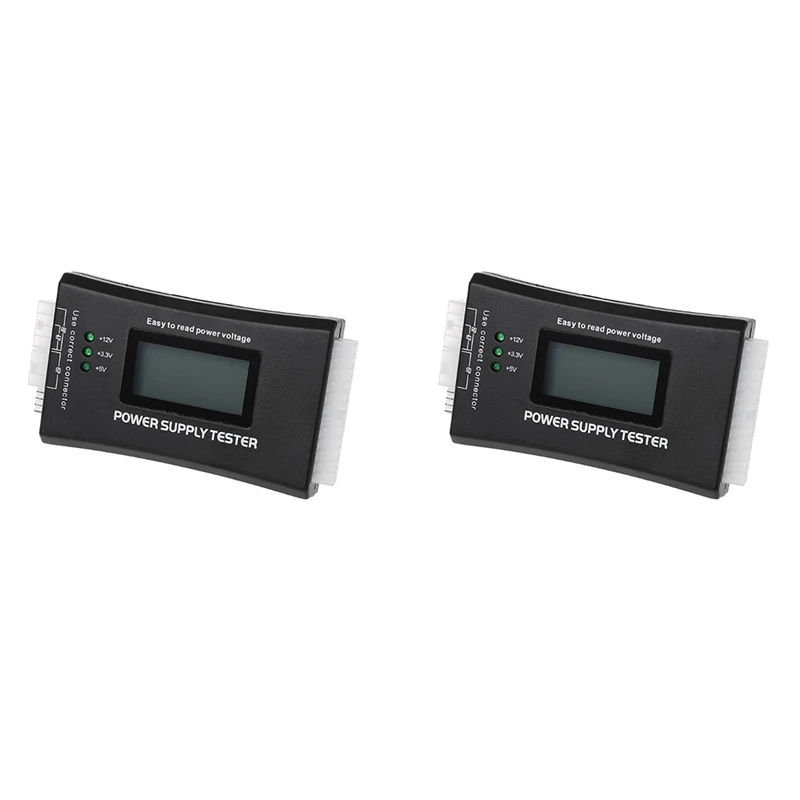

20+4 Pin LCD Computer Power Supply Tester for SATA IDE HDD ATX ITX BYI Connectors-2 Pack | Инструменты

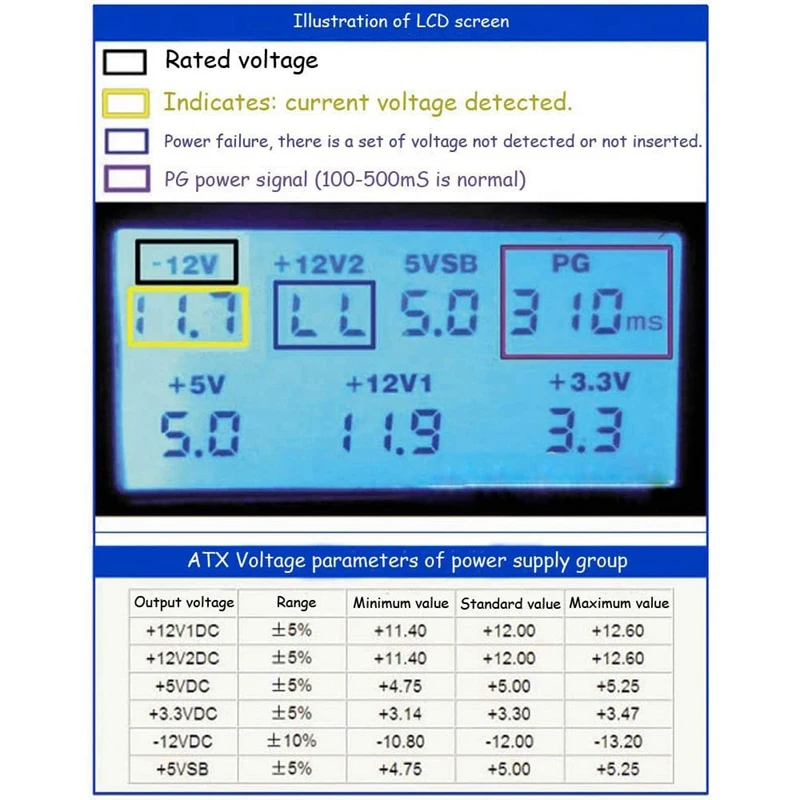

The LCD displays various parameters such as output voltage and PG. When each parameter exceeds the normal value, the buzzer will emit a warning sound and the corresponding value will flash.

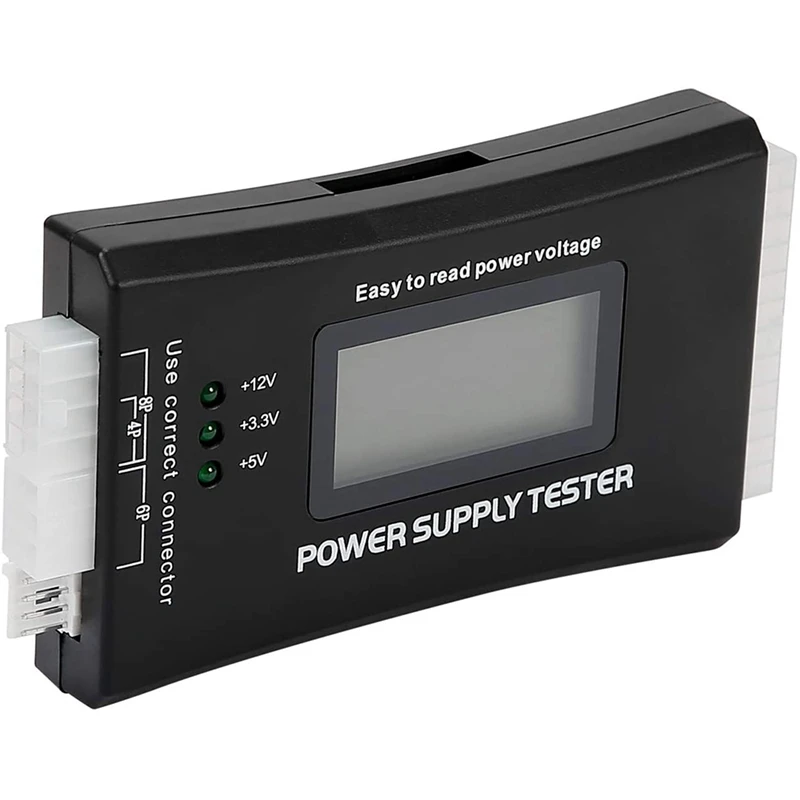

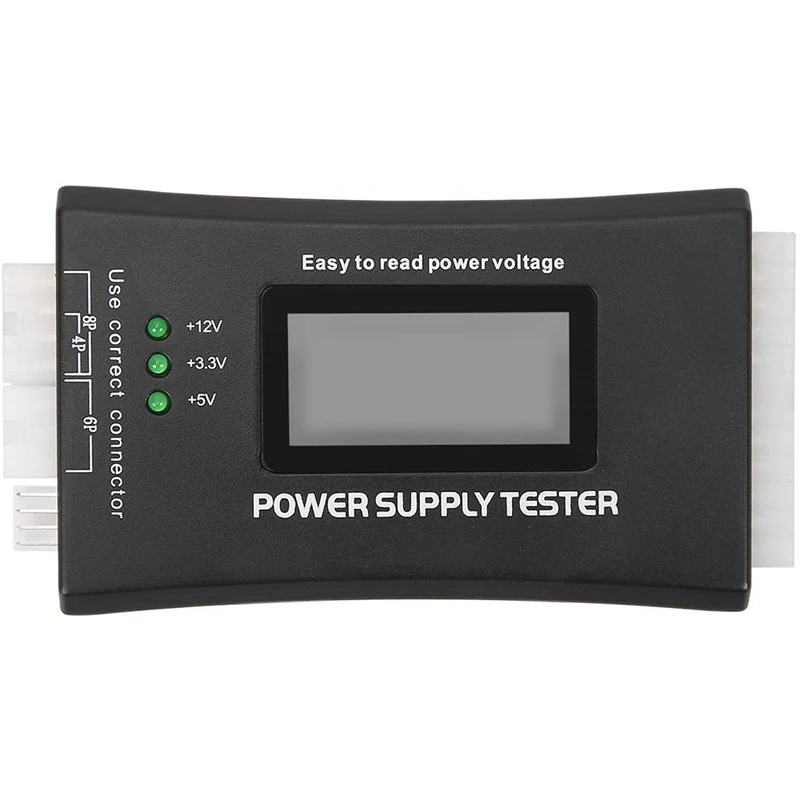

The LCD display power tester is a powerful power test equipment. This power tester only needs to connect to the ATX connector of the power supply to easily and intuitively know whether the output of the power supply is normal. It can detect ATX, BTX, ITX, TFX computer power supply, and can display the voltage and PG value of each group of liquid crystal to quickly detect the performance of the computer power supply.
The voltage of each group of power supply can be measured 3.3V/+5V/+12V/-12V/SB+5V/PG
If there is a defect, the buzzer will automatically alarm.

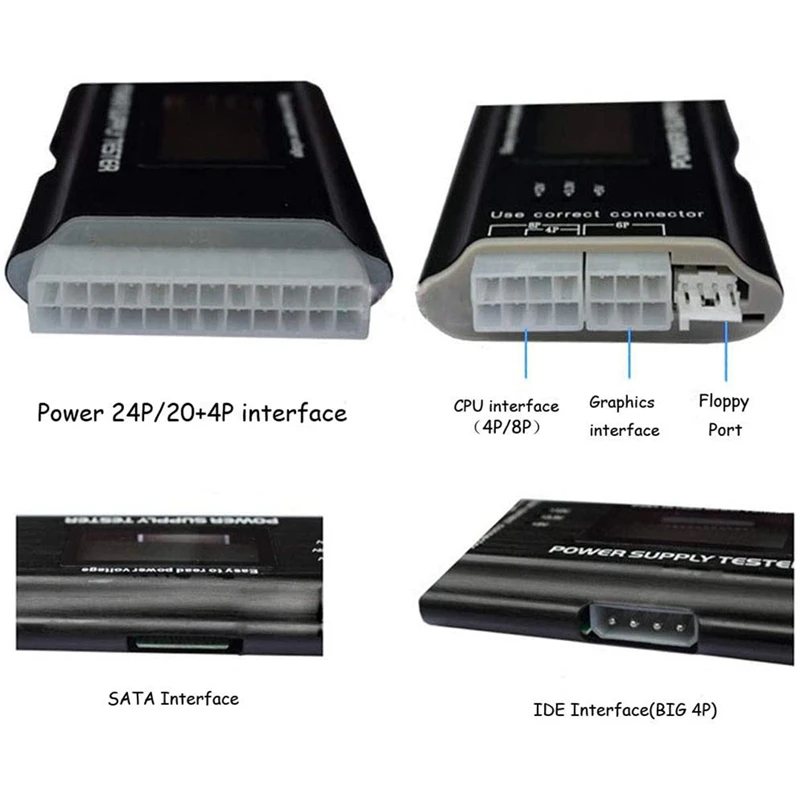

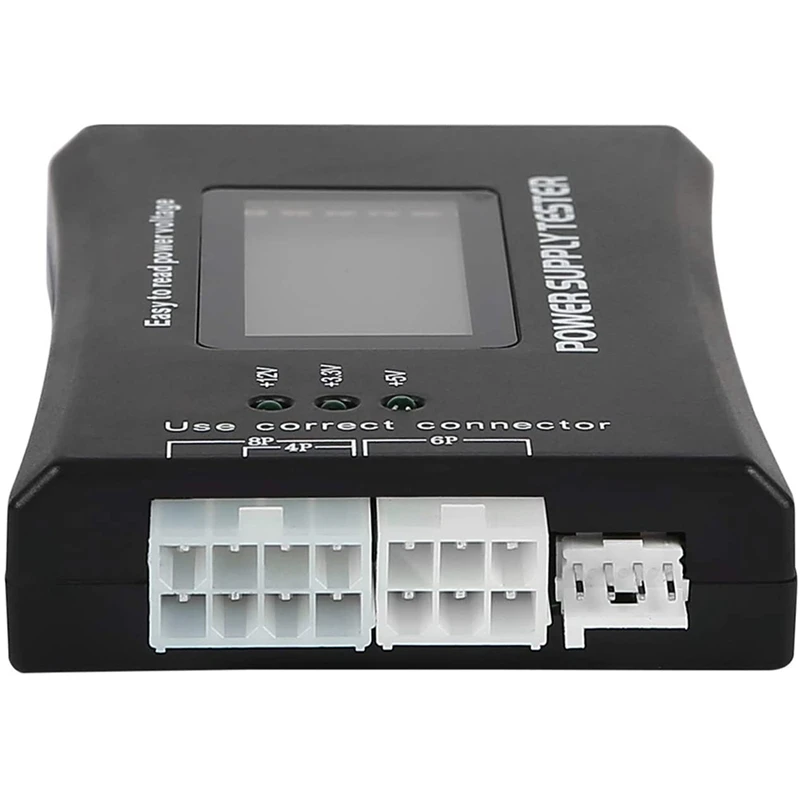

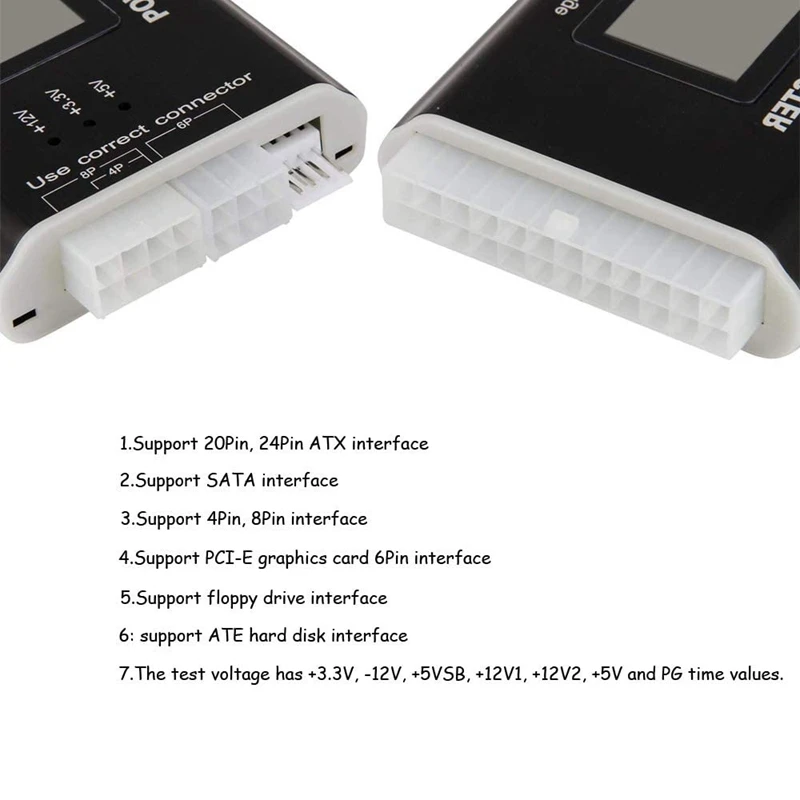

It can also measure the output cable P4/P6/P8/SATA/IDE, the external DIE/SATA/P6/P8 is displayed by the lamp, and there is no LCD display voltage. Only when 24pin or 20pin is connected will there be LCD display voltage.

Operation method:

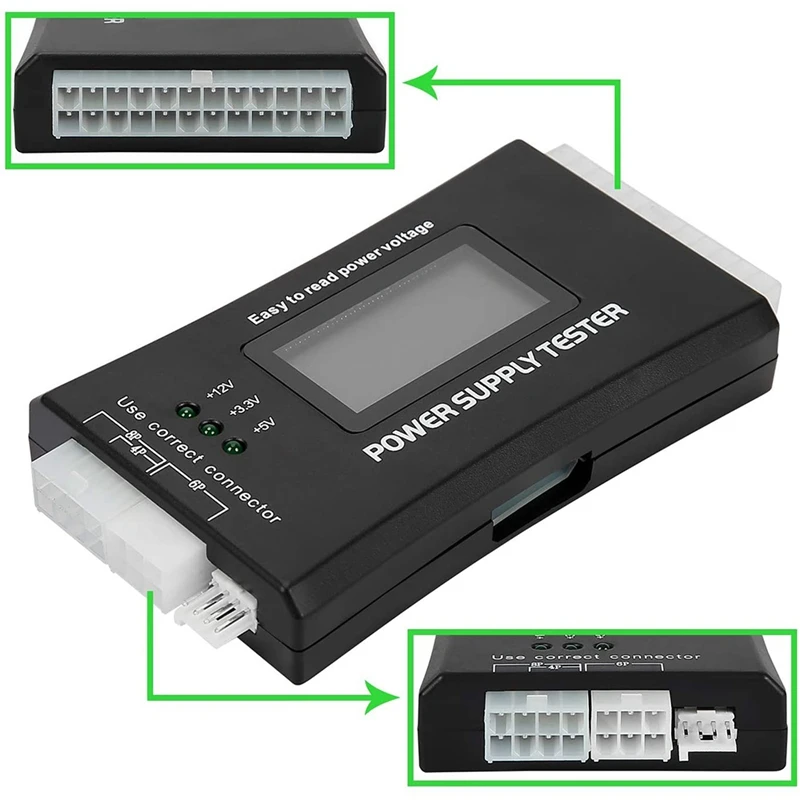

A. Insert the power supply 20PIN or 24PIN and P4, P6 or P8 plug into the corresponding position of the power supply tester. (If you plug in the 20PIN or 24PIN interface tester to alarm and display LL, you need to plug in 4P! Please make sure that the 4P must be plugged in the 4P position!)
B. Turn on the power, and there will be two startup sounds at the same time. If the values ​​of each group are not flashing, it means that the power input is normal.
C. If the voltage signal of a certain circuit is not detected (such as 20PIN or 24PIN connector) or the detected voltage exceeds the normal range, the buzzer will emit a "didi" warning sound for a long time, and the corresponding voltage or PG value will be displayed The status is flashing, it means the power supply is faulty!
Type:computer pc power supply tester
colour:Black
Material:plastic
size:12.4 x 6.4 x 1.8cm

Package Contents:
2 x computer pc power supply tester

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
