XPON 1GE+CATV ONU

Overview

l1GE+CATV is designed as HGU (Home Gateway Unit) indifferentFTTH solutions; the carrier-class FTTH application provides data service access.

l1GE+CATV is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.

l1GE+CATV adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.

l1GE+CATV is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

l1GE+CATV is designed by Realtek chipset 9601D

Feature

lSupportsDual Mode (can accessGPON/EPONOLT).

lSupportsSFU and HGU of EPON CTC 3.0 standard

lSupportsGPON G.984/G.988 standards

lSupport CATV interface for Video Service and remote control by Major OLT

lSupport NAT, Firewall function.

lSupport Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect

lSupport port mode of VLAN configuration

lSupport LAN IP and DHCP Server configuration

lSupportWEBManagement

lSupport Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode

lSupport IPv4/IPv6dual stack

lSupport IGMPtransparent/snooping/proxy

lIn compliant with IEEE802.3ah standard

lCompatible with popular OLT (HW, ZTE, FiberHome...)

Specification

Technical Item

Details

PONinterface

1 GPON/EPON port(EPON PX20+ and GPON Class B+)

Upstream:1310nm, Downstream: 1490nm

SC/APC connector

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM

LAN interface

10/100/1000Mbps auto adaptive Ethernet interfaces.

10/100/1000M Full/Half, RJ45 connector

CATV Interface

RF, optical power : +2~-18dBm

Optical reflection loss:≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

RF output level:≥82dBuV（-7dBm optical input）

AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

MER:≥32dB(-14dBm optical input),＞35(-10dBm)

LED

6LED, For Status ofPOWER, LOS, PON, LAN, NORMAL, WARN

Push-Button

2, for Function of Power on/off, Reset

Operating condition

Temperature :0℃～50℃

Humidity :10%～90%（non-condensing）

Storing Condition

Temperature : -40℃～+60℃

Humidity :10%～90%（non-condensing）

Power supply

DC 12V/1A

Power Consumption

<3W

Net Weight

<0.2kg

Panel lights and Introduction

Pilot

Status

Description

POWER

On

The device is powered up.

Off

The device is powered down.

LOS

Blink

The device doses not receive optical signals.

Off

The device has received optical signal.

PON

On

The device has registered to the PON system.

Blink

The device is registering the PON system.

Off

The device registration is incorrect.

LAN

On

Port is connected properly (LINK).

Blink

Port is sending or/and receiving data (ACT).

Off

Port connection exception or not connected.

NORMAL

On

Input optical power is between -18dBm and 2dBm

Off

Input optical power is higher than2dBm or lower than -18dBm

WARN

On

Input optical power is higher than 2dBm or lower than -18dBm

Off

Input optical power is between -18dBm and 2dBm

Application

lTypical Solution：FTTO(Office)、FTTB(Building)、FTTH(Home)

lTypical Service：Broadband Internet access, IPTV, VOD, CATVand VideoSurveillance.

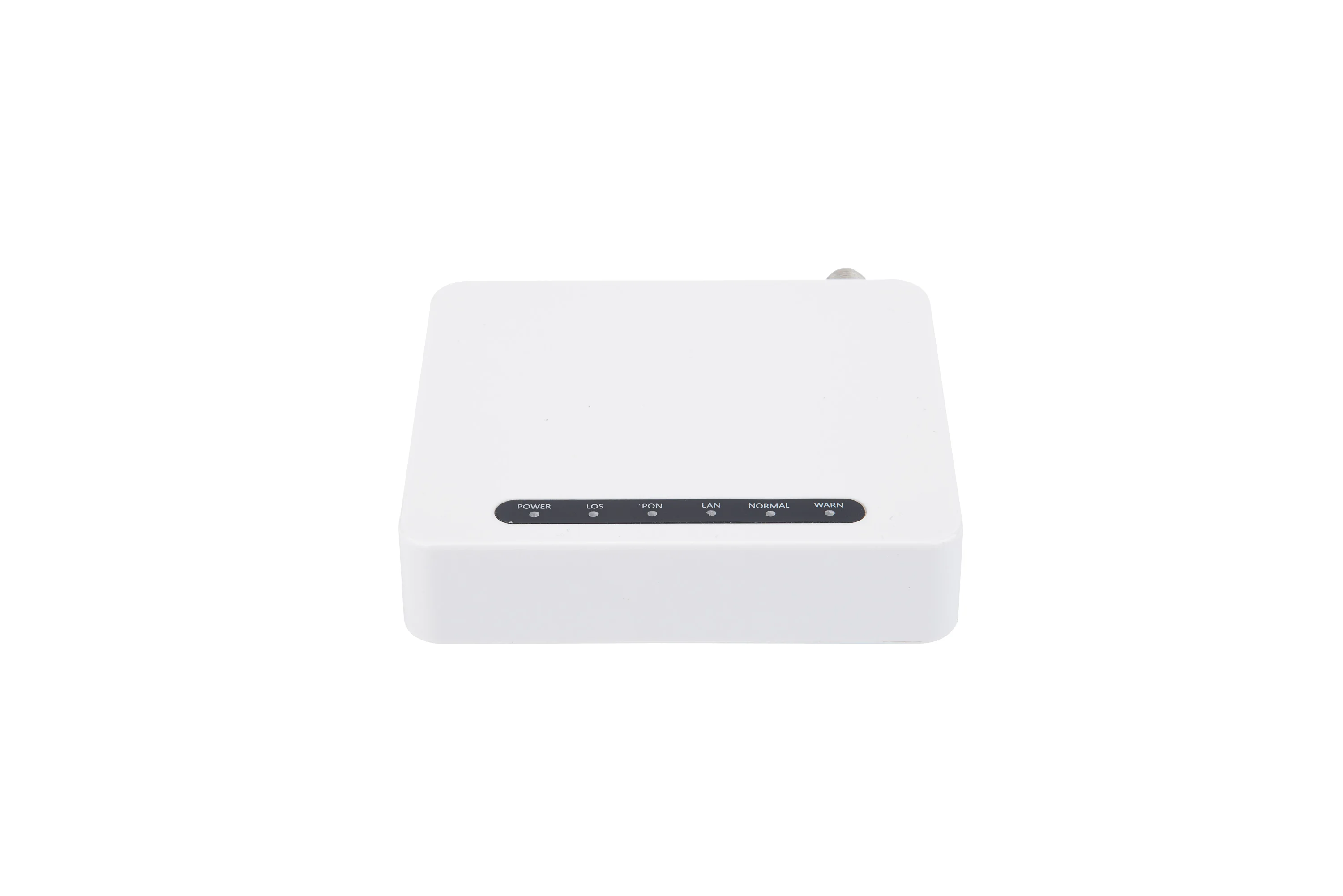

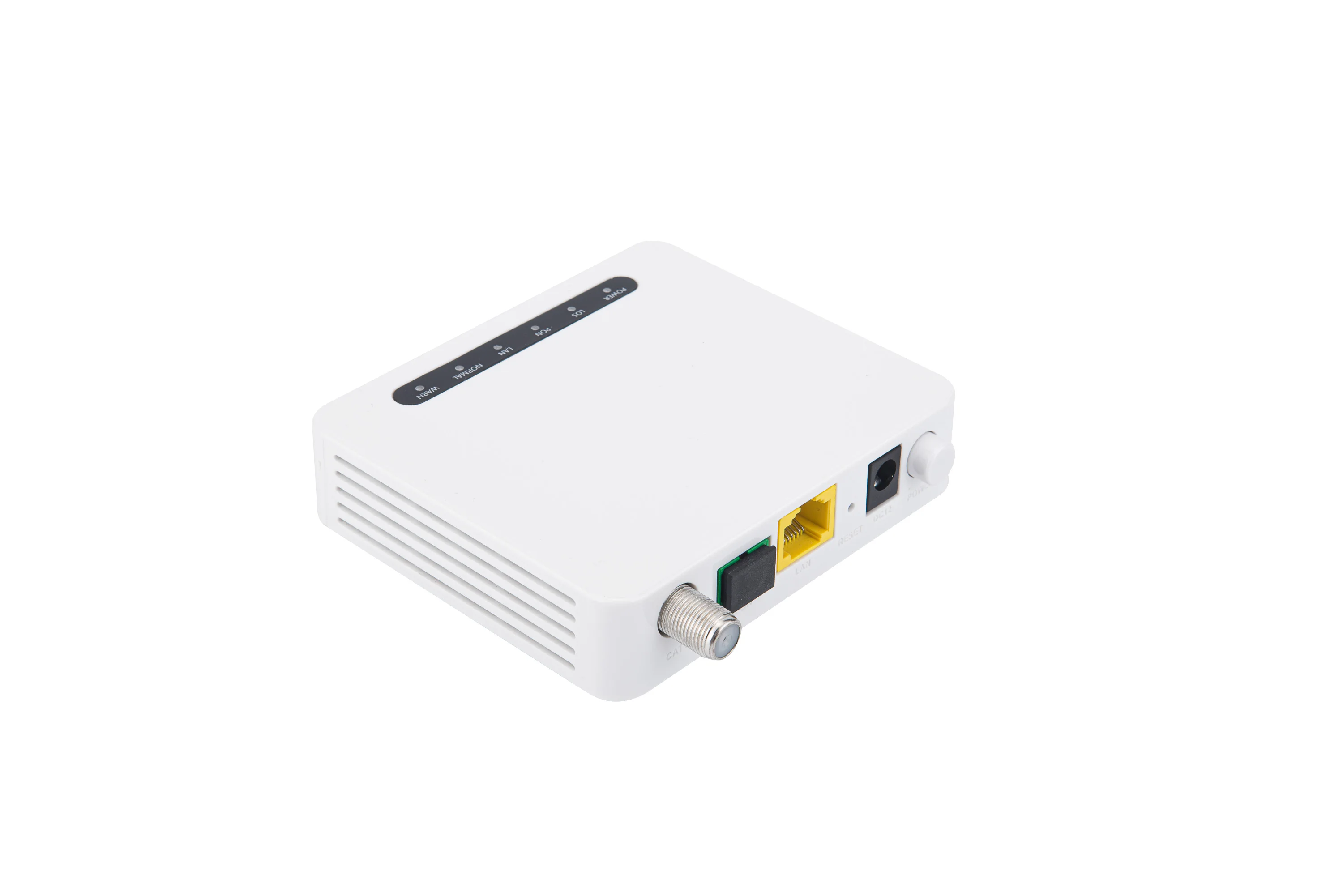

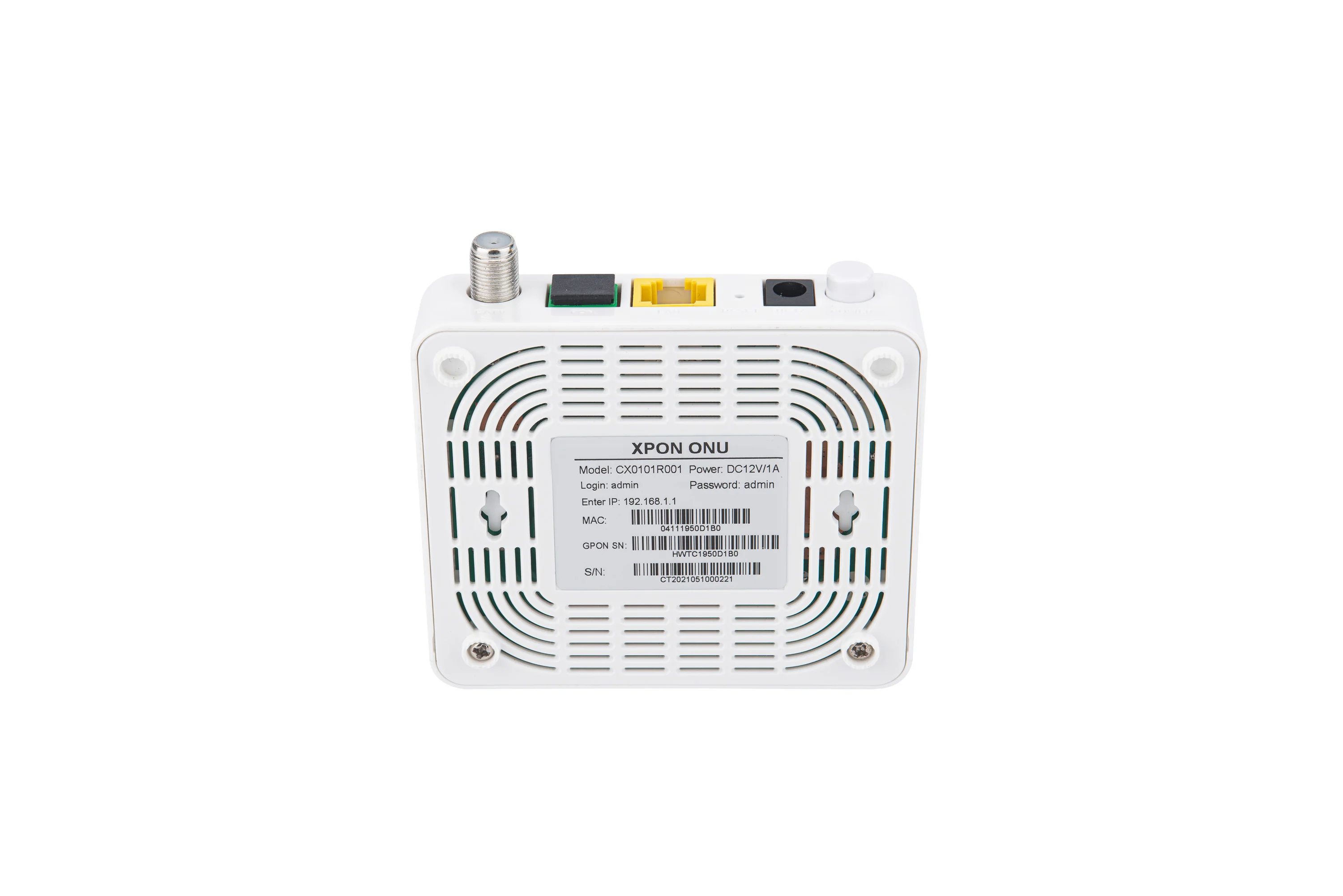

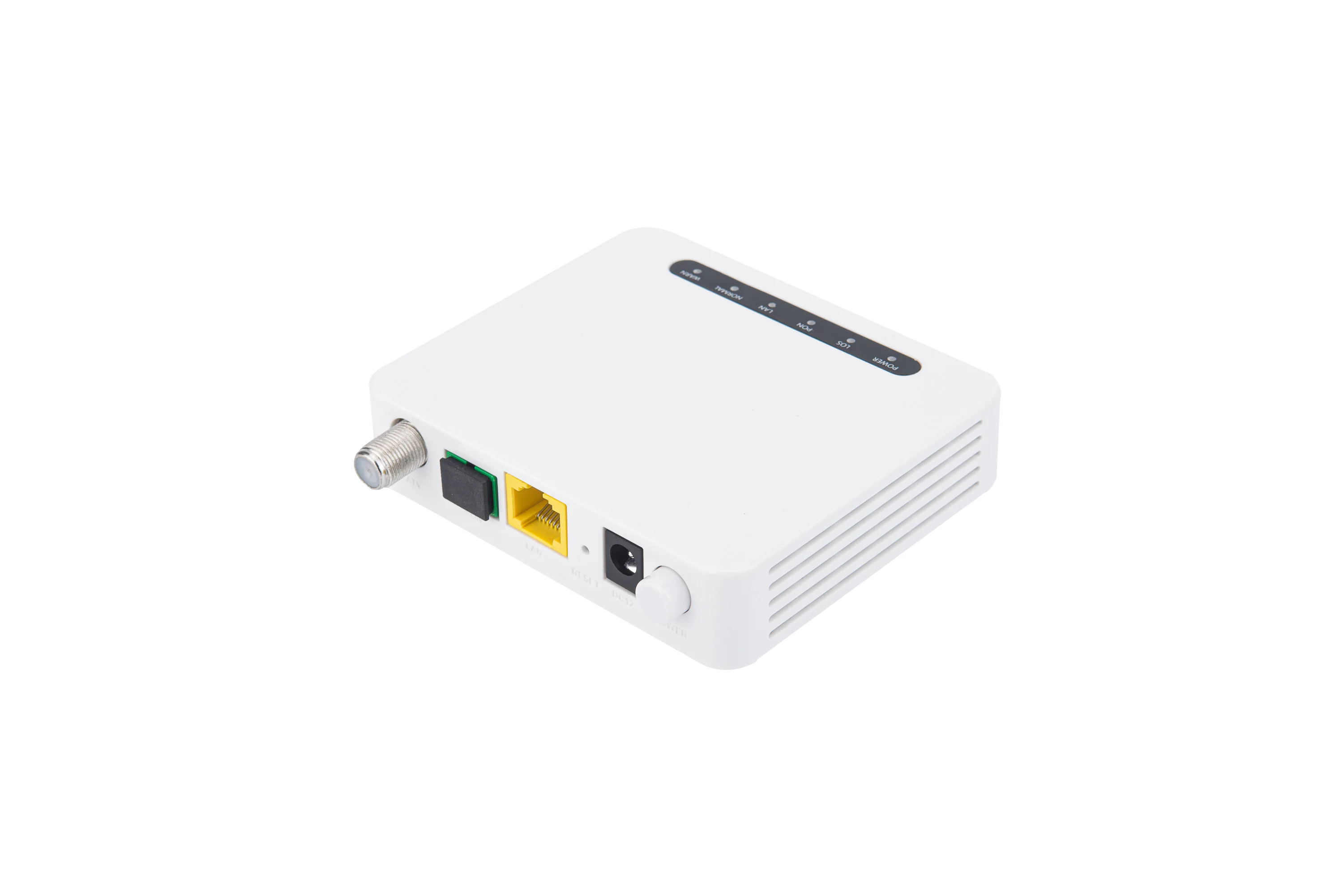

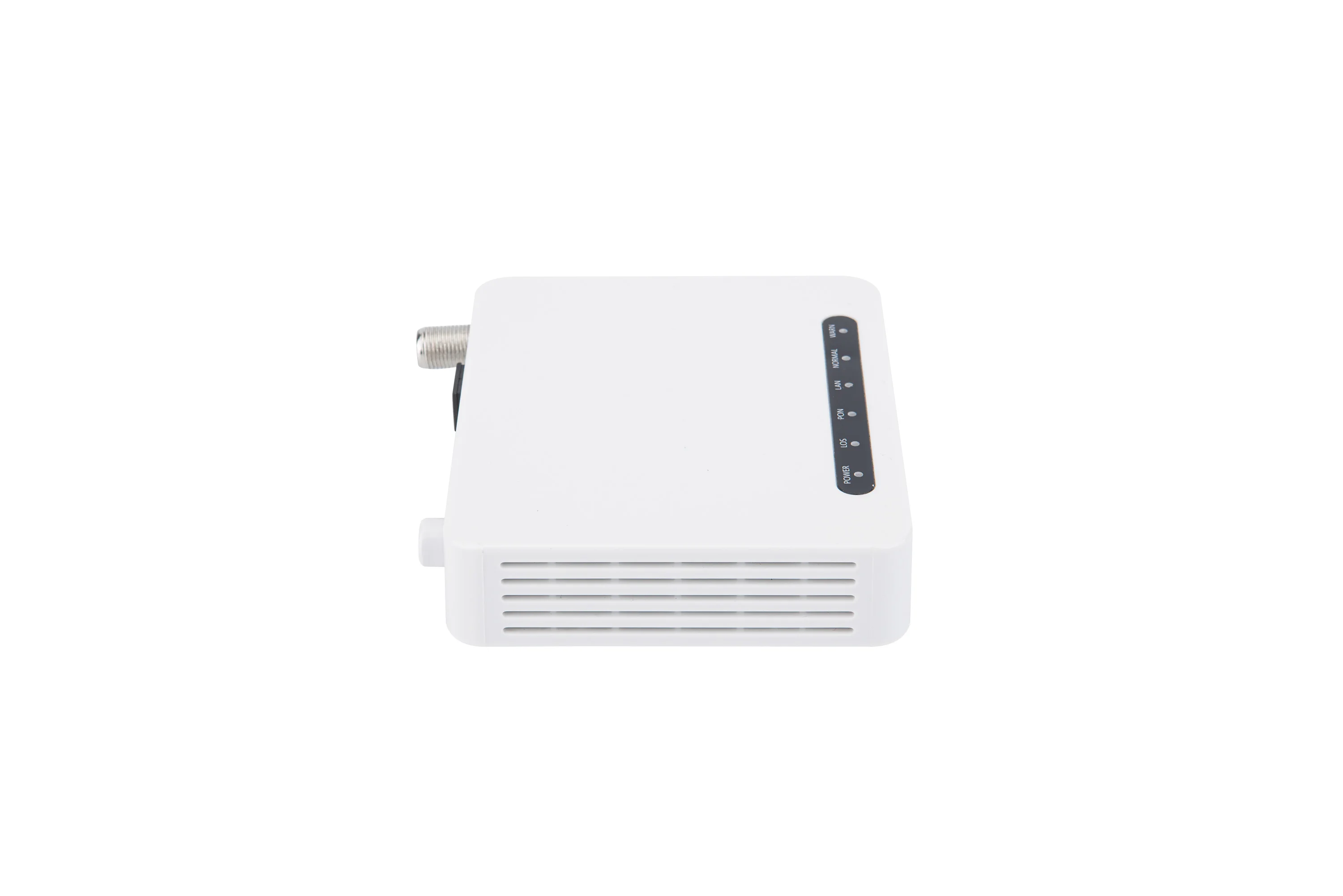

Appearance

Ordering information

Product Name

Product Model

Descriptions

1GE+CATV XPON

CX0101R01

1*10/100/1000M Ethernet interface, 1 RF interface, 1 GPON interface, built-in FWDM, Input optical power -18dBm～+2dBm, support AGC function, Plastic casing, external power supply adapter

1GE+CATV EPON

CE0101R01

1*10/100/1000M Ethernet interface, 1 RF interface, 1 EPON interface, built-in FWDM, Input optical power -18dBm～+2dBm, support AGC function, Plastic casing, external power supply adapter
