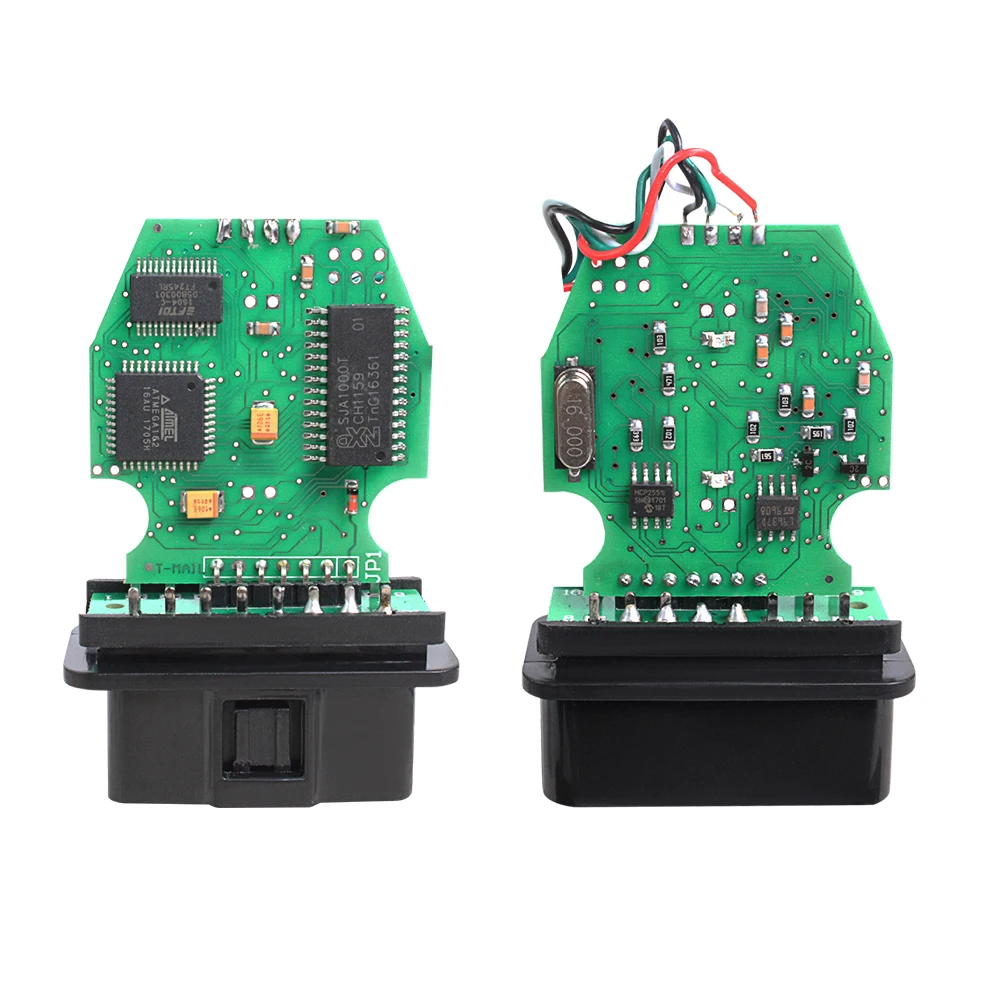

VAG CAN PRO V5.5.1 with FTDI FT245RL Chip VCP OBD2 Diagnostic Interface USB Cable Support Can Bus UDS K Line | Автомобили и

VAG CAN PRO V5.5.1 with FTDI FT245RL Chip VCP OBD2 Diagnostic Interface USB Cable Support Can Bus UDS K Line | Автомобили и

How to install the program of cable without USB dongle?

1. copy files from disk to your computer.

2. extract the zip files.

3. plug cable into computer , you will see the cable light , and install driver.

if you use win xp system, the driver will be automatically installed.

if you use win 7 32 bits system, please install this driver" dpinst-x86.exe"

if you use win 7 64 bits system, please install this driver"dpinst- amd64.exe"

4. after installed driver, run "vagcanpro.exe"

5. wait a few seconds, it will appear software Interface. Then you can choose the function you want to diagnose.

Main Features of VAG CAN PRO:

* Unique features OCLF service procedures (One-Click-Function);

* inexpensive flasher for VAG;

* inexpensive flasher with support UDS controllers;

* ESP MK60EC1 decision coding blocks;

* a tool for a complete diagnosis MQB platform (Golf VII, Octavia III) Support to 01.2013;

* ZDC-loading containers in the electronic components;

* Unlock video in motion (VIM) on the MQB platform (Discover Pro and MMI-MQB);

* Coding controllers for PR-codes;

* "Login finder" - allows you to scan and logins in the CAN controllers UDS;

* Support for the new Polo in 2014 Facelift;

* Support for the new Passat B8;

* Full support of Au-di TT-3 on the platform of the IBC;

* Full support for Skoda Fabia III

VAG CAN PRO Function interface

With dongle can support win7/win8 and XP systems, but buyers of win7/8 systems need to contact the seller, the seller sends the latest software, can be used

without dogle support XP and WIN 7

New in Version 5.5.1:

Support for new addresses entered in the MLB-Evo platform
Update database-ODX (support for all models 2015)

Supported Cars:

1. for Au-di
A2 2009-
A3 8P 2003-
A3 - platform MQB-
A4 model 8E wariant B7 (Engine, transmission, airbags, ABS, park) 2005-
A4 model 8K wariant B8 (UDS + TP2.0) 2008-
A5 model 8K (UDS) 2007-
A6 model 4F 2004-
A8 model 4E 2003-
Q3 (UDS) 2010-
Q5 (UDS) 2008-
Q7 (TP2.0 + UDS) 2006-
S5 model 8K
(R)S6 model 4F
R8 (UDS)
TT model 8J 2007-

2. for Mercedes
Sprinter (for V-W Crafter) - - Only the engine and immobilizer

3. for Seat
Altea
Leon MQB 2013-
Leon model 1P 2005-
Toledo model 5P 2004-
Exeo 2008- (Engine, transmission, airbags, ABS, park)

4. for Skoda
octavia model 1Z 2004 -
octavia platform MQB -
superb II B6 2008-
fabia model 5J 2007-
yeti 2009-

5. for Volk-swagen
Crafter (immobilizer, engine)
Caddy model 2K 2005-
Eos
for Golf V model 1K
for Golf VI model 5K
for Golf VII platform MQB
for Golf Plus
for Jetta II model 1K
Transporter / Multivan (Only after the CAN-BUS drive for storing data)
Multivan/Transporter GP model 7E (UDS) 2009-
Passat B6 model 3C 2005-
Passat CC-
Phaeton GP 2007-
Polo model 6R 2009-
Polo FL MQB 2014-
Scirocco III-
Touran-
Tiguan-
Touareg GP 2007-
Touareg NF 2010

6. K-line ( KWP1281, TP/KWP2000)
- For V-W Golf III, IV
- For V-W Passat 3B
- For V-W Bora
- For V-W Transporter T5
- For V-W New Beetle
- For V-W Polo II,III,IV
- for Skoda Octavia I
- for Skoda Fabia i i II
- for Seat Leon I
- for Seat Toledo II
- for Seat Alhambra
- for Seat Ibiza II, III, IV
- for Au-di A2,A3,A4,A6 K-Line

Notes for Au-di A4:

1.Option A4 8E B6 model
This model has a can-bus (TP1.6), but it is not connected to the diagnostic socket. The car is fully diagnosed on the K-line (VCP required interface + K). Used protocols KWP2000 and KWP1281 it.

2.Model A4 8E, B7 option
This model has a CAN BUS TP2.0, but the diagnostic socket is only connected to the so- called CAN-Antrieb, i.e. Engine, transmission, airbags, ABS, Quattro drive.
In addition, a standard K-line. In other words, VCP fully supports the diagnosis B7 models, but only in the CAN-Antrieb. Other controllers are available through the K-Line and KWP2000 KWP1281 protocols.

Major Changes in the PR encoder:

* Now it is possible to keep PR-codes of a file

* PR-self-sustaining encoder may select codes known PR-analysis of current data stored in the ECU

* You can compare the data stored in the ECU against the calculated data, choose what you want to download.

* OCF "Activating automatic folding mirrors", the problem is illuminated space around the machine solved - Thanks Ciamardo / vcp-forum.de

* The new team in the Scripter: GetCardSerial, returns the current smart card number. You can use it to prepare a script that will run only on these smartcards.

* Enhanced TXT-coding, coding calculation is now faster APDUs.

* Updated data base DTC- Fixed problems with parameterization 7N0 cameras

* Fixed problems with parameterization 5M0 ...... F AFS modules

* OCF new section called "Apps", which is: Download the parameter data, coding for PR-

code, programmer Wabco, BCM, and so forth programmer..

* The new procedure OCF "FlashFile Dumper" - can extract content from Flash files (*

.SGO, * .FRF, * .ODX) in a binary dump. Note: The source data format is not changed, *

so that if a Flash file kriptovat and compressed, the binary file will be the same.

* Fixed an issue in the Gateway Sheet MLB-EVO (B7 II, A4 B9) - not all ECU were available through the Gateway.

* Updated database of error codes (added more than 200 new codes, including the MQB / MLB-EVO platform)

* New Firmware v.1.1 for interfaces (04.0D / 02.04) v.2.0 (0A.04 / 0B.04) to support new protocols (TCP-IP) used on the MLB-EVO platform

* Fixed a connection problem with the address 46 (room unit) on the MLB-EVO (B9 A4 / Q7 4M) platform

* OCF Disable Start-Stop system is now supported PQ26 platform (Polo 6C, Fabia III, etc.)

* Reduced time delays during the loading of large data blocks in the non-flash modes.

This contributes to a more stable connection when connected directly to the EC

Package List
