3G SDI to AV Converter BNC RCA Audio Scaler Support convert SD-SDI HD-SDI 3G-SDI Signal For TV | Converters

3G SDI to AV Converter BNC RCA Audio Scaler Support convert SD-SDI HD-SDI 3G-SDI Signal For TV | Converters

Description:

This SDI to AV(CVBS) converter allow HD-SDI and 3G-SDI signals to be shown on normal TV while ensuring high bit rates of 2.970Gbit/s to give you fast signal transmission without any loss.
It also support L/R analog audio output and can be connected to sound system to get perfect music.

Features：

Operation at 2.970Gbit/s , 2.970/1.001Gbit/s , 1.485Gbit/s , 1.485/1.001Gbits.
Auto video mode detection(3G/HD)
Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:210-bit

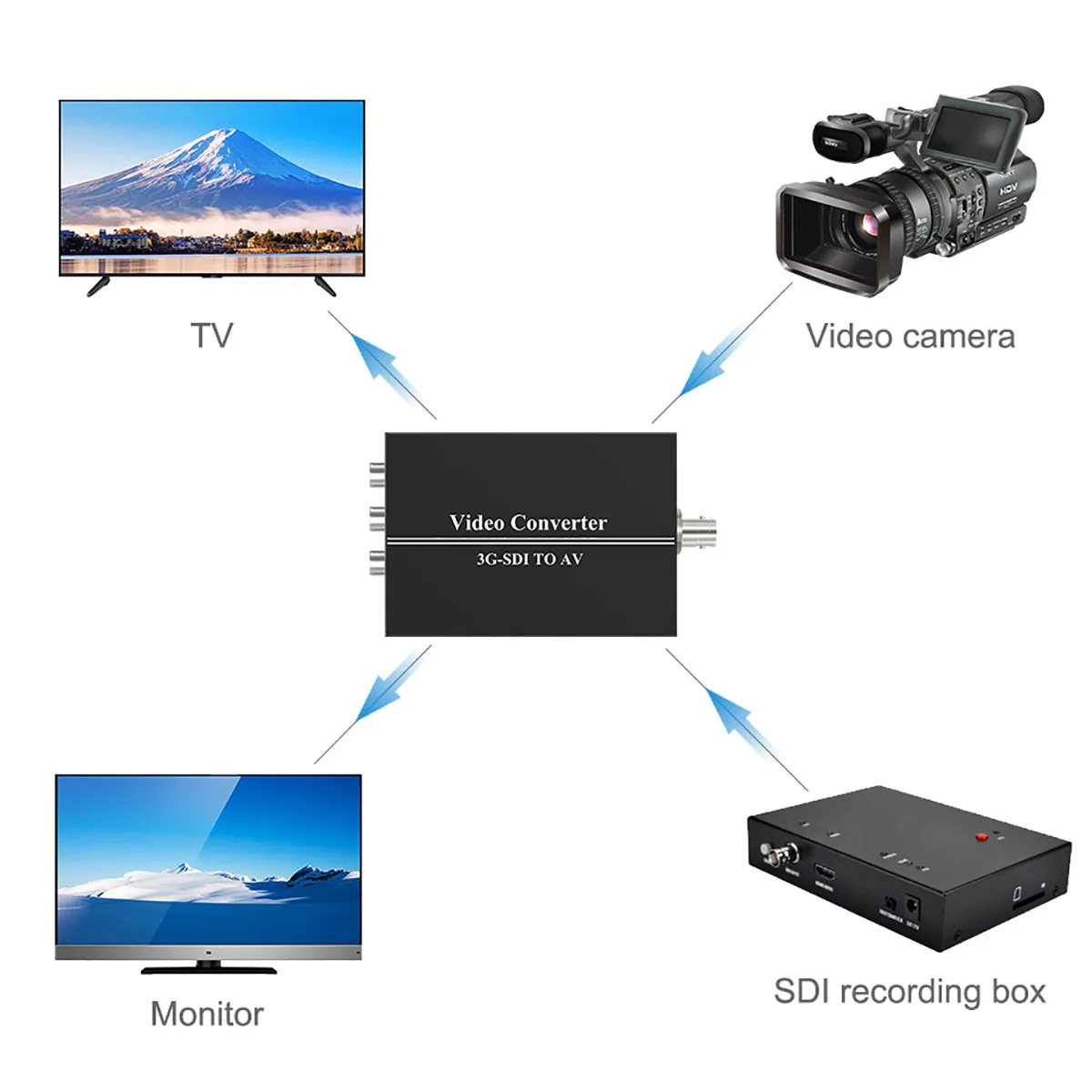

Simultaneously display SDI and AV signals
2CH analog audio output
Supports signal transmission distances up to 200M for HD signals and 100M for 3G signals.

Specification：

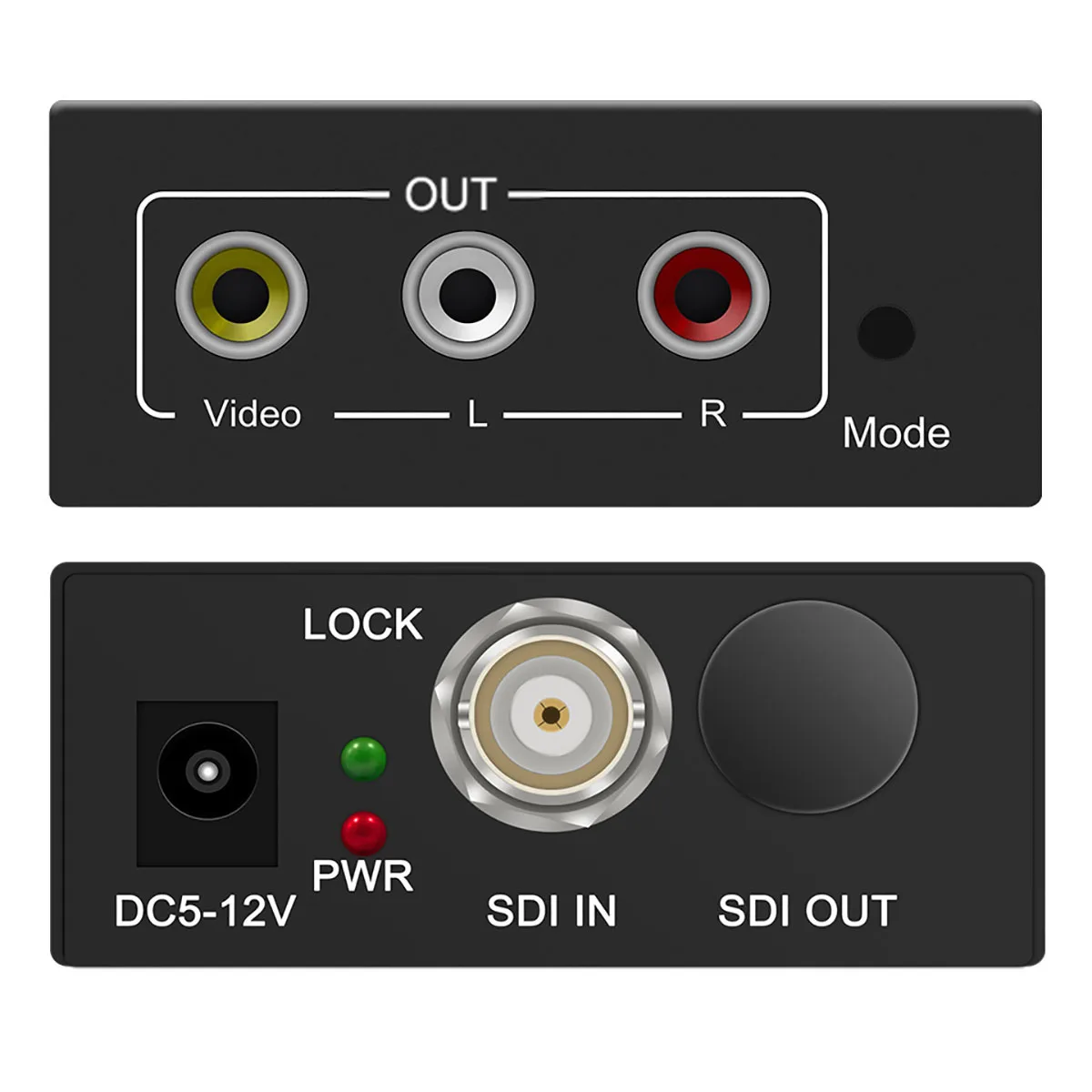

Input port: 1*SDI(HD/3G-SDI)
Output port: 3*RCA(CVBS,L/R)
SMPTE Standard: 425M Level A&B,424M,292M,259M-C
SDI Transmission Rates: 2.970Gbit/s and 2.970/1.001Gbit/s
SDI input resolution: HD - 720P50/60HZ,1080I@50/60HZ. 3G - 1080P@24/25/29.97/30/59.94/60
CVBS output resolution: PAL.NTSC-M(optional)

Package Included:

1x 3G SDI to AV converter
1x DC 12V Power Supply Adapter (EU,US,UK,plug available)
1xOperation Manual
