BONDA Sensor Switch Wall Touch Switches 220V Light Smart Home Crystal Glass Panel Waterproof Easy To Clean 4 Colors Available |

BONDA Sensor Switch Wall Touch Switches 220V Light Smart Home Crystal Glass Panel Waterproof Easy To Clean 4 Colors Available |

1,1/2/3 Gang touch switch 220v wall Light Switch,EU Standard smart home switch
2,Toughened crystal glass panel design, no fading, looks elegant and stylish.
3,Super sensitivity-Just need touch it light, Waterproof and Resistance Scratch. Protection Against Electric Shock.
4, Popular Colors are available: Black, White, Golden,
5,With blue LED indicator, very distinguished, more humanization design,The button will glow at night, making it easier to find.
6,New imported IC processor for nice sensitivity and stable performance
7,the base is made of high temperature resistant PC material, making the switch durable and longer life.
8,Single live wire control, easy to install, replace the old switch directly.
9,Touch control ensures longer service life than traditional switch.
10,Protection of over-current, anti-interference,Certification: CE, ROHS, FCC,EU.
11,Easy to clean, panel glass resists deformation and fading.
12, Elegant look, Suited greatly with many modern decor styles. It can be applied to drawing room, bedroom, corridor, kitchen, bathroom, Office and so on

Product Introduction:

1,Brand Name: BONDA

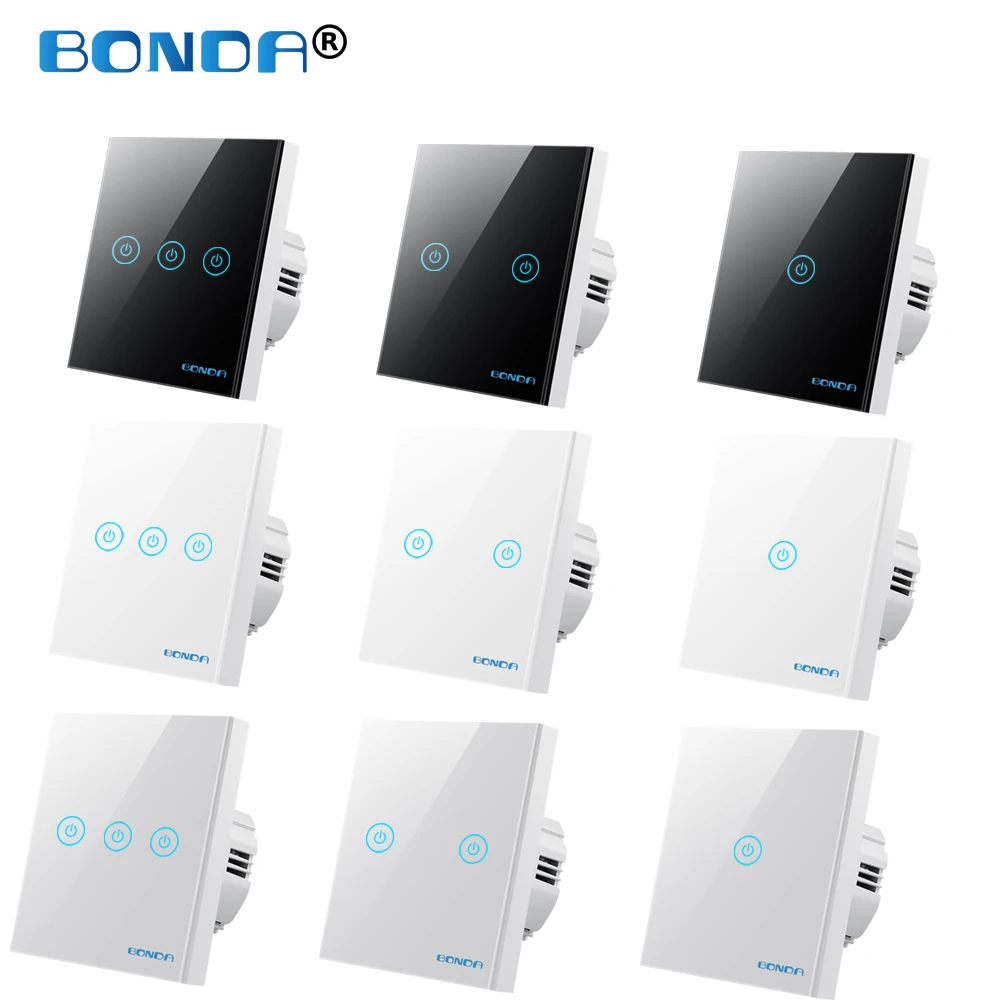

2,Button:1 gang,2gang,3gang for you choose
3,Color: Black, White
4,Size: 8.6*8.6*3.5cm / 3.4*3.4*1.4" (L*W*H) 5,Current: 10A
6,Watt:3-300W/gang
7,Working Voltage: 170V-240 V AC
8,Working Temperature: -20 ℃~+70℃
9,Relative Humidity: 10% ~ 90%
10,Mechanical Life: 100000 Times
11,Certification: CE,CCC ,ROHS
12,Warranty: 1 year
13,Delivery time: <3 days
14,Gross weight:0.15kg/5.25oz Net weight: 0.14kg / 4.9oz
15,Package dimensions:9.0*9.0x4.0cm/3.5x3.5x1.55(L*W*H)

Package:

1*Touch Switch
2*Long Screw
1*Safety X capacitor
1 * User Manual
1*Package box

BOND AI Switch series-FLAT MIRROR HIGH-END TOUCH

1.Appearance level bearing/Waterproof explosion-proof
2.Smart touch/Flame retardant/From scratchToughened glass/Easy to clean

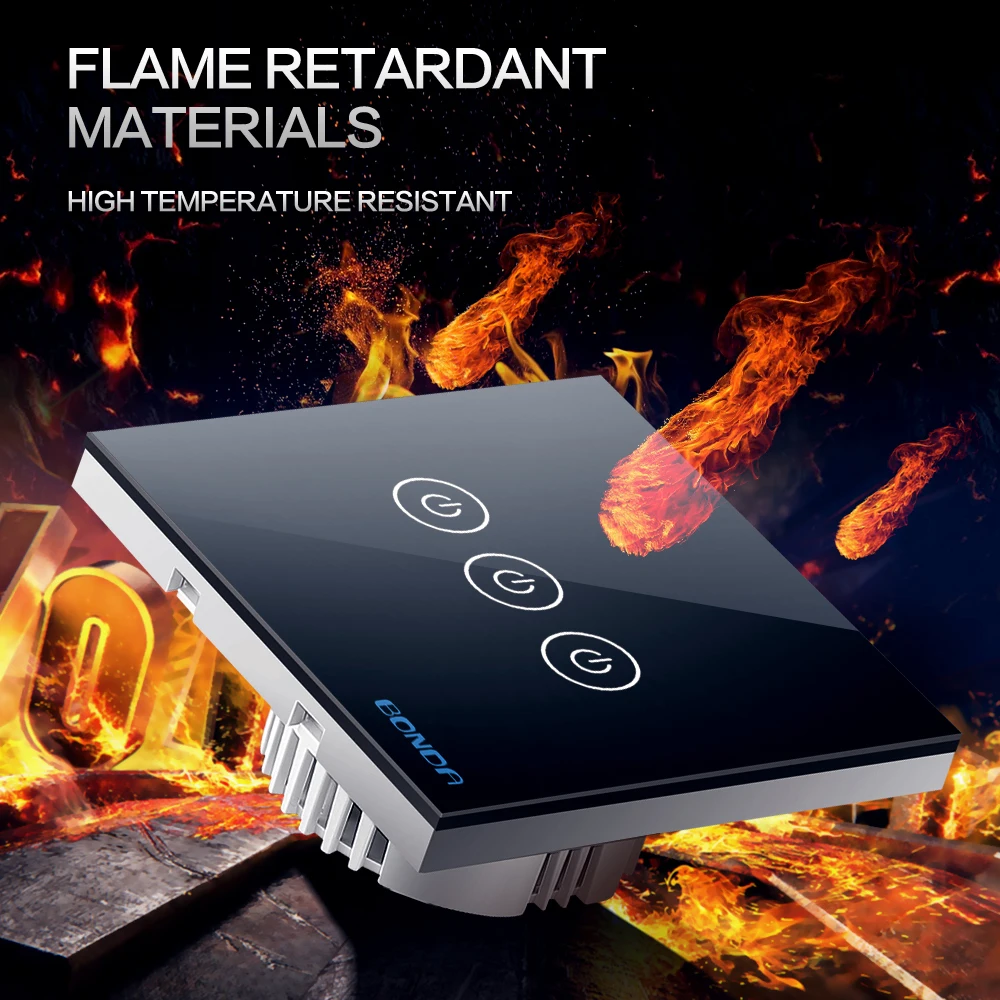

FLAME RETARDANT MATERIALS

1.The bottom shell is made of flame retardant and.high temperature resistant.materials.
2.Strengthen the protection of powerline short circuit

THE STEEL PANEL EXPLOSION-PROOF RESISTANCE TO FALL

1.Beautiful and durable
2.Resistance explosion proof
3.Fall resistance scratch resistance

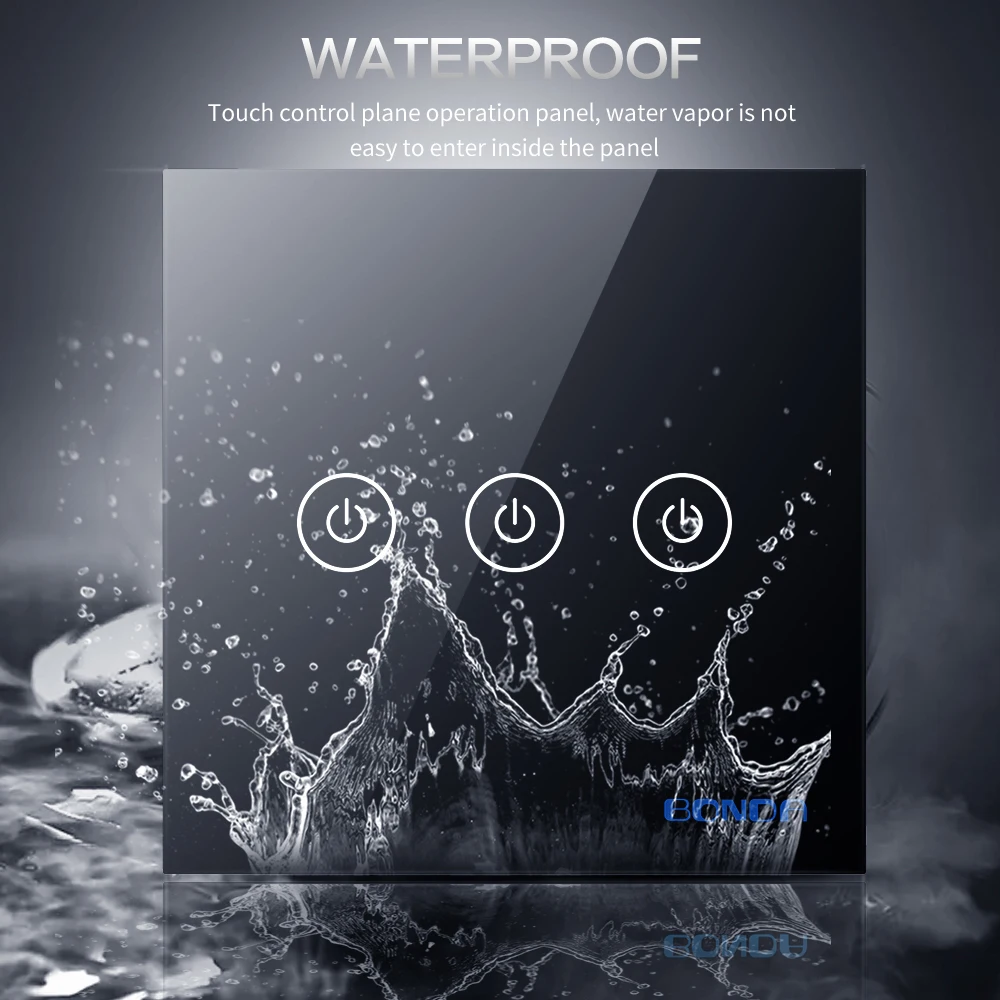

WATERPROOF

1.Touch control plane operation panel
2.Water vapor is not easy to enter inside the panel

RELAXED ABIT TAKEN ON A NEW LOOK

Flat mirror clean more easily without dirt

TOUCH YOUR SMART SENSITIVE OPERATIONS

Like a mobilephone touch sensitive smooth operation

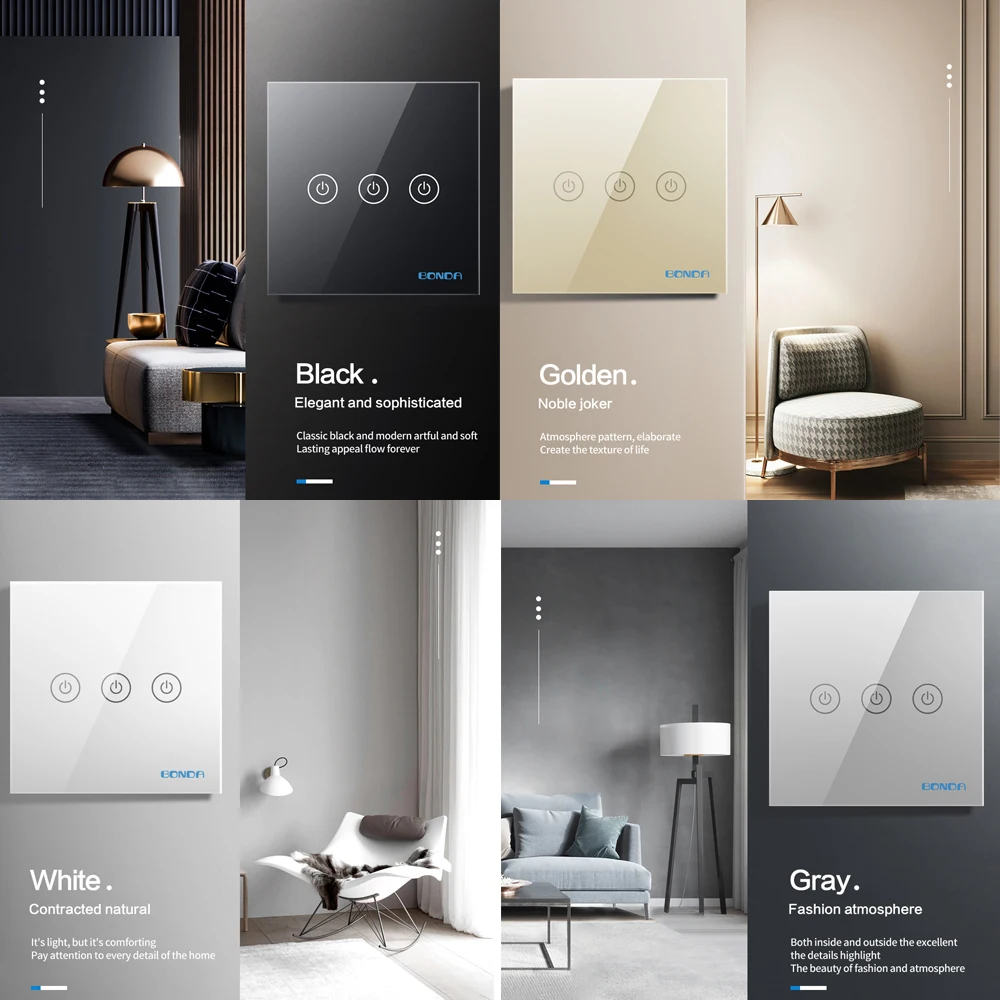

FOUR COLOR OPTIONAL

1.White:Contracted natural, It'slight,but it's comforting Pay attention to every detail of the home
2.Gray:Fashion atmosphere,Both inside and outside the excellent the details highlight ,The beauty of fashion and atmosphere
3.Golden:Noble joker,Atmosphere pattern, elaborate Create the texture of life
4.Black:Elegant and sophisticated,Classic black and modern artful and soft Lasting appeal flow forever

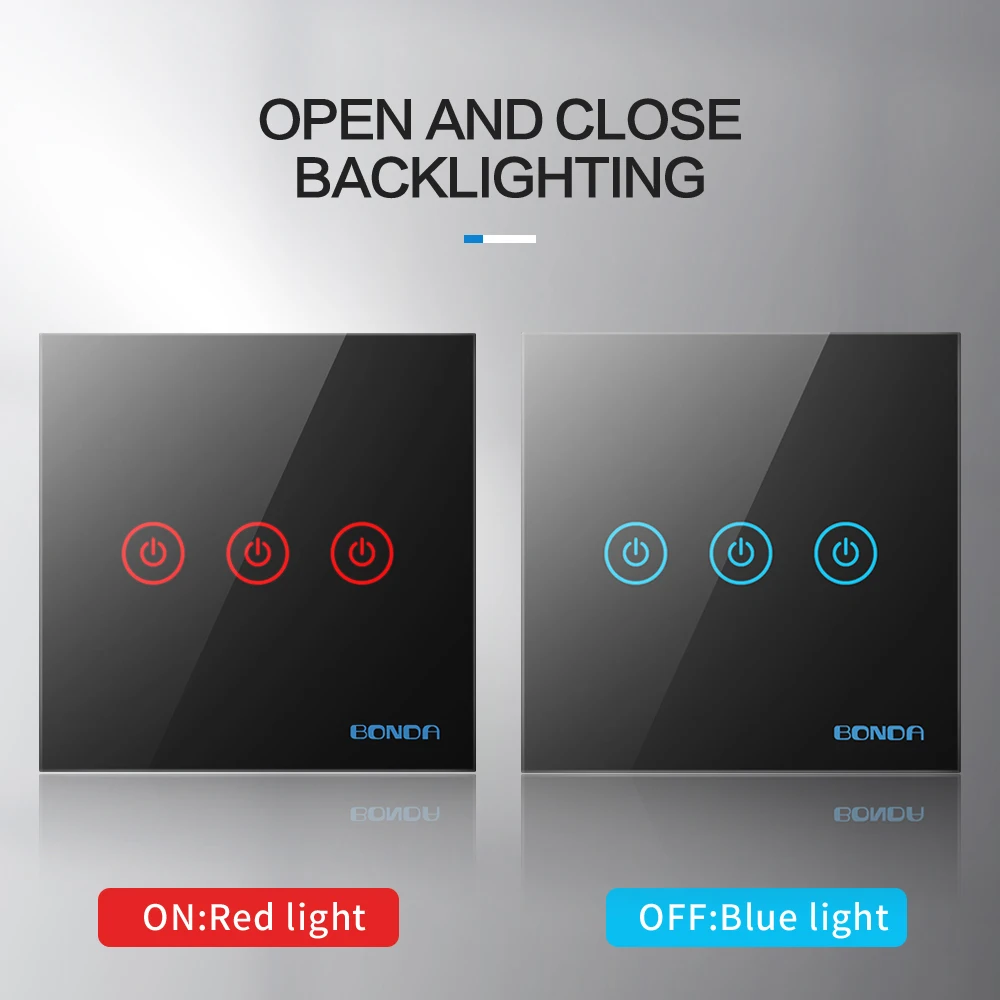

OPEN AND CLOSE BACKLIGHTING

ON:Redlight/OFF:Bluelight

STRUCT ES&COMPONENTS

1.The glass panel
2.Touchscreen board
3.Electronic chipset
4.Flame retardant bottom base

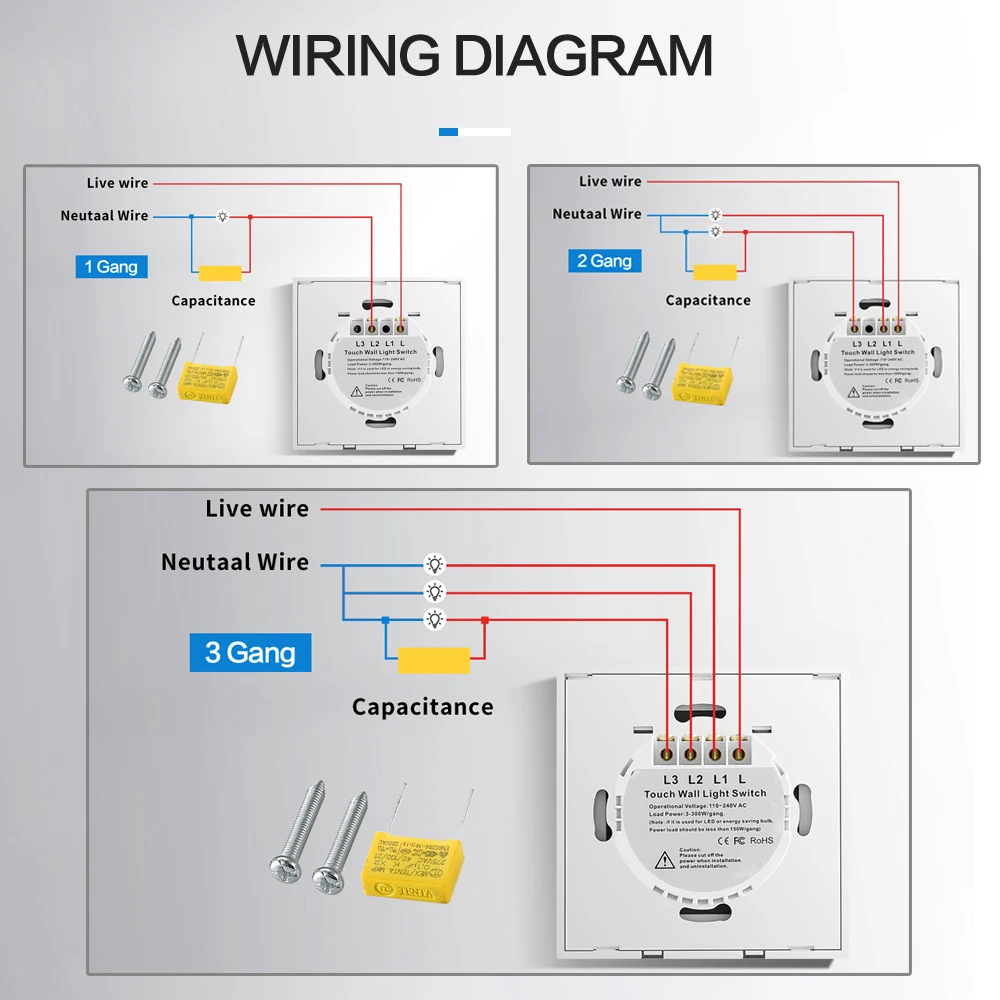

WIRING DIAGRAM

PRODUCT PARAMETERS

Installation diagram and real shooting operation Main switch installation

1.Remove the original wall switch Use the test pen to measure the firewire and mark it
2.Disconnect the total powersupply at home (please make sure the power is cut of)
3.Please al in the bayonet wth a words crew dr ver. Pr open the pane fom the sde of our mains wth
4.Diassemble the wng part of them as with Make a conne tion according to the way of connect n.
5.1gang connects"L 2"terminal 2gang connects"L 1, L 3'terminal 3gang connects"L 1, L 2, L 3"terminal
6.Screw our main switch. Fixit in the box.
7.Please be sure to buckle the glass plate when the power is off. Otherwise, it will affect the touch sensi i vity.
8.Power on, normal use
9.Press and hold this switch unil it is red Light appears It is recommended to open the switch shell to perform high-precision code operation.
