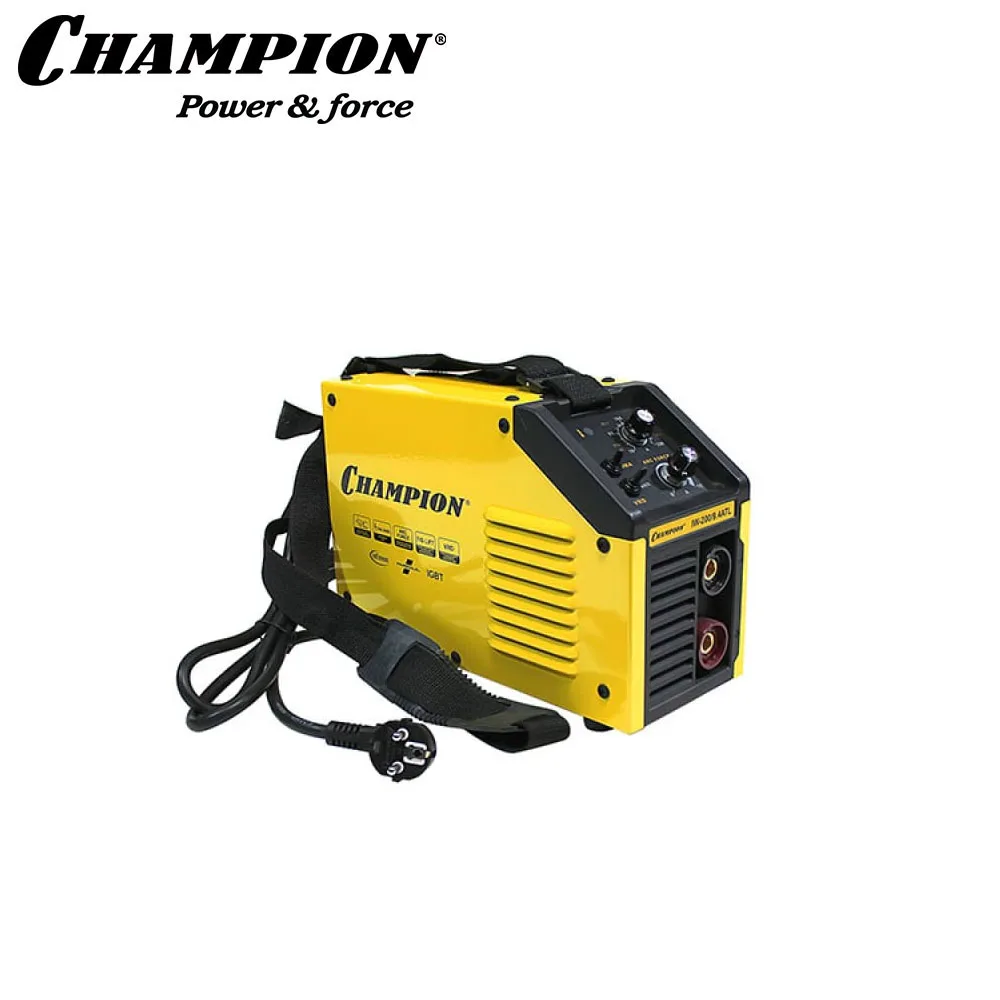

Welding inverter champion iw-200/9.4atl is manufactured on the basis of IGBT technology, which provides small dimensions and weight. Thanks to the anti stick, arc force (adjustable), hot start, the model is easy to operate, as well as excellent seam quality. Numerous cooling grilles, which are located on the housing, exclude the possibility of overheating of the internal components. Special connectors are used for quick connection of cables without loss of current and heating in places of contact.

Current source, type/voltage, (in)/frequency, (Hz): Single phase/230/50

Network operating voltage range, (in):160-260

Nomin. Max. Power consumption, (kVA):9,4

Nomin power. Min. Welding current MMA (i2min), (a):10

Nomin power. Max. Welding current MMA (i2max),(a):200

Nomin power. Min. Welding current Tig lift (i2min):10

Nomin power. Max. Welding current Tig lift (i2max):205

Welding current force at 160 V, MMA,(a):170

Welding current strength at 160 V, Tig lift: 175

Mon at t = 20C °, ( %):100

Mon at t = 40C °, ( %):40

Nomin voltage without load U0, (in):80

Operating voltage MMA (in):28

Nomin voltage in VRD mode, (in):10

Operating voltage Tig lift (in):18

Max. effective power current, i1eff, (a):32

Diameter of electrodes MMA, (mm):1,6-5,0

Diameter of Tig lift electrodes, (mm):1-2,5

Power factor (cosɸ):0,7

Efficiency, (%):85

Dimensions, length/width/height, (mm):290/120/195

Weight, (kg):4,42

F-Tig lift: There

Hot start arc ignition F-cum: There

Arc force force force force: is

F-ction предотвращ. Electrode adhesion anti stick: there is

Arc force force force force forcing regulation: is

Vrd idle voltage reduction F: Yes

Sound pressure level, (dB):40

Case protection degree: IP21S

Insulation heating resistance class: F
