TBS5302 1080P USB3.0 HDMI Video Capture Card |

TBS5302 1080P USB3.0 HDMI Video Capture Card |

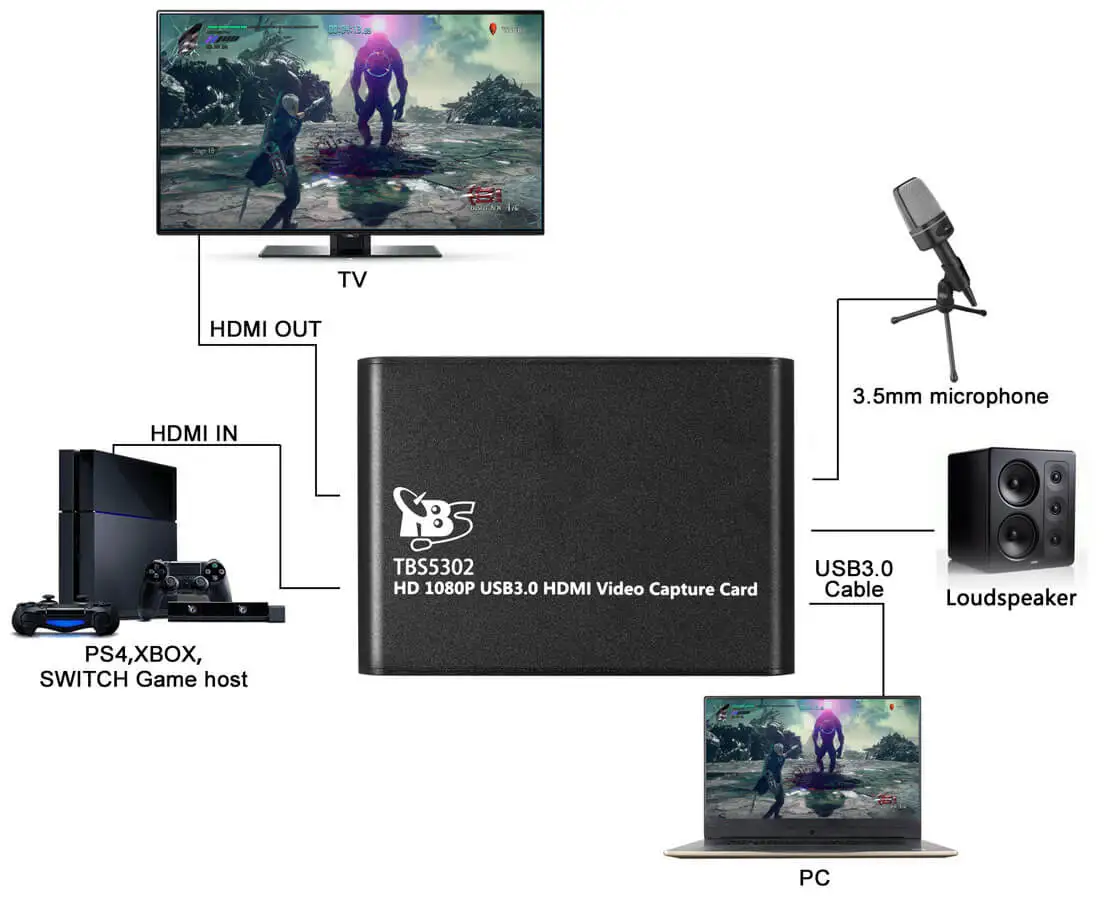

TBS5302 1080p USB3.0 HDMI HD Video capture card with HDMI 1.4 port is a device which has a strong performance, superior compatibility, simple installation and many other features. It completely supports full HD Video and Audio capture and playback. It not only can capture one HD 1080P 60FPS input and output signal, but also offers a separate 3.5 mm audio input for accompanying audio or voice-overs, and a HDMI loop out port for connecting another HDMI device while you are making live stream.

TBS5302 supports Windows 8/10 and is compatible with many USB3.0 chipset(Intel , Renesas , ASMedia , FrescoLogic ), PC le Gen1.1 x1 expansion via USB3.0 interface. The HD video capture meets UVC and UAC standard , without having to install drivers and settings. It is truly Pnp and easy to use.

Record your favorite show and keep the wonderful memories.

Ideal item for super gamer to record or re-stream the gameplay at the same time.

Key Features:

Compatible with windows 8 and windows 10, no need to install driver, truly PnP.

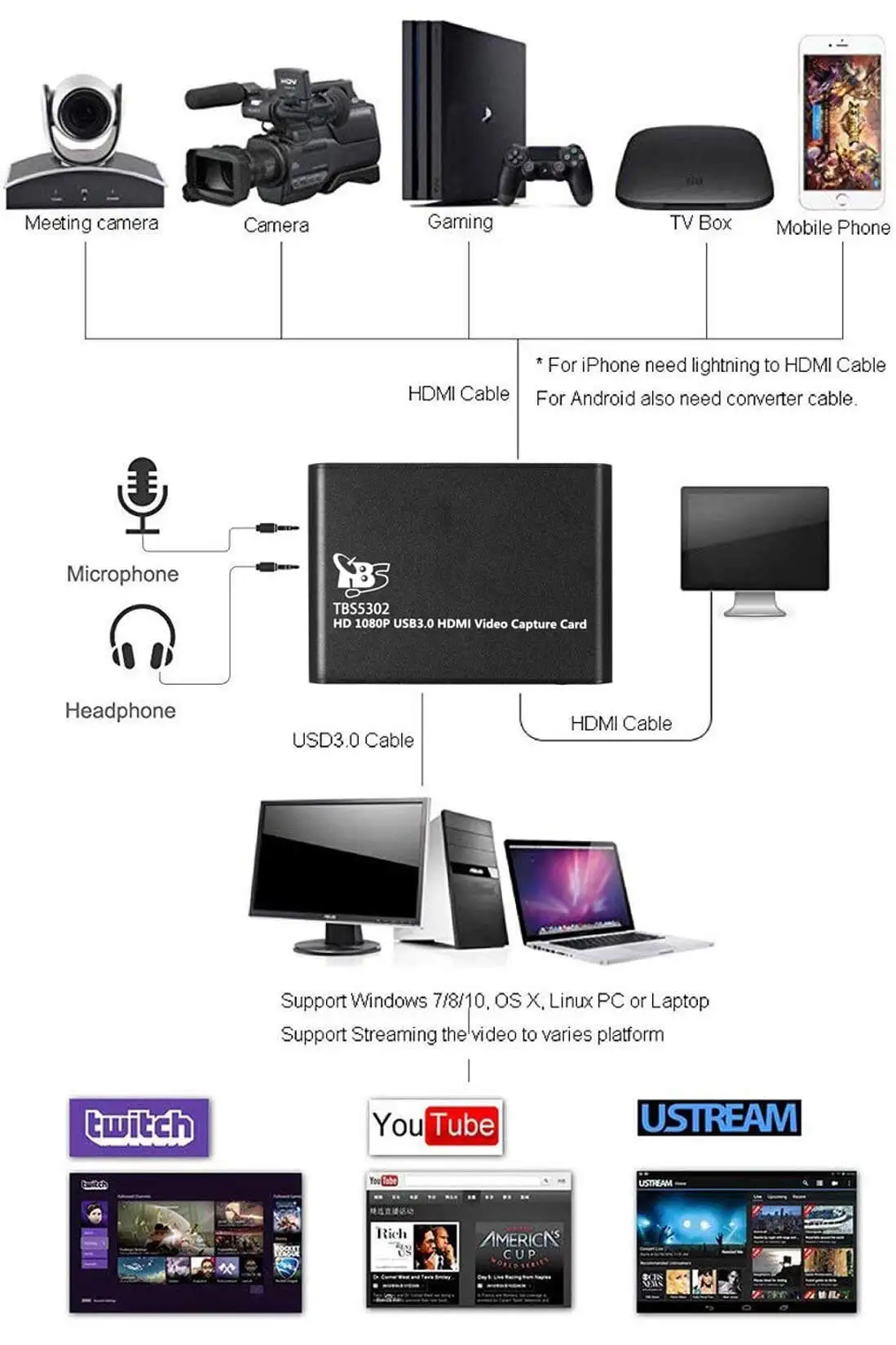

Compatible with all 1080P 720P hdmi device, such as Wii U, PS4, PS3, Xbox One, Xbox 360, Wii, Nintendo Switch, DVD, camera, ZOSI security camera, DSLR and set top box etc.

The HD video capture card can support HDCP 1080P with 60FPS, it is very suitable to use it for game live streaming.

USB3.0 high speed transmission port,let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.

3.5mm embedded audio source

Easy video recording on Windows

Compatible with UVC and UAC

HDMI loop out port for connect with another HDMI device when you are making a live stream

Interface

USB3.0

Video input

HMDI 1.4

Input Resolution

1920x1080_P/I 60hz; 1920x1080_P/I 50hz;1920x1080_P 30hz;1920x1080_P 25hz;

1920x1080_P 24hz; 720_P 60hz; 720P 50hz;576_P/I; 480_P/I

Video Output

1920x1080 60fps

Audio input

HDMI embedded

3.5mm microphone

Audio output

HDMI loop out

Earphone, loudspeaker

Video Capture

Standard of UVC and UAC

Application

Windows Media Encoder; Adobe Flash Media Encoder;RealRpoducer Plus;

VLC Media Player; Wire cast; Pot Player; OBS

Software compatible

Windows Media Encoder
Adobe Flash Media Live Encoder (windows)
Real Producer Plus (Windows)
VLC (Windows)
Quick Time Broadcaster (Windows)
Quick Time Player (Windows)
Wire Cast (Windows )
Pot Player( Windows)

Size

88*63*22mm

Consumption

less than 2.5W

Temperature

0-50℃

Storage temperature

-20~60℃

Storage humidity

5%-90%

system

OS

Windows® 10 / Windows 8.1 / (Windows 7 (SP1)need install driver) Linux (kernel version 2.6.38 and above)

PC

Intel® Core i5 -4400 3.10 GHz + NVIDIA® GeForce® GTX or more advanced

Laptop

Intel Core i7-4810 OMQ + NVIDIA GeForce GTX 870M or more advanced

RAM

8 GB

Mobile phone

Android phone Only support USB2.0, not supports USB3.0 (because Adroid UVC driver not supports USB3.0)

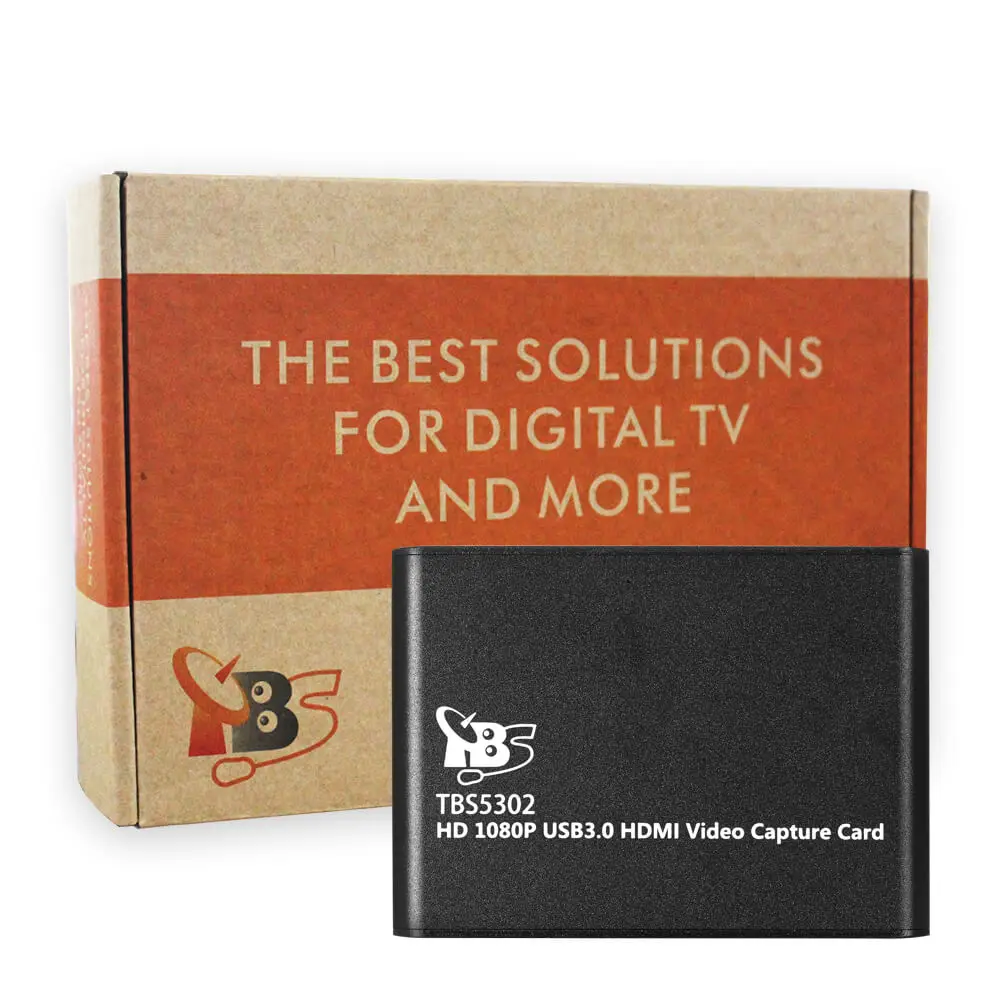

Packing included:

TBS 5302 HDMI Video Capture Card *1

USB Cable *1
