This display can be used for electric bicycle, and Sabvoton controller with display function.

NOTE: we do APT protocol for this display, so it can match with controller with APT protocol. If you buy controller at our store, only Sabvoton SVMC-TFT series controllers can match, other sabvoton controller cannot match.

If you are not sure your controller model can match or not, pls contact sales before placing order.

NOTE: pls make sure to turn off the display first before turning off the power, otherwise it may damage the display.

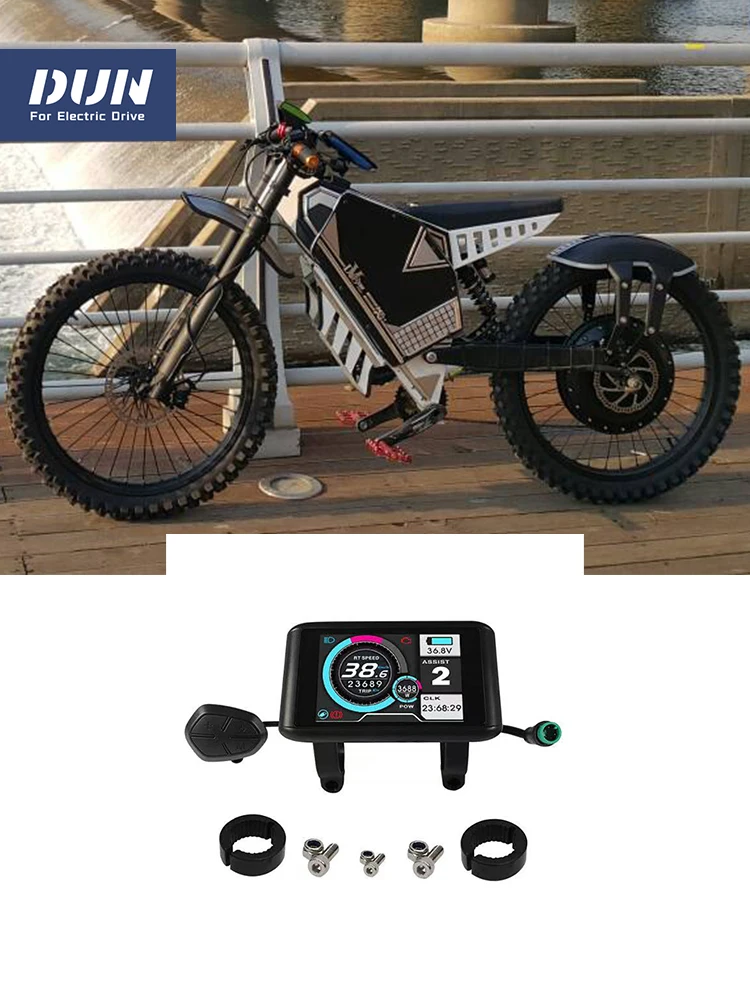

- Package Including -

1pc x UKC1 APT Display (adapter cable optional)

- Order Guide -

1) make sure your controller with APT protocal, our sabvoton controller with this function to plug in directly.
2) pls. check this display function are suitable for you.

3.5 inch IPS screen
36V/48V/60V/72V battery supply
Rated operating current : 40mA
Max operating current : 100mA (36V battery, charging state when using external USB equipment )
USB charging port : 5V 500mA
Off leakage current < 1uA
Max output current to controller : 100mA
Operating temperature : -20～70℃
Storage temperature : -30～80℃

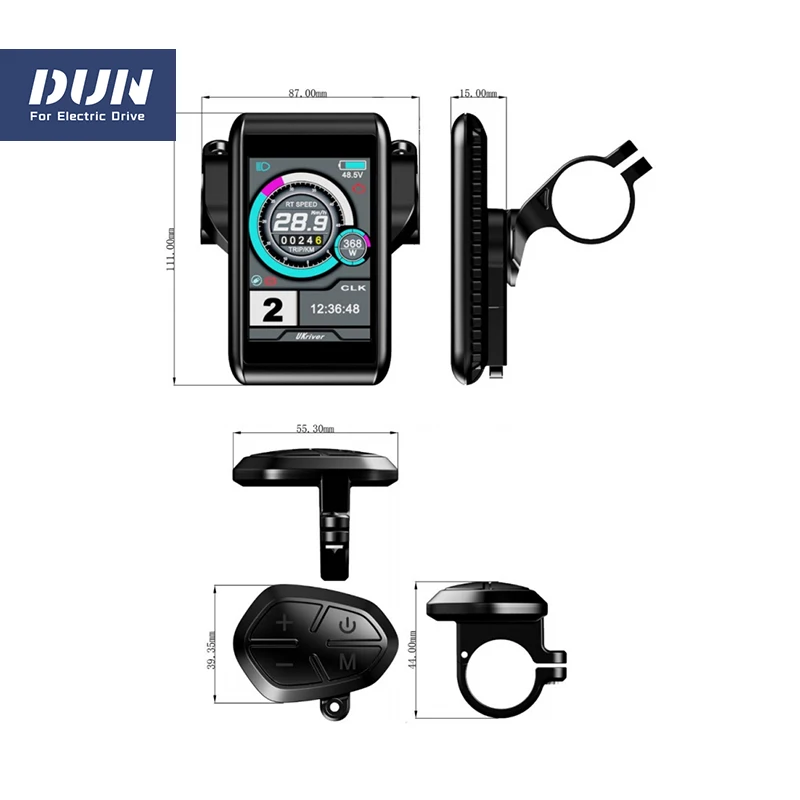

- Display Drawing -

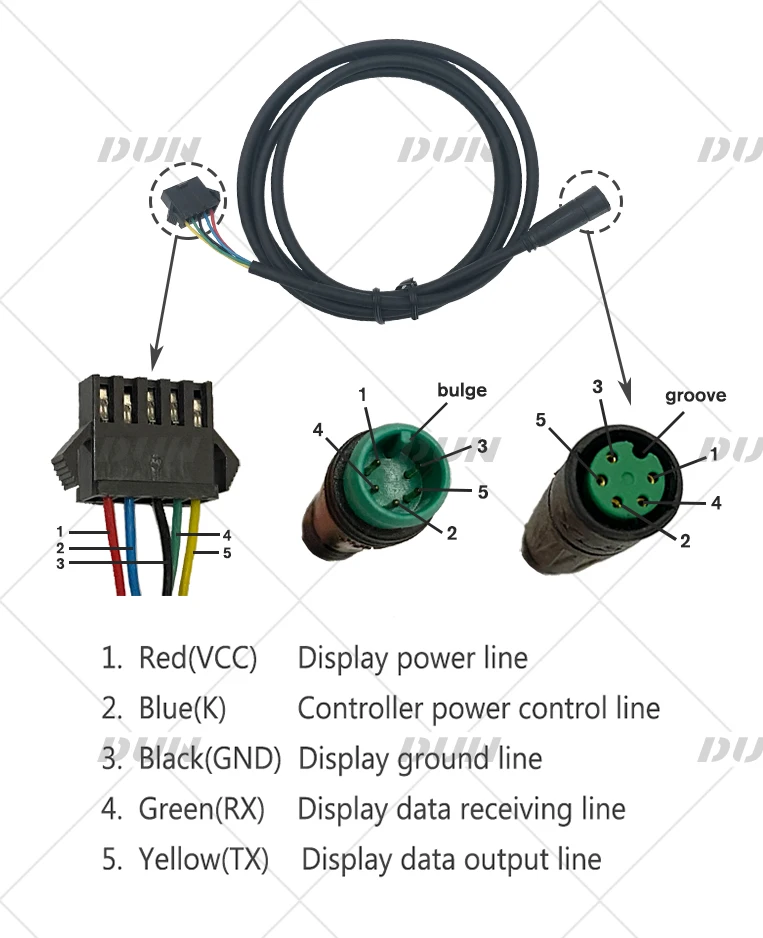

- Adaptor Cable Wiring -

NOTE: our sabvoton SVMV-TFT series controller can plug in directly.

- Matched Controller -

Click the pic to check Sabvoton APT controller
