multifunctional tea table electric lift coffee table dining table adjustable remote control end table iron frame steady lifting

Model:Electric lift tea table

Product weight:16.0kg/ set

Color:Black

Surface treatment:Electrophoretic black

Load bearing capacity :within 40kg, speed: 22mm/s

[Product features] :This electric tea table lifting frame is equipped with electric push rod, which can drive the rise and fall of the tea table by controlling the electric push rod. It is noiseless, convenient and practical

[Scope of application] :dining table, functional coffee table, telescopic coffee table, etc

[Installation method] :According to the specifications of the physical hole distance of the product, place the installation size, and then directly rotate the rivet or screw to operate until it is locked.

[Storage method] :Store in a dry place, do not stack in a wet place, to avoid rust and oxidation of the product

[Precautions]

● Do not wash the surface with water, sulfuric acid, acid

● Don't use polishing machine, polishing and grinding this product.

● Do not change the product hole spacing, so as not to cause unnecessary damage.

● Do not change the parts of the product at will, so as not to cause product damage.

● Please use the product according to its bearing capacity to avoid unnecessary losses caused by overload.

● Products such as electric welding, please use blank products for work, to avoid high temperature burn paint layer.

-------------------

Model

DHLCT-25

DHLCT-40

DHLCT-120

DHLCT-200

Load Pull Capacity

25KG/250N

40KG/400N

120KG/1200N

200KG/2000N

Linear Actuator

DHLA6000-100MM

DHLA1300-50MM

DHLA1300-50MM

DHLA8000-150MM

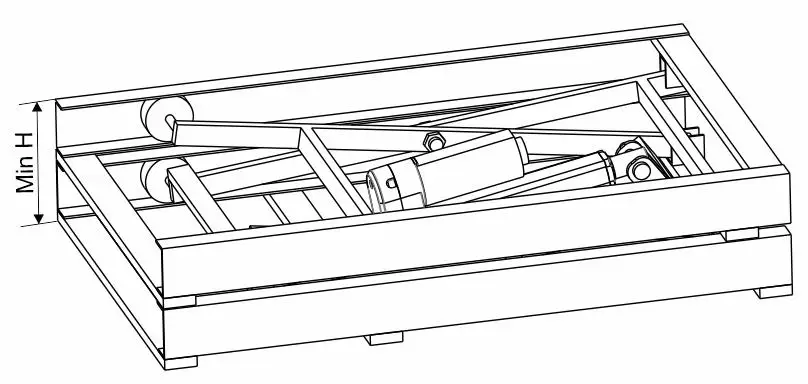

Min Height

120MM

115MM

210MM

195MM

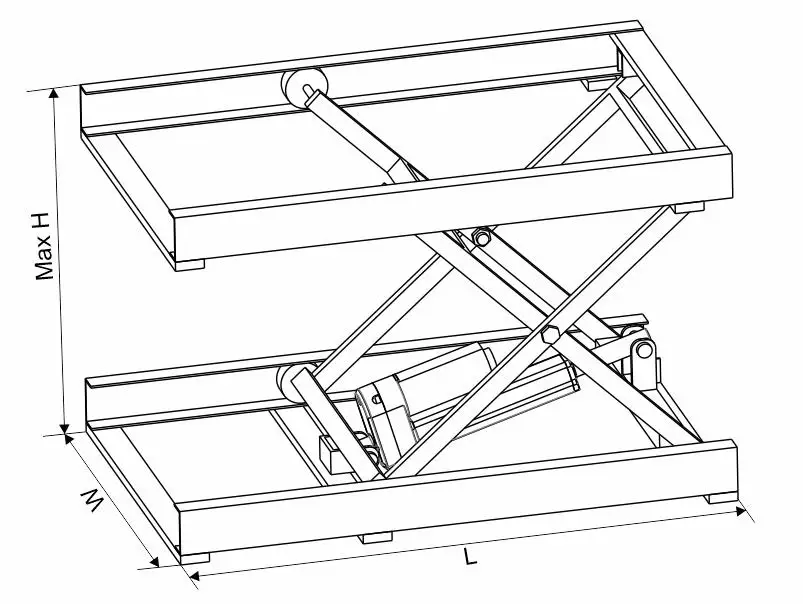

Max Height

390MM

350MM

580MM

680MM

Size(L * W * H)

400*320*120MM

580*370*115MM

590*435*210MM

760*420*195MM

Weight

6KG

8KG

13.5KG

16KG

Surface Treatment

Electrophoretic Black

Speed

20MM/S

Operating Temperature

0°C~+40°C

IP Grade

IP43

Limit Switches

Built-in

accessories can be used on and purchased together with products or separately.

C1 Power + Controller

C2 Power + Controller

C3 Power + Controller

C4 Hall Controller

Click to buy

Click to buy

Click to buy

Click to buy

C5 Hall Controller

C6 Power + Remote Control

C7 Controller

C8 Controller

Click to buy

Click to buy

Click to buy

Click to buy

Magnetic Induction

10MM Bracket

Mounting Plate

Rocker Switch

Click to buy

Click to buy

Click to buy

Click to buy

Power Supply DC12V

Power Supply DC24V

Motor Speed Regulator

Click to buy

Click to buy

Click to buy

Magnetic Induction Sensor

PC Control And RS485

Hall Sensor

Five-line Control

Click to buy

Click to buy

Click to buy

Click to buy

Note: If you only purchase product, there are no additional features as below. If  you want add the following features to the product, you need purchase the additional features at the same time. For example, you purchase item: A1 DC24V 1300N 5MM.S 50MM stroke and the option Magnetic Induction Sensor, you will get A1 DC24V 1300N 5MM.S 50MM stroke actuator with Magnetic Induction Sensor function; Meanwhile if you buy multiple products with multiple functions at the same time, pls kindly contact with us.The additional function is not a stand-alone product, they cant be purchased separately.
