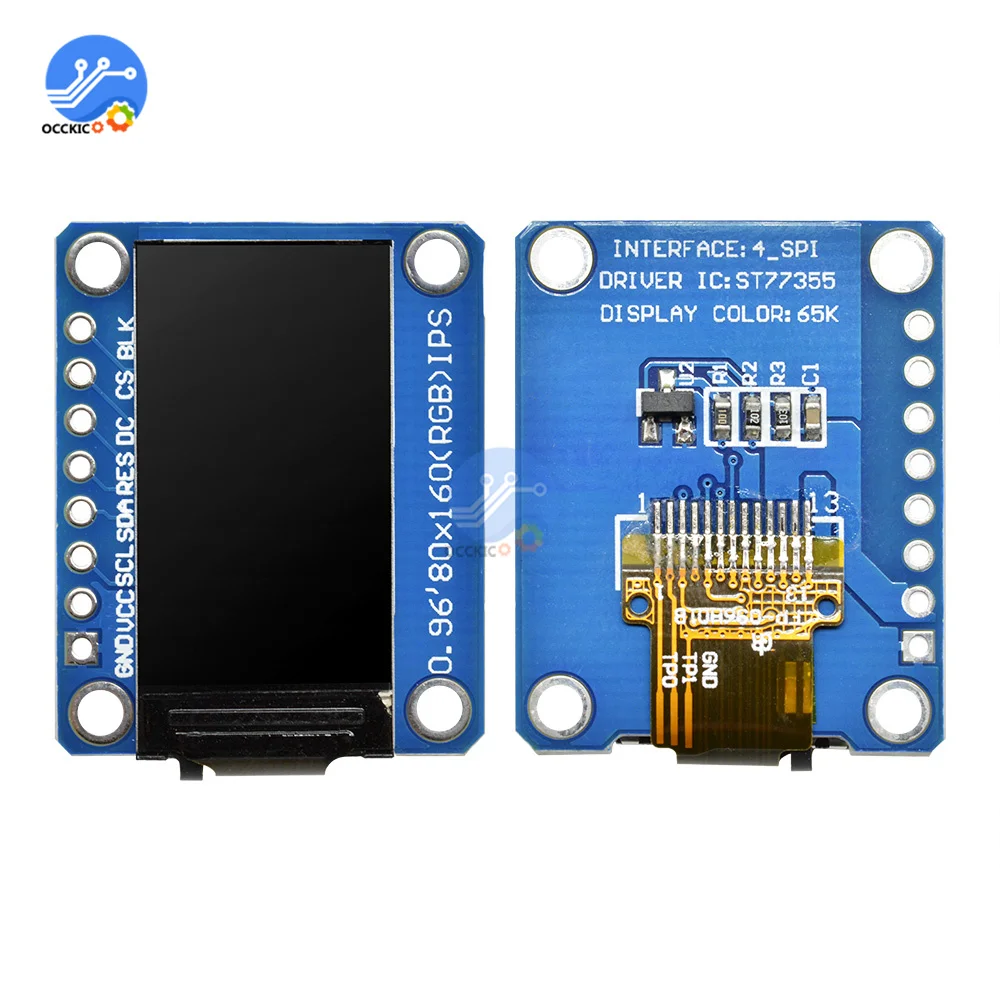

0.96-дюймовый модуль IPS LCD-дисплея полноцветный экран ST7735S Driver SPI Serial Interface 3.3V для Arduino DIY 80*160 on.

Brand NameocckicModel Number0.96 inch 80X160 IPS LCD DisplayOriginMainland ChinaCompatible Brand/ModelNoneMeasurement unitpiece/piecesEach pack1310,38 ₽-37%310,38 ₽-37%195,78 ₽195,78 ₽there are seller's couponsAdd to CartBuy now195,78 ₽loaderReviews

5,0

2 reviews20000Top reviewsWith photosFrom Russia

All stars

All starsAdditionalVladimir T.9 September 2022

Show moreAnonymous user12 October 2022

Show moreOpen 2 reviewsDescription

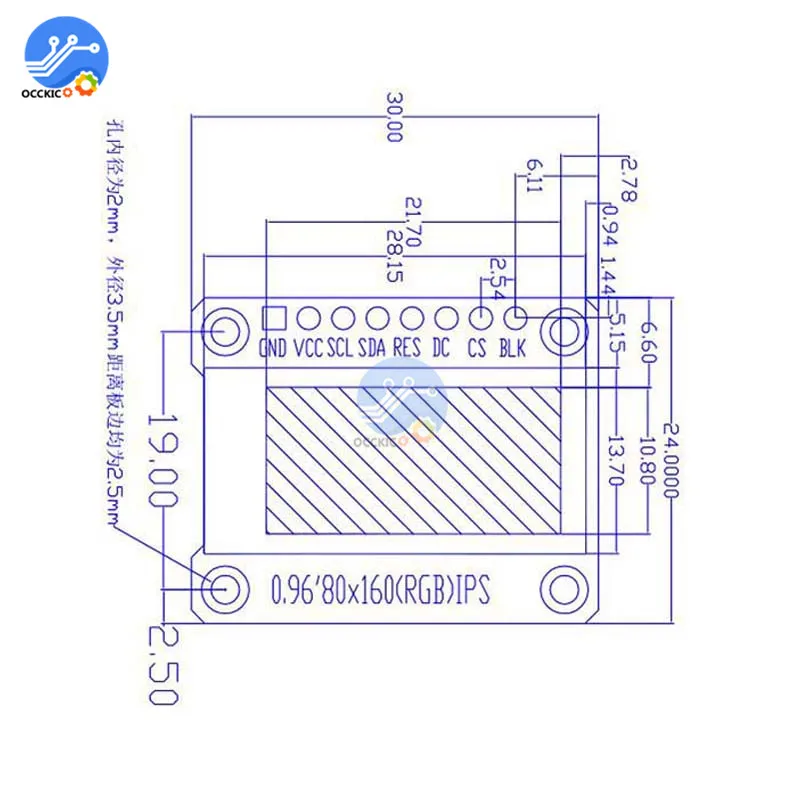

1.Features  SIZE 0.96inch  Display Mode Normally black IPS Display Format Graphic 80RGB*160 Dot-matrix Input Data SPI interface Drive IC ST7735S Dimensional outline 24(W)*30 (H)*2.8+/-0.1(T)mm Resolution 80RGB*160 Dots LCD Active area 10.8 (W)*21.7 (H) Dot pitch 0.135(H) x 0.1356(V) mm Viewing Direction All View Operating Temperature -20～70°C 2.Pin Descriptions: PIN No Symbol Description 1 GND Ground 2 VCC Power 3.3V 3 SCL Serial clock pin. 4 SDA Serial data input 5 RES LCM Reset pin This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation. 6 DC Data/Command Control 7 CS Chip Select 8 BLK Backlight control pin Package: 1 pcs 0.96 inch 80X160 IPS LCD Display Module

---
