TUYA Smart Life 1080P Металлическая камера звонка для двери WiFi Видео домофон безпроводной дверной телефон камера безопасности 2-х цепной разговор.

TUYA Smart Life 1080P Металлическая камера звонка для двери WiFi Видео домофон безпроводной дверной телефон безопасности 2-х цепной разговор.

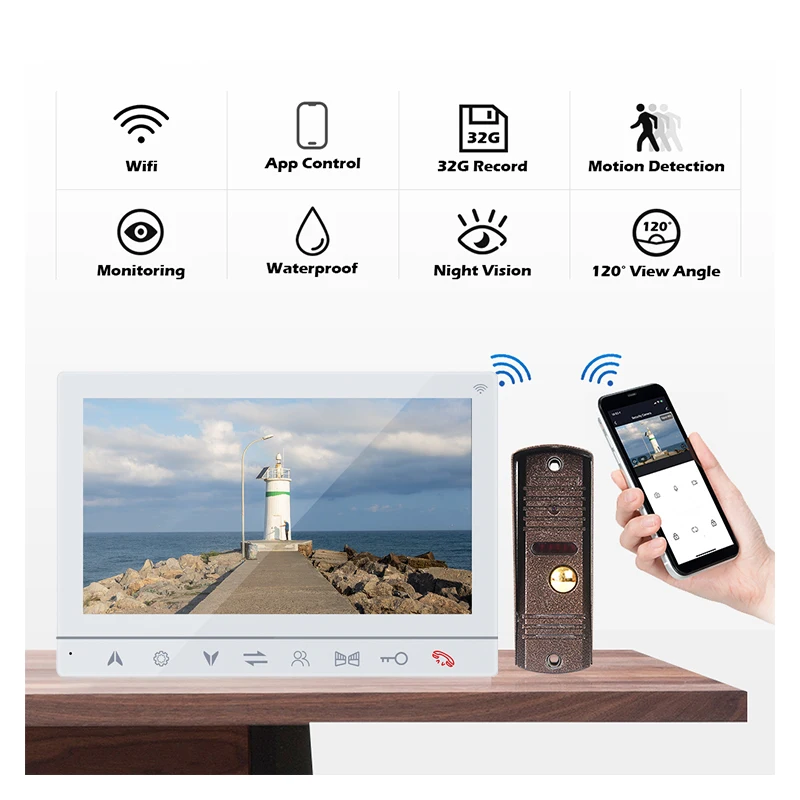

-7 Inch color LCD video intercom monitor

-WIFI Video Doorphone System
-Support Tuya Smart APP
-Real-time remote operation by smart phone

-Resolution:1024*600

-Material:Acrylic

-Button:Touch button
-Monitor/APP Support visual intercom /motion detection push message/video recording / screenshot / talking / 3 locks unlock separately
-Monitor/APP Support monitoring 2 doorbells + 2 cameras

-Monitor supports multiple languages: English/Russian/Italian/Spanish/Ukrainian/Polish/German/French
-Monitor support 3 electronic locks connection:2 locks connected to doorbell, 1 lock connected to monitor
-Monitor support 6 monitors+2 doorbells+2 cameras
-Monitor support built-in motion detection,motion recording time 10s -300s ,save video/screenshot to memory card , SD card support up to 128G
-Monitor support 2-way talk / transfer to salve monitor / silent mode / message push to phone /clock mode /10 ringtones optional /unlock time and volume are adjustable.

-Monitor support different menu display:Standard / Android / Win10

-Monitor support NO or NC unlock way.
-Monitor support video format:AHD/ TVI / CVI / CVBS
-Monitor supports zoom in / out image
-Please noted the monitor connects to the doorbell by wired,monitor connects to APP by WIFI(without RJ45 connector).

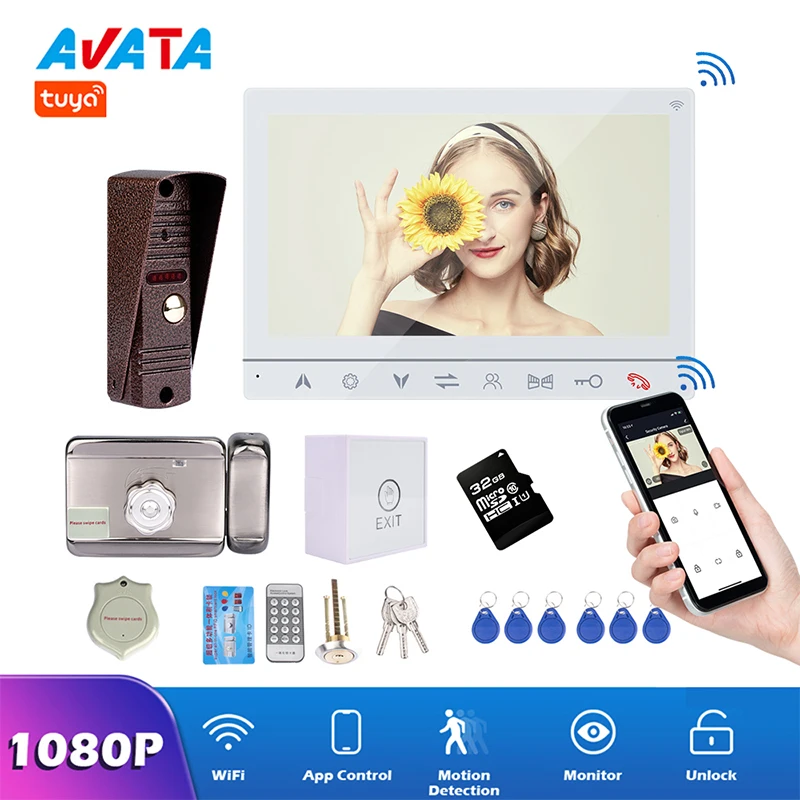

If you like the intercom with lock set ,please click the picture as below.


Real-time remote operation by smart phone

Easy steps to connect the App with monitor

By EZ mode
-Step 1:Monitor choose EZ mode
-Setp 2: Install the "Tuya Smart" App at your devices
-Step 3:Click" Add Device"→Video Surveillance→Smart Doorbell
-Step 4:Select "EZ Mode"→Next→Add Wifi Password
-Step 5:Connect successfully and you can operate on the App


By AP mode

Step 1:Monitor choose AP mode
Setp 2: Install the "Tuya Smart" App at your devices
Step 3: Click" Add Device"→Video Surveillance→Smart Doorbell
Step 4:Select "AP Mode"→Next→Choose your home WiFi and write the password→connect.
Step 5:Choosedevice hotspot" Smartlife xxx "to connect, write password 12345678
Step 6:Connect successfully and you can operate on the App


Devices can Receive the Call at the Same Time

The APP can read and playback videos list from SD card storage, freely check calendar to select exact date and view videos streams.

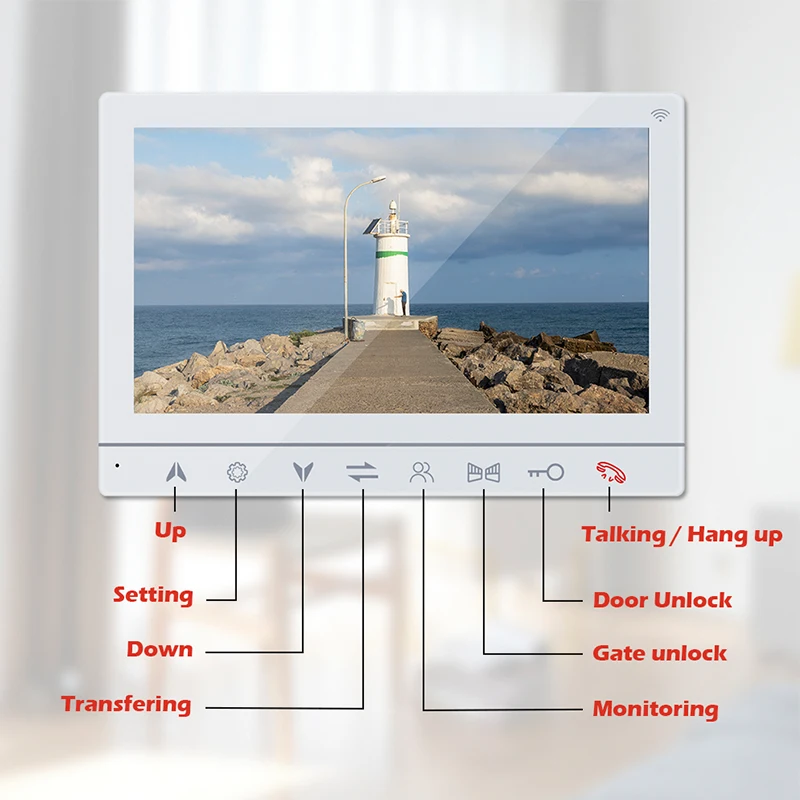

The function of intercom panel
1.Up
2.Setting
3.Down
4.Transfering
5.Monitoring
6.Gate unlock
7.Door unlock
8.Talking / hang up

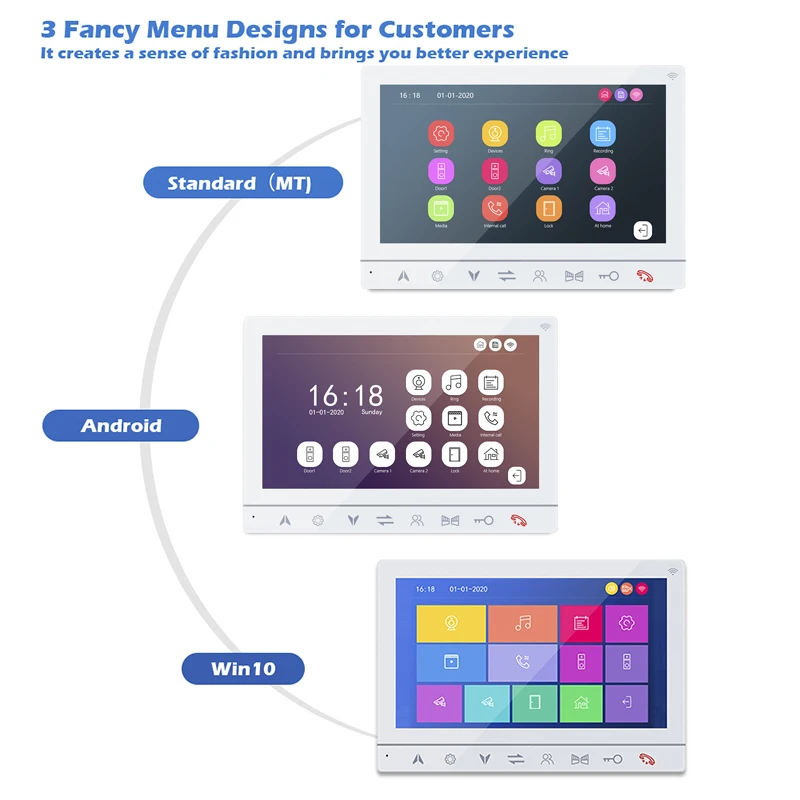

Support different menu display:Standard / Android / Win10

Monitor supports multiple languages: English/Russian/Italian/Spanish/Ukrainian/Polish/German/French


Support visual intercom, 2-way talk, transfer to 5 salve monitors

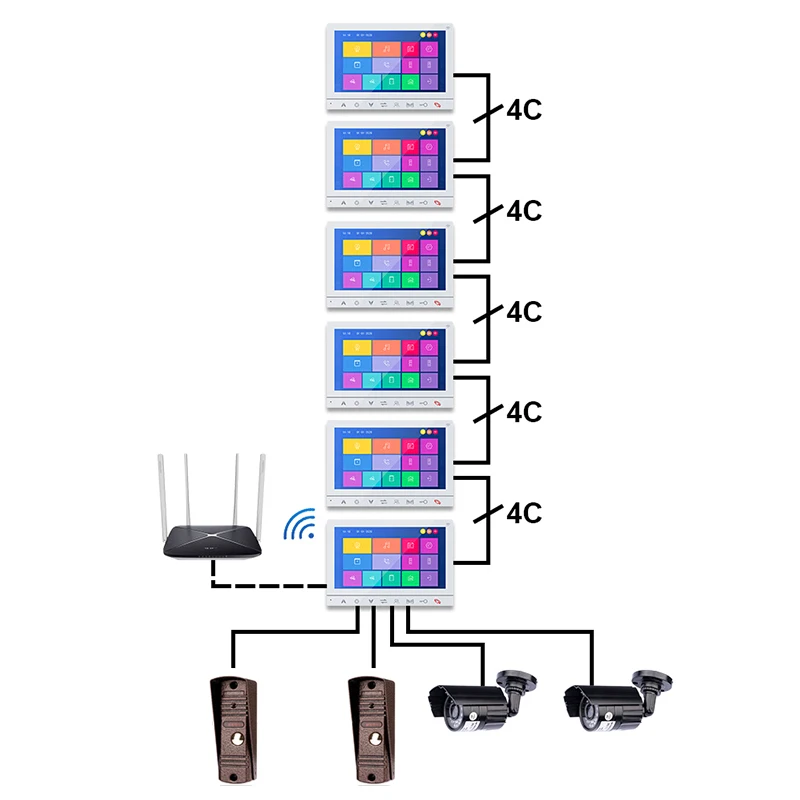

Monitor support 6 monitors+2 doorbells+2 cameras



Monitor Supports At home, Not at Home and Sleeping Mode
⚙️Intercom system supports at home, not at home and not disturbing mode. You can set on the monitor or App.
Not at home---The doorbell will tip the visitor leave a message if you not answer the call after your setting time. But the App can receive the call.
Not disturbing mode--The monitor will become silent and not disturb you.

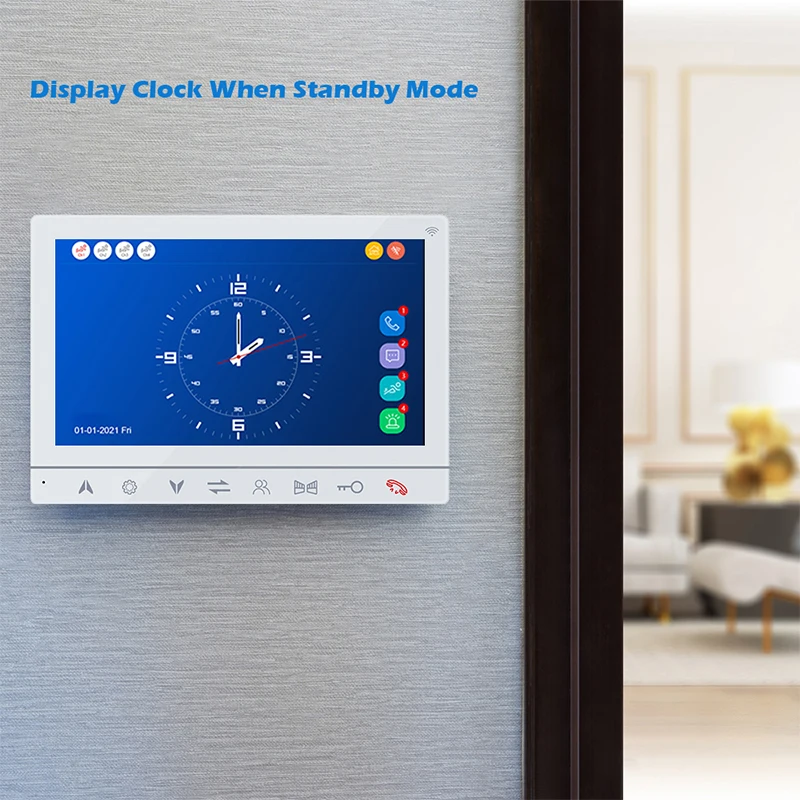

Display clock when standby mode,screen will keep on


Monitor with built-in motion detector, it supports motion detection display.

❗If you set the not at home mode at App, it will send notification to your phone if someone approach to your front door. This is very important for your home security.




Adjustable unlocking time

Monitor support 3 electronic locks connection:2 locks connected to doorbell, 1 lock connected to monitor

Outdoor Doorbell

AHD1080P, Wide angle 120° diagonal angle
Camera sensor: 1/3 CMOS
Material:Metal

Waterproof IP65

Day vision and night vision with IR led

Working temperature:between -40℃ to 60℃

The function of doorbell
1.Waterproof Cover
2.Mic
3.Camera lens
4.IR Sensor
5.Call button

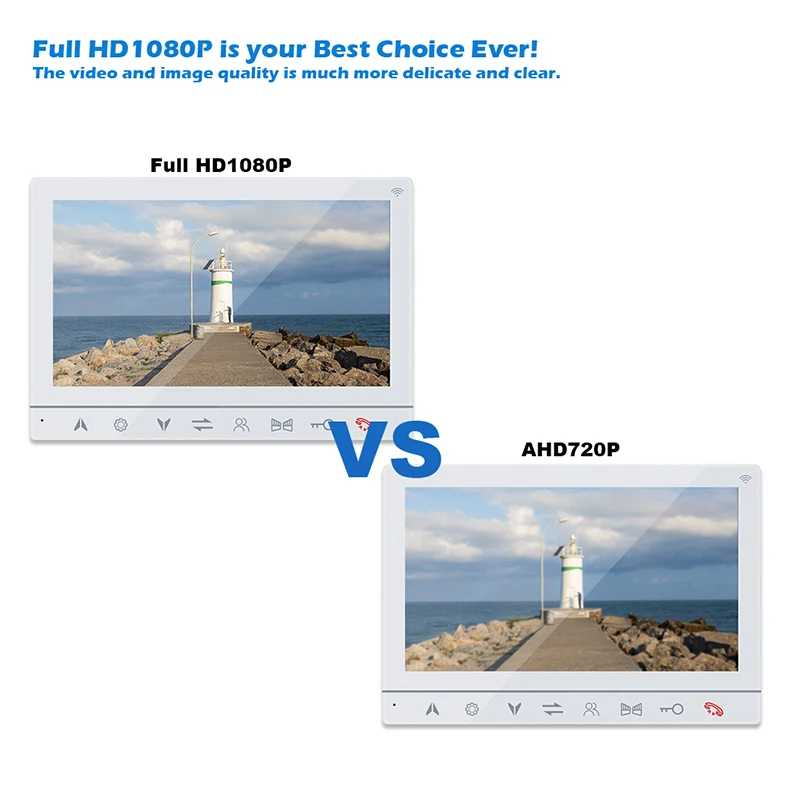

Outdoor Doorbell with 1080P,The video and image quality is much more delicate and clear.

The door phone can be rain-proof, dust-proof and vandal-proof, suitable for temperature between -40℃ to 60℃


Day and night vision

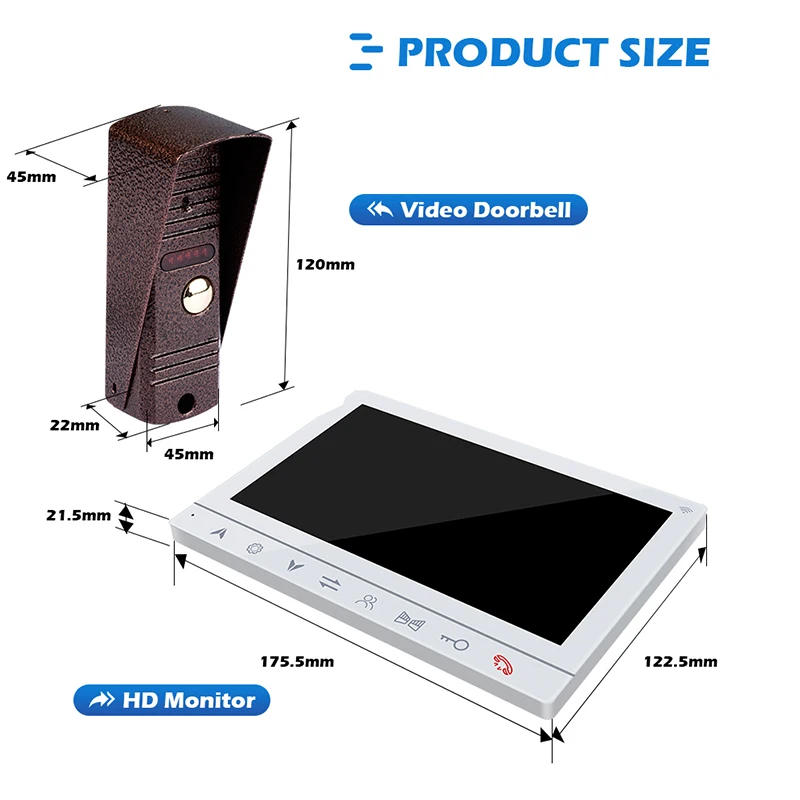

The product size






How to connect?



Connection Diagram of Video Intercom System

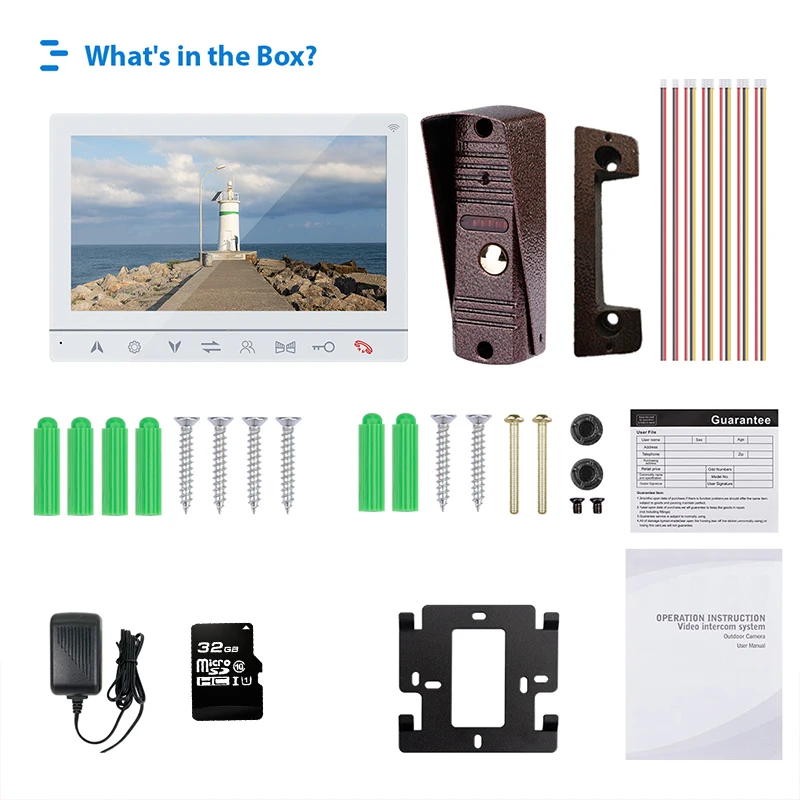

What is in the package?
Monitor*1
Doorbell*1(for optional)
200mm 4 pin cable*5
200mm 2 pin cable*2
32G SD card*1(for optional)
User Manual *2
Guarantee Card *1
Screw Bag *2
Monitor Mounting Plate*1
Steering block*1
Rain cover*1
Power adapter*1(if you need AC220V,please contact us firstly)
