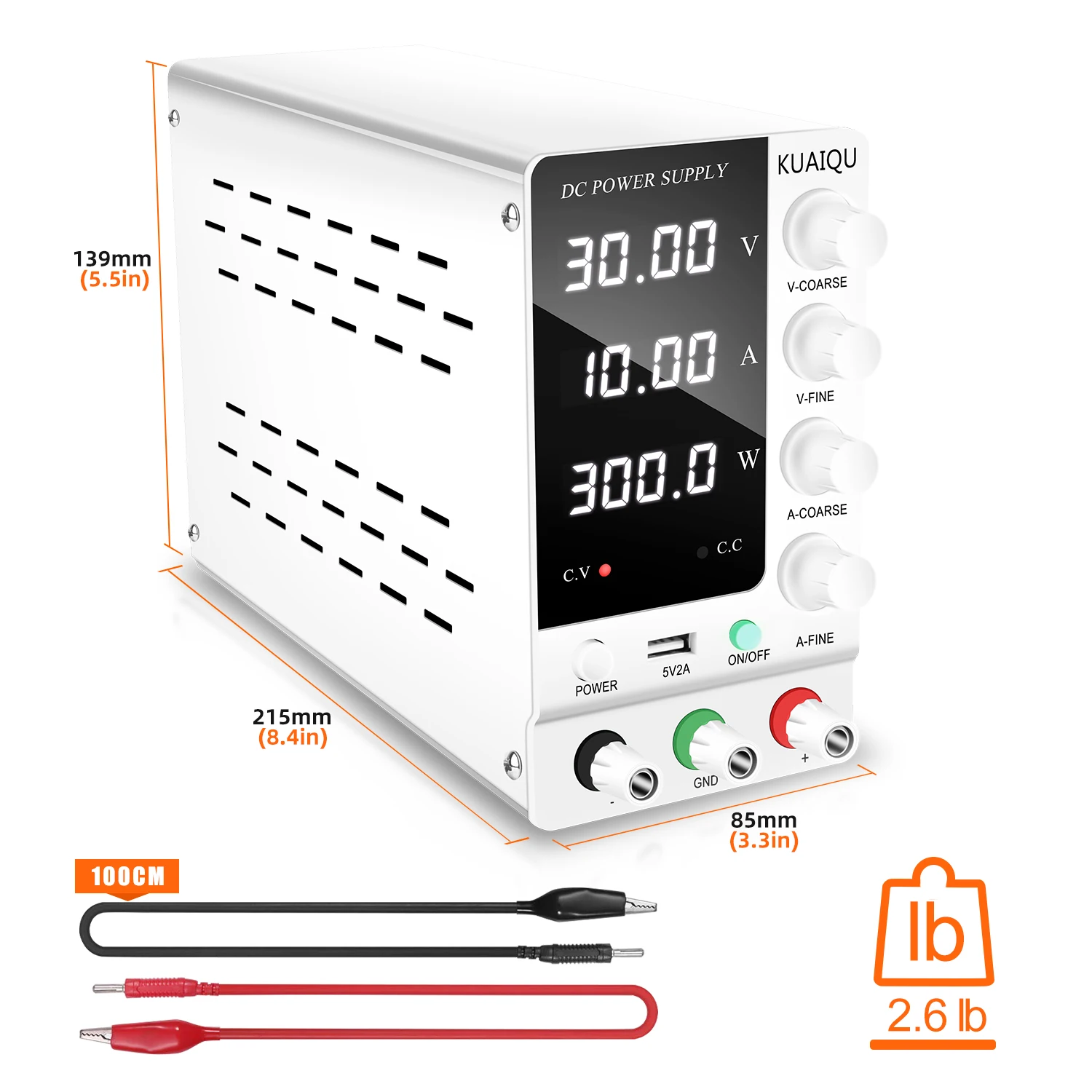

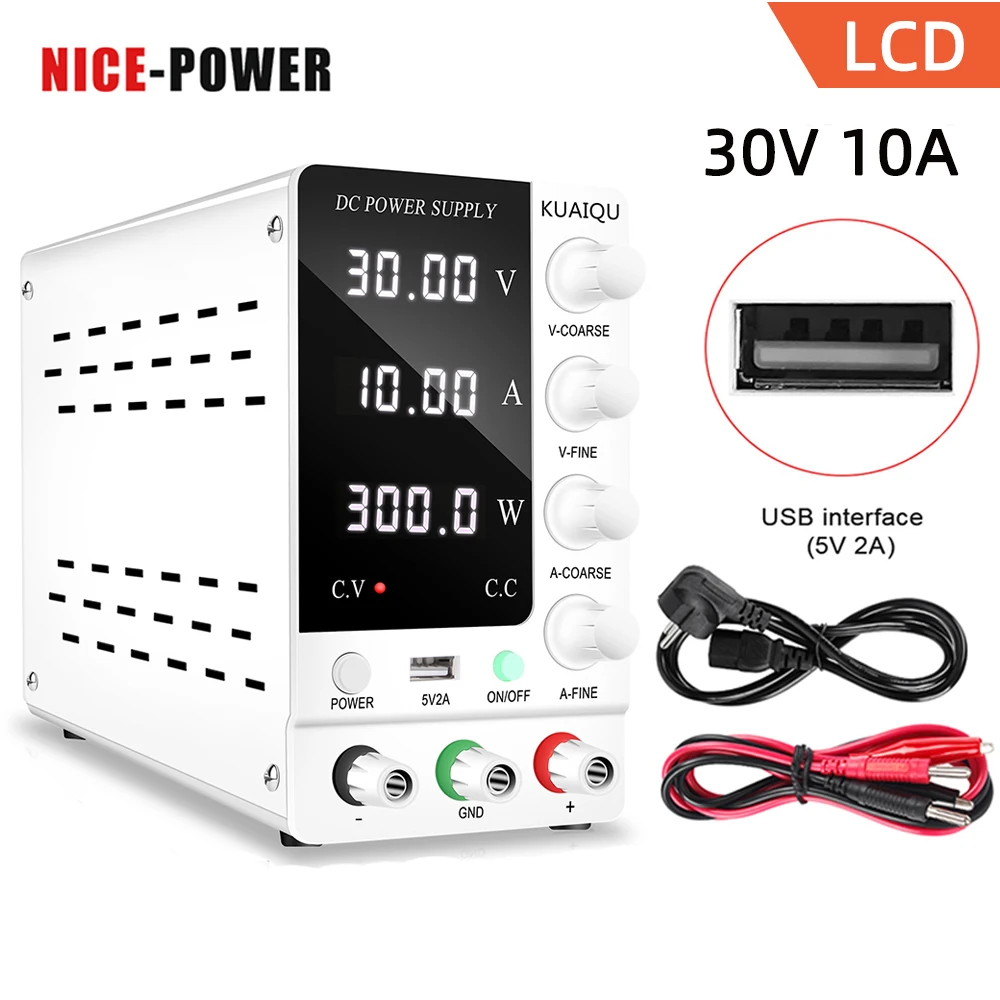

Adjustable DC Power Supply Lab 30V 10A Voltage Regulator LCD Digital Laboratory Stabilizer Switching 60V 5A Bench Source | Обустройство

Adjustable DC Power Supply Lab 30V 10A Voltage Regulator LCD Digital Laboratory Stabilizer Switching 60V 5A Bench Source | Обустройство

1. Input voltage: 220V 50Hz /110V 60Hz
Switch or a single voltage input
2. Output voltage: DC 0- 30V/60V Ratings V (see Table I)
3. Output Current: DC 0-5A/10A rated A (see Table I)
4. Display Accuracy:
1% 1 word (three / three and a half digital display, voltage resolution 0.1V, current resolution 0.1A)
0.1% 1 word (four / four semi-digital display, voltage resolution 0.01V, current resolution 0.01A)
5. boot delay: 1-2S Shutdown Delay: 1-6S (depending on the load)
6. Voltage Stability: ≤0.05% + 1mV
7. The current stability: ≤0.1% + 10mA
8. Load stability: CV≤0.05% + 1mV
CC≤0.05% + 10mA
9. Ripple and Noise: CV≤10mV
CC≤20mA (RMS)
10. Overall efficiency: ≥80% (under full load test)
11. Working environment: -10 - + 40 Relative humidity 20% -80% (non-condensing)
12. Storage Environment: -20 - + 80 Relative humidity 20% -70% (non-condensing)
13. Pressure test: Input - Output: 1.5KVAC / 1 Minute
Input - Housing: 1.5KVAC / 1 Minute
Output - Housing: 500VAC / 1 Minute
14. Ground Resistance: <20mΩ

1.Have complete operating protection function
2.Highly efficient, low ripple, small volume, light weight

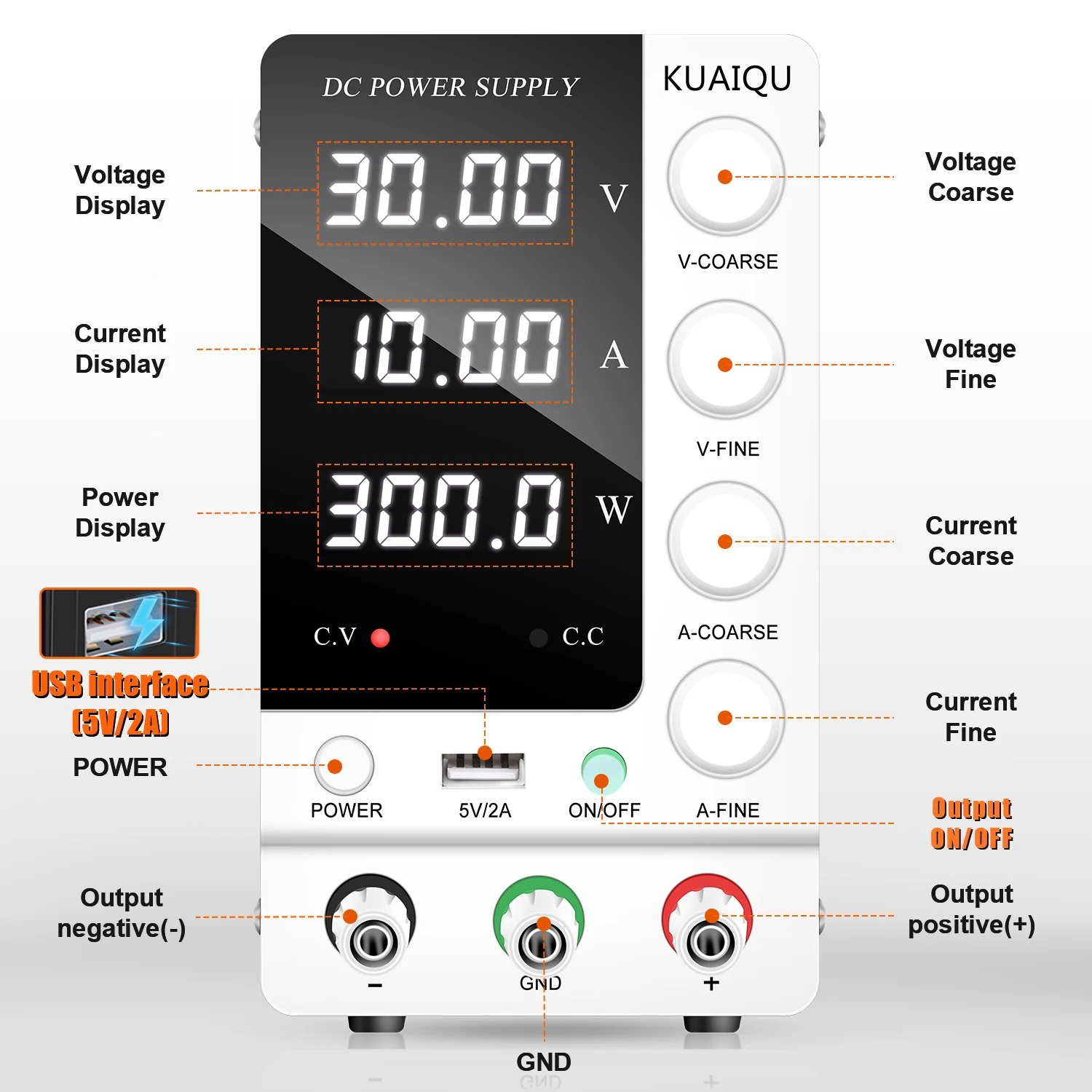

3.Double display voltage, current, and high precision

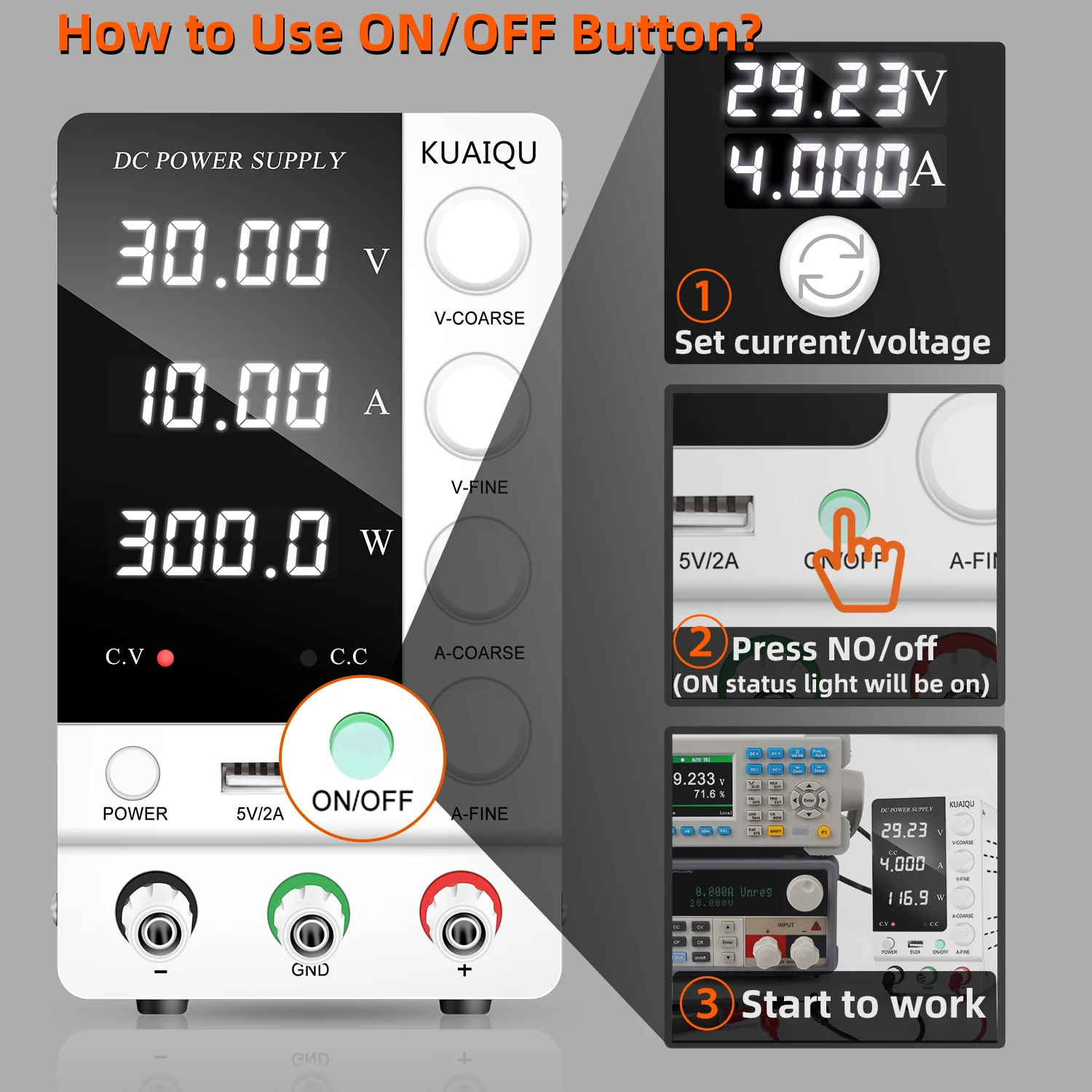

4.Voltage stabilization, current limiting, simple operation
5.Dual voltage input and convenient choice

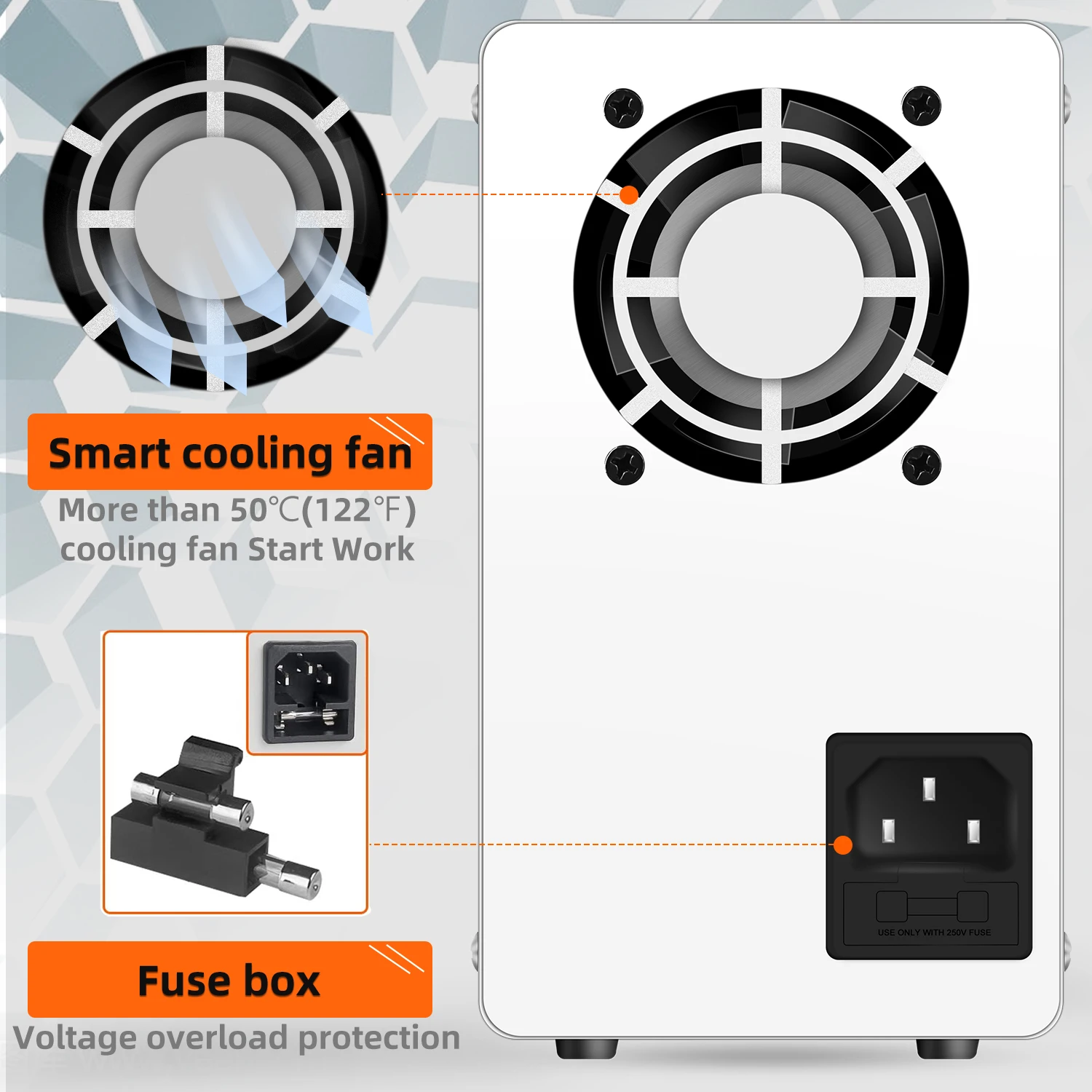

6.Temperature control fan heat dissipation, low noise
7.Double potentiometer more precise adjustment

Car DVD, Car Audio.
Aging products, such as resistors, capacitors, relays, DC motors, LED and the like.
Laboratory, factory, repair power supply.
Other DC power supply all the needs of the occasion.

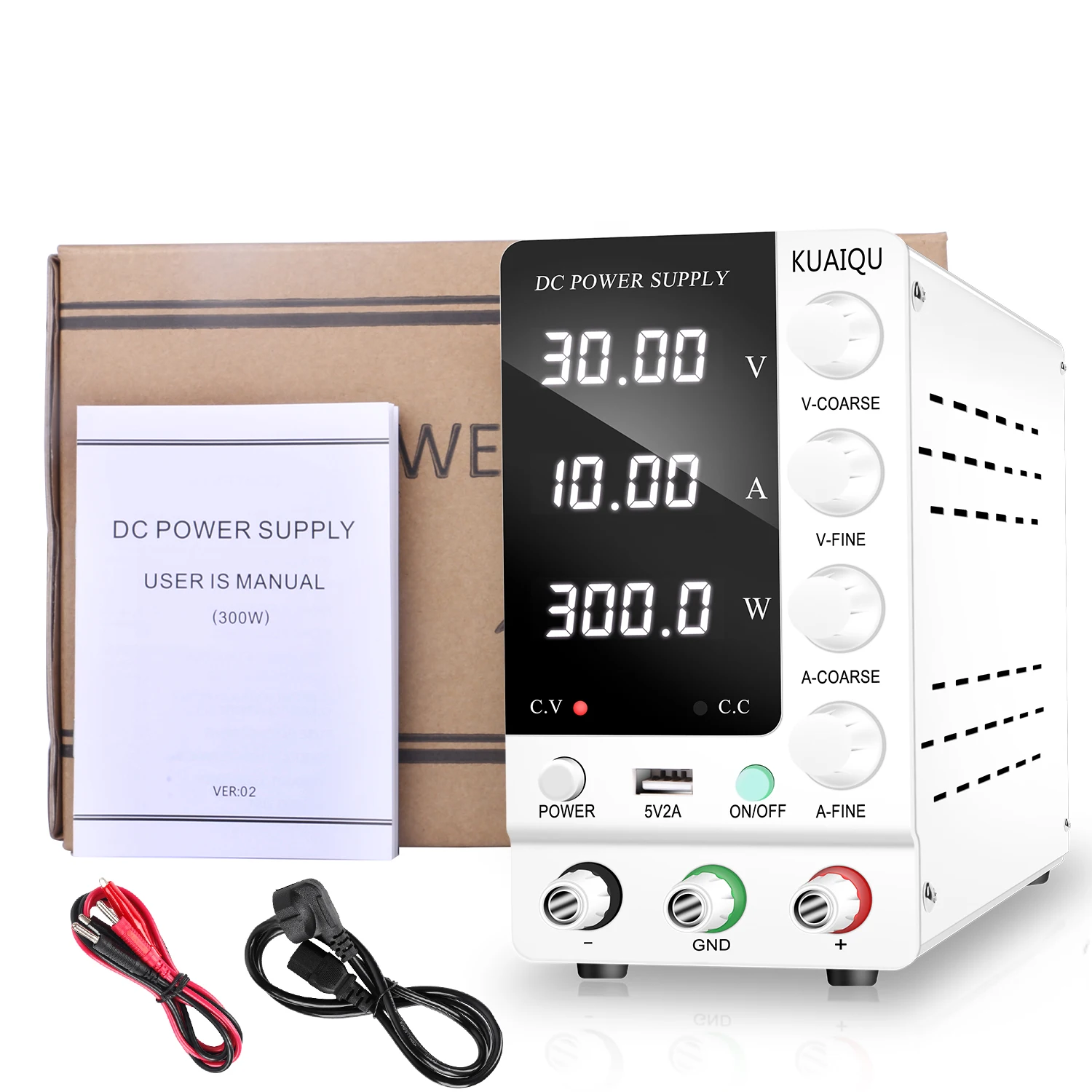

1X Power supply
1X Power cable(EU/AU/UK/US)
1X output line(gift)
1X Instruction Book
1X Box
