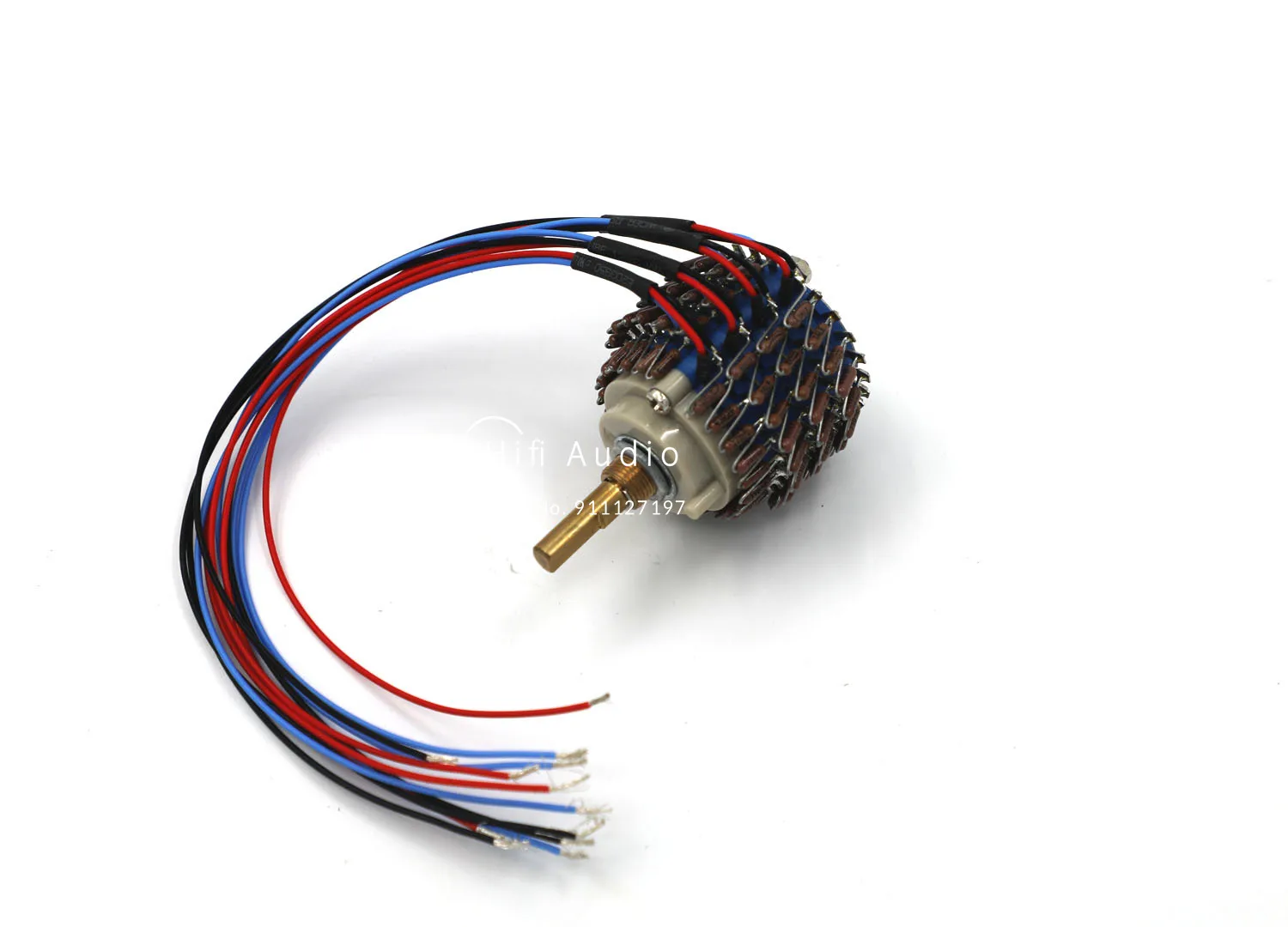

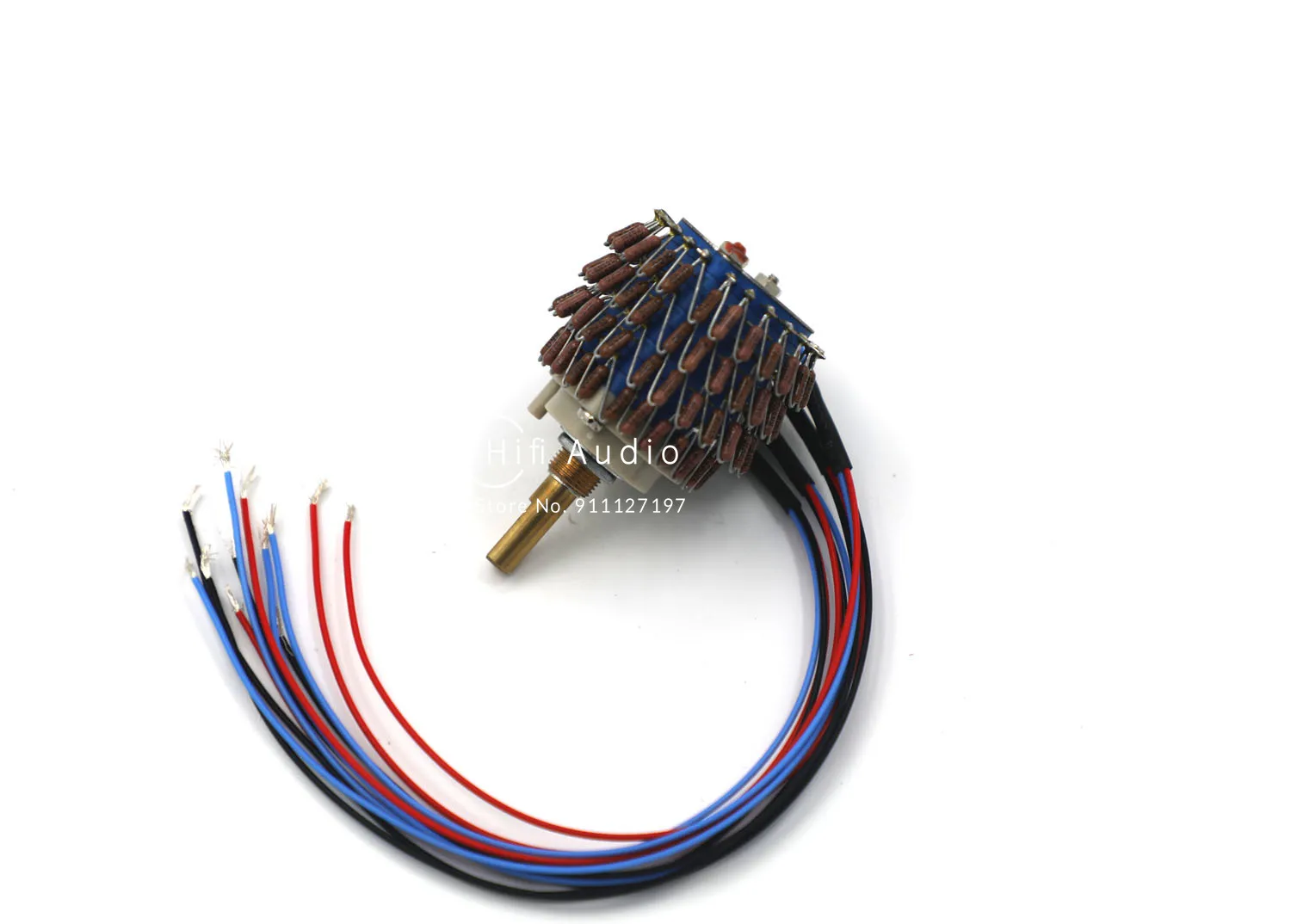

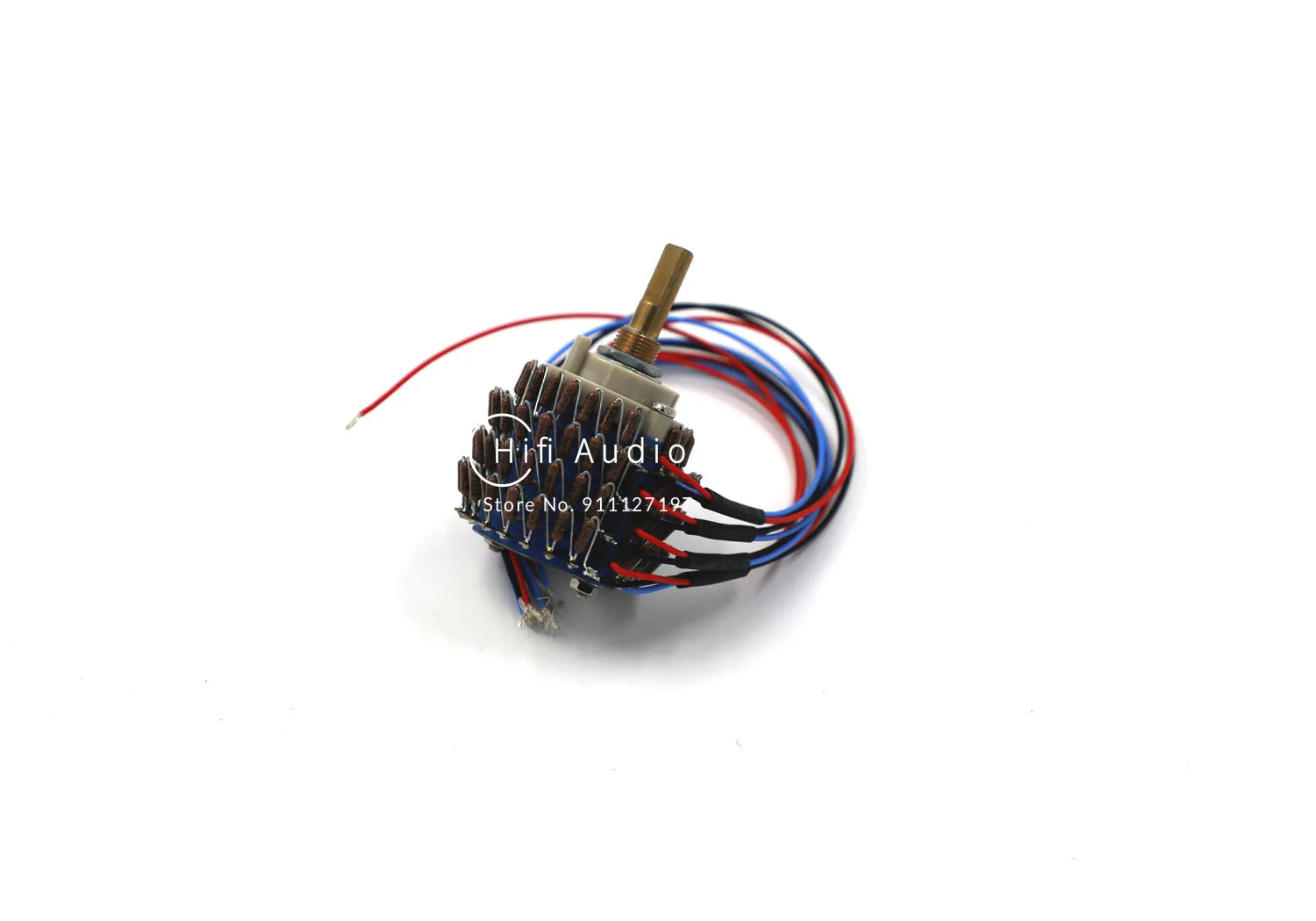

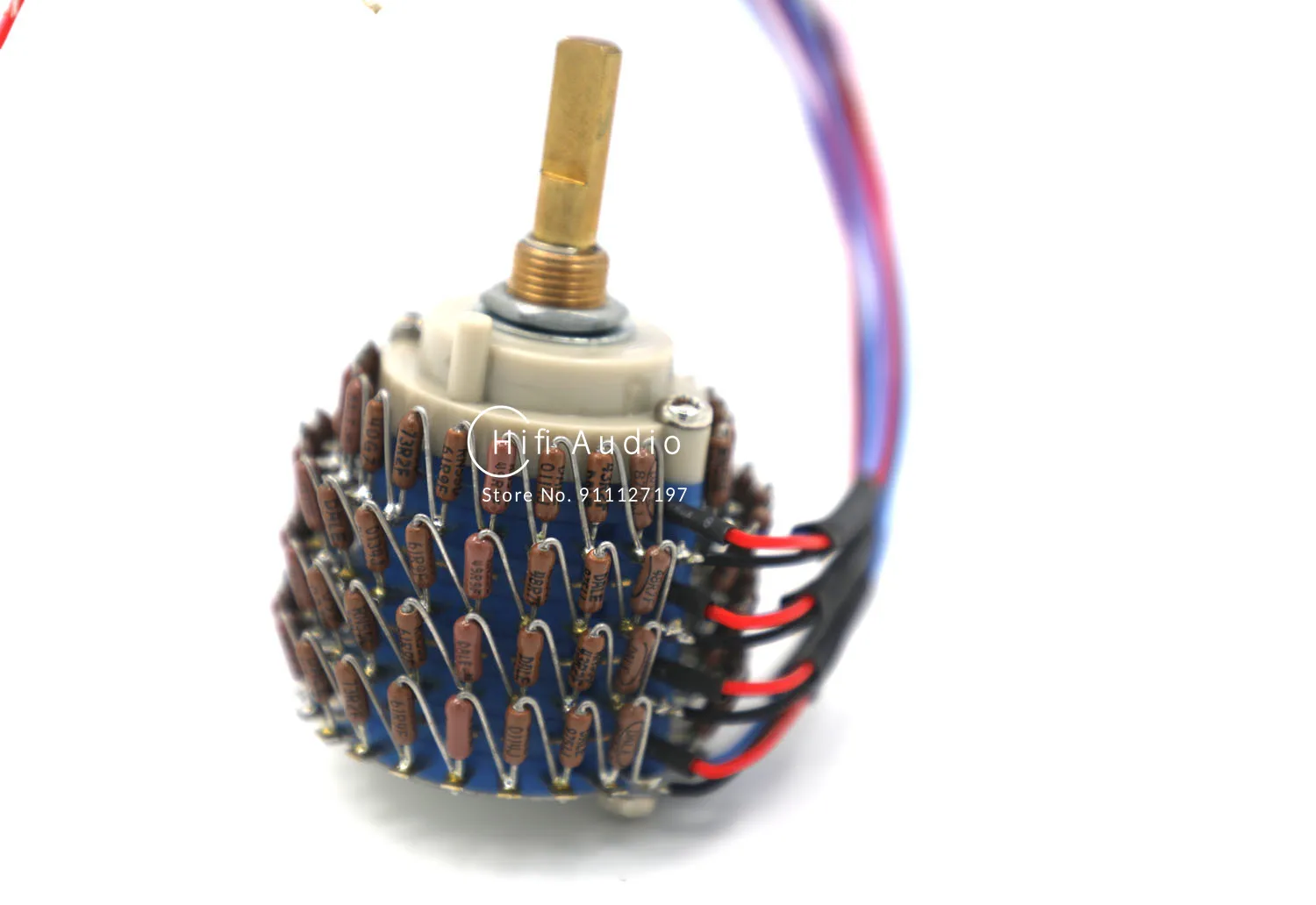

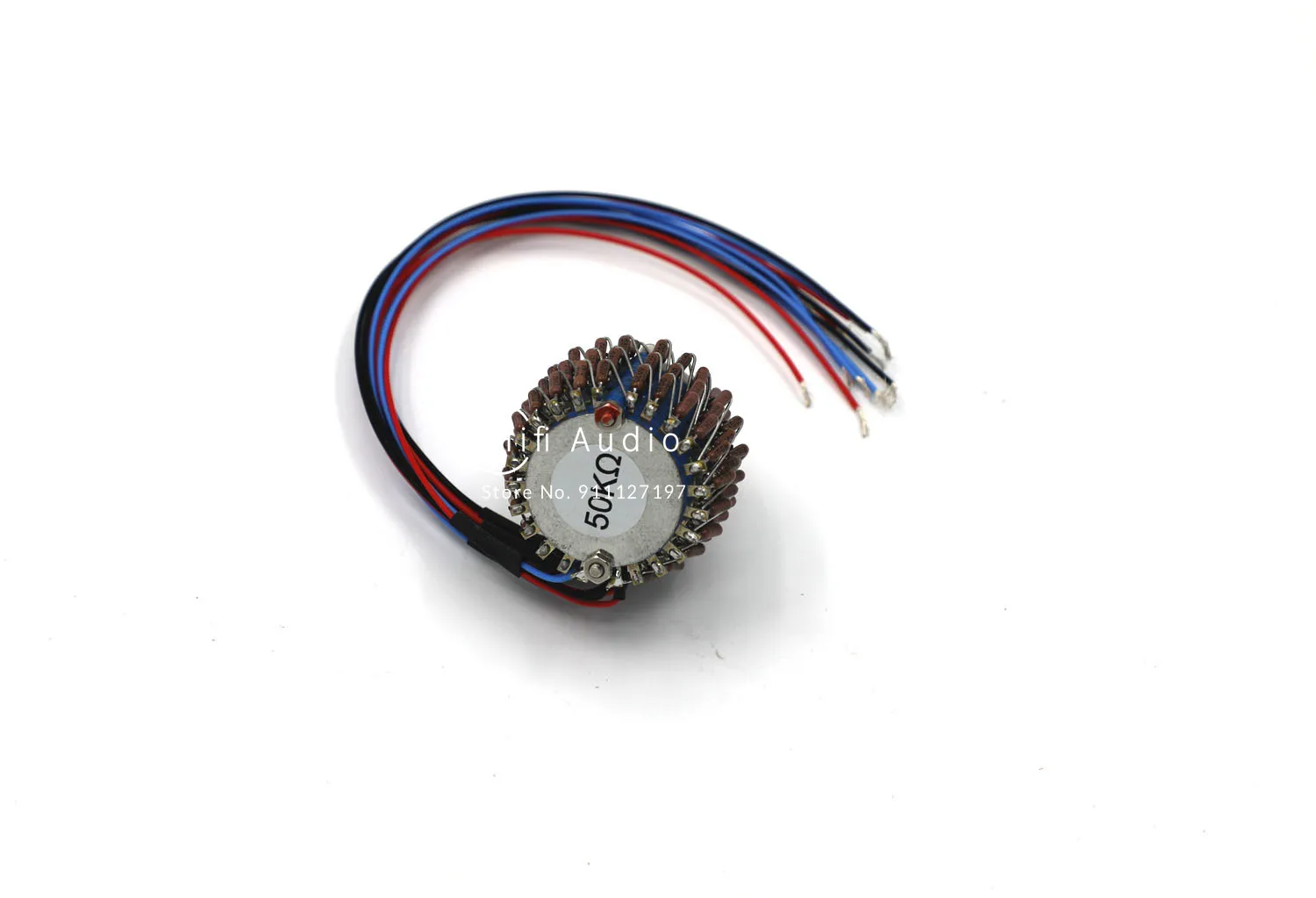

Serial type Balanced potentiometer




product description:

  This product uses low-noise and high-precision Vishay Dale all-brown resistors. The dual-channel is guaranteed to be within 1%, and the silver-containing solder wire is carefully welded.

  The switch frame is a Taiwanese product. It is sealed and silver-plated. It is noiseless when switching first and then off. The hand feel and quality are very good.


Installation size:

4.5cm (length)×4.4cm (diameter)

Handle length: 1.2CM, installation aperture: 9MM

Attenuation range:



-60db~0, common volume area step: 2db, the last few steps have a large span (volume area that is generally not used), generally use around 9 steps as the appropriate volume,)
