body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Model: SM8124A
Internal resistance measurement range: 0.2ohm, 2ohm, 20ohm
Internal resistance resolution: 0.2ohm (0.0001ohm), 2ohm (0.001ohm), 20ohm (0.01ohm)
Voltage measurement range: 0~2V, 2V~20V, 20~200V
Voltage resolution: (0~2V)1mV, (2V~20V)10mV, (20V~200V)100mV

Working environment temperature: -10~+40C

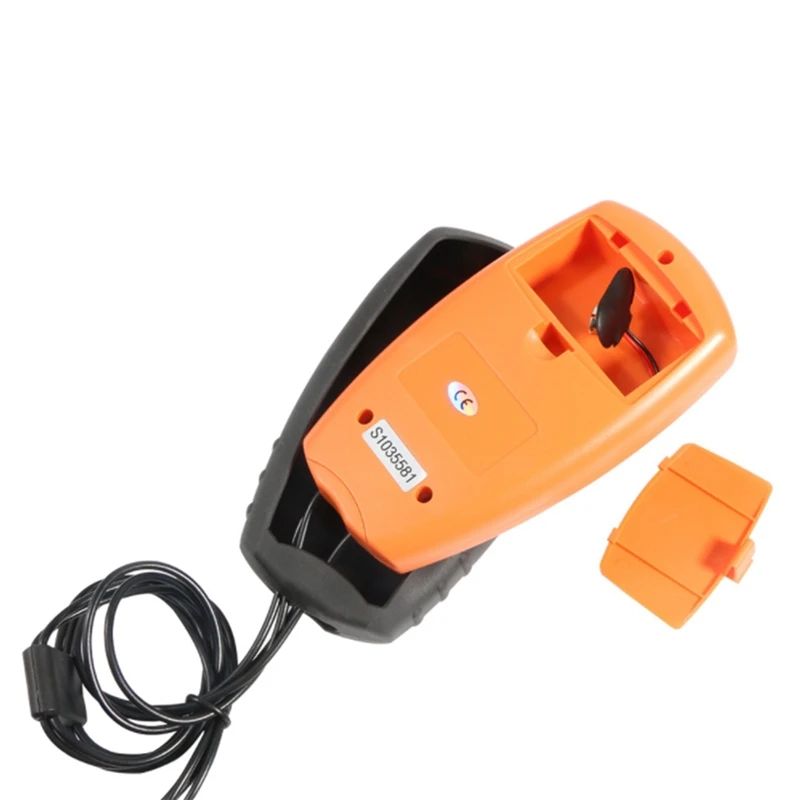

Power supply: a 9V battery (not included)
Display: LCD
Low voltage warning
size: 130x72x30mm
Material:plastic
colour:Orange

Package Contents:

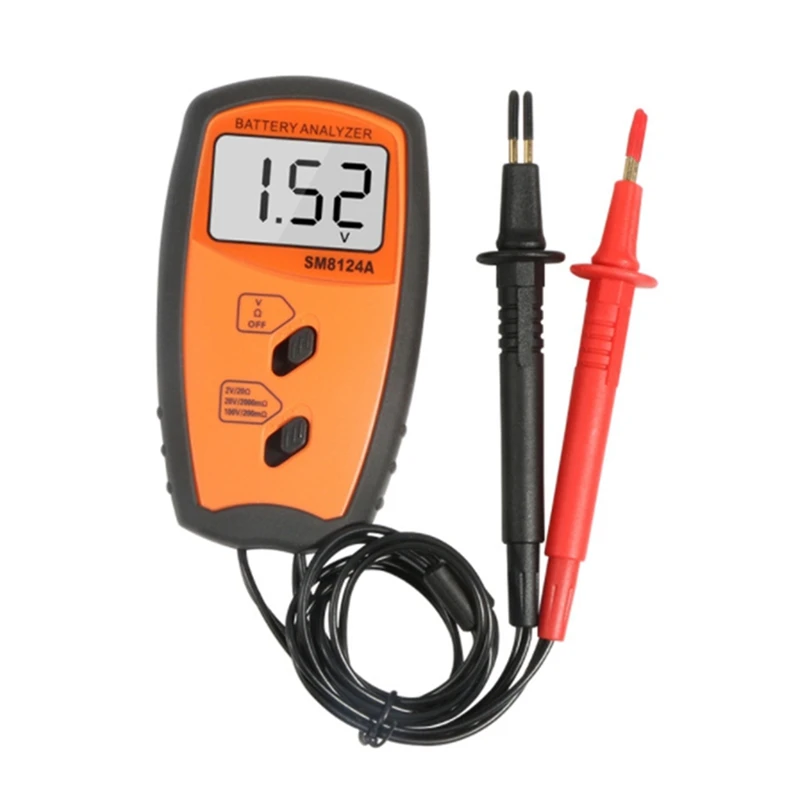

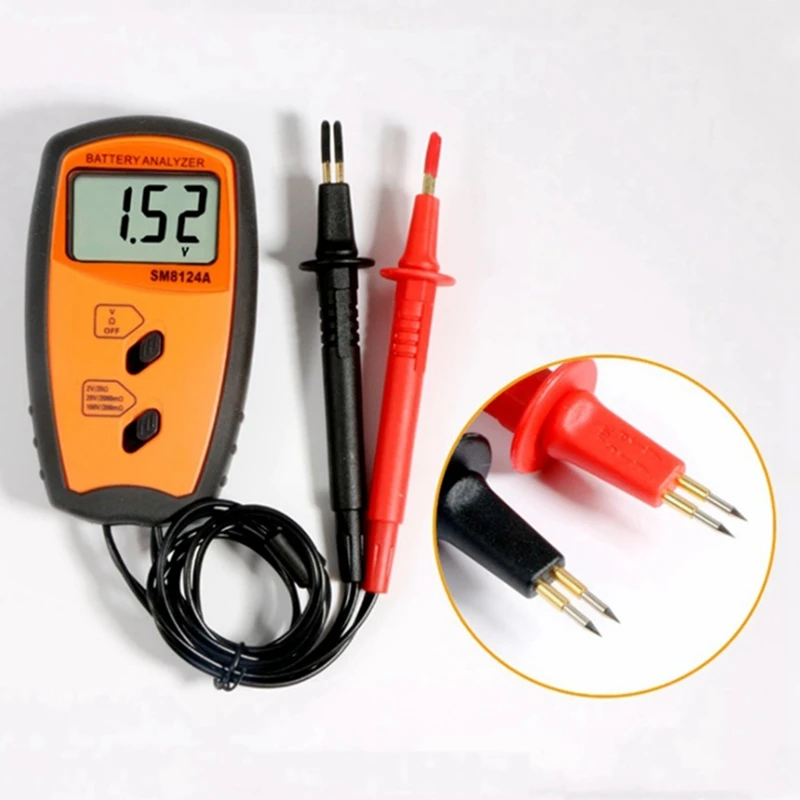

1 x Battery Impedance Meter SM8124A

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
