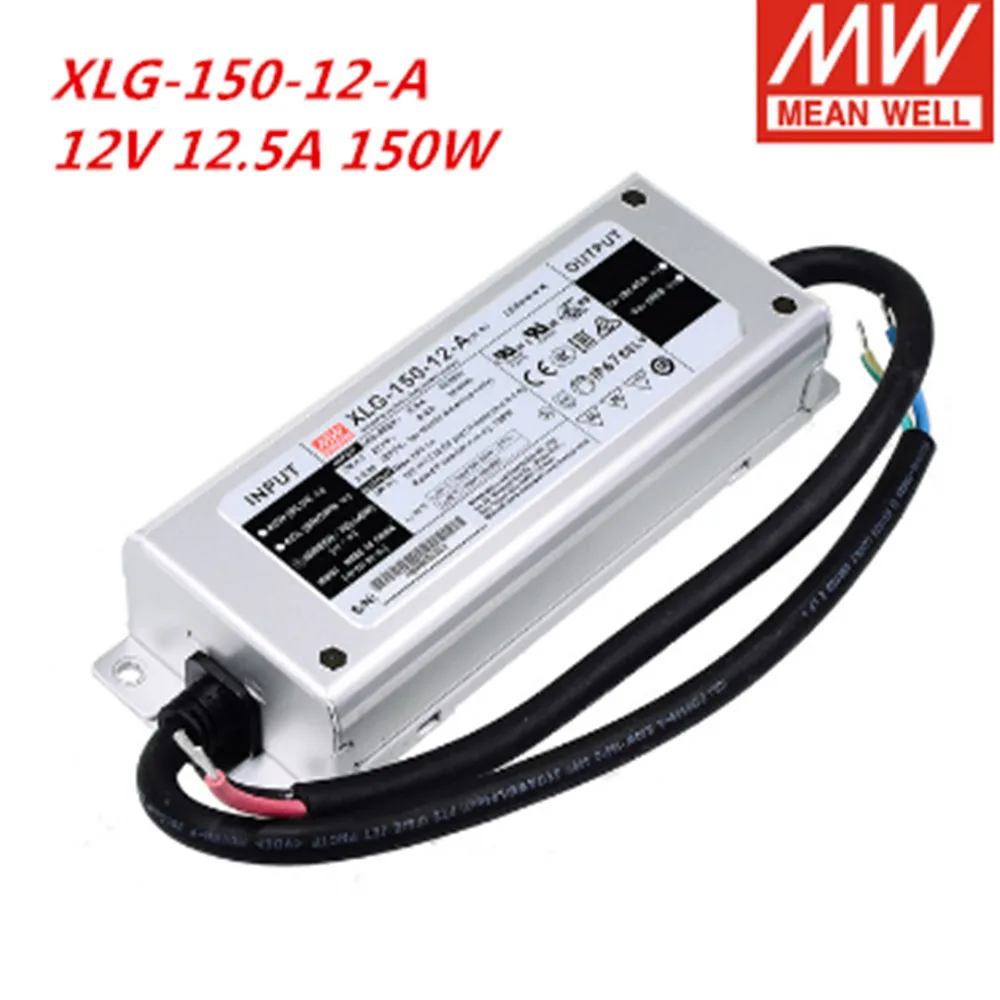

MEAN WELL XLG-150 12V 24V 27-56V 2700mA 1400mA 2800mA constant power LED driver IP67 150W adjustable Supply XLG-150-H-AB | Лампы и

MEAN WELL XLG-150 12V 24V 27-56V 2700mA 1400mA 2800mA constant power LED driver IP67 150W adjustable Supply XLG-150-H-AB | Лампы и

Description　:
For LED luminaires application, MEAN WELL officially releases the new generation waterproof LED driver series—XLG series. The whole XLG series, which has been highly expected by the market, covers from 25W to 240W. It can be used for LED Bay light/Streetlight/Horticulture lighting and flood light applications. XLG series applies the constant current and constant power design, which remarkably enhances the convenience of integrating model selection. The design of XLG Series brings the benefits in reducing the confusion of model selection and stock pressure aspects.

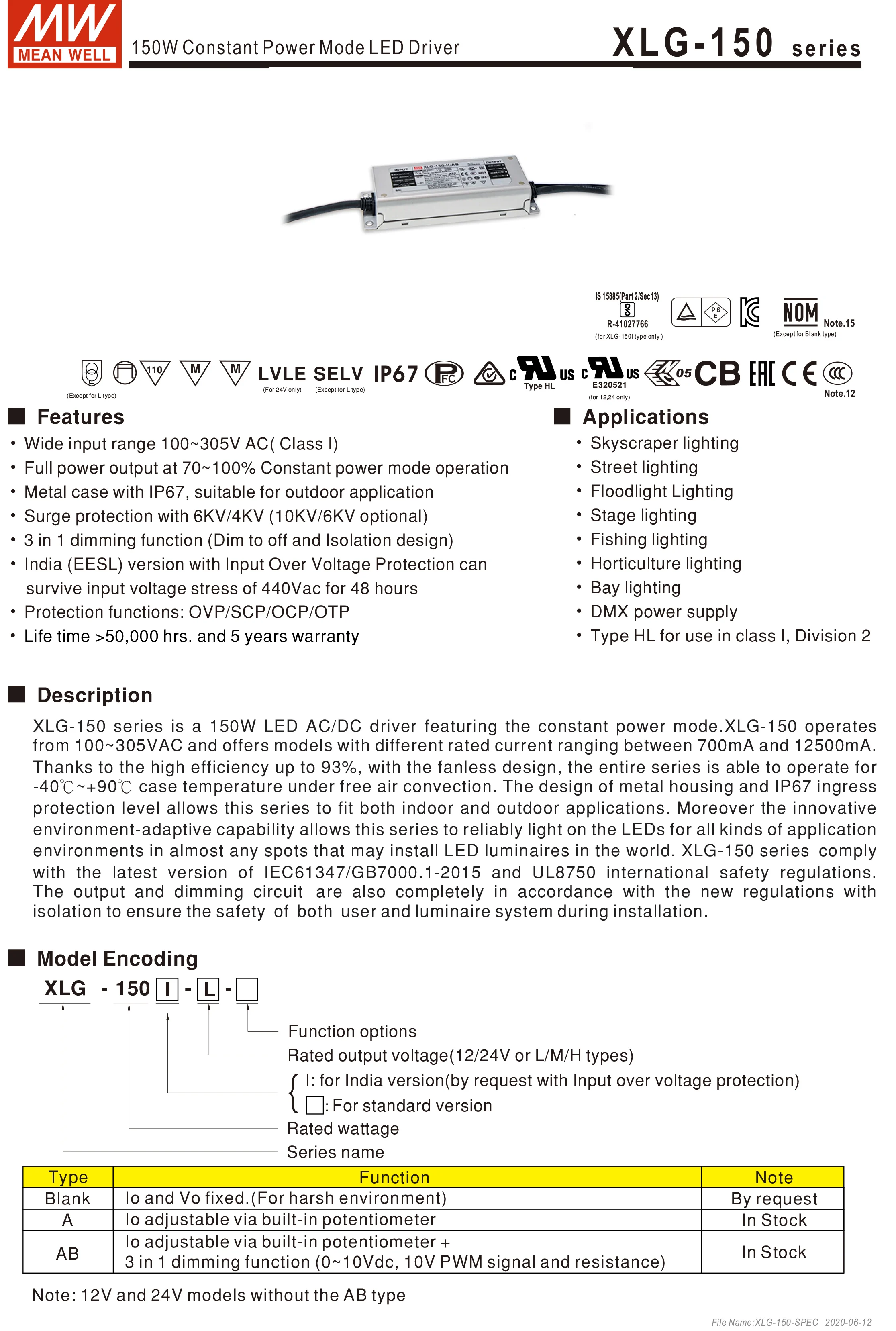

■Features
●Wide input range 100~305V AC( Class I)
●Full power output at 70~ 100% Constant power mode operation
●Metal case with IP67, suitable for outdoor application
●Surge protection with 6KV/4KV (10KV/6KV optional)

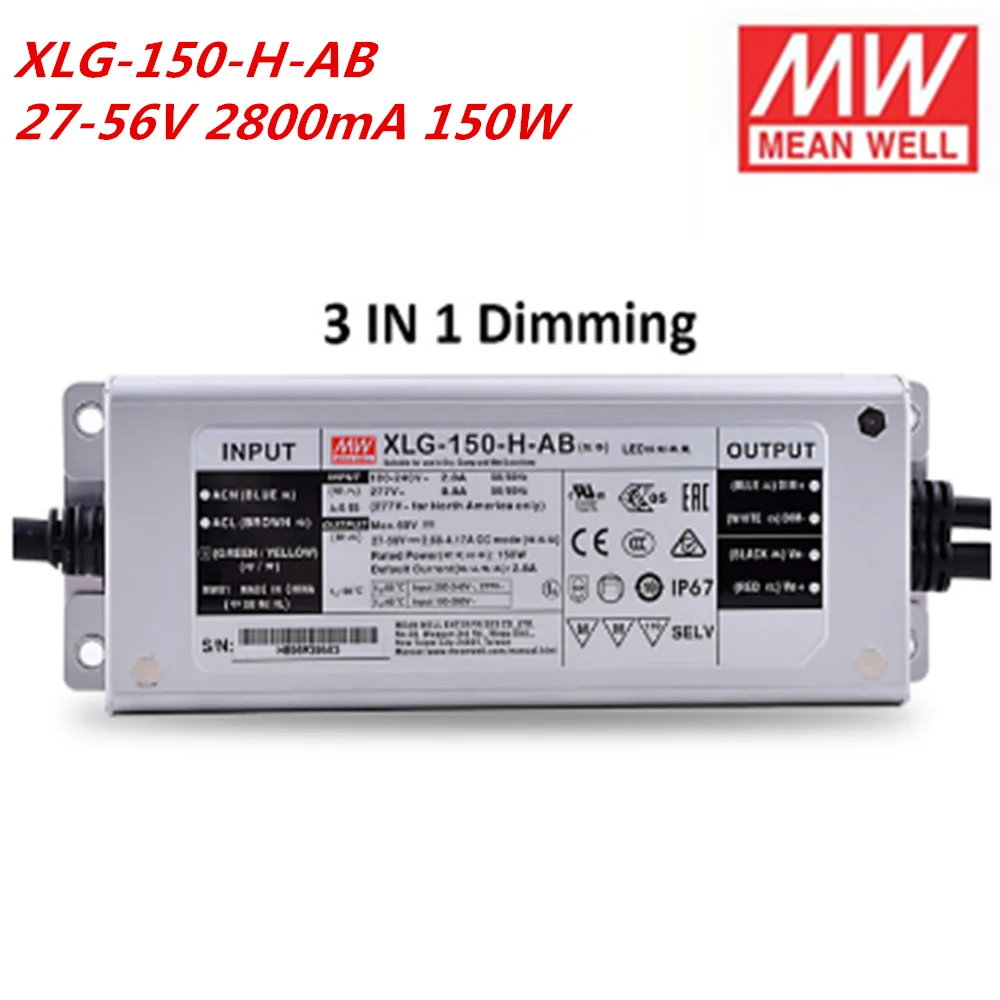

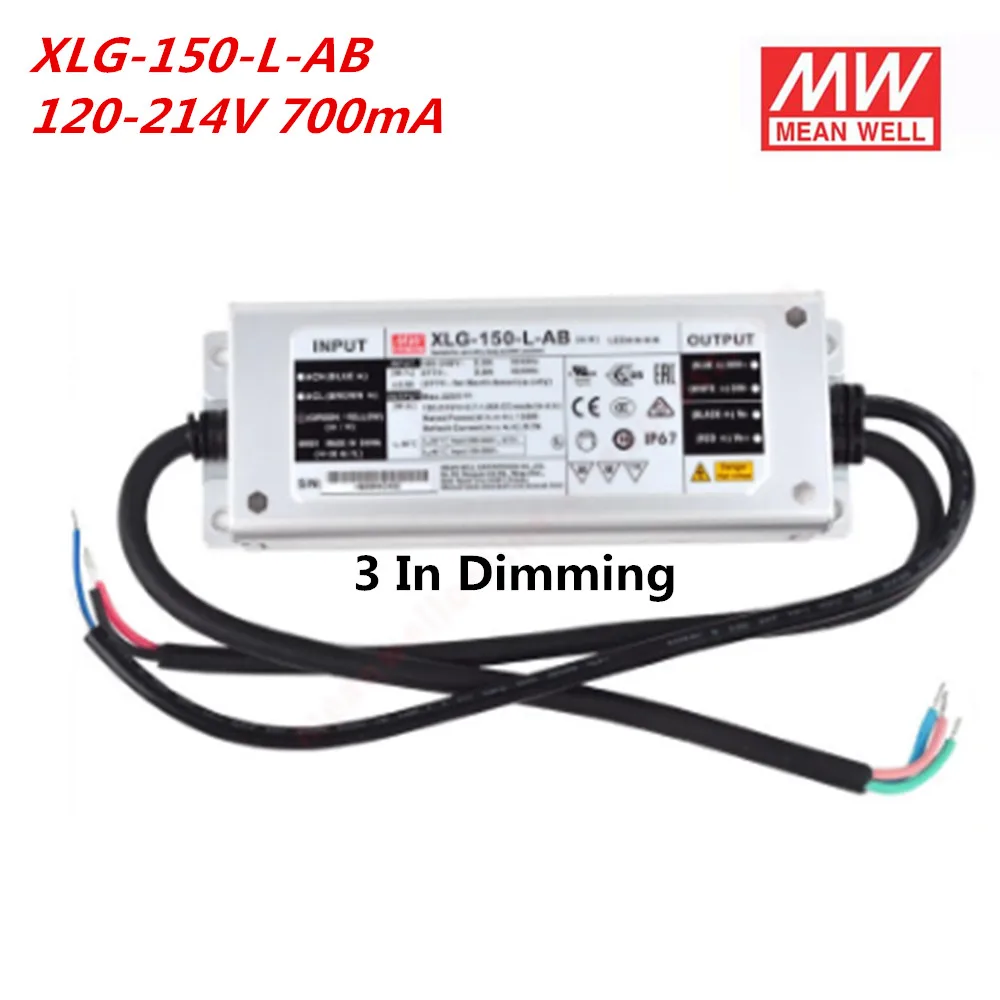

●3in 1 dimming function (Dim to off and Isolation design)
●India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
●Protection functions: OVP/SCP/OCP/OTP

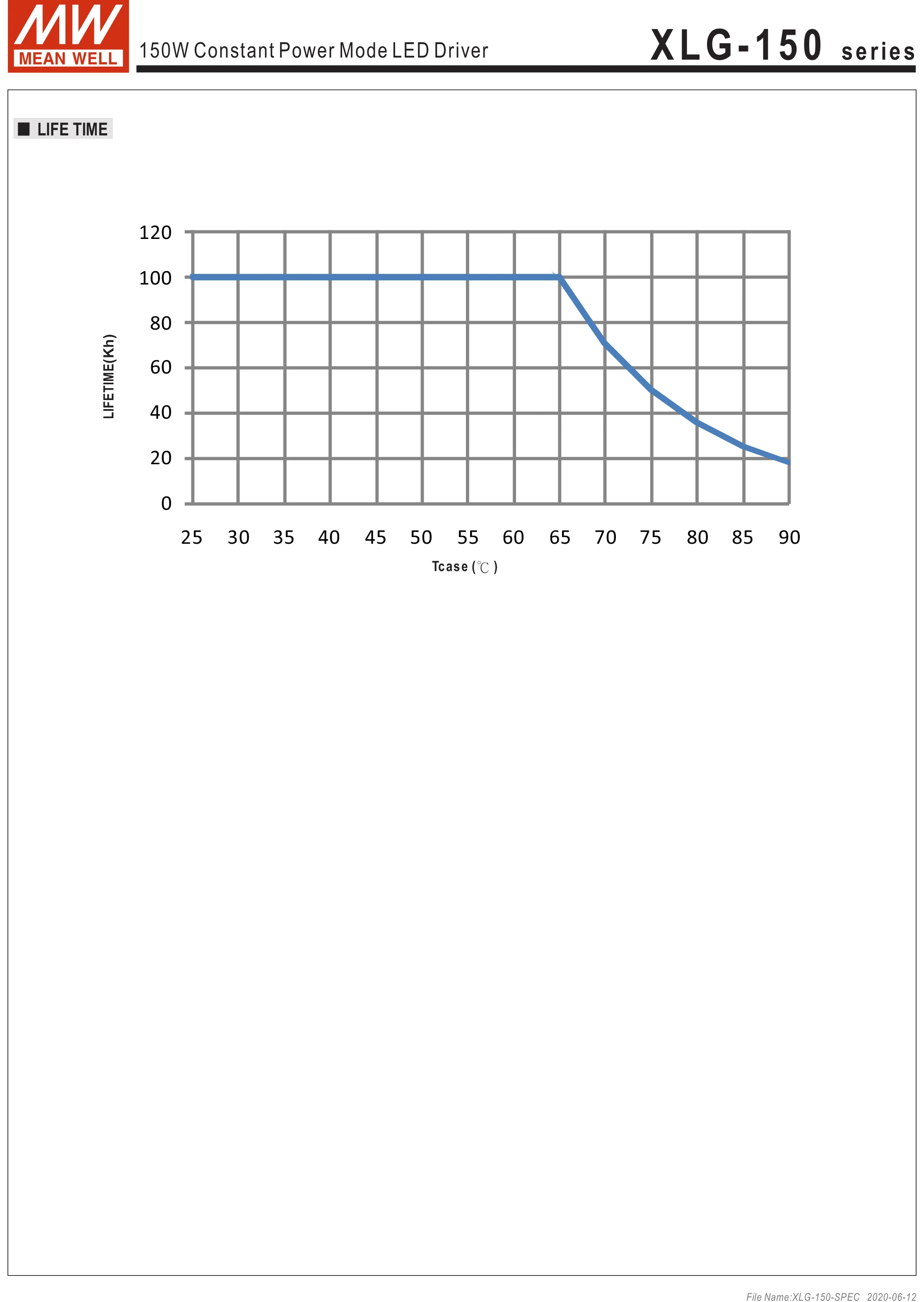

●Life time >50,000 hrs. and 5 years warranty

■Applications
●Skyscraper lighting
●Street lighting
●Floodlight Lighting
●Stage lighting
●Fishing lighting
●Horticulture lighting
●Bay lighting .
●DMX power supply
●Type HL for use in class I, Division 2

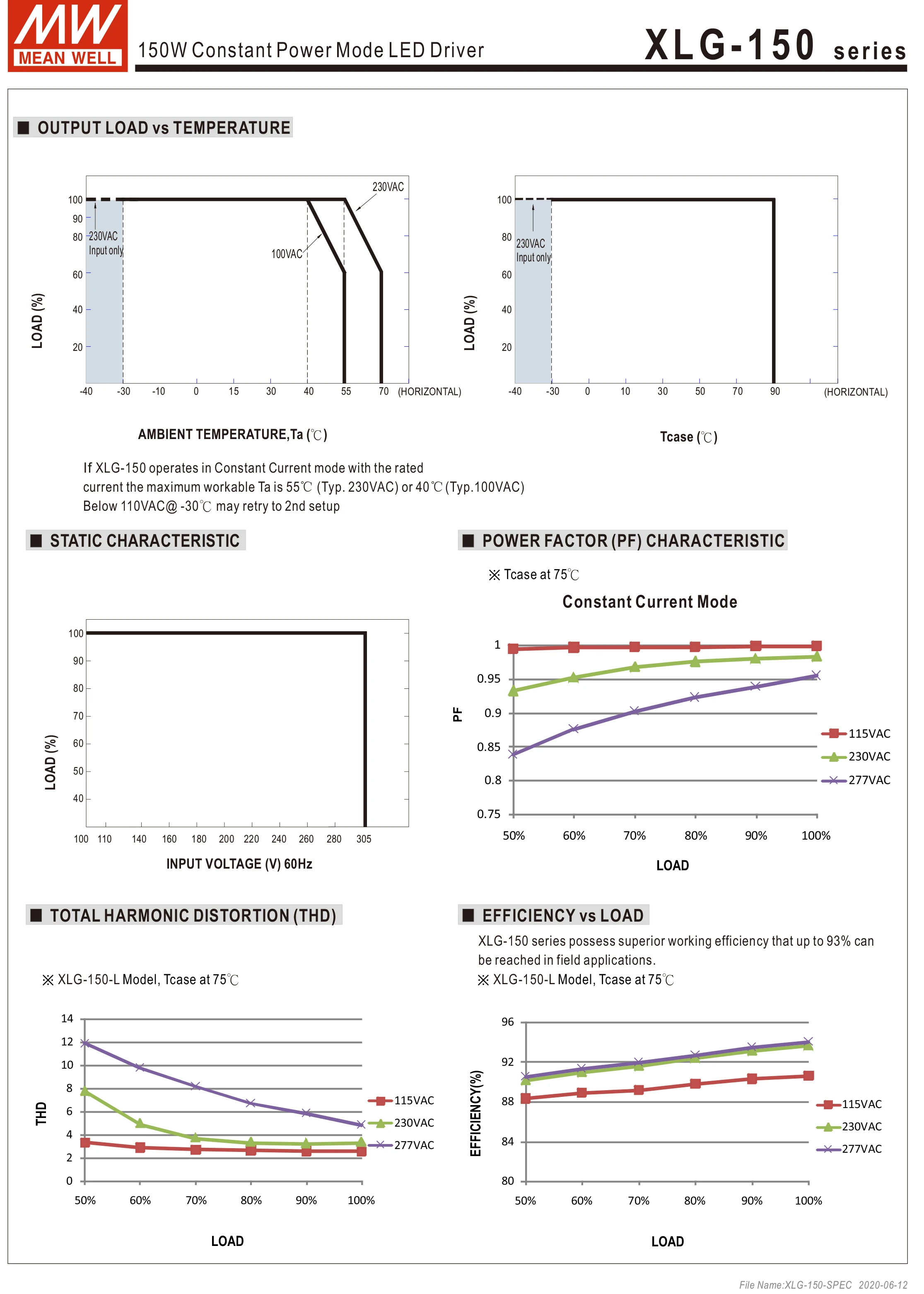

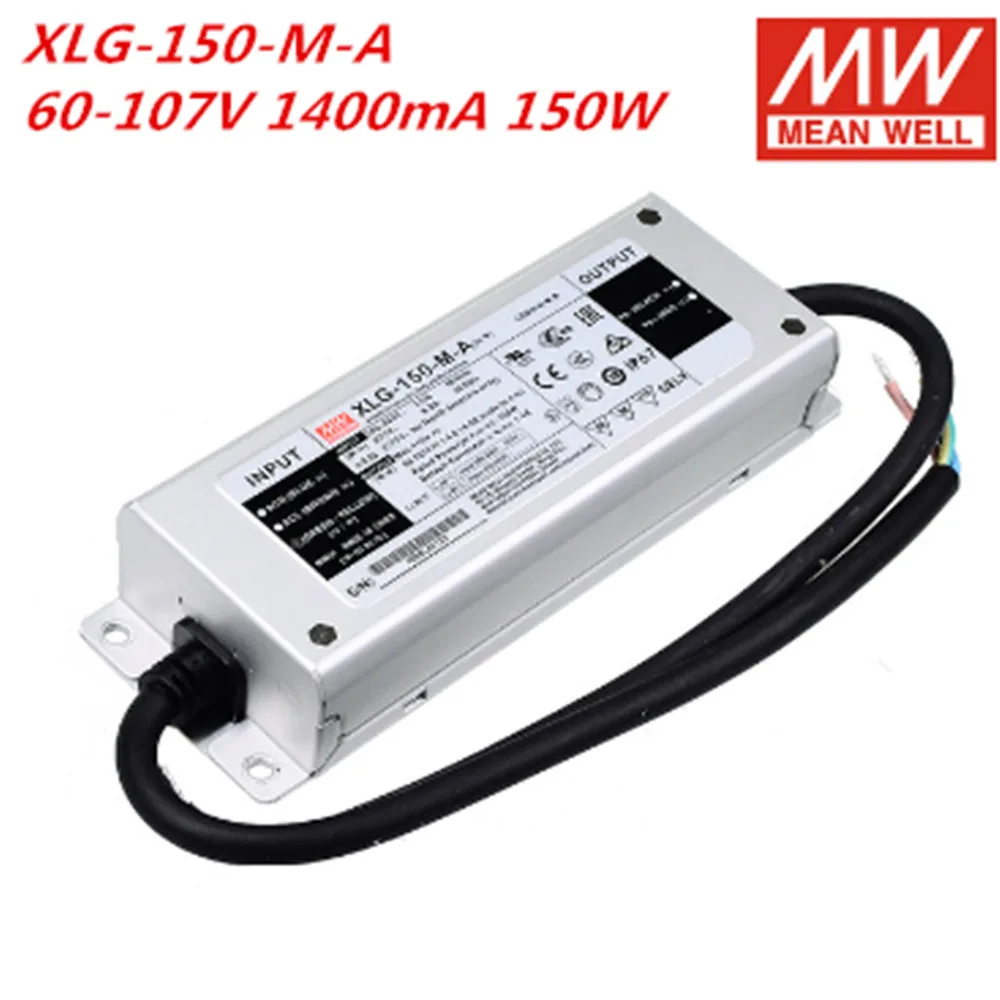

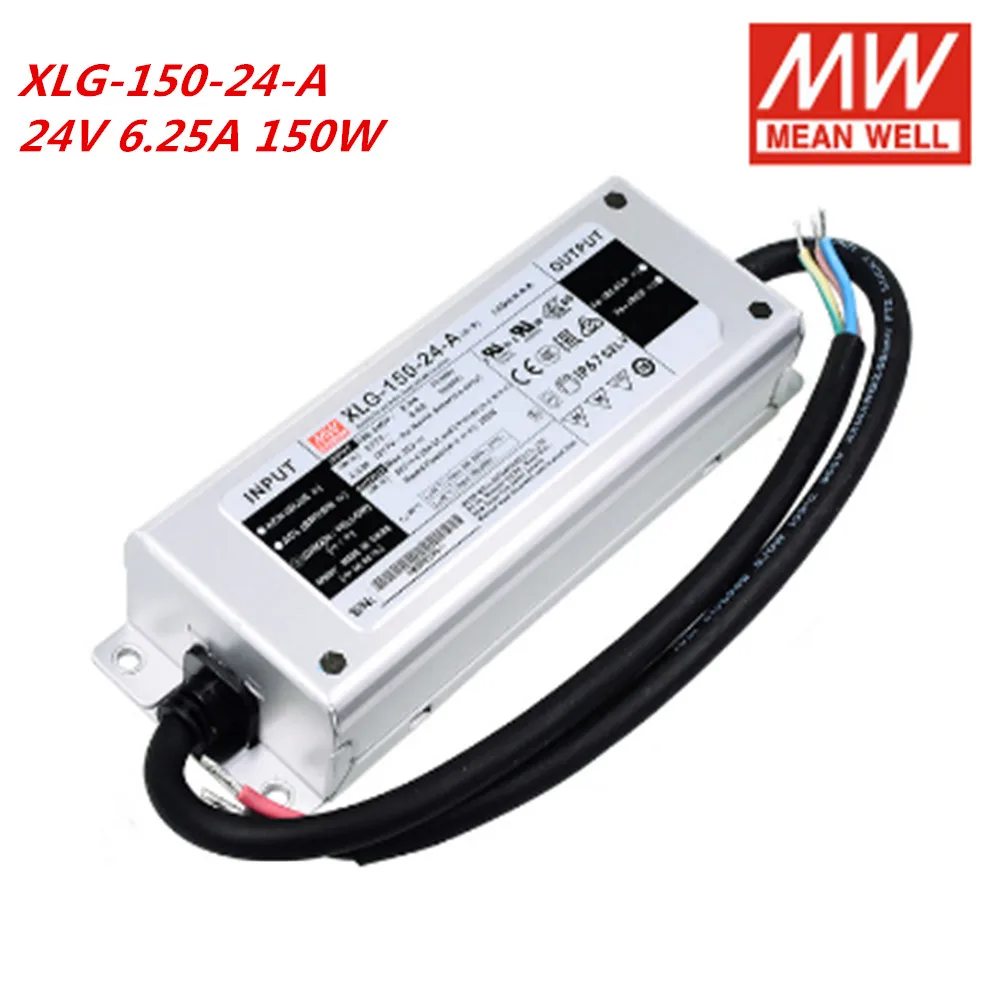

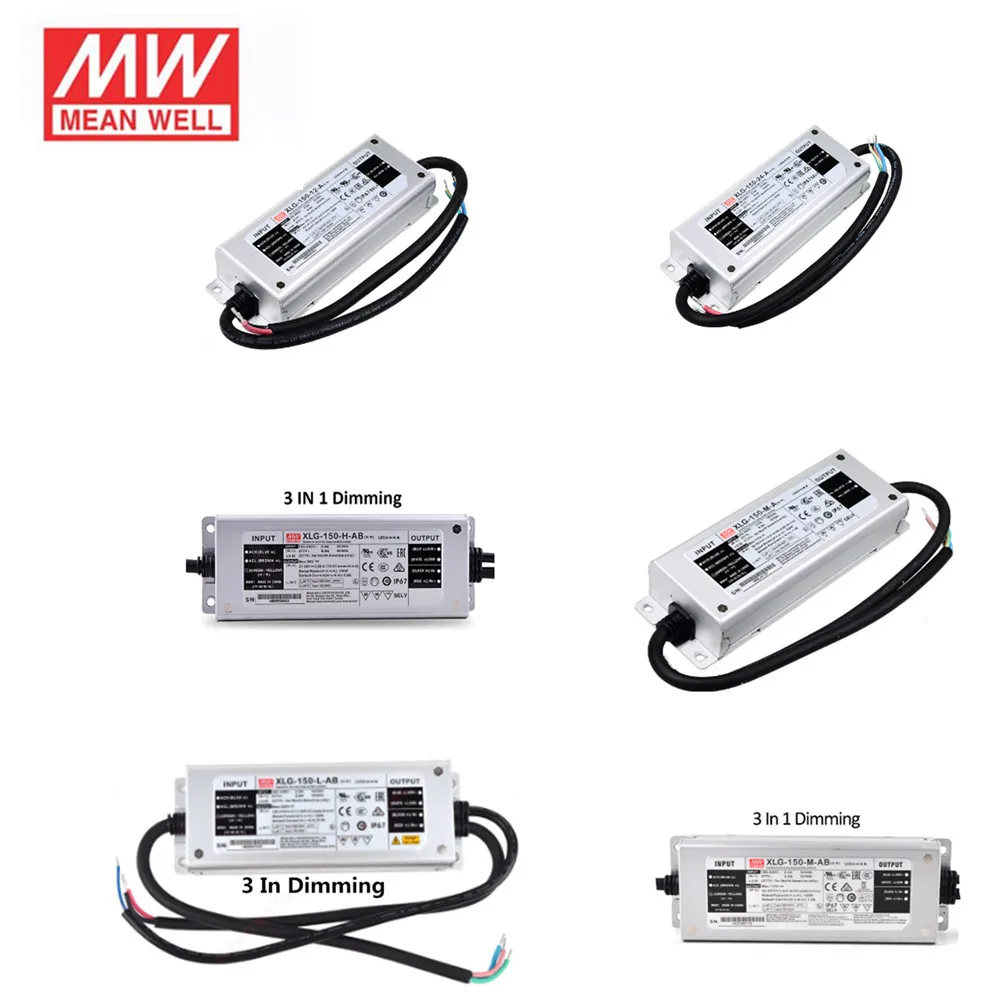

XLG-150 series is a 150W LED AC/DC driver featuring the constant power mode.XLG-150 operates from 1 00~305VAC and offers models with different rated current ranging between 700mA and 12500mA.Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40C ~+90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the L EDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-1 50 series comply with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
