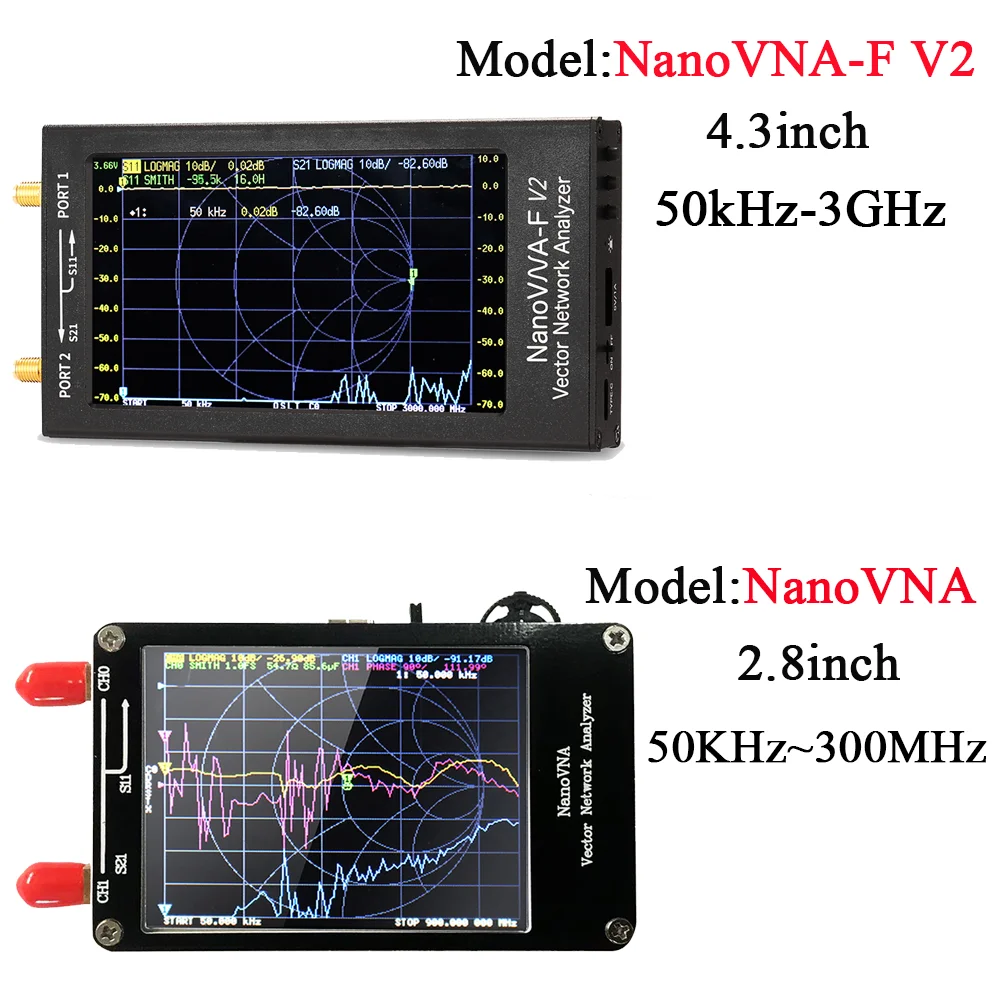

NanoVNA F V2

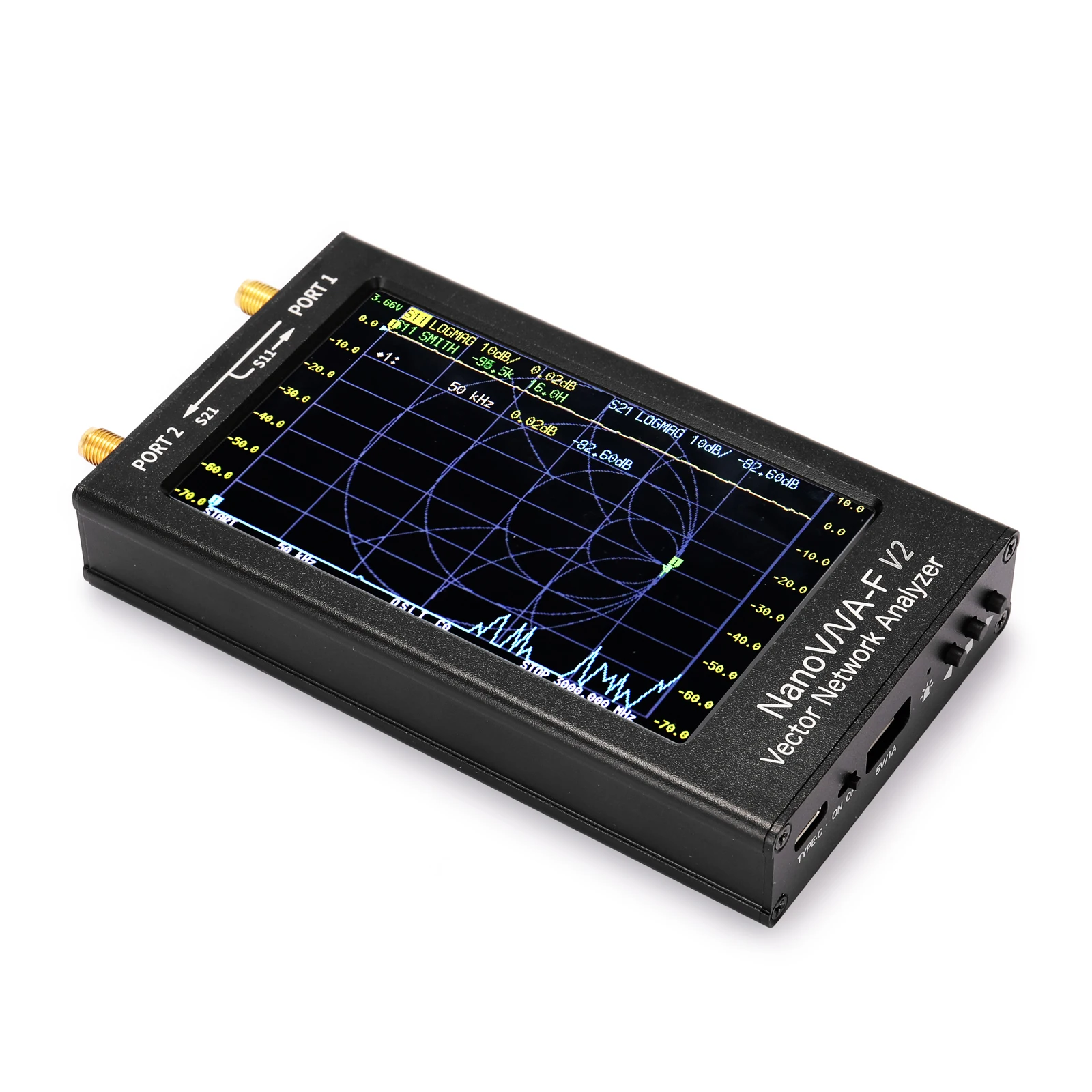

NanoVNA-F V2 portable vector network analyzer is a new product developed on the basis of NanoVNA-F. It uses a 4.3-inch IPS LCD display and an aluminum alloy case. It is equipped with a 5000mAh large-capacity lithium battery as standard. Support touching screen and side button operation, support Chinese and English interface. The design of this product is based on edy555's NanoVNA and OwOcomm's S-A-A V2, and deep optimization of the software is made on the basis of the previous product NanoVNA-F. The operation interface is compatible with NanoVNA-F, the measurement ranges is extended to 3GHz, and the dynamic ranges is larger. The measurement is more accurate and the operation is more convenient.

Features:
4.3-inch IPS LCD display, resolution 800*480, ultra-wide viewing angle, long-term use does not hurt your eyes.
All aluminum alloy case, sturdy and durable, effectively shielding electromagnetic interference to ensure measurement accuracy.
The radio frequency interface is SMA, which is convenient for connecting various tested parts.
Full touching screen design, with 3 side buttons at the same time, flexible and convenient operation.
Support Chinese and English interface.
Optimized UI design, convenient for users to perform measurement operations.
Support screen brightness adjustment.
The firmware can be upgraded through a virtual U disk, no programmer is needed, and the firmware can be upgraded through the included USB type-c data cable.
Standard fine quality calibration parts and RG405 phase-stable cable to ensure calibration accuracy.
Designed with USB power output interface, which can support 5V/1A power output.
Using 2A high current recharging IC, the recharging time is shorter.
Supporting host computer software, the host computer supports Chinese and English interfaces.
The screen images of the device can be obtained by taking a screenshot of the host computer.
Function: can measure S parameters, voltage standing waves ratio, Smith chart, phase, group delay, etc.

Specifications:
Material: aluminum alloy(case)
Main color: black
Battery: 1 * lithium battery, 5000mAh
Frequency: 50kHz-3GHz
RF output power: -9dBm (error within 1GHz: ±1dB)
Frequency accuracy: <0.5ppm
S21 dynamic ranges: 70dB (1.5GHz), 60dB (3GHz)
S11 dynamic ranges: 50dB (1.5GHz), 40dB (3GHz)
2-port return loss: 20dB typ (1.5GHz), 13dB min (3GHz)
Number of calibration points: 101 points
Number of scanning points: 101 points
Number of traces: 4
Number of mark points: 4 (the mark point bar can be moved up and down on the screen)
USB interface: USB Type-C communication mode: CDC (serial)
Setting save: 5 groups (after saving, it can be directly recalled when it is used again, no need to recalibrate, and the saved parameters before the last shutdown will be automatically recalled when it is turned on again)
Support calibration result interpolation, can measure without recalibration after adjusting the measurement frequency band
Scan time: about 1.9s/1 time (50kHz~3000MHz full frequency band)

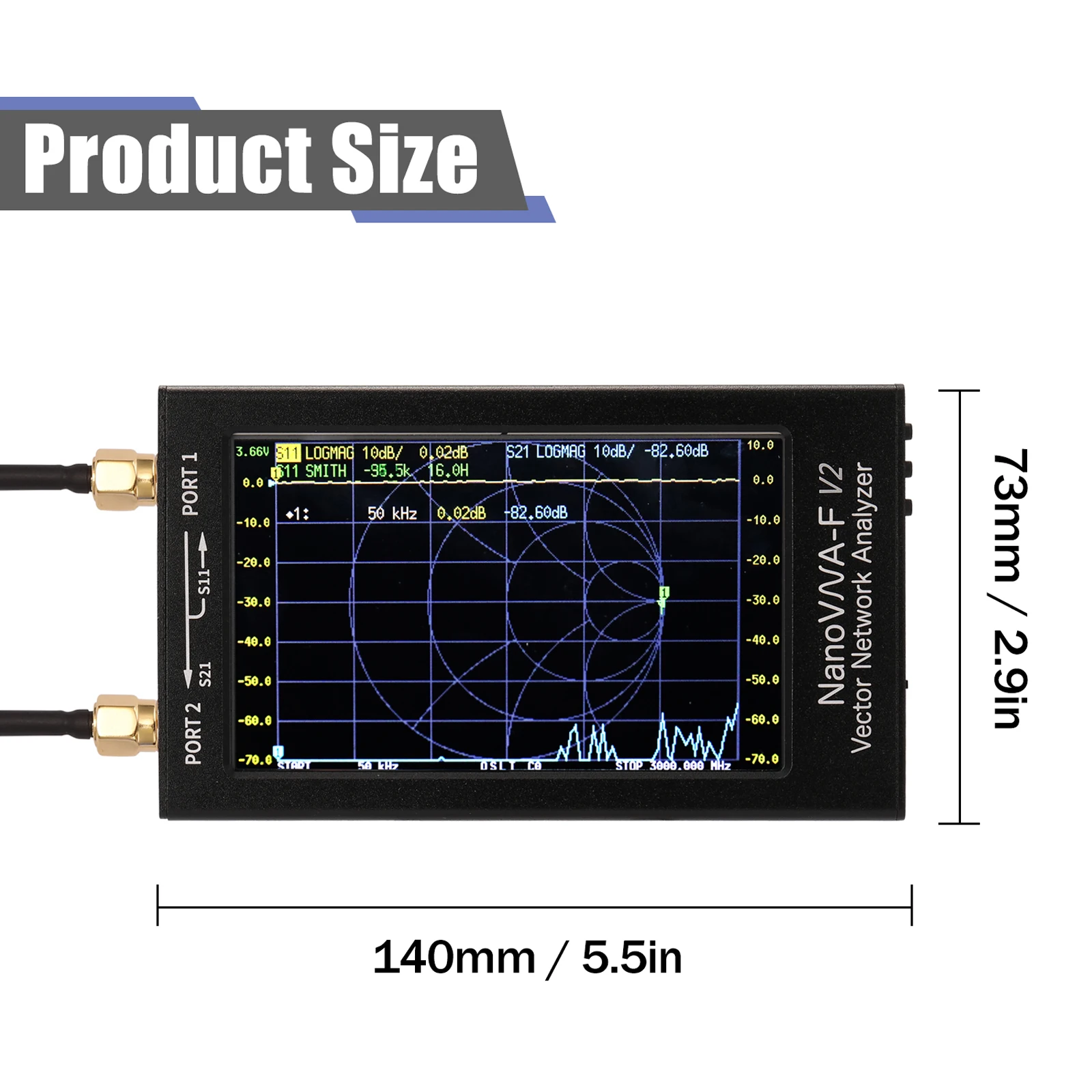

Item size: 140 * 73 * 20mm / 5.5 * 2.9 * 0.8in
Item weight: 270g / 9.5ounce
Packing size: 250 * 150 * 50mm / 9.8 * 5.9 * 2.0in
Packing weight: 500g / 1.1lb

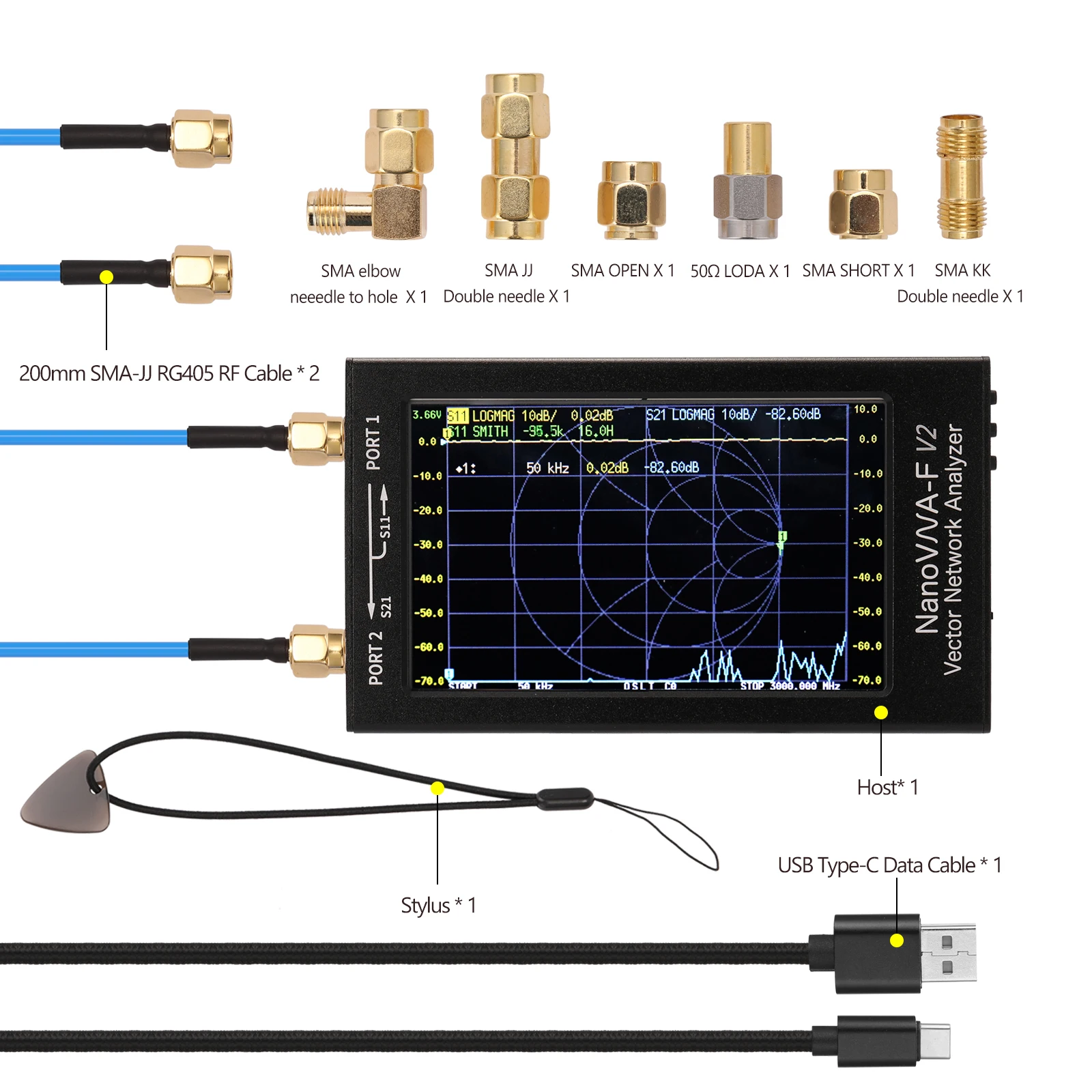

Packing List:
1 * Host
1 * SMA Open Calibration Kit
1 * SMA Short-circuit Calibration Kit
1 * SMA 50Ω Load Calibration Kit
1 * SMA-KK Double-Head Female Hole Adapter
1 * SMA-JJ Double-Head Male Pin Adapter
1 * SMA-JKW Elbow Outer Screw Inner Hole To Inner Screw Inner Needles Adapter
2 * 200mm SMA-JJ RG405 RF Cable
1 * USB Type-C Data Cable
1 * Stylus

2.8inch NanoVNA

Features:
The PC control software can export Touchstone (snp) files, which can be used for various radio design and simulation software.
The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 900MHz.
The metal shield is designed to reduce the external interference and improve the measurement accuracy.
The 50k-300MHz frequency ranges of the si5351 direct output provides better than 70dB dynamic.
The extended 300M-600MHz band provides better than 50dB of dynamics, and the 600M-900M band is better than 40dB of dynamics.
Small and portable, easy to use, this project aims to provide an RF gadget but useful instrument for enthusiast.

Specifications:
Material: PCB
Color: black
Measurement frequency: 50KHz~300MHz (50KHz~900MHz, enable extended firmware)(the products will be updated with the latest firmware before shipping, the actual measurement frequency is 50KHz~900MHz)
RF output: -13dbm (maximum -9dbm)
Frequency accuracy: <0.5ppm
Measurement ranges: 70dB (50KHz-300MHz), (50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware)
Port SWR: <1.1
Display: 2.8 inch TFT (320*240)
USB interface: USB type-C
Communication mode: CDC (serial)
Power: USB 5V 120mA, maximum recharging current 0.8A
Battery: 1 * lithium battery, 600mAh (included)
Number of calibration points: 101 (fixed)
Number of scanning points: 101 (fixed)
Display tracking: 4, Marking: 4, Setting save: 5
PCB size: 85.5 * 54 * 11mm / 3.4 * 2.1 * 0.4in (without connectors and switches)
Package size: 120 * 78 * 40mm / 4.7 * 3.1 * 1.6in
Package weight: 160g / 5.6ounce

Package list:
1 * Host
1 * USB Type-C Data Cable
2 * 30mm SMA Male to Male Cable
1 * SMA Female to Female Connector
