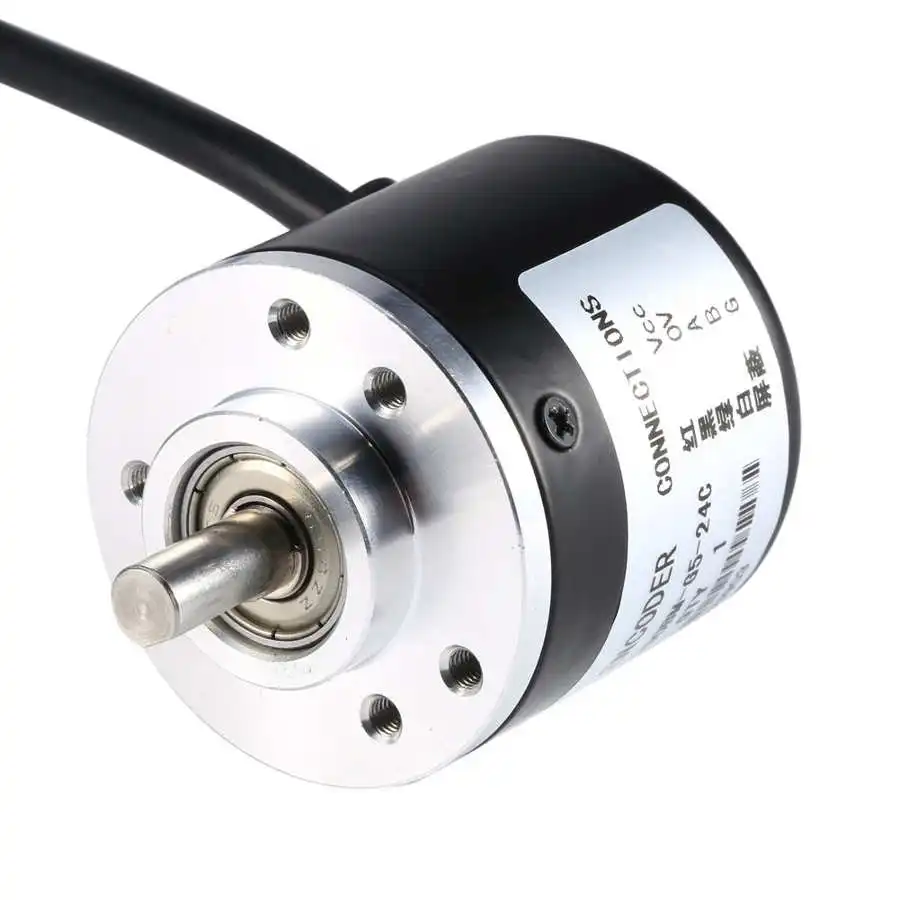

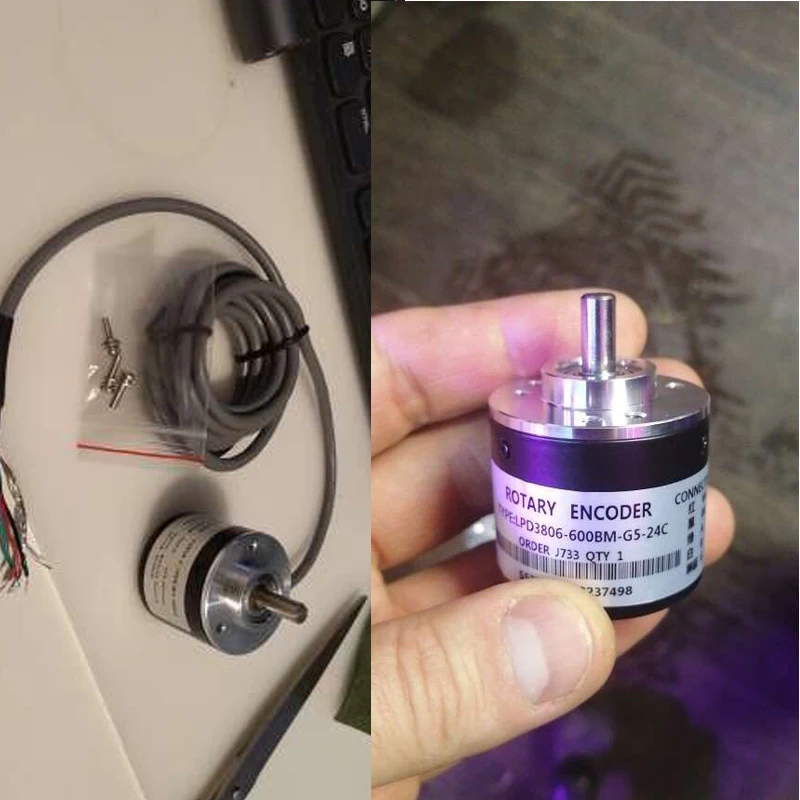

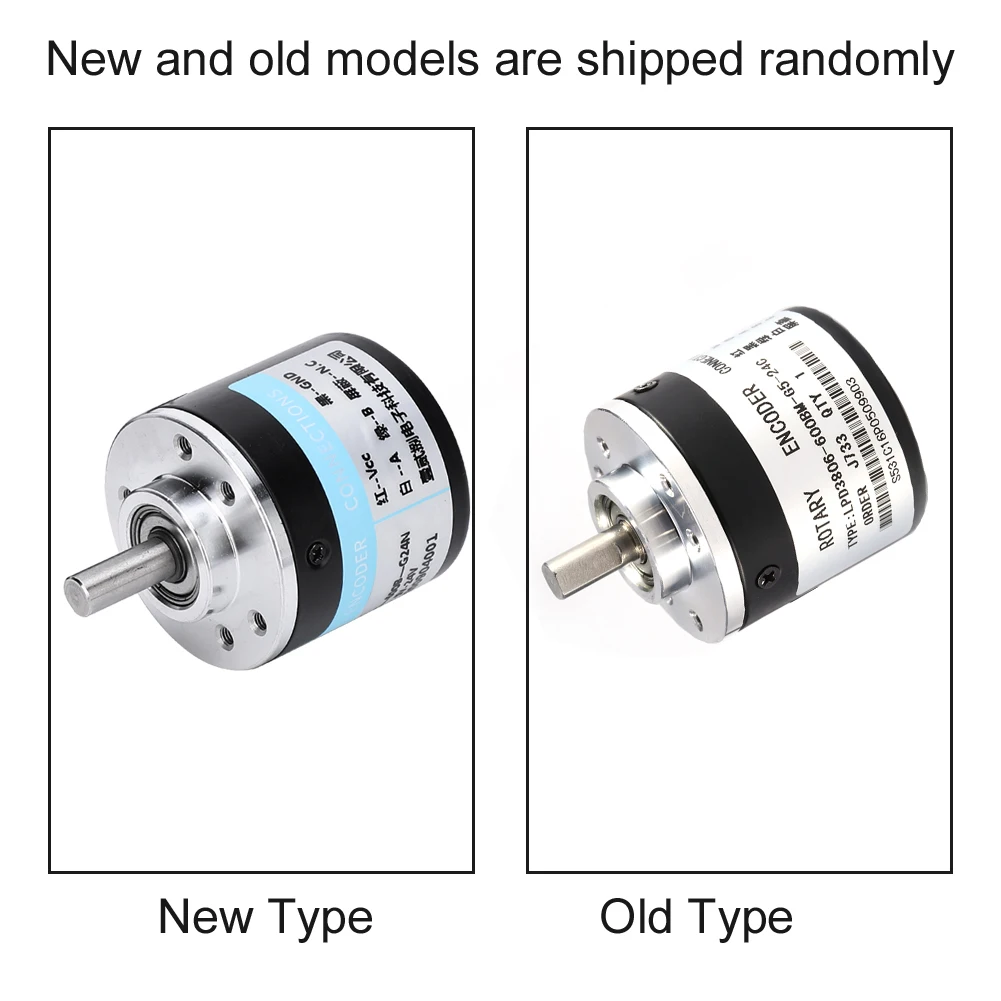

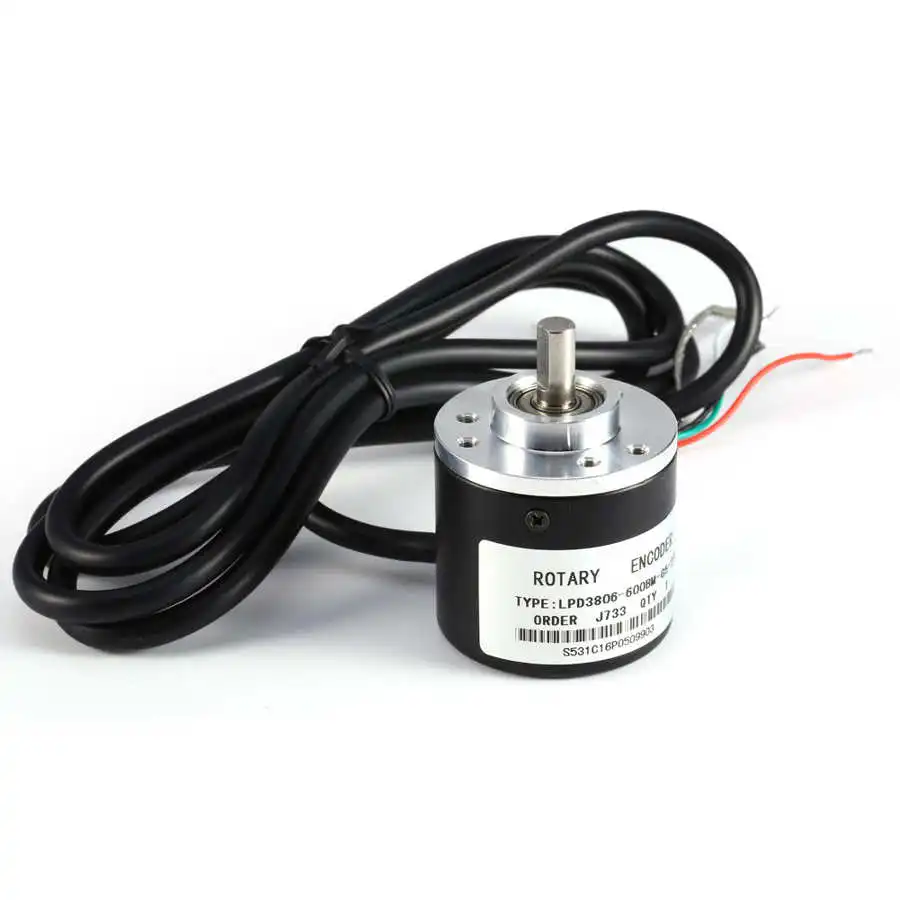

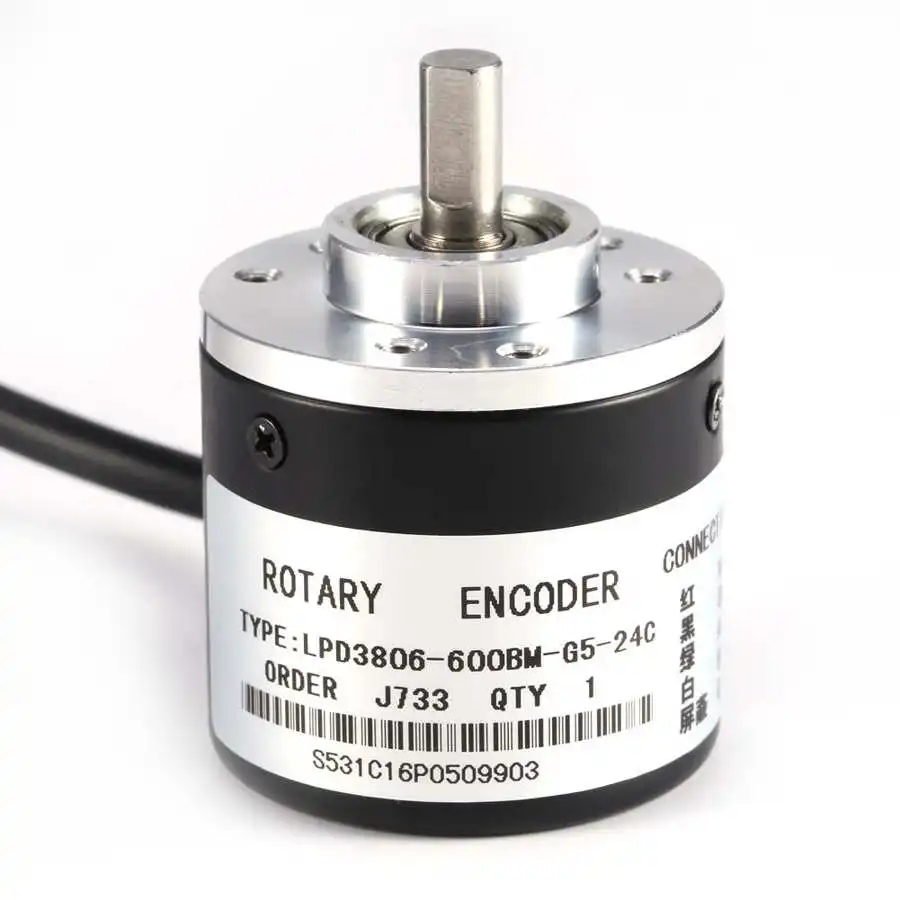

600P/R Magneto-electricity Incremental Rotation Encoder 5V‑24V AB 2‑Phases Shaft 6mm

1pc Incremental Rotation Encoder  600 p/r 6mm Shaft 5-24v

100% brand new

Pulses: 600 p/r (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses)

Power source: DC5-24V

Shaft: 6*13mm/0.23*0.51"

Size: 38*35.5mm/1.49*1.39"

Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type

Maximum mechanical rate: 5000 R / min

Response frequency: 0-20KHz

Cable length: 1.5 meter

1. It can be used to measure the rotational rate, Angle and acceleration of the object and the length measurement

2.
Suitable for intelligent control of various displacement measurement,
automatic fixed-length leather automatic guillotine machines, steel cut
length control, civil measured height human scale, Students racing
robots

AB 2phase output must not be directly connected with VCC, otherwise, will

burn the output triode, because different batches, and may not have the

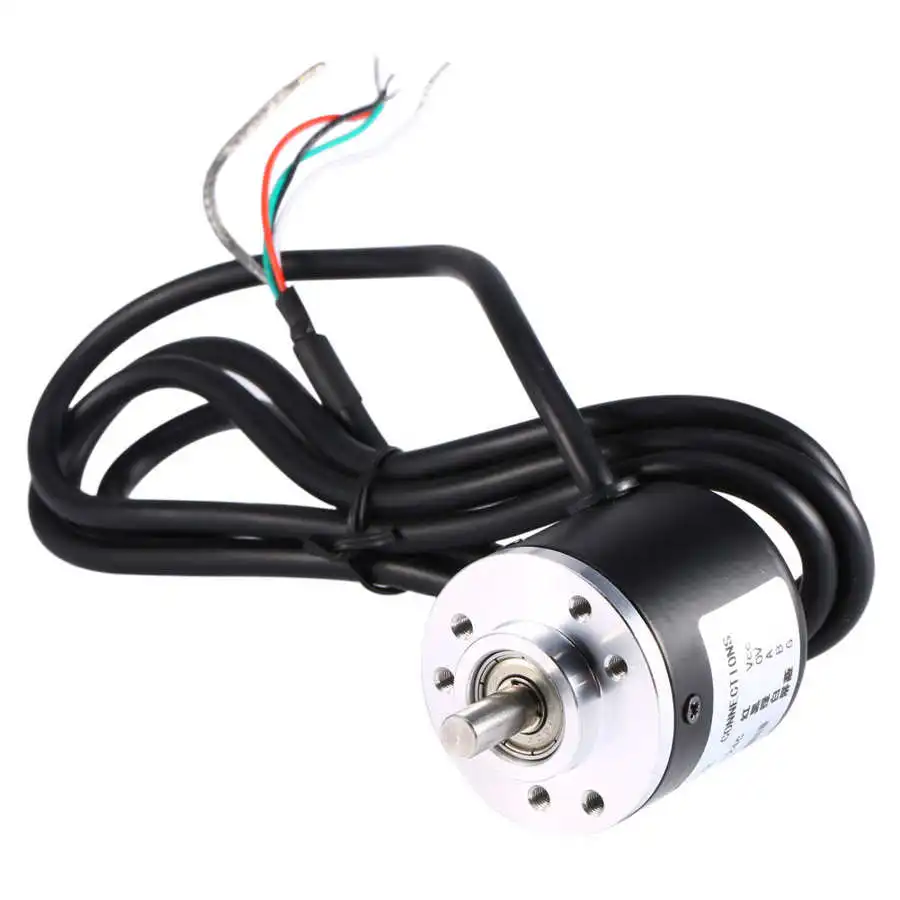

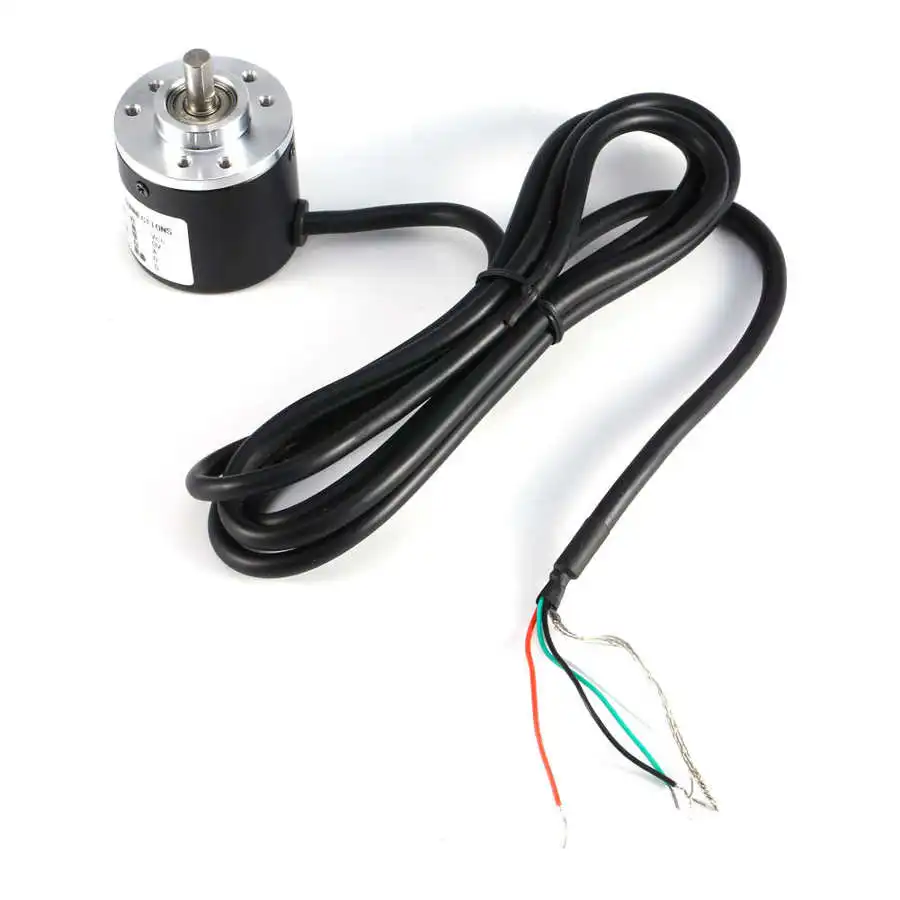

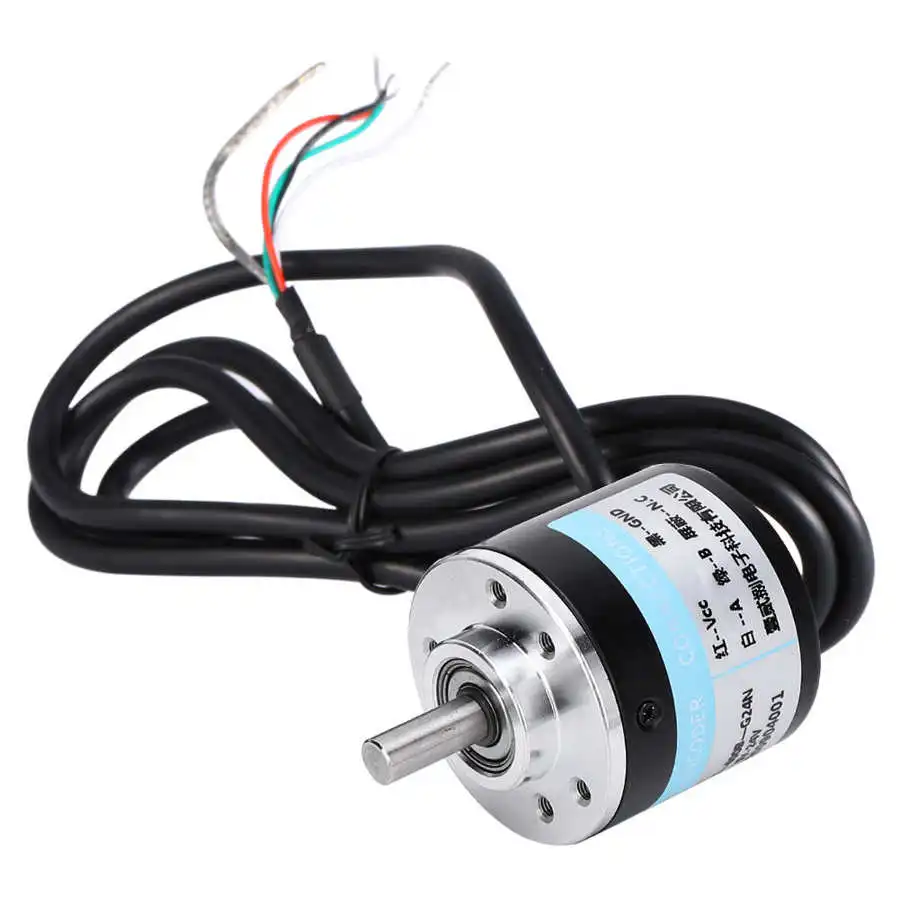

terminal.(Green = A phase, white = B phase, red = Vcc power +, black = V0)

1 x Encoder 600P/R Incremental Rotation Encoder
