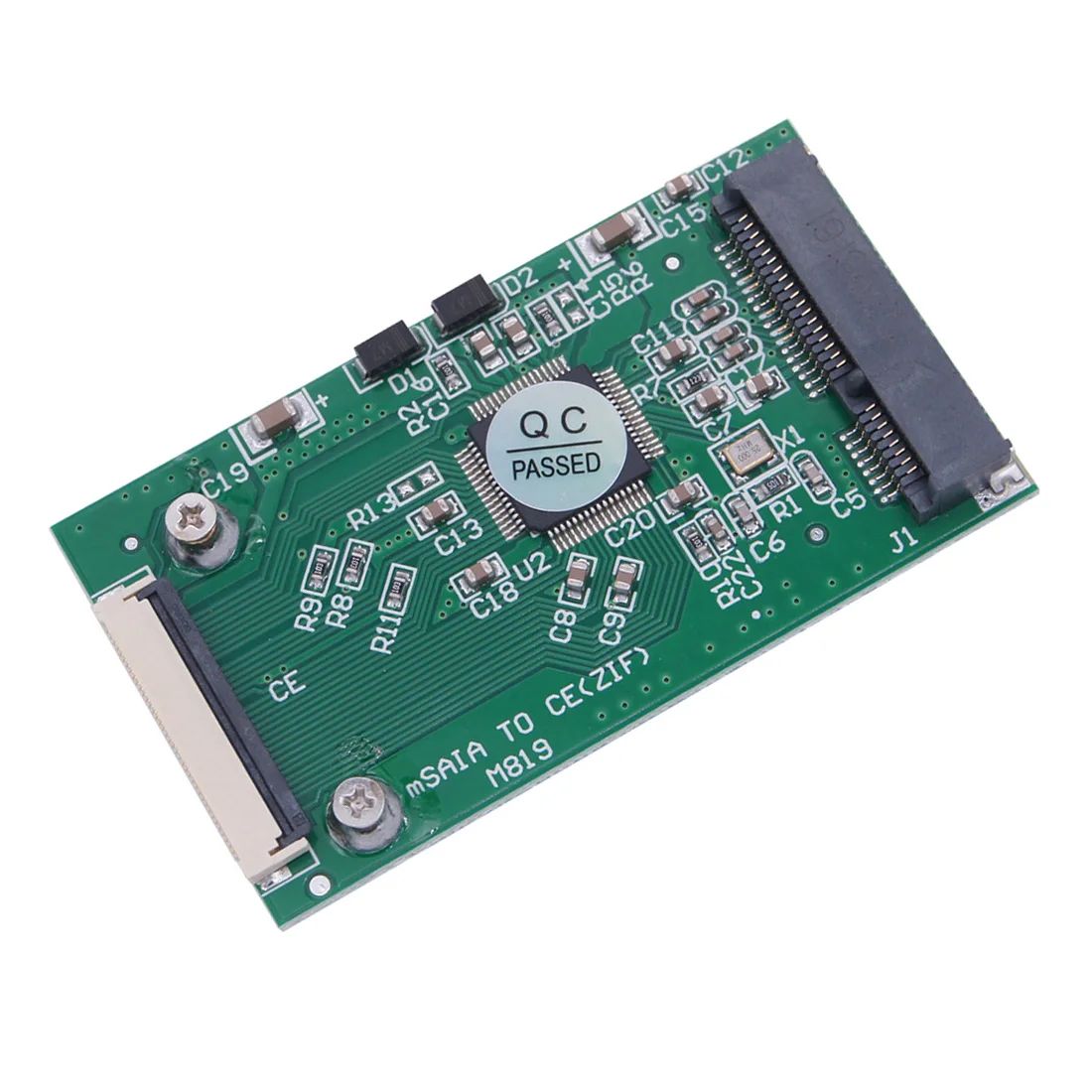

1 шт. Мини адаптер SATA mSATA PCI-E SSD на 40-контактный 1,8-дюймовый адаптер ZIF CE HDD Converter Card для подключения и соединения с компьютером.

1 шт. Мини адаптер SATA mSATA PCI-E SSD на 40-контактный 8-дюймовый ZIF CE HDD Converter Card для подключения и соединения с компьютером.

Attention.

1: This item only supports the 5cm SSD with mSATA interface definition in mini pci-e. mSATA is not equal to 1.8" MICRO SATA.

2: mini pci-e interface SSD has three pin definitions, one is called mSATA, mostly seen on Lenovo-compatible and THINPAD-compatible machines, which can also be called INTEL defined interface; another is called SATA MINI PCI-E, mostly seen on ASUS-compatible EPC and some tablet PCs, which is also called ASUS-compatible defined interface; the last one is PATA defined. Its essence is the IDE interface, mostly seen on machines such as the Dell-compatible MINI 9. The three interface definitions look exactly the same, so make sure you distinguish the interface definition of your SSD!

3: Does not support the use of any Apple devices!

Because of the thousands of master controls used in SSDs, this adapter card does not guarantee support for all models of SSDs. Even if it is the same model of the main control, because of the different designs of various manufacturers, there may be incompatible problems, in addition, the purpose of this adapter card is to transfer the other interface SSD through the chip into the ZIF interface, any chip has its compatibility, it is impossible to be 100% compatible with all computers. We do not guarantee 100% compatibility, but we will test the adapter card and ship it.

SSD (not for ASUS-compatible) plus adapter card, the size is the same as your original CE interface mechanical hard drive, SSD + adapter card, the size is: 6 cm long, 3.5 cm wide, 7 mm thick.
