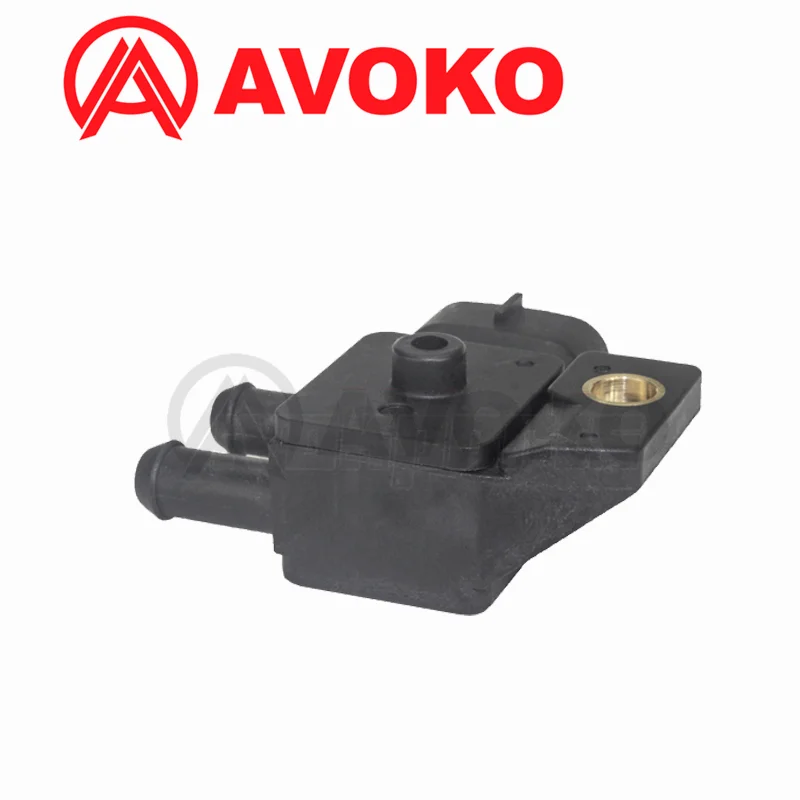

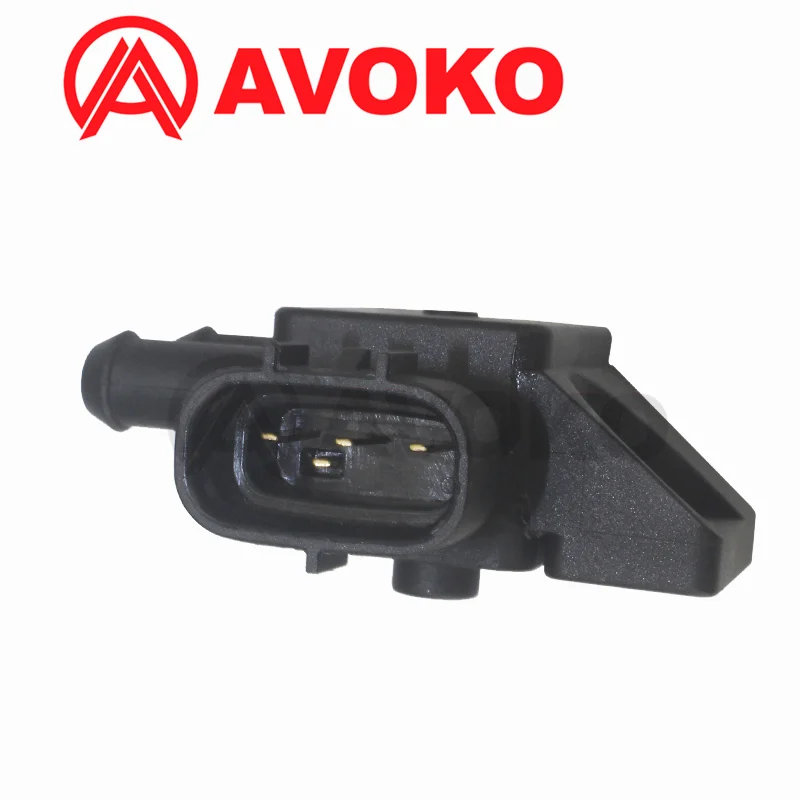

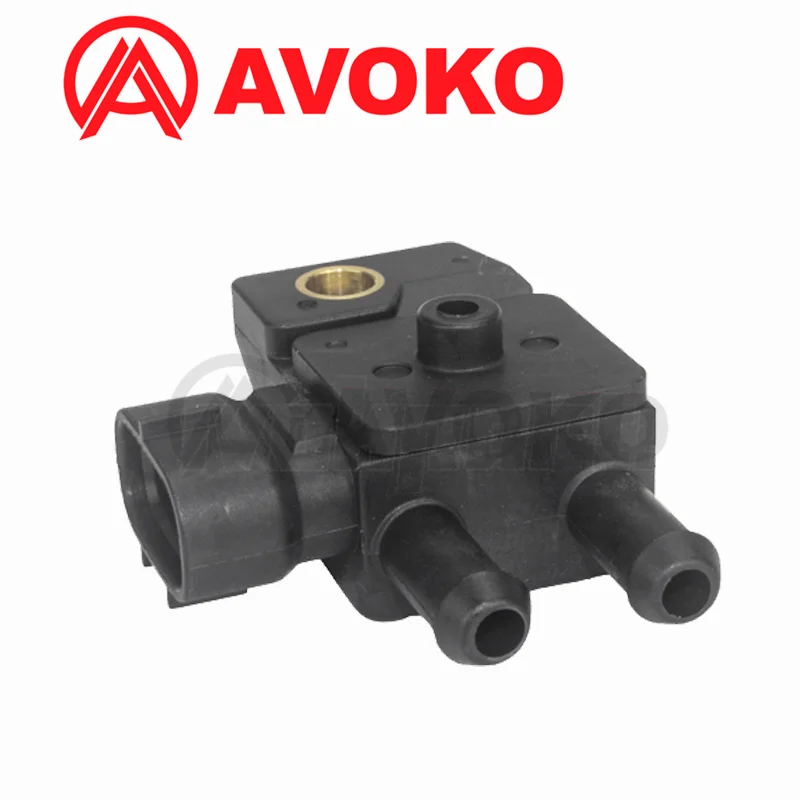

Датчик дифференциального давления выхлопных газов DPF для TOYOTA IQ RAV 4 Auris Corolla Land Cruiser 150 Hiace 1.4D 2.2D 3.0D 89480-42020 on.

Датчик дифференциального давления выхлопных газов DPF для TOYOTA IQ RAV 4 Auris Corolla Land Cruiser 150 Hiace 1.4D 2.2D 3.0D 89480-42020 on.

Warranty:Yes, 2 year warranty

Port Material:Plastic

Condition:In-stock, Brand-new, Unused, Undamaged

Features & Benefits:

High level of accuracy

With temperature compensation

Version with additional inte-grated temperature sensor

WHAT IS A DPF SENSOR?

The Differential Pressure Sensor or DPF Sensor is located in the engine compartment and is used to monitor the condition of the Diesel Particulate

Filter (DPF). Two connectionson the DPF Sensor are connected by pipes to the Inlet and Outlet of the DPF. The pipes allow the DPF Sensor to

measure the Inlet and Outlet pressures of the DPF. As the amountof particulate trapped by the DPF increases, the pressure at the Inlet side of

the DPF increases in comparison to the DPF Outlet. The DPF software uses this comparison, in conductionwith other data, to calculate the

accumulated amount of trapped particulate. By measuring the pressure difference between the DPF Inlet and Outlet air flow and the DPF

Temperature,the DPF software can determine if the DPF is becoming blocked and requires regeneration. A relatively clean DPF will return

a voltage of approximately0.5V. This rises to approximately4.5V for a full DPF. If the Differential Pressure Sensor returns a voltage of 4.5V

or more and all other conditions are met,regeneration of the DPF will occur.

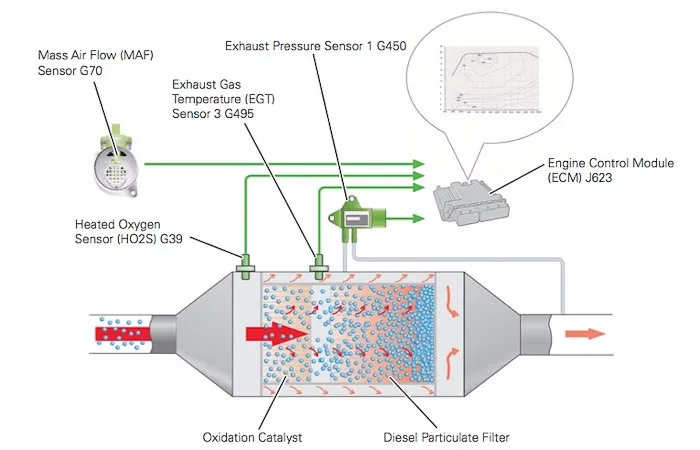

HOW IT WORKS?

Applications:
