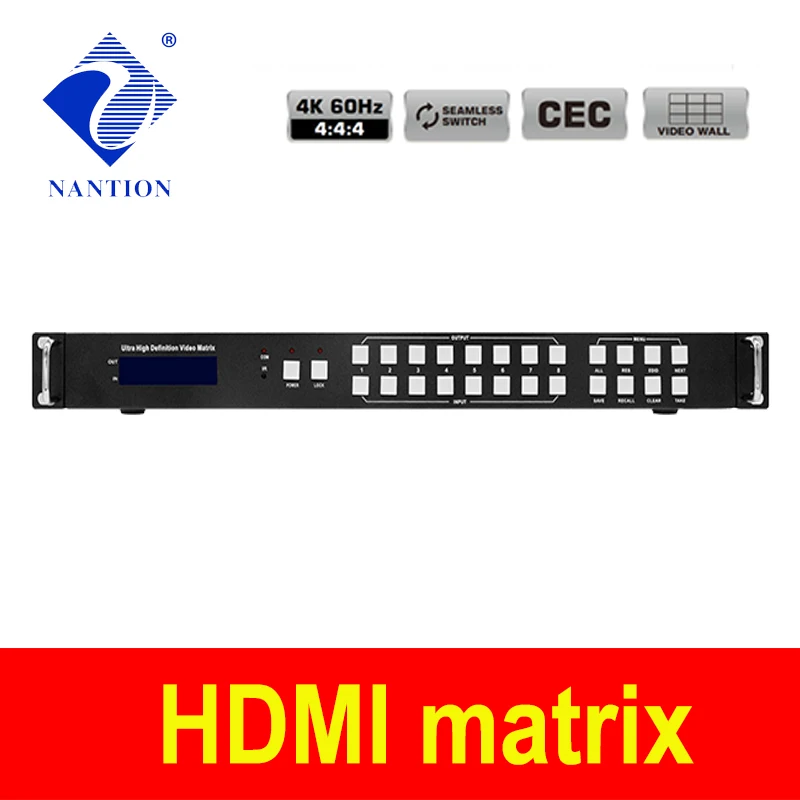

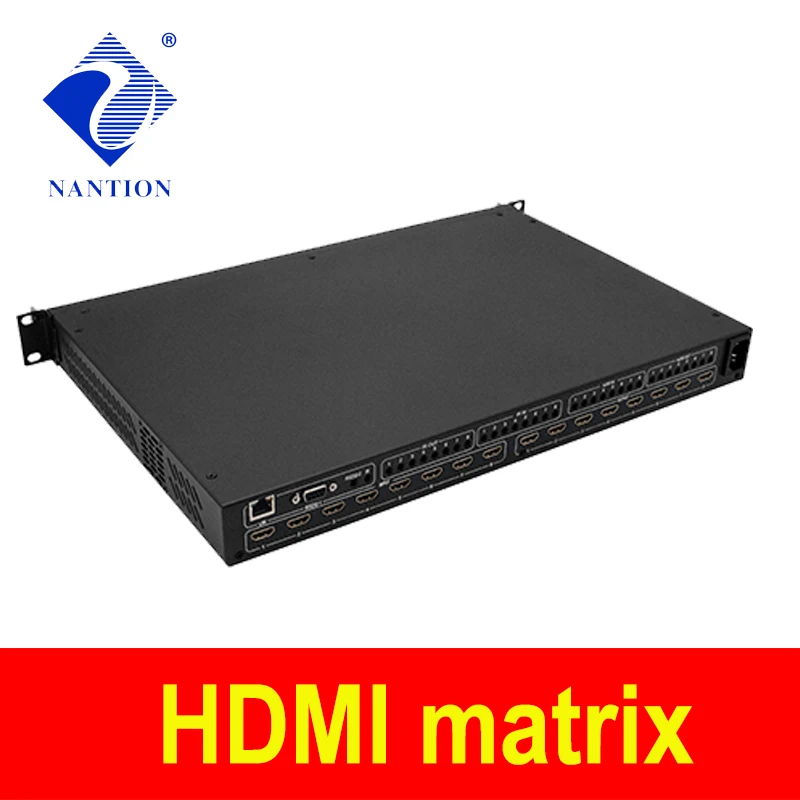

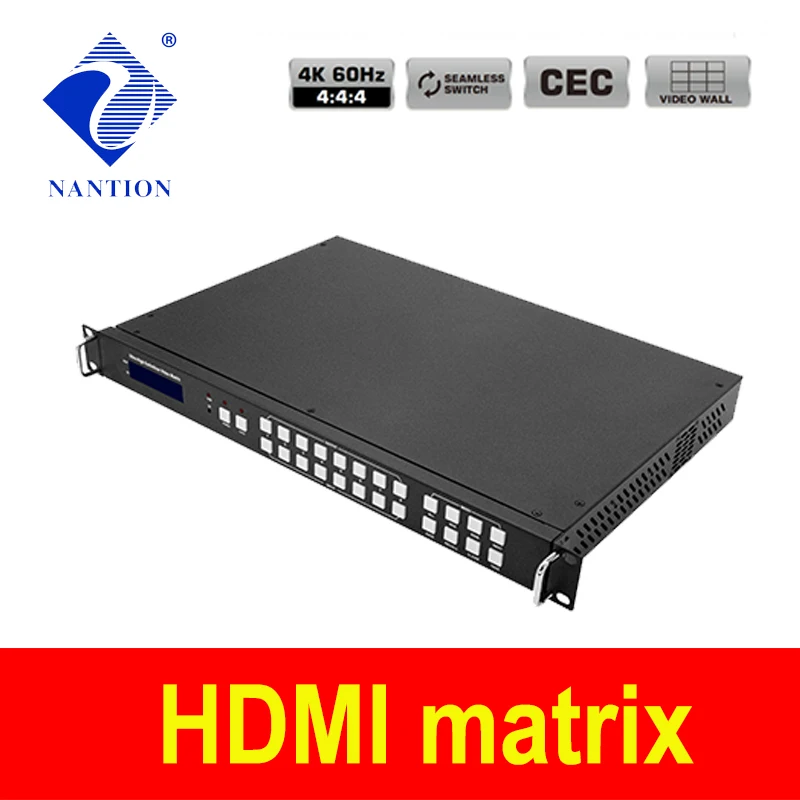

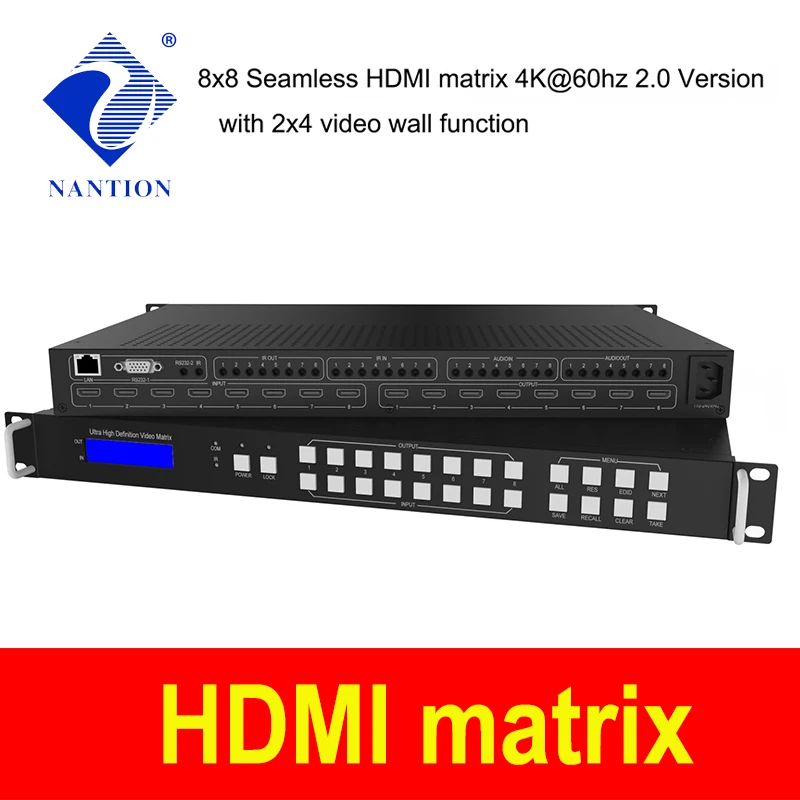

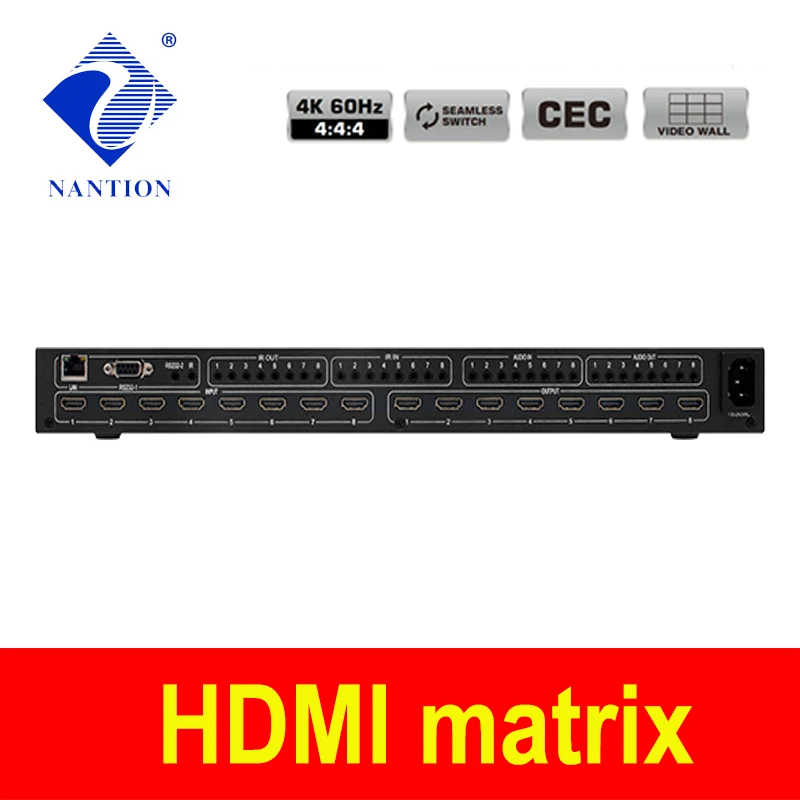

Seamless HDMI matrix 8x8 support 2x4 video wall 4K60hz 4:4:4 8x8 HDMI matrix

Introduction

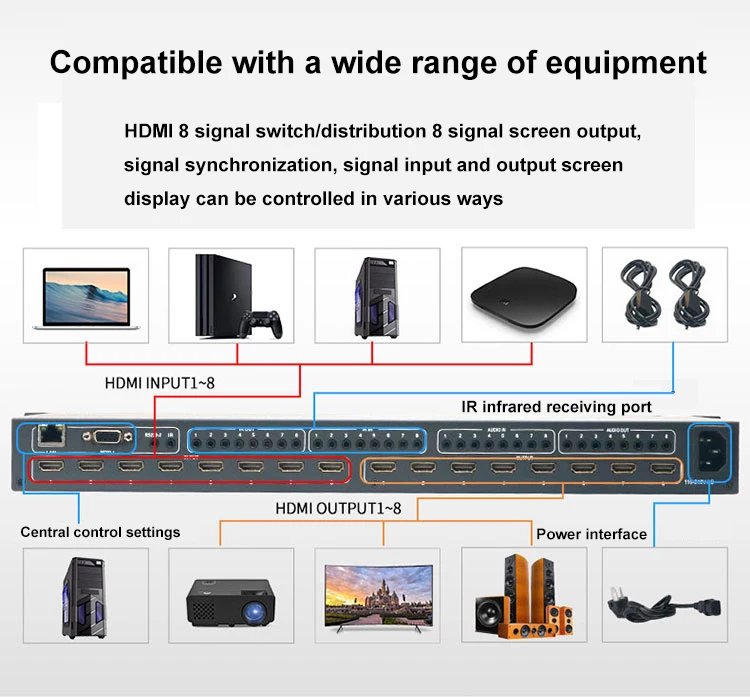

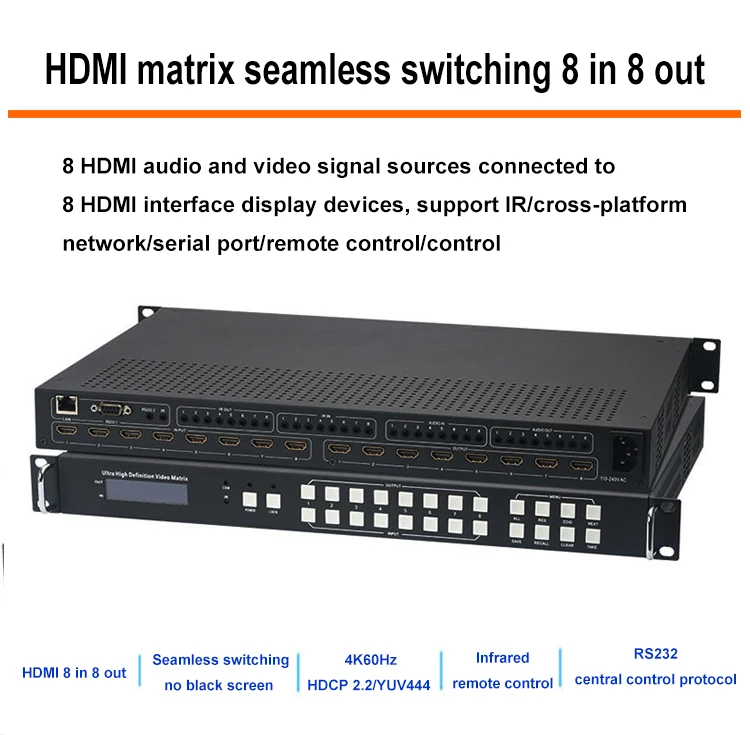

NTH88M is a 4K@60hz 4:4:4 HDMI 2.0 version 8x8 matrix,it support seamless function, switching no delay time.Support CEC and IR function and support front panel keys control, IR, and IP control(PC tool, Web GUI).It offers solutions for home, office, digital entertainment center, control center, conference room, school and corporate training environments.

Features

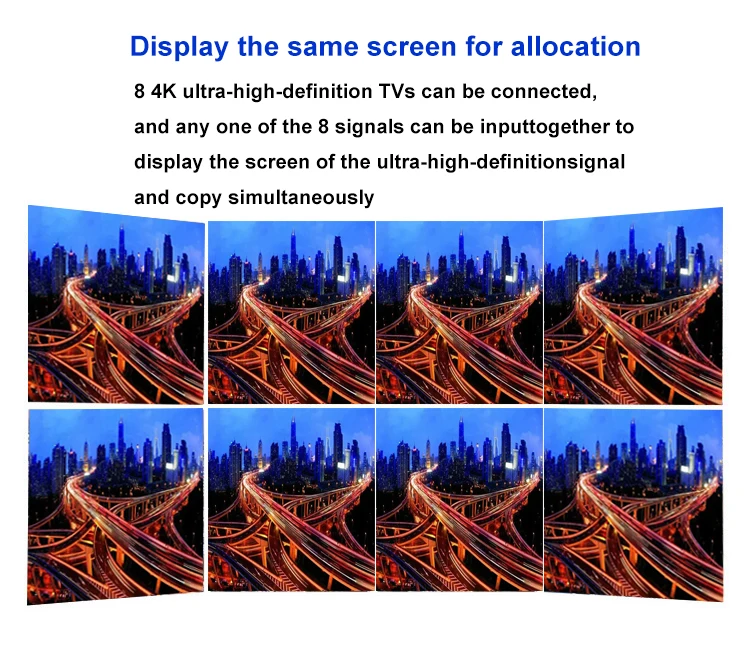

1.HDMI 2.0 version matrix 8x8 with 2x4 video wall.

2.Support 4K@6hz 4:4:4 18Gbps.

3.Seamless switching,no delay time.

4.Support CEC audio extraction and IR.

5.Smart EDID management.

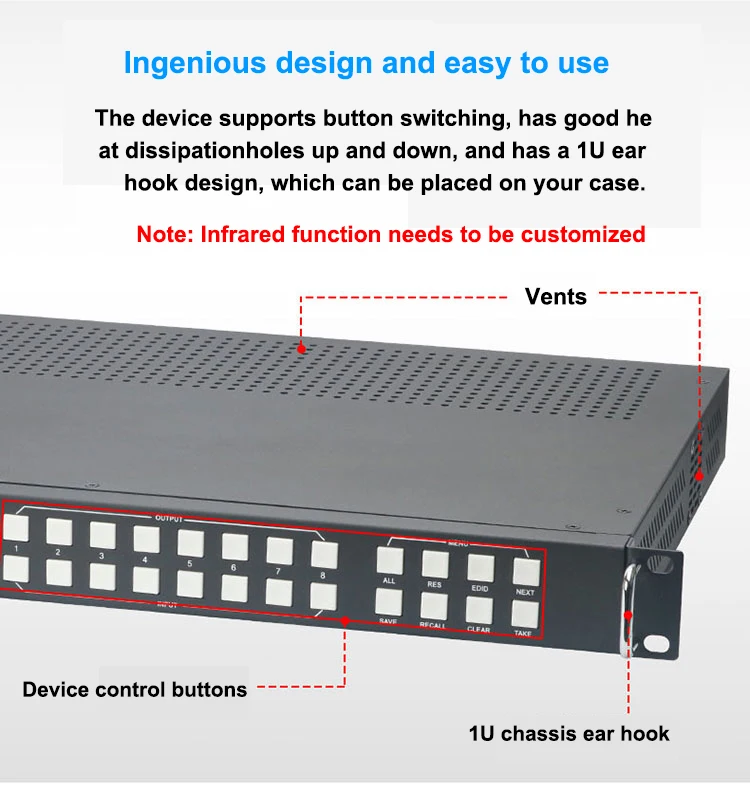

6.Support control via front keys,Rs232,TCP/IP control (PCtool and WEB GUI).

7.Power max 60W, weight 5KG, dimensions :430mm (W)×220mm (D)×44mm (H)

Specifications

Technical

HDMI Compliance

HDMI 2.0

HDCP Compliance

HDCP 2.2

Video Bandwidth

18Gbps

Video Resolution

Up to 4K60 4:4:4

Color Space

RGB, YCbCr 4:4:4/4:2:2

HDMI Amplitude

T.M.D.S +/- 0.4Vpp

Differential Impedance

100±15ohm

ESD Protection

Human-body Model:

±8kV (Air-gap discharge) , ±4kV (Contact discharge)

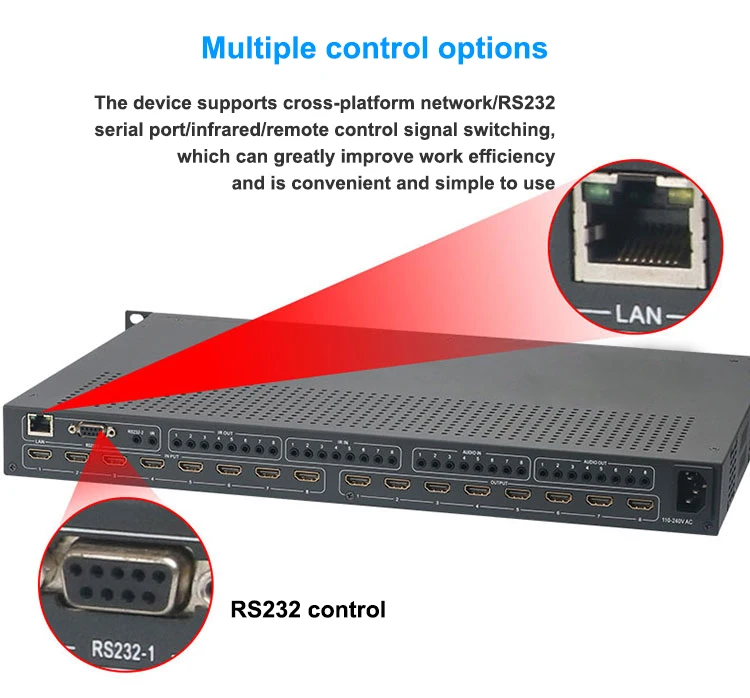

RS232/Ethernet Control

Baud rate and Protocol

Baud rate: 9600, data bit: 8

Stop bit: 1, no parity checking

Ethernet

IE10.0+,HTML5

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

430mm (W)×220mm (D)×44mm (H)

Weight

5Kg

Power Supply

AC 110 - 240V

Power Consumption

100W (Max)

Operating Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

-20°C ~ 70°C / -4°F ~ 158°F

Relative Humidity

10%~50% RH (non-condensing)

Please Note

Before you place the order, please tell us which kind of power plug do you need? We have the standard of
UK/EU/AU/US.Thanks
