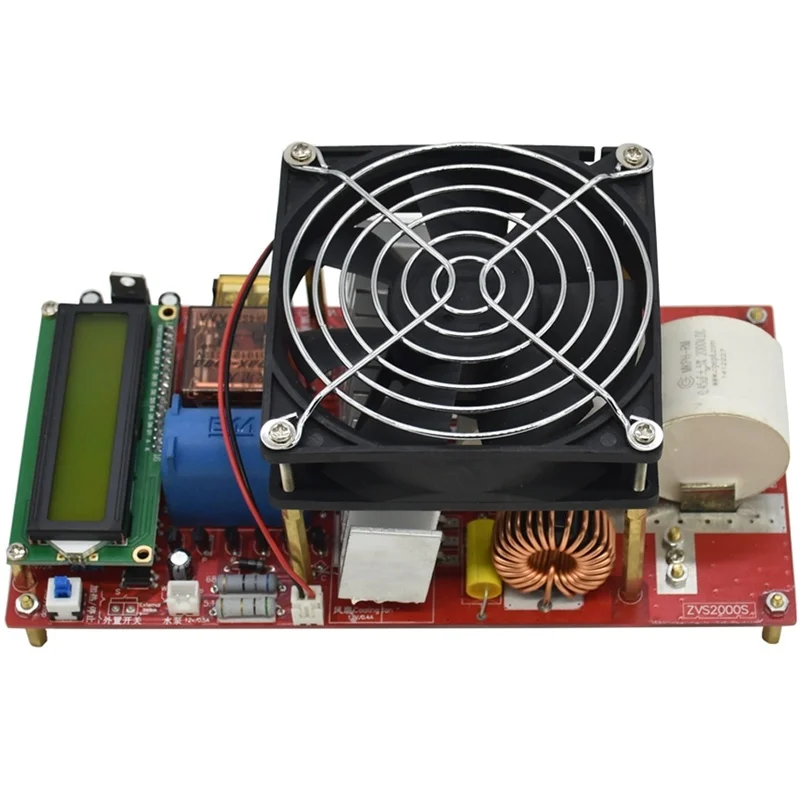

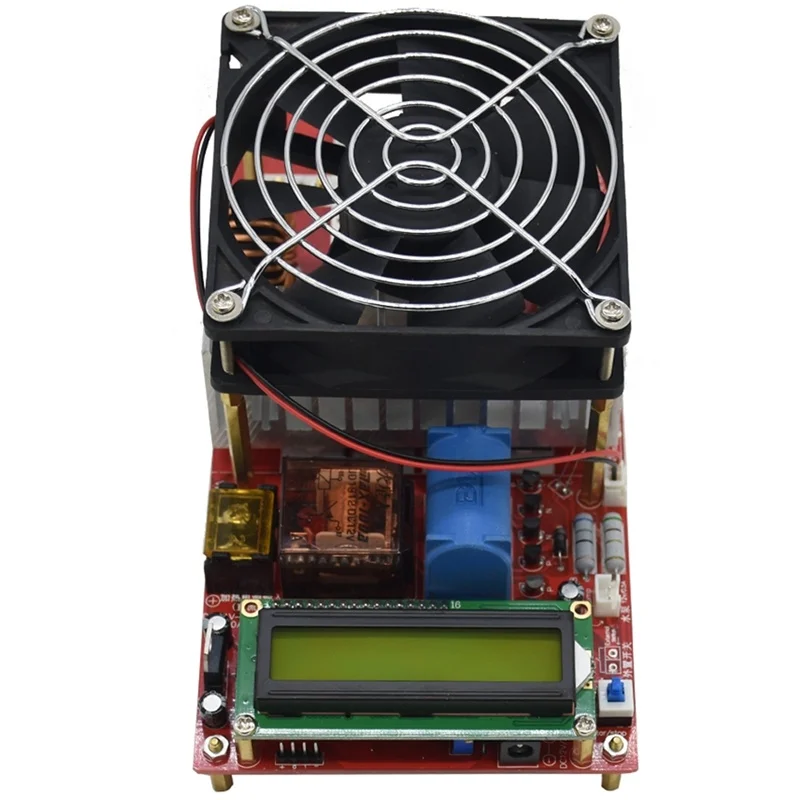

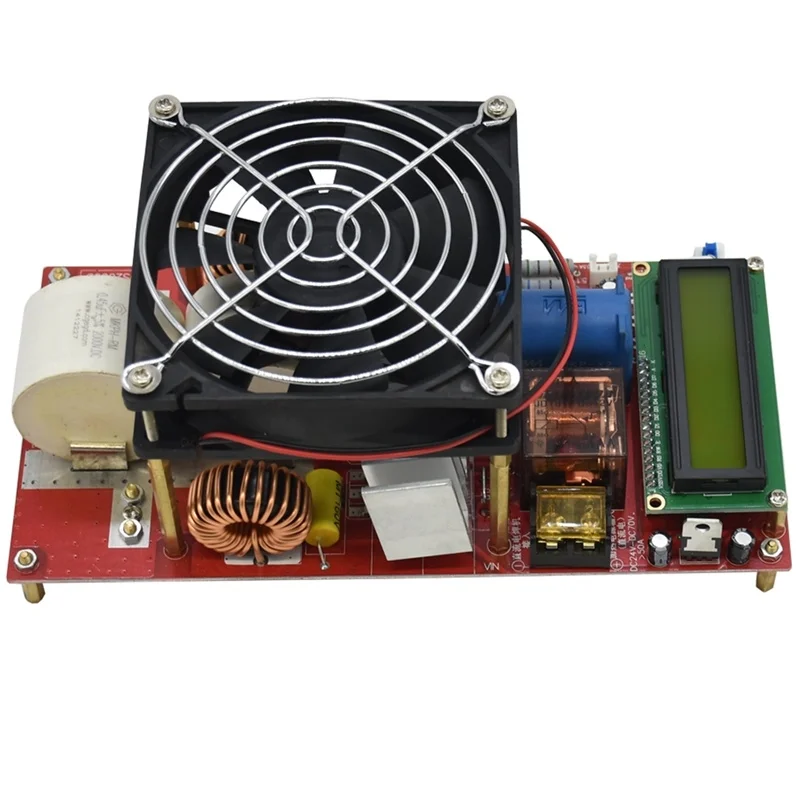

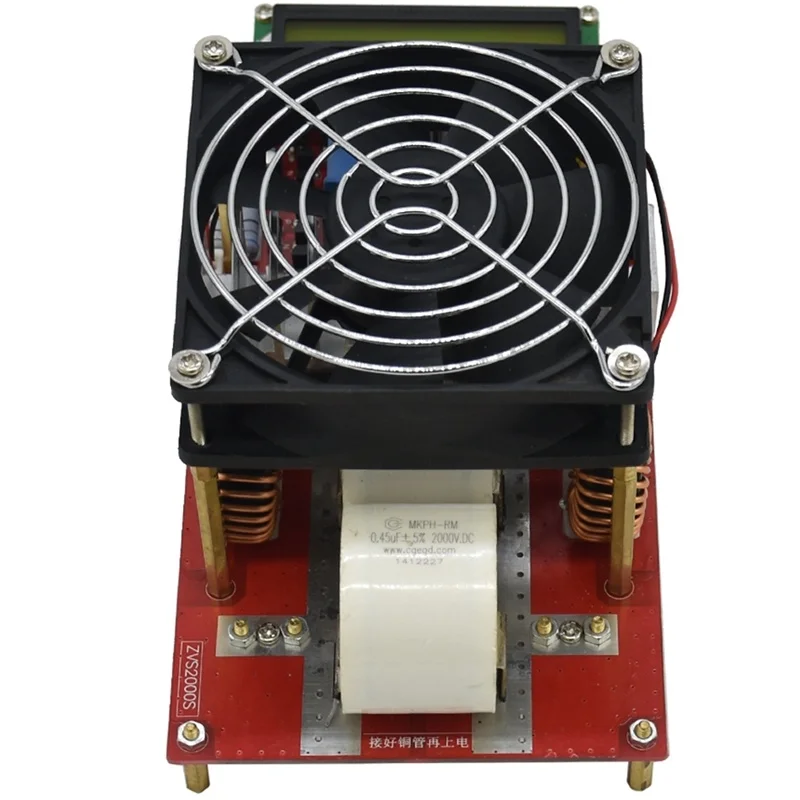

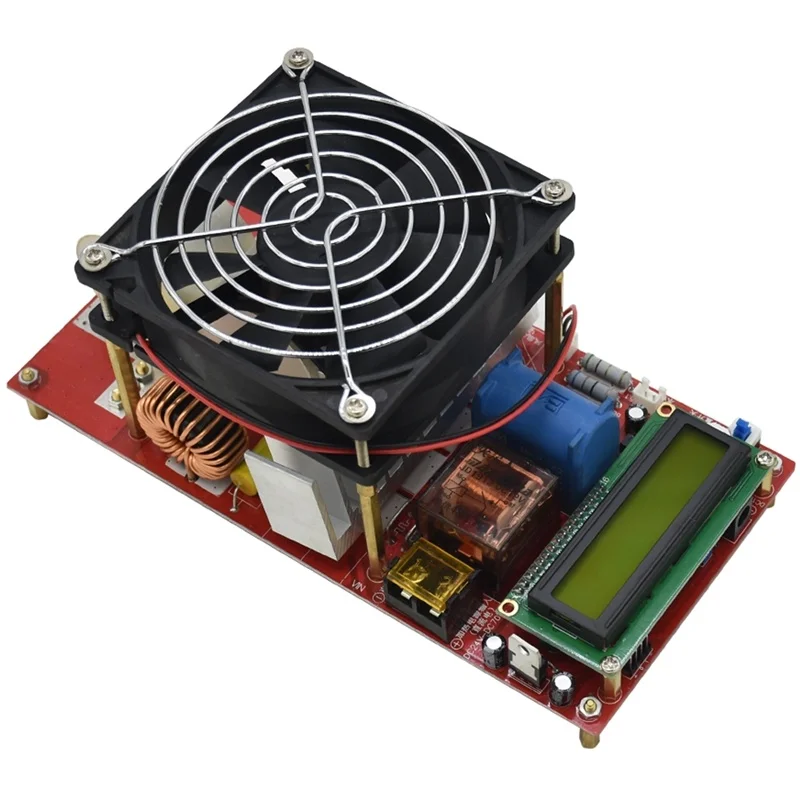

ZVS 2000W Electric Melt Metals Induction Heater Module Temperature Protection Generator Tool High Voltage Board With Coil Driver |

ZVS 2000W Electric Melt Metals Induction Heater Module Temperature Protection Generator Tool High Voltage Board With Coil Driver |

ZVS 2000W Electric Melt Metals Induction Heater Module Temperature Protection Generator Tool High Voltage Board With Coil Driver

Features:
This induction heater need 2000W power supply to Heating material, 48-53V power supply is recommend.
Short circuit/overload: input current is greater than 40A, voltage greater than 55V, enter protection.
Temperature protection: heatsink temperature higher than 65 °C, enter protection. under 65 °C back to normal.
Undervoltage protection: Input voltage is less than 20V, enter protection. Input voltage up to 24V back to normal.
Power tube broken/short circuit, display MOS-XX.
Only iron can be heated directly. Other metal materials need graphite crucible.
Copper pipe and water pipe connections, the need to seal to prevent water leakage.
Please installed the copper coil and water pump, then connect the power supply. (can not empty load)


Specifications:
Colour: Black
Material: Metal + PCB
Input voltage: DC 30V--60V
Input current: 48A (Max)
Power: 2000W
Plug Type :US Plug
Size: About 300x140x120mm
Copper tube coil: About 55mm

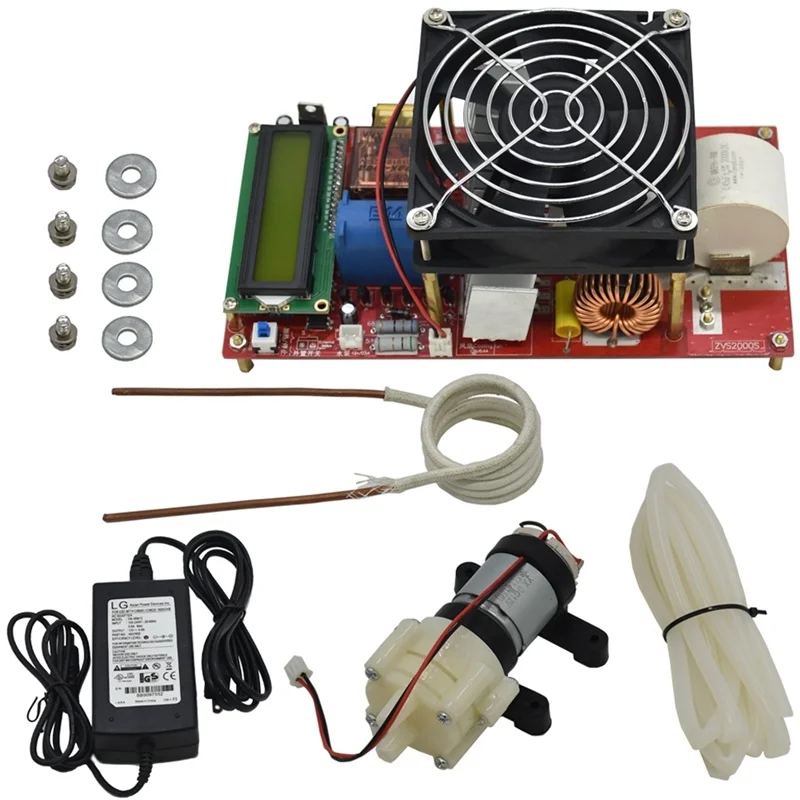

Package included:
1 * Induction Heating Board
1 * Spiral copper pipe
1 * Water pipe
1 * Mini Water Pump
1 * Adapter


Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
