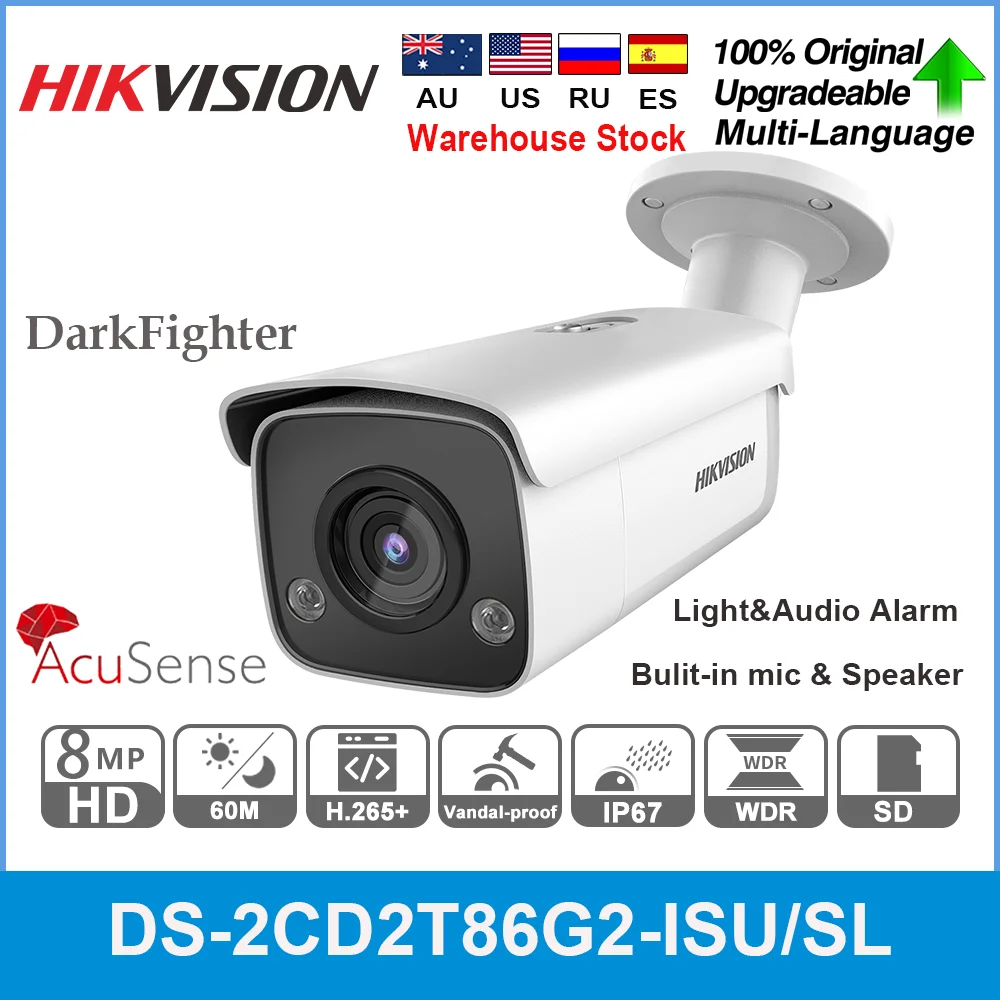

Hikvision Original 4K 8MP IP Camera DS-2CD2T86G2-ISU/SL DarkFighter AcuSense Bullet IP67 60M Smart H.265+ SD Slot Audio Alarm |

Hikvision Original 4K 8MP IP Camera DS-2CD2T86G2-ISU/SL DarkFighter AcuSense Bullet IP67 60M Smart H.265+ SD Slot Audio Alarm |

If you order ≥ 4pcs,we could send items via express shipping for free

Since all original international version of hikvision products were stopped providing in China and most of sellers can not get enough stock for business . We need a longer time to prepare buyers' order

If you need a large order, please contact with us. we can prepare order for you.

4 K Acusense Stobe Light and Audible Warning Fixed Bullet Network Camera

>High quality imaging with 8 MP resolution
>Excellent low-light performance with powered-by-DarkFighter technology
>Clear imaging against strong back light due to 120 dB true WDR technology
>Efficient H.265+ compression technology
>Focus on human and vehicle targets classification based on deep learning
>Active strobe light and audio alarm to warn intruders off
>Provides real-time security via built-in two-way audio

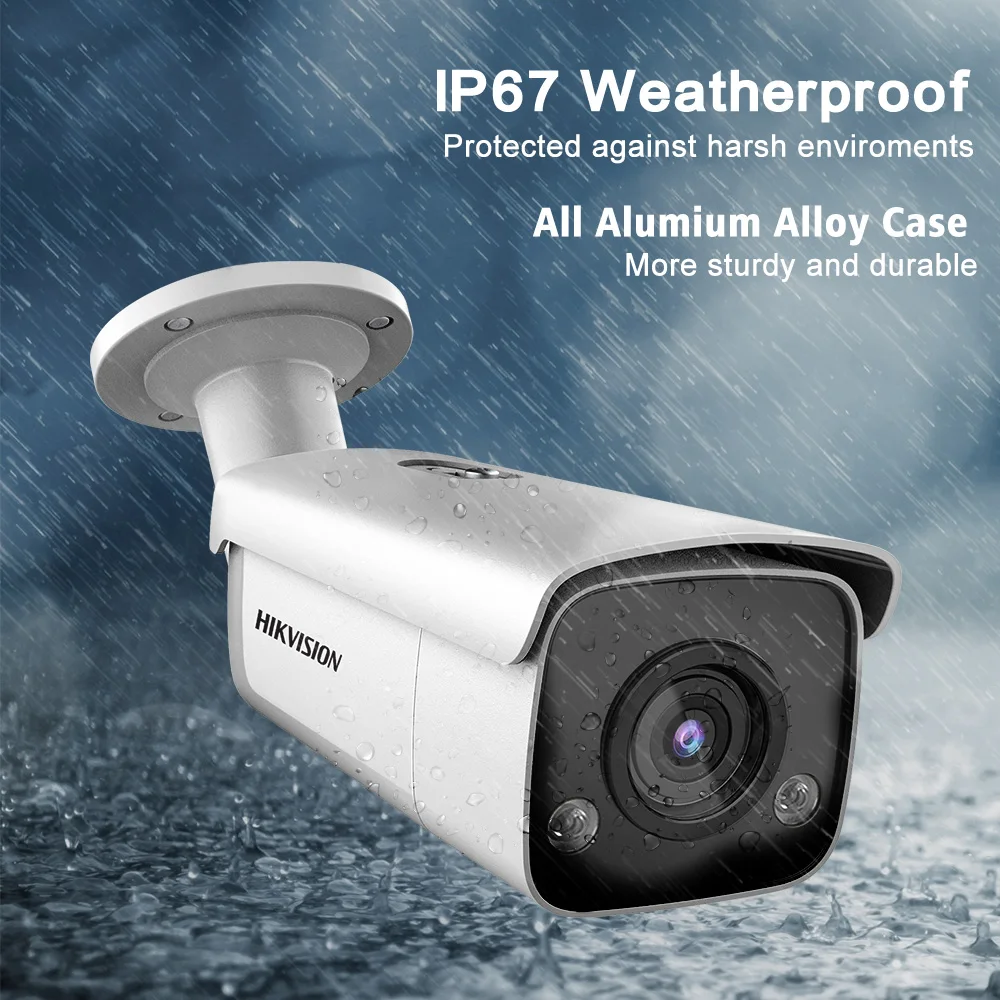

>Water and dust resistant (IP67)

Camera

Image Sensor:1/1.8" Progressive Scan CMOS

Min. Illumination:Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed:1/3 s to 1/100,000 s

Slow Shutter:Yes

P/N:P/N

Wide Dynamic Range:120 dB

Day & Night:IR cut filter

Angle Adjustment:Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type:Fixed focal lens, 2.8, 4, and 6 mm optional

Iris Type:Fixed

Focal Length & FOV:2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131° 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°

Aperture:F1.6

Lens Mount:M12

DORI

DORI:2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m

Illuminator

Supplement Light Type:IR

IR Range:Up to 60 m

IR Wavelength:850 nm

Smart Supplement Light:Yes

Visual Alarm:Yes

Video

Max. Resolution:3840 × 2160

Main Stream:50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream:50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.

Video Compression:Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.

Video Bit Rate:32 Kbps to 16 Mbps

H.264 Type:Baseline Profile/Main Profile/High Profile

H.265 Type:Main Profile

H.264+:Main stream supports

H.265+:Main stream supports

Bit Rate Control:CBR/VBR

Scalable Video Coding (SVC):H.264 and H.265 encoding

Region of Interest (ROI):1 fixed region for main stream and sub-stream

Audio

Audio Type:Mono sound

Environment Noise Filtering:Yes

Audio Sampling Rate:8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression:G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio Bit Rate:64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

Simultaneous Live View:Up to 6 channels

API:Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

User/Host:Up to 32 users. 3 user levels: administrator, operator and user

Security:Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface

Network Storage:MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported.

Client:iVMS-4200, Hik-Connect, Hik-Central

Web Browser:Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


SNR:≥ 52 dB

Target Cropping:Yes

Day/Night Switch:Day, Night, Auto, Schedule

Image Enhancement:BLC, HLC, 3D DNR

Image Parameters Switch:Yes

Image Settings:Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser

Interface

Alarm:1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Audio:1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 2.2KΩ, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 Ω, interface type: non-equilibrium

Built-in Speaker:Power: 2 W. Max. sound pressure level: 10 cm: 97 dB.

Built-in Microphone:Yes

On-Board Storage:Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Hardware Reset:Yes

Ethernet Interface:1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event:Motion detection (human and vehicle targets classification), video tampering alarm,
exception

Smart Event:Scene change detection

Deep Learning Function

Face Capture:Yes

Perimeter Protection:Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Supports human and vehicle targets classification

General

Linkage Method:Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger
recording, trigger capture, trigger alarm output, audible warning, strobe light

Web Client Language:33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function:Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel
counter

Software Reset:Yes

Firmware Version:V5.5.112

Storage Conditions:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating
Conditions:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply:12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3

Power Consumption and Current:12 VDC, 0.88 A, max. 10.5 W
PoE (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12.5 W

Power Interface:Ø5.5 mm coaxial power plug

Camera Material:Metal

Camera Dimension:Ø105 mm × 287.6 mm (Ø4.1" × 11.3")

Package Dimension:386 mm × 156 mm × 155 mm (15.2" × 7.5" × 7.1")

Camera Weight:Approx. 1130 g (2.5 lb.)

With Package Weight:Approx. 1654 g (3.6 lb.)

Approval

EMC:FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety:UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 );
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)

Environment:CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection:IP67 (IEC 60529-2013)

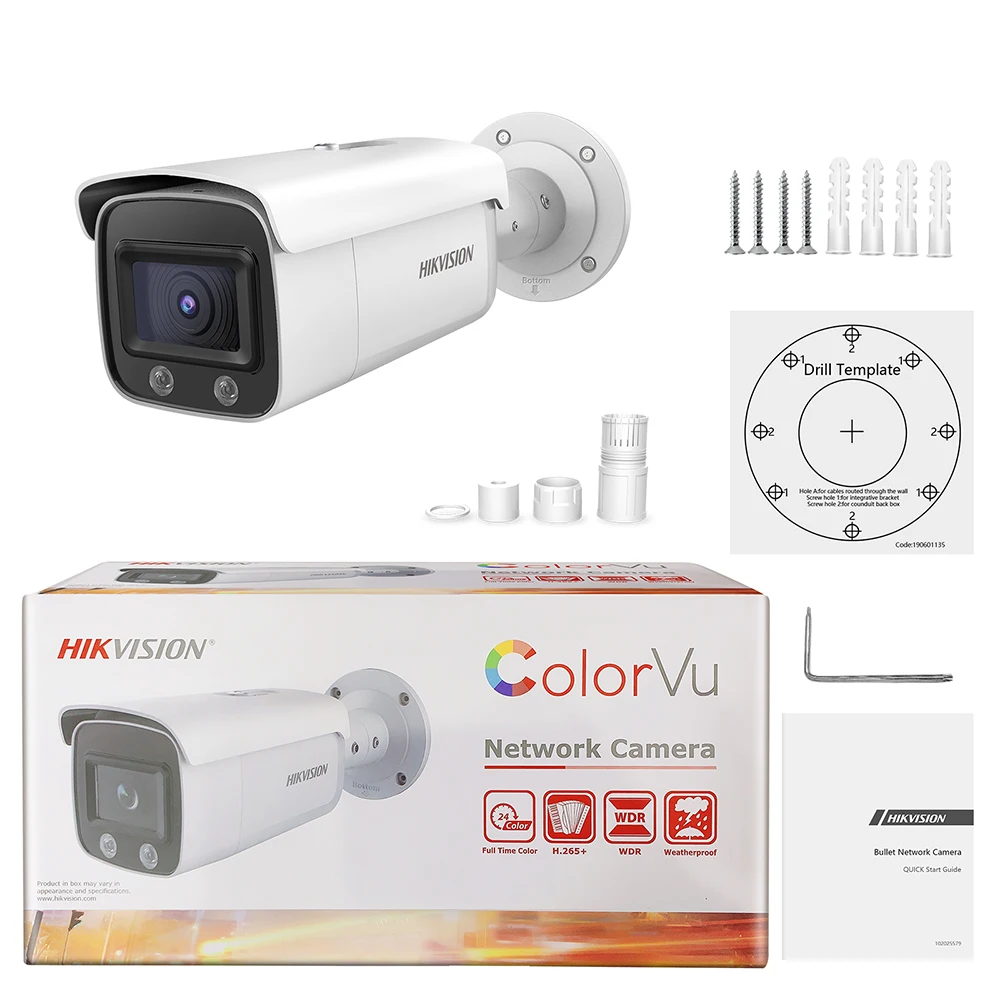

1.Camera*1
2.Wiring cap*1
3.Screw driver*1
4.Screw*1lot
5.Location hole paper*1
6.CD*1
