DC 12V 2 in 1 Pump Pour Water Automatic Drainage Controller Module Liquid Level Sensor Switch Relay Module for Motor Fish Tank

Description:
1: Widely used
2: Simple and easy to understand
3: Easy to use
4: Standby current 9MA
5: Working current 40MA


Feature:
1 Working voltage: DC 12V (DC 10-15V)
2 Standby current 9MA
3 Working current 40MA
4 Dimensions: 44mm X 29mm X 19mm
5 Weight: 19 grams
6 Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC


There are two purposes for connecting the NO and NC ports of the relay:
The water pump is connected to the automatic water injection tower at the COM NC port
The water pump is connected to the COM NO port and automatically pumps water from the water tower


Notes:

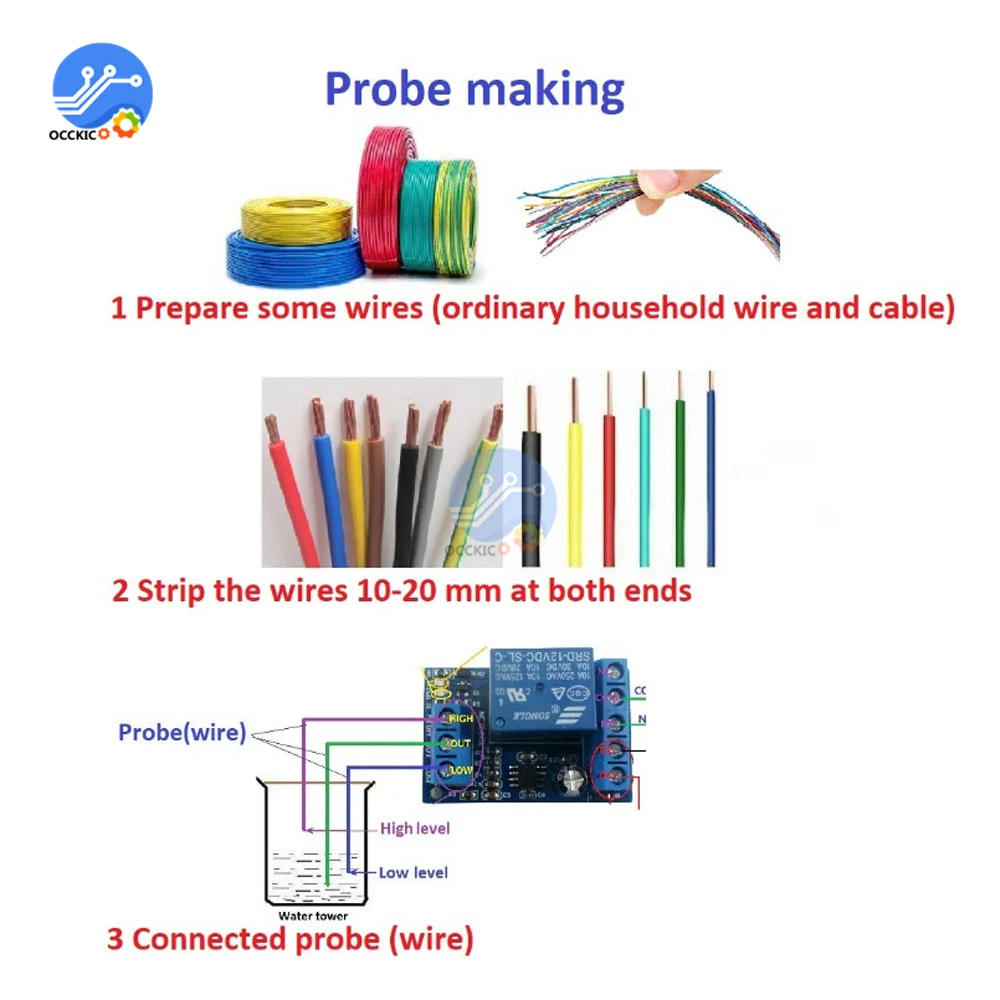

The probe (wire) is not included in the package. No need to use special probes, use household wires to make probes
For safety, please use a well-isolated DC power supply


Application:
Automatic water supply system for household water tower
Aquarium fish tank water changing system
Automatic filling of water tower
Automatic pumping of water tower
Conductive liquid automatic control
Automatic feeding system for poultry and livestock
Farm automatic water supply system
And other occasions that require automatic water supply and water change.
Solenoid valve water pump motor automatic control

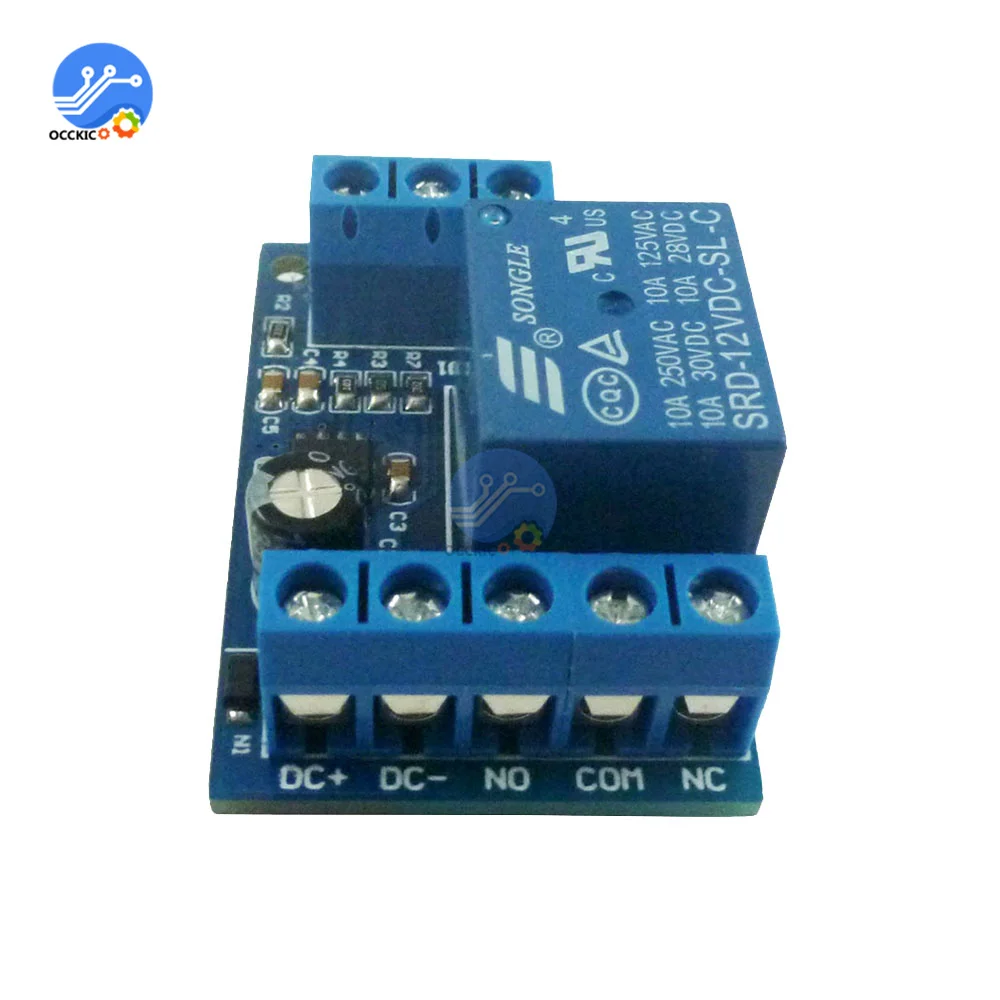

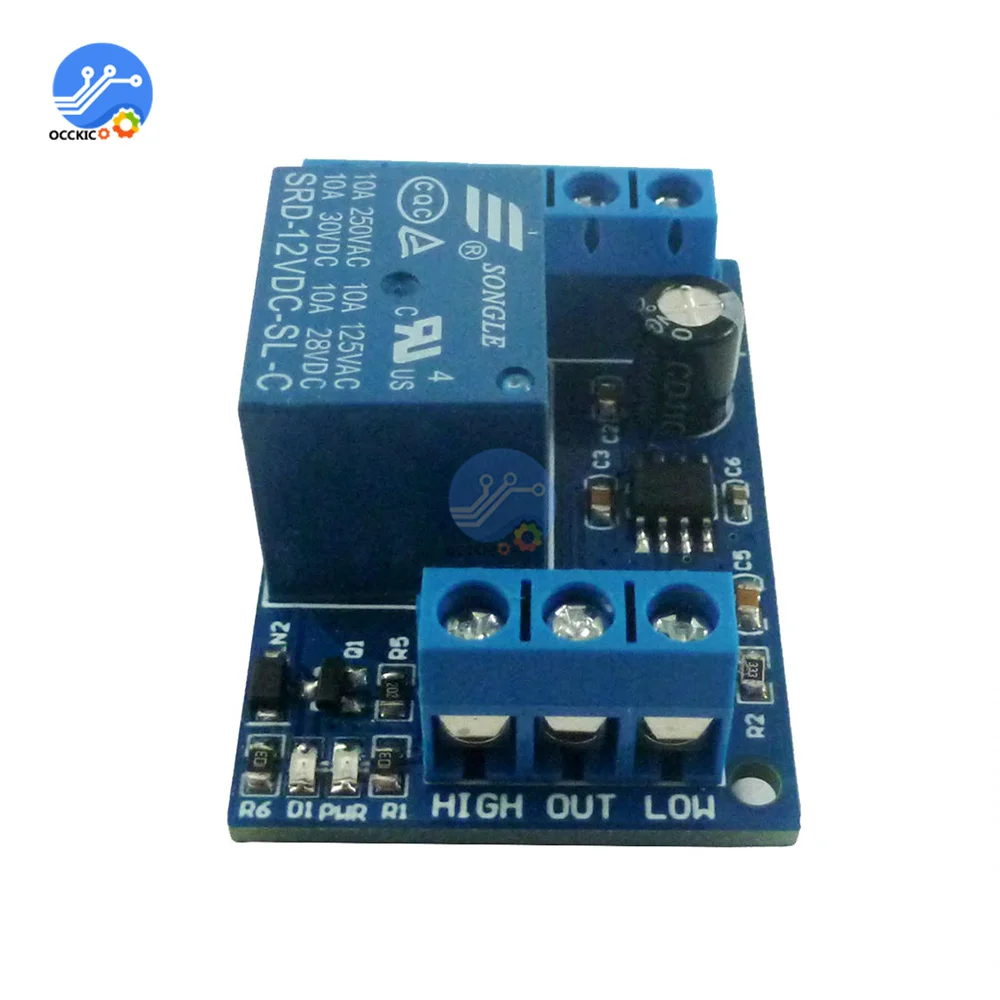

Interface Description:
HIGH: Upper limit probe
OUT: output probe
LOW: Lower limit probe
DC+: positive power supply
DC-: Negative power supply
NC: Relay normally closed contact
COM: Relay common contact
NO: Relay normally open contact

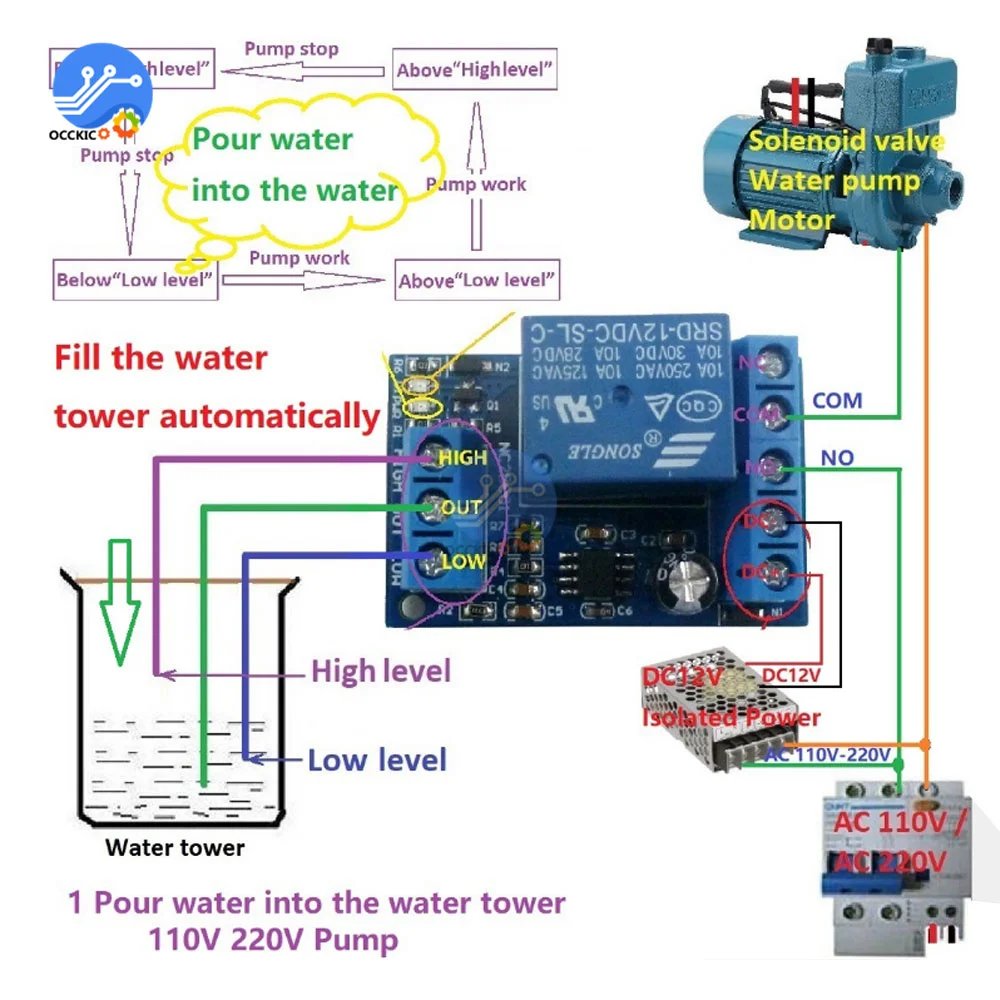

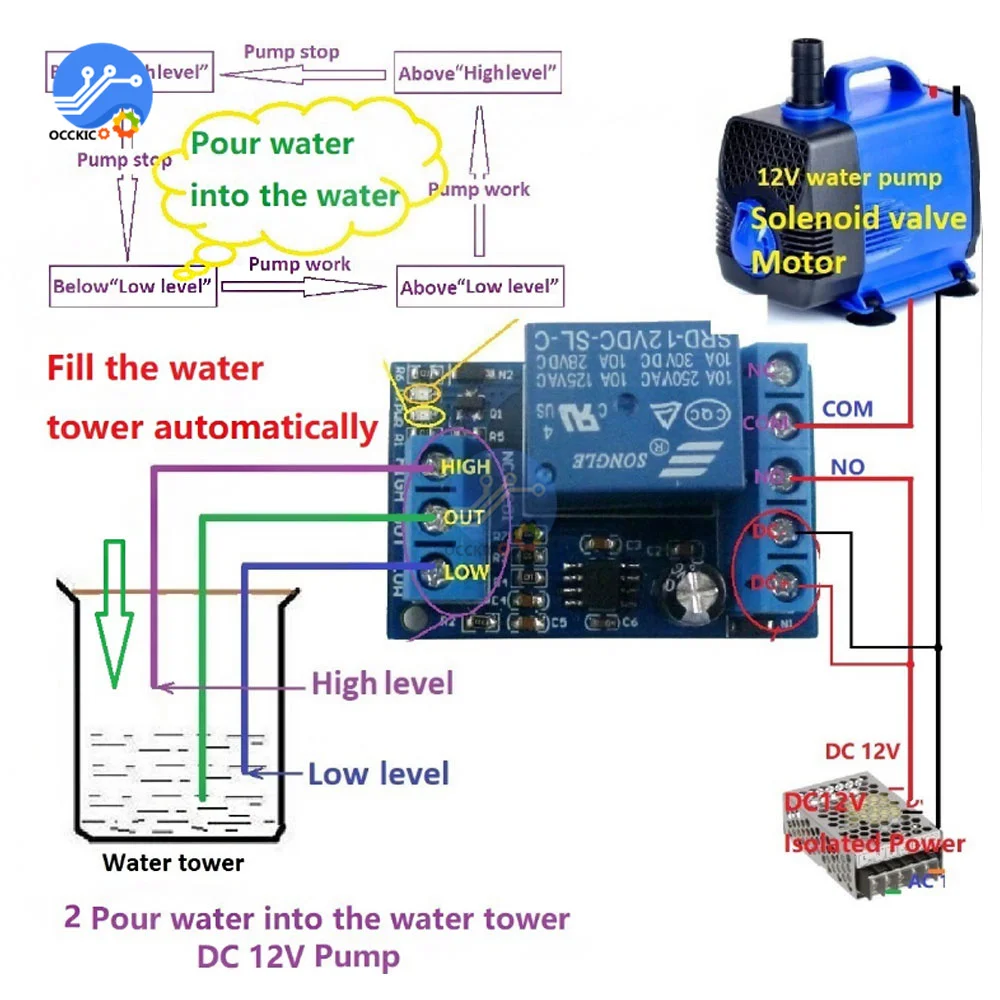

Working principle (automatic water injection tower):
The water level rises: when the water level is lower than the "low level", the water pump starts to supply water to the water tower; when the water level is higher than the "high level", the water pump stops water supply.

The water level drops: When the water level is lower than the "high level", the water pump does not work and the water level continues to drop. When the water level is lower than the "low water level", the water pump starts to supply water to the water tower.


Working principle (automatic pumping of water tower):
Contrary to "automatic filling of water tower"


Package Include:
1 x Controller Module
